• [6.9.0 Beta 30] Unable to pass through a video card in the VM form editor

    • Retest Minor

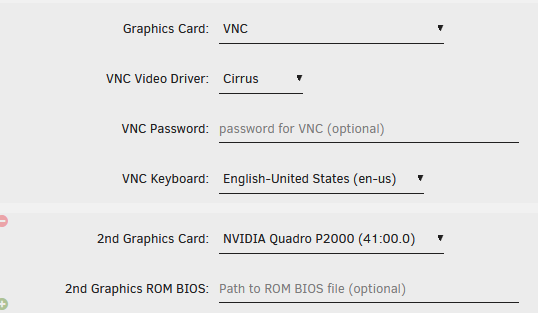

    In a new VM configuration (as well as older ones), whenever I try to change from VNC to my P2000 and save, it assigns it as a 2nd graphics card instead and leaves the VNC as the primary.




    User Feedback

    Recommended Comments

    After changing the VNC port to the P2000, I edited the XML and removed this block

        <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='' keymap='en-us'>
          <listen type='address' address=''/>
          <model type='cirrus' vram='16384' heads='1' primary='yes'/>
          <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>

    I then saved it and edited the VM again and switched it to the form editor. It still had VNC listed, probably by default. I changed it to the P2000 again and the change stuck.

    Edited by jbartlett
    Link to comment
    Share on other sites

    I can confirm that I see the same behaviour, on both of my Unraid systems running 6.9.0 beta 30. Was also able to fix using the same workaround.

    • Thanks 1
    Link to comment
    Share on other sites
