I've only just plugged this card back in, though I am now on a different computer. My setup is displaying peculiar behaviour as follows:

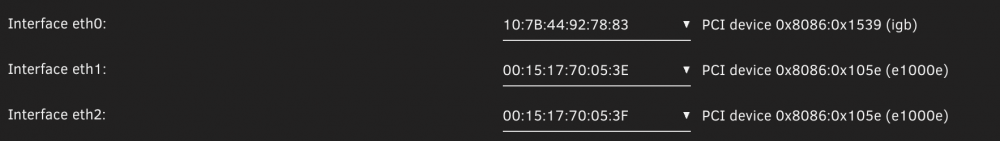

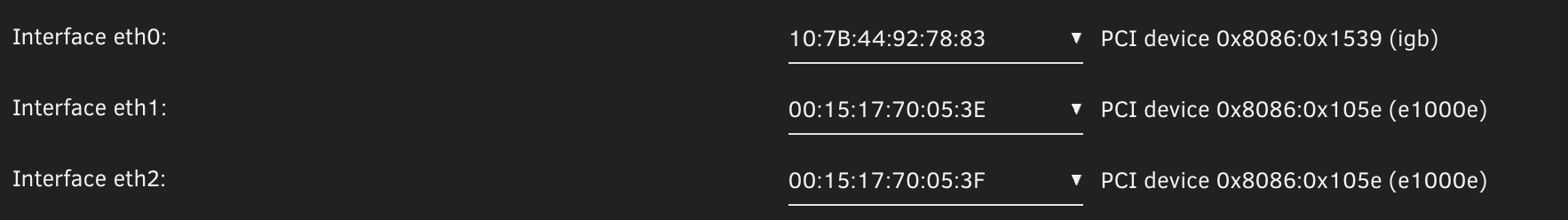

Onboard NIC Eth0: Cable plugged in - ping works
Dual Port NIC Eth1: Cable plugged in - ping works
Dual Port NIC Eth2: Cable unplugged - ping works
If I swap the port the cable is in:
Onboard NIC Eth0: Cable Plugged in - ping works
Dual Port NIC Eth1: Cable unplugged in - no rely from ping
Dual Port NIC Eth2: Cable plugged in - no reply from ping
Anyone have any bright ideas why an unplugged port responds to a ping? I don't think this is a hardware issue - seems more like a driver issue?
I assume having the onboard ethernet mixed in this IOMMU Group would only matter if I wanted to pass it through to something, that this wouldn't be causing the interface to go up and down as it has been.
IOMMU group 15:[1022:43ba] 01:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset USB 3.1 xHCI Controller (rev 02)
[1022:43b6] 01:00.1 SATA controller: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset SATA Controller (rev 02)
[1022:43b1] 01:00.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset PCIe Bridge (rev 02)
[1022:43b4] 02:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
[1022:43b4] 02:01.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
[1022:43b4] 02:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
[1022:43b4] 02:03.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
[1022:43b4] 02:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
[1022:43b4] 02:09.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
[8086:1539] 05:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
[1b21:2142] 08:00.0 USB controller: ASMedia Technology Inc. ASM2142 USB 3.1 Host Controller
IOMMU group 18:[8086:105e] 0b:00.0 Ethernet controller: Intel Corporation 82571EB/82571GB Gigabit Ethernet Controller D0/D1 (copper applications) (rev 06)
IOMMU group 19:[8086:105e] 0b:00.1 Ethernet controller: Intel Corporation 82571EB/82571GB Gigabit Ethernet Controller D0/D1 (copper applications) (rev 06)
Many thanks for any advice.
