[6.6.5] internal error: PCI host devices must use 'pci' address type

By Cisnet

· 7792 views
  • Minor

EDIT: After re-creating the VM I was able to update it sucessfully & add a GPU; however, now I can no longer change the USB controller to USB 3.0 without receiving the same error when I hit the update button. USB 2.0 works.







When I add my GTX 1070s to any VM's & press the update button I receive the error message below:






If I update the VM through the XML view it works fine. This machine has been running unraid since v4 with no issues until the latest few released this started happening. I cannot currently start one of my VMs due to thi. Once of my other VMs I have not touched works & starts up fine. I just cannot update usb devices.



This happens on both my VMs with two different GTX 1070s.



I checked the system log only to see this:



Nov 10 12:27:22 Tower kernel: pcieport 0000:00:03.2: device [8086:2f0a] error status/mask=00001000/00002000
Nov 10 12:27:22 Tower kernel: pcieport 0000:00:03.2: [12] Replay Timer Timeout
Nov 10 12:27:22 Tower kernel: pcieport 0000:00:03.2: AER: Corrected error received: 0000:00:03.2
Nov 10 12:27:22 Tower kernel: pcieport 0000:00:03.2: PCIe Bus Error: severity=Corrected, type=Data Link Layer, (Transmitter ID)
Nov 10 12:27:22 Tower kernel: pcieport 0000:00:03.2: device [8086:2f0a] error status/mask=00001000/00002000
Nov 10 12:27:22 Tower kernel: pcieport 0000:00:03.2: [12] Replay Timer Timeout
Nov 10 12:27:24 Tower kernel: pcieport 0000:00:03.2: AER: Corrected error received: 0000:00:03.2
Nov 10 12:27:24 Tower kernel: pcieport 0000:00:03.2: PCIe Bus Error: severity=Corrected, type=Data Link Layer, (Transmitter ID)
Nov 10 12:27:24 Tower kernel: pcieport 0000:00:03.2: device [8086:2f0a] error status/mask=00001000/00002000
Nov 10 12:27:24 Tower kernel: pcieport 0000:00:03.2: [12] Replay Timer Timeout
Nov 10 12:27:32 Tower kernel: pcieport 0000:00:03.2: AER: Multiple Corrected error received: 0000:00:03.2
Nov 10 12:27:32 Tower kernel: pcieport 0000:00:03.2: PCIe Bus Error: severity=Corrected, type=Data Link Layer, (Receiver ID)
Nov 10 12:27:32 Tower kernel: pcieport 0000:00:03.2: device [8086:2f0a] error status/mask=00000040/00002000
Nov 10 12:27:32 Tower kernel: pcieport 0000:00:03.2: [ 6] Bad TLP
Nov 10 12:27:32 Tower kernel: pcieport 0000:00:03.2: AER: Multiple Corrected error received: 0000:00:03.2
Nov 10 12:27:32 Tower kernel: pcieport 0000:00:03.2: PCIe Bus Error: severity=Corrected, type=Data Link Layer, (Receiver ID)
Nov 10 12:27:32 Tower kernel: pcieport 0000:00:03.2: device [8086:2f0a] error status/mask=00000040/00002000
Nov 10 12:27:32 Tower kernel: pcieport 0000:00:03.2: [ 6] Bad TLP
Nov 10 12:27:40 Tower kernel: pcieport 0000:00:03.2: AER: Corrected error received: 0000:00:03.2
Nov 10 12:27:40 Tower kernel: pcieport 0000:00:03.2: PCIe Bus Error: severity=Corrected, type=Data Link Layer, (Transmitter ID)
Nov 10 12:27:40 Tower kernel: pcieport 0000:00:03.2: device [8086:2f0a] error status/mask=00001000/00002000
Nov 10 12:27:40 Tower kernel: pcieport 0000:00:03.2: [12] Replay Timer Timeout
Nov 10 12:27:40 Tower kernel: pcieport 0000:00:03.2: AER: Corrected error received: 0000:00:03.2
Nov 10 12:27:40 Tower kernel: pcieport 0000:00:03.2: PCIe Bus Error: severity=Corrected, type=Data Link Layer, (Transmitter ID)
Nov 10 12:27:40 Tower kernel: pcieport 0000:00:03.2: device [8086:2f0a] error status/mask=00001000/00002000
Nov 10 12:27:40 Tower kernel: pcieport 0000:00:03.2: [12] Replay Timer Timeout
Nov 10 12:27:41 Tower kernel: pcieport 0000:00:03.2: AER: Corrected error received: 0000:00:03.2
Nov 10 12:27:41 Tower kernel: pcieport 0000:00:03.2: PCIe Bus Error: severity=Corrected, type=Data Link Layer, (Transmitter ID)
Nov 10 12:27:41 Tower kernel: pcieport 0000:00:03.2: device [8086:2f0a] error status/mask=00001000/00002000
Nov 10 12:27:41 Tower kernel: pcieport 0000:00:03.2: [12] Replay Timer Timeout
Nov 10 12:27:42 Tower kernel: pcieport 0000:00:03.2: AER: Corrected error received: 0000:00:03.2
Nov 10 12:27:42 Tower kernel: pcieport 0000:00:03.2: PCIe Bus Error: severity=Corrected, type=Data Link Layer, (Transmitter ID)
Nov 10 12:27:42 Tower kernel: pcieport 0000:00:03.2: device [8086:2f0a] error status/mask=00001000/00002000
Nov 10 12:27:42 Tower kernel: pcieport 0000:00:03.2: [12] Replay Timer Timeout
Nov 10 12:27:44 Tower kernel: pcieport 0000:00:03.2: AER: Corrected error received: 0000:00:03.2
Nov 10 12:27:44 Tower kernel: pcieport 0000:00:03.2: PCIe Bus Error: severity=Corrected, type=Data Link Layer, (Transmitter ID)
Nov 10 12:27:44 Tower kernel: pcieport 0000:00:03.2: device [8086:2f0a] error status/mask=00001000/00002000
Nov 10 12:27:44 Tower kernel: pcieport 0000:00:03.2: [12] Replay Timer Timeout
Nov 10 12:29:15 Tower kernel: usb 3-10.2: reset full-speed USB device number 8 using xhci_hcd
Nov 10 12:29:15 Tower kernel: usb 3-10.2: reset full-speed USB device number 8 using xhci_hcd
Nov 10 12:29:16 Tower kernel: usb 3-10.2: reset full-speed USB device number 8 using xhci_hcd
Nov 10 12:30:18 Tower kernel: pcieport 0000:00:03.2: AER: Corrected error received: 0000:00:03.2
Nov 10 12:30:18 Tower kernel: pcieport 0000:00:03.2: PCIe Bus Error: severity=Corrected, type=Data Link Layer, (Transmitter ID)
Nov 10 12:30:18 Tower kernel: pcieport 0000:00:03.2: device [8086:2f0a] error status/mask=00001000/00002000
Nov 10 12:30:18 Tower kernel: pcieport 0000:00:03.2: [12] Replay Timer Timeout
Nov 10 12:30:20 Tower kernel: pcieport 0000:00:03.2: AER: Corrected error received: 0000:00:03.2
Nov 10 12:30:20 Tower kernel: pcieport 0000:00:03.2: PCIe Bus Error: severity=Corrected, type=Data Link Layer, (Transmitter ID)
Nov 10 12:30:20 Tower kernel: pcieport 0000:00:03.2: device [8086:2f0a] error status/mask=00001000/00002000
Nov 10 12:30:20 Tower kernel: pcieport 0000:00:03.2: [12] Replay Timer Timeout
Nov 10 12:31:10 Tower kernel: usb 3-10.2: reset full-speed USB device number 8 using xhci_hcd
Nov 10 12:31:10 Tower kernel: usb 3-10.2: reset full-speed USB device number 8 using xhci_hcd
Nov 10 12:31:10 Tower kernel: usb 3-10.2: reset full-speed USB device number 8 using xhci_hcd





Here is my XML File:

<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm'>
  <name>vm1</name>
  <uuid>5c2de3e6-bc1b-d47d-db69-df51fc9c3ab4</uuid>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>
  </metadata>
  <memory unit='KiB'>16777216</memory>
  <currentMemory unit='KiB'>16777216</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>6</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='3'/>
    <vcpupin vcpu='1' cpuset='9'/>
    <vcpupin vcpu='2' cpuset='4'/>
    <vcpupin vcpu='3' cpuset='10'/>
    <vcpupin vcpu='4' cpuset='5'/>
    <vcpupin vcpu='5' cpuset='11'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-i440fx-3.0'>hvm</type>
  </os>
  <features>
    <acpi/>
    <apic/>
    <hyperv>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
      <vendor_id state='on' value='none'/>
    </hyperv>
  </features>
  <cpu mode='host-passthrough' check='none'>
    <topology sockets='1' cores='3' threads='2'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hypervclock' present='yes'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/vdisks/vm1.img'/>
      <target dev='hdc' bus='virtio'/>
      <boot order='1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/Windows.iso'/>
      <target dev='hda' bus='ide'/>
      <readonly/>
      <boot order='2'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/virtio-win-0.1.141.iso'/>
      <target dev='hdb' bus='ide'/>
      <readonly/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='usb' index='0' model='qemu-xhci' ports='15'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/>
    </controller>
    <controller type='pci' index='0' model='pci-root'/>
    <controller type='ide' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:2e:30:0b'/>
      <source bridge='br0'/>
      <model type='virtio'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </interface>
    <serial type='pty'>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
    </serial>
    <console type='pty'>
      <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
      <target type='virtio' name='org.qemu.guest_agent.0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <address type='usb' bus='0' port='5'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>
    <video>
      <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </video>
    <hostdev mode='subsystem' type='usb' managed='yes'>
      <source>
        <address bus='5' device='3'/>
      </source>
      <address type='usb' bus='0' port='2'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x045e'/>
        <product id='0x0719'/>
      </source>
      <address type='usb' bus='0' port='1'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x04d8'/>
        <product id='0x00df'/>
      </source>
      <address type='usb' bus='0' port='3'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x248a'/>
        <product id='0x8367'/>
      </source>
      <address type='usb' bus='0' port='4'/>
    </hostdev>
    <memballoon model='virtio'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/>
    </memballoon>
  </devices>
</domain>

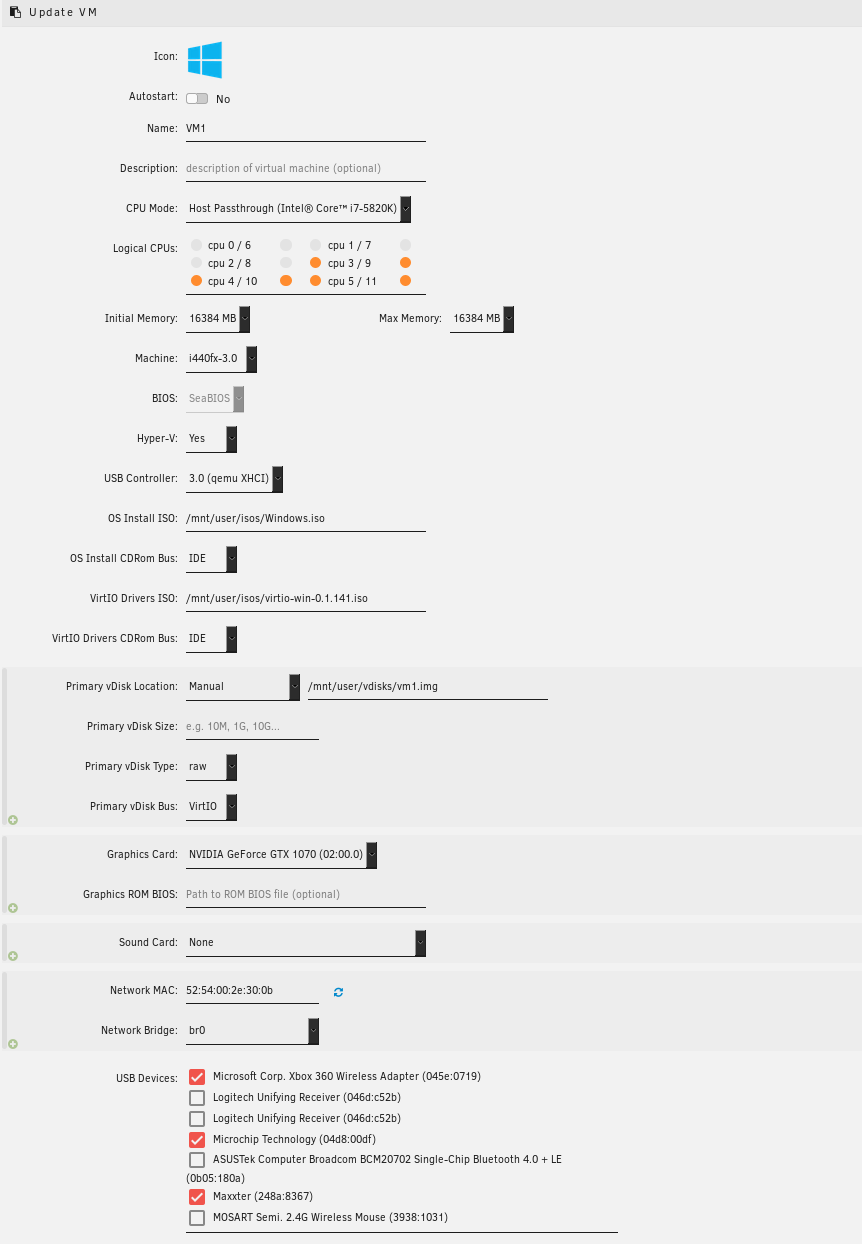

Here is my VM config:

1690488494_Screenshotfrom2018-11-1103-28-40.thumb.png.8cb7ded9b62084564556890373b67ca0.png

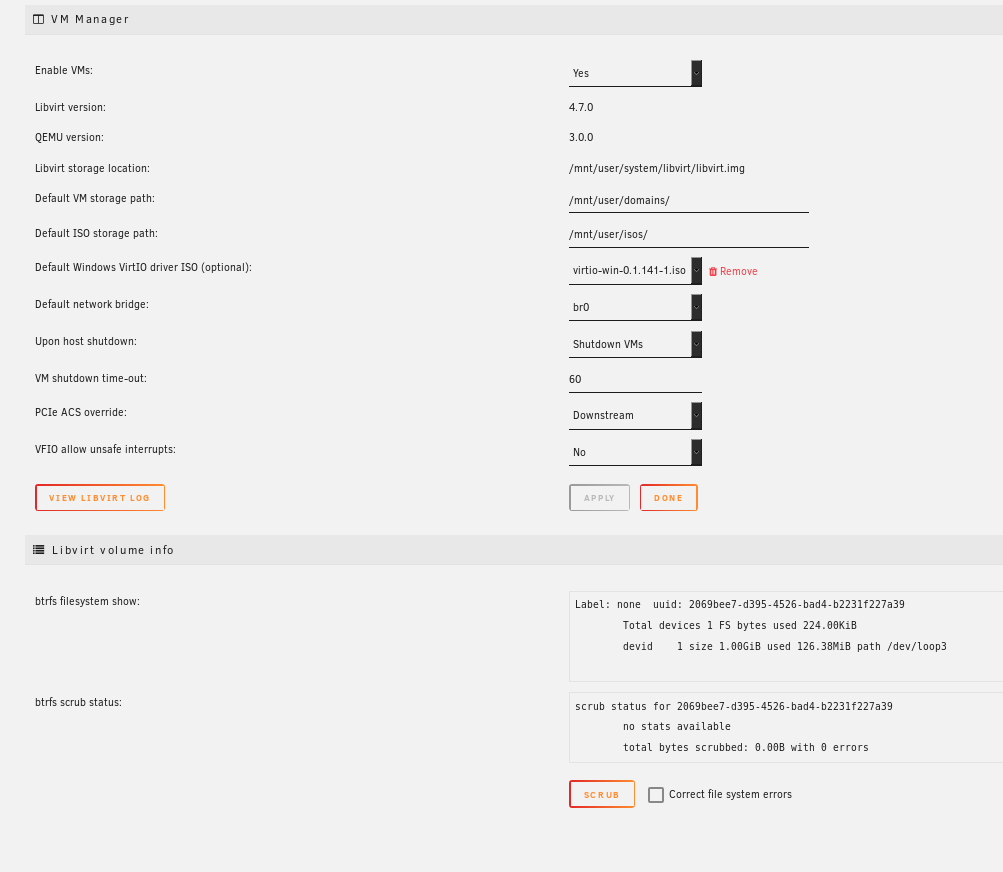

More VM settings:
