I got latest stable unraid installation. Three networks connected to Unraid.
first without vlan tag unbridged eth0 for main connection to server with subnet 10.10.50.0/30 , in routing table everythings fine its apears as route 10.10.50.0/30
For docker containers a setup outside network with vlan tags

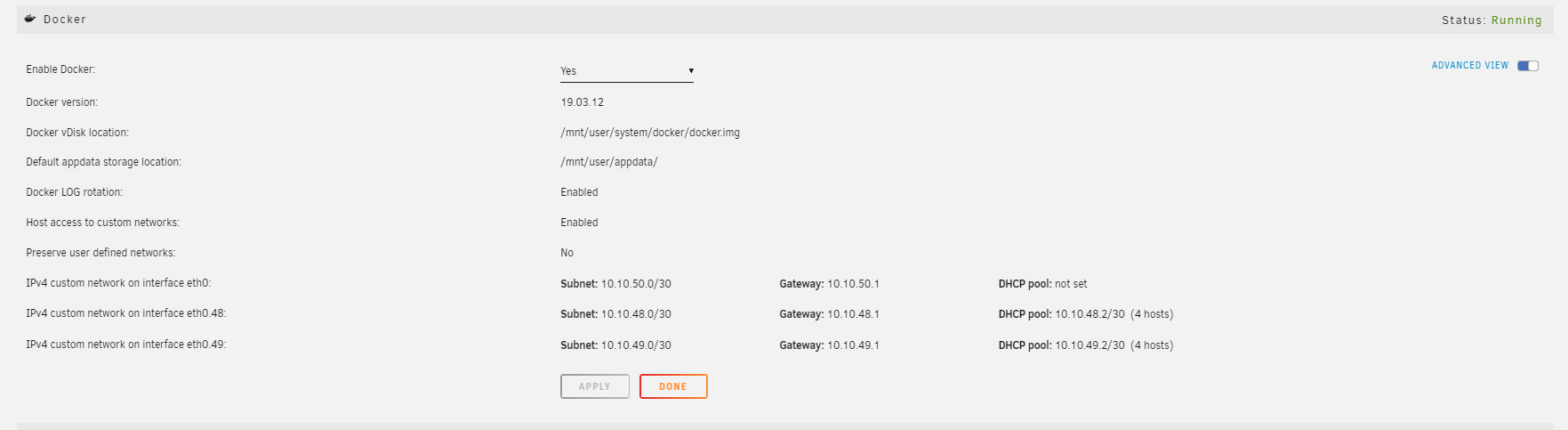

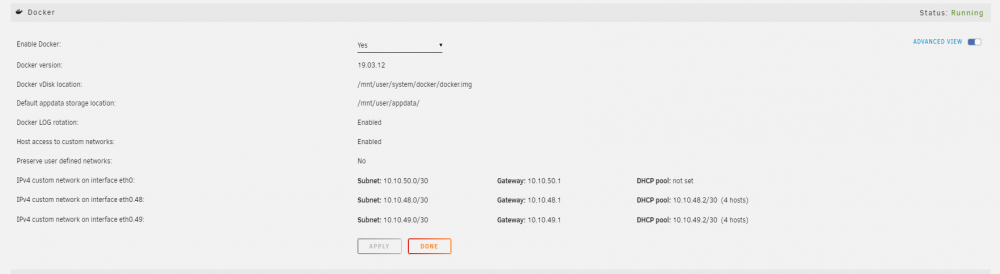

First network for container is 10.10.48.0/30 and second 10.10.49.0/30 so should be available hosts for docker networks 10.10.48.2 and 10.10.49.2.

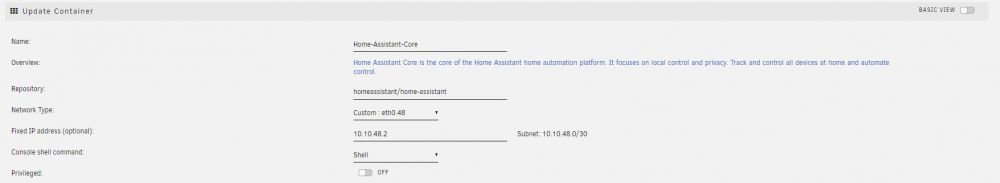

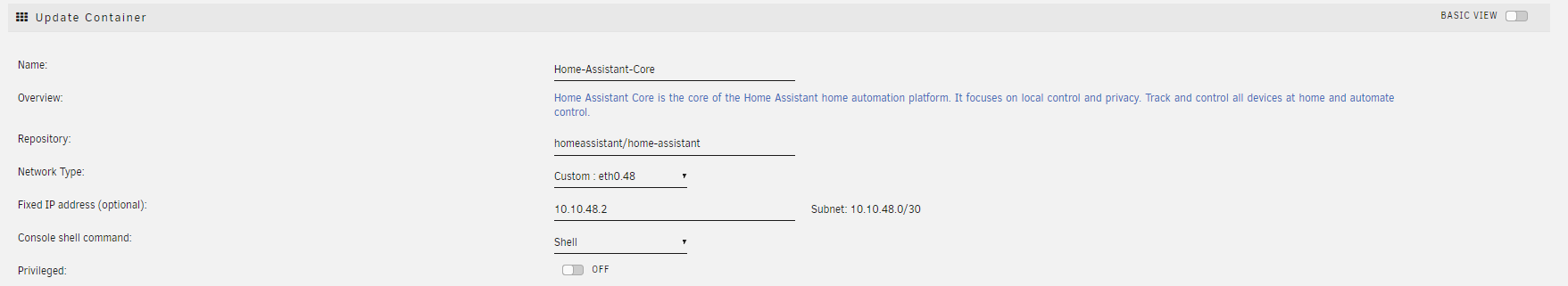

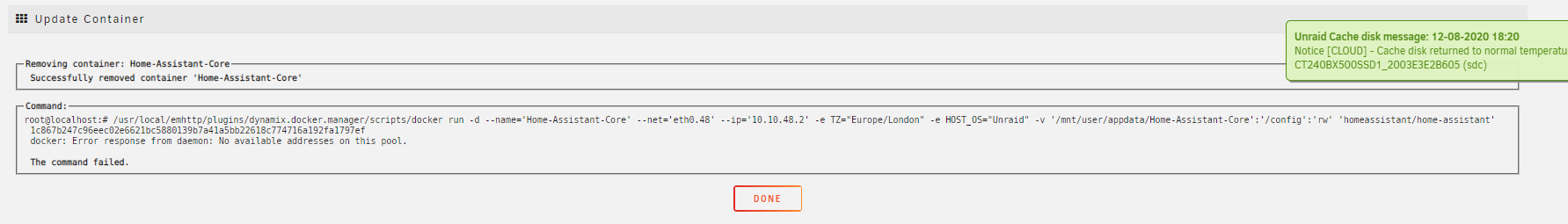

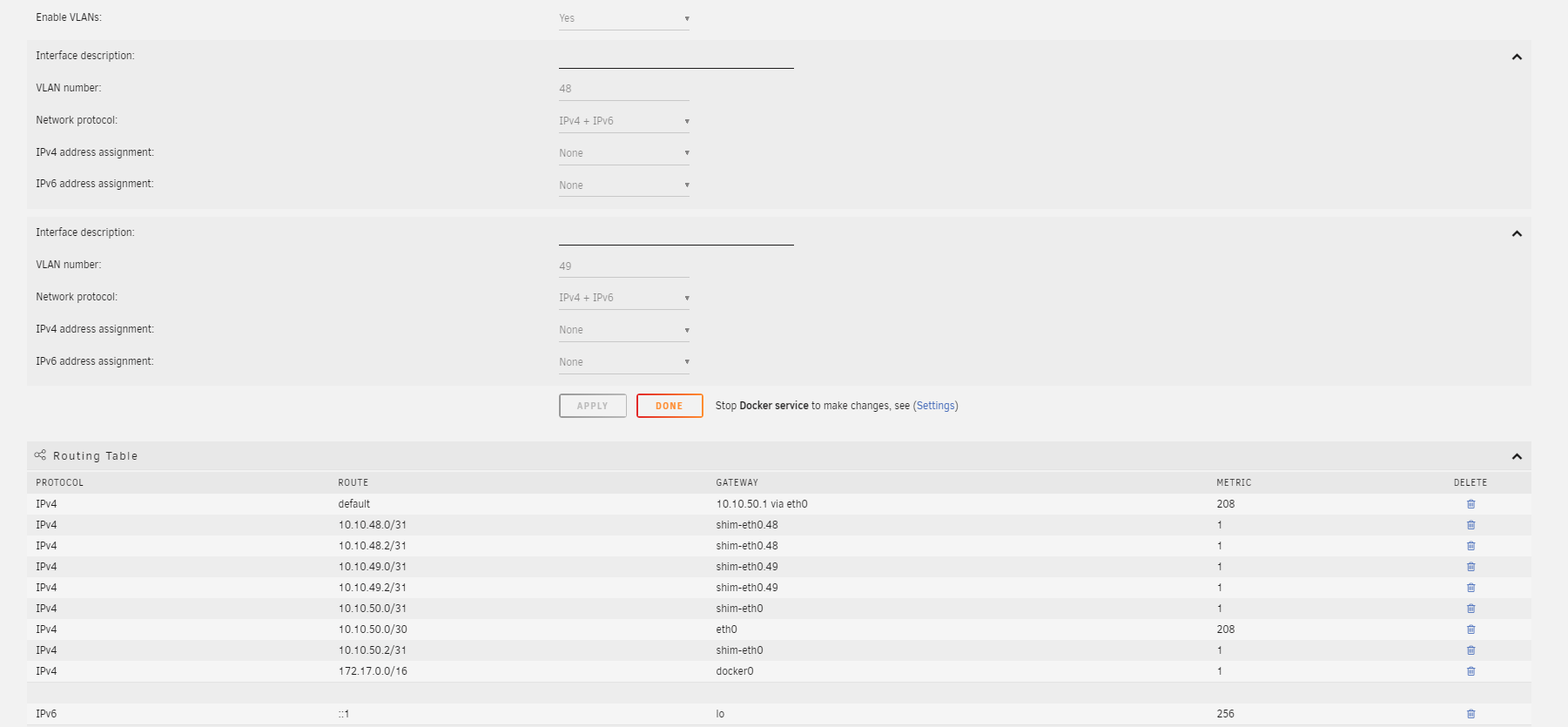

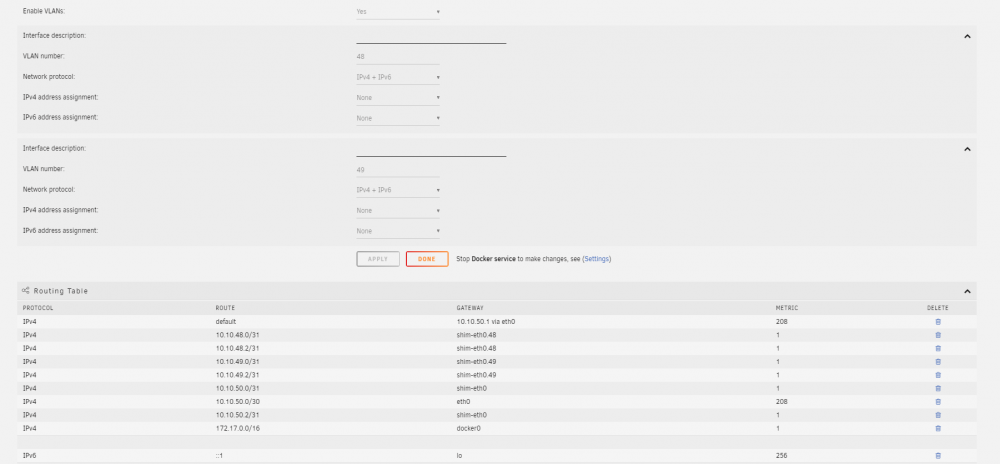

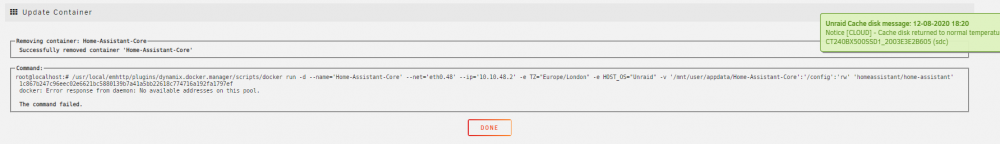

Networks appear in docker containers when i try to edit them as Custom eth0.48, and eth0.49 then i setup and address respectively 10.10.48.2 or 10.10.49.2 . But when I press an Apply it show me no address pool available and docker creation failed. So i started to dig and noticed that in unraid networks routingtable routes appears 10.10.48.0/31 and 10.10.49.0/31 with gateways where 0.10.50.0/30 is correct and no routes with 10.10.48.0/30 and 10.10.49.0/30 . I tried with another subnets like 29 , and everything works as should.
In screenshots can be seen that
