jdlancaster13

Thank you, solved by following this guide: https://www.jonijunni.com/disabling-type-2-protection-in-sas-hdds

Hey everyone. I recently purchased 4 new 8TB drives for my array from a reputable drive refurbisher on ebay. I was able to plug in and format the drives in xfs in order to add them to my array. However, I am unable to mount them and get the following errors. I can add the drive to the array and attempt to rebuild it, but I get an error after the drives spin up, "Unmountable: wrong or no file system". I am trying to troubleshoot things related to my SAS controller's firmware version (I have a LSI SAS 9210-8i card running LSISAS2008: FWVersion(20.00.02.00), ChipRevision(0x03)) and potential incompatibility. But I am a bit out of my depth here and would appreciate any input or advice. Thank you & diagnostics attached. Logs from the drive in question after adding it to array and attempting to rebuild: ar 3 15:09:17 Tower unassigned.devices: Mounting partition 'sde1' at mountpoint '/mnt/disks/TOSHIBA_MG06SCA800EY'... Mar 3 15:09:18 Tower unassigned.devices: Mount cmd: /sbin/mount -t 'xfs' -o rw,relatime '/dev/sde1' '/mnt/disks/TOSHIBA_MG06SCA800EY' Mar 3 15:09:18 Tower kernel: XFS (sde1): Mounting V5 Filesystem b7730e89-c96b-4a96-bae7-696db2e94684 Mar 3 15:09:18 Tower kernel: sd 5:0:3:0: [sde] tag#1458 UNKNOWN(0x2003) Result: hostbyte=0x05 driverbyte=DRIVER_OK cmd_age=0s Mar 3 15:09:18 Tower kernel: sd 5:0:3:0: [sde] tag#1458 Sense Key : 0x5 [current] Mar 3 15:09:18 Tower kernel: sd 5:0:3:0: [sde] tag#1458 ASC=0x10 ASCQ=0x3 Mar 3 15:09:18 Tower kernel: sd 5:0:3:0: [sde] tag#1458 CDB: opcode=0x7f, sa=0x9 Mar 3 15:09:18 Tower kernel: sd 5:0:3:0: [sde] tag#1458 CDB[00]: 7f 00 00 00 00 00 00 18 00 09 20 00 00 00 00 02 Mar 3 15:09:18 Tower kernel: sd 5:0:3:0: [sde] tag#1458 CDB[10]: 00 3f b0 68 00 3f b0 68 00 00 00 00 00 00 00 08 Mar 3 15:09:18 Tower kernel: protection error, dev sde, sector 8594108520 op 0x0:(READ) flags 0x1800 phys_seg 1 prio class 2 Mar 3 15:09:18 Tower kernel: XFS (sde1): log recovery read I/O error at daddr 0x3faff8 len 8 error -84 Mar 3 15:09:18 Tower kernel: XFS (sde1): empty log check failed Mar 3 15:09:18 Tower kernel: XFS (sde1): log mount/recovery failed: error -84 Mar 3 15:09:18 Tower kernel: XFS (sde1): log mount failed Mar 3 15:09:19 Tower unassigned.devices: Mount of 'sde1' failed: 'mount: /mnt/disks/TOSHIBA_MG06SCA800EY: mount system call failed: Invalid or incomplete multibyte or wide character. dmesg(1) may have more information after failed mount system call.' Mar 3 15:11:25 Tower emhttpd: read SMART /dev/sde Mar 3 15:12:54 Tower kernel: mdcmd (3): import 2 sde 64 7814026532 0 MG06SCA800EY_X9J0A19BF1GF_350000399b85bc201 Mar 3 15:12:54 Tower kernel: md: import disk2: (sde) MG06SCA800EY_X9J0A19BF1GF_350000399b85bc201 size: 7814026532 ** Press ANY KEY to close this window ** tower-diagnostics-20250303-1549.zip

Great scripts all - thank you guys, helped a lot.

Dammit... how did I miss that. Now I owe you another coffee - thank you! @binhex

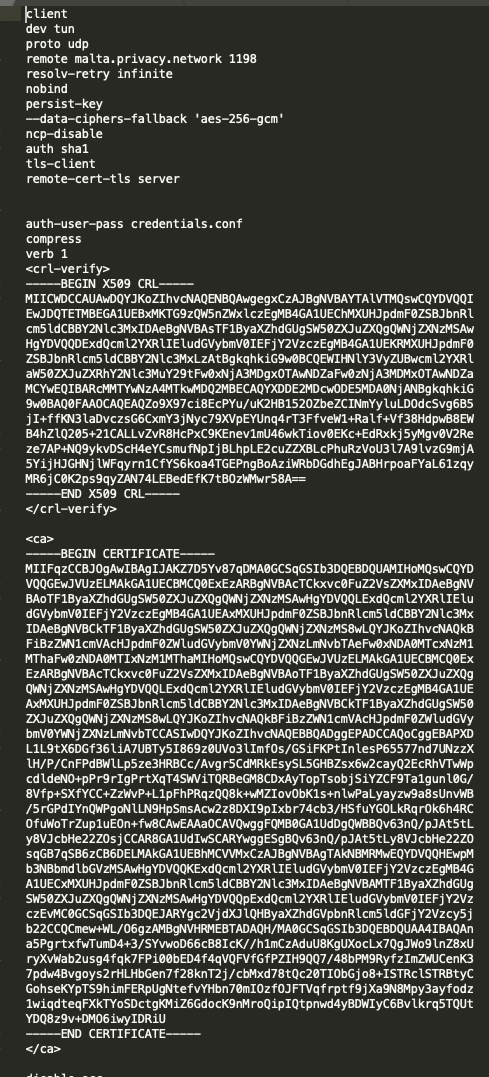

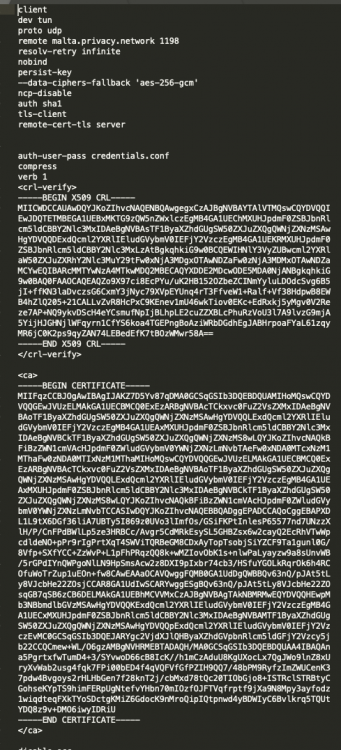

Hi all. Having trouble connecting to the DelugeVPN Web UI. I have gone through the FAQ docs as it has helped me get things going in the past, but I was unable to find a fix for this current iteration of the problem. Would really appreciate it if someone could point me in the right direction based off of these logs! Also attaching a screenshot of my .ovpn file config, which I have edited slightly to comply with the problem listed in Q22 of the FAQ.delugevpn_log_091221.rtf

Binhex you sir are a saint. Just had an issue and resolved it with your A10 in the FAQ. Just wanted to say thanks!

You are a beautiful man. Thank you!

Hi wgstarks - thank you for being willing to take a look. Attached the file.supervisor log.txt

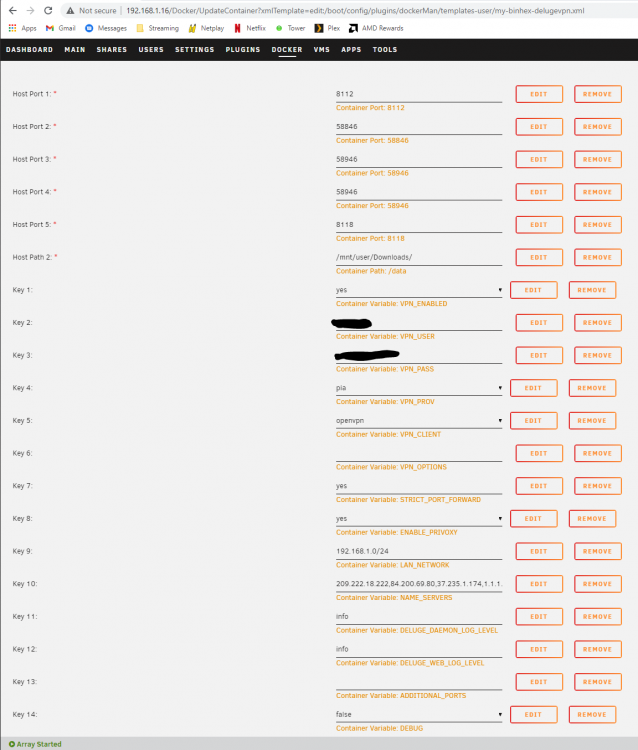

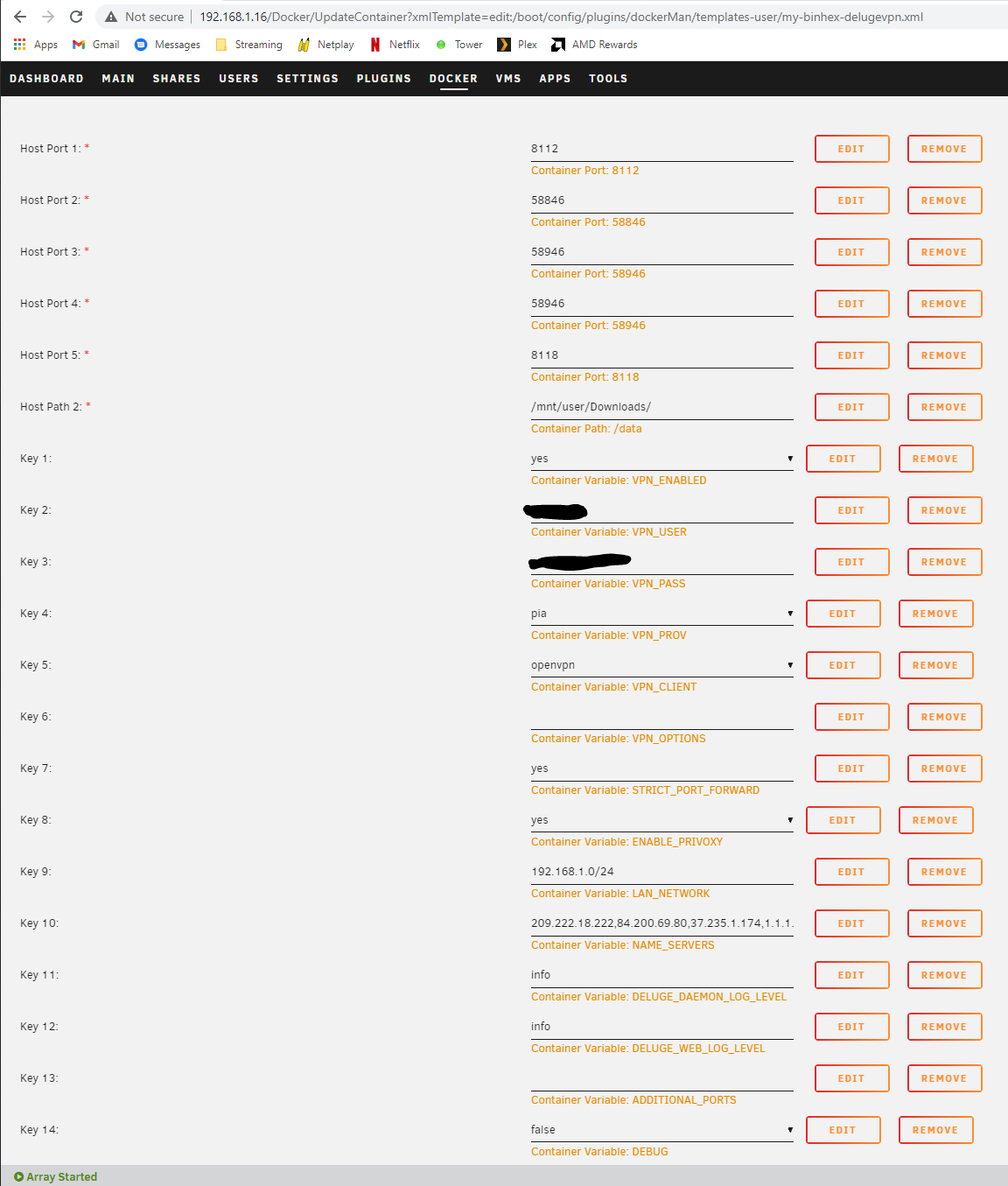

Hi All - I've been having trouble connecting to the WebUI of Binhex's DelugeVPN and can't seem to figure out what's going wrong. I followed space invader one's video step by step, doing everything exactly as he suggested. I'm currently using the Romania configurations (which last time I checked, supports port forwarding). My other dockers are working fine. Would anyone be able to make any suggestions? I get "This Site can't be reached - 192.168.1.16 (port 8112) refused to connect". That is my server's IP, and here are my configuration settings. And cert locations

Will the WWN change after re-formatting? Sounds like if no I'm good to go

Thank you all for this information - I didn't know any of this, but realize now that I probably should had. Unfortunately, I both re-formatted AND loaded new data onto my drive, so it looks like I'll have to contact unraid support in order to get my server up and running properly again. I had been using an Unraid Plus paid license. In retrospect I guess I thought I had installed the OS onto one of my drives? However, when I think about it for a second that doesn't make any sense - where else would the OS live? I won't make this mistake again 😅

Oh damn I didn't realize I needed to keep the flash drive in the device permanently - I took it out last night to install a Windows10 bootable for another computer. Will I be able to load it with the default unraid bootable files and have it work? Or will I need to re-install the Unraid OS and start my server over from scratch? Unfortunately, the contents of the flash drive have been deleted and overwritten, with no backup. Thanks for the help.

Hi everyone - I recently started seeing this message when I access my Apps tab, and my Docker tab is missing entirely. I have a general sense of what the error message is saying, but have no idea how to fix it and would really appreciate any help! Error Message: Something really wrong went on during dismiss_warning Post the ENTIRE contents of this message in the Community Applications Support Thread <br /> <b>Warning</b>: parse_ini_file(/boot/config/docker.cfg): failed to open stream: No such file or directory in <b>/usr/local/emhttp/plugins/dynamix.docker.manager/include/DockerClient.php</b> on line <b>43</b><br /> <br /> <b>Warning</b>: array_replace_recursive(): Expected parameter 2 to be an array, bool given in <b>/usr/local/emhttp/plugins/dynamix.docker.manager/include/DockerClient.php</b> on line <b>43</b><br /> <br /> <b>Warning</b>: file_put_contents(/boot/config/plugins/community.applications/accepted): failed to open stream: No such file or directory in <b>/usr/local/emhttp/plugins/community.applications/include/exec.php</b> on line <b>399</b><br /> {"status":"warning dismissed"}

Hi Flaggart, Reviving this thread again to ask you a question about your space management with the HDD bay directly above the PSU. I currently have 8 drives installed, and can't get the drive bay above the PSU to fit. What kind of cables are you using to make this work? I'd really appreciate it if you could drop a link.
