Marbles_00

This is just a follow up. I have now replaced the motherboard with a SuperMicro X10SL7-F (along with the CPU, and memory). System is back up and running fine. The old CPU and partial memory from the previous unRaid setup is now being used in another media machine and it too is running all fine. Solution: bad motherboard - note to others that may be having similar crashing issues. I was fortunate enough to have enough spare parts gathered over the years to be able to troubleshoot hardware in other setups to determine if any of them were the culprit.

I've had some similar crashes for the last few months, very sporadic, very random, but it wasn't until the other day, the system consistently crashed right at login, or shortly thereafter. So I was able to finally plug in a monitor and capture the events as they happened. Even though I had syslog outputting to an external machine, it would only capture the moment that the server crashed, but nothing that showed why it crashed. That screen capture is eerily similar to one of the screens that I was able to photo as well. I posted here. For me, it appears that the motherboard has finally bit the biscuit.

PSU is now running the temp setup. CPU, PSU, Memory all looking good right now. Booted and running without issues. Give it a couple of days, but early conclusions look like the P5B-VM DO has finally bit the biscuit. So, looking at a Supermicro X10SL7-F, Xeon E3-1285L, with 16Gb of RAM combo. A little dated, but so was the previous system when I actually put it all together (and it lasted 10+ years), but regardless, way more powerful than what I was running with...and what I was running with worked exceptionally well for my requirements.

To give an update. Swapped the CPU and memory over to another motherboard, and have been running a trial version of UnRAID on it. Where my server has been crashing just after boot the last few days, this temporary system has been humming along. At this point it doesn't appear that the CPU or memory are the issue. I'm going to gerry-rig the PSU over onto the temp system, and load it as much as possible to rule that out.

Just pulled this diagnostic from the server.zeus-diagnostics-20230113-1545.zip And no sooner I did that (and logged in via command prompt) this came up on the screen: I have a gut feeling that the motherboard is on its way out. The combination of the issues, starting with the onboard LAN pooping a while back is just pointing at that. I do have another LGA775 board on hand that I could try out the CPU, a couple sticks of memory and the PSU, just didn't want to use it for replacing the current board as it lacks SATA ports for all my drives. I could just run a trial UnRAID on it just to see if the other hardware is still good.

I do have a diagnostics from when I started noticing the crashing (attached). I will try and do a new one, if I can get the system up long enough to do a diagnostic test. zeus-diagnostics-20221130-1002.zip

I did have a remote syslog server setup to another system (OMV server called Cronus), but it never reported anything hardware issue wise...just reported that it lost communication to my UnRAID server starting by loosing NUT communication to the UPS...here is an example (1992.168.0.14 is my UnRAID server): Jan 12 00:00:04 Cronus rsyslogd: [origin software="rsyslogd" swVersion="8.1901.0" x-pid="497" x-info="https://www.rsyslog.com"] rsyslogd was HUPed Jan 12 00:00:04 Cronus rsyslogd: [origin software="rsyslogd" swVersion="8.1901.0" x-pid="497" x-info="https://www.rsyslog.com"] rsyslogd was HUPed Jan 12 00:00:04 Cronus systemd[1]: logrotate.service: Succeeded. Jan 12 00:00:04 Cronus systemd[1]: Started Rotate log files. Jan 12 00:02:49 Cronus nmbd[581]: [2023/01/12 00:02:49.178410, 0] ../source3/nmbd/nmbd_namequery.c:109(query_name_response) Jan 12 00:02:49 Cronus nmbd[581]: query_name_response: Multiple (2) responses received for a query on subnet 192.168.0.15 for name WORKGROUP<1d>. Jan 12 00:02:49 Cronus nmbd[581]: This response was from IP 192.168.0.14, reporting an IP address of 192.168.0.14. Jan 12 00:07:48 Cronus nmbd[581]: [2023/01/12 00:07:48.942806, 0] ../source3/nmbd/nmbd_namequery.c:109(query_name_response) Jan 12 00:07:48 Cronus nmbd[581]: query_name_response: Multiple (2) responses received for a query on subnet 192.168.0.15 for name WORKGROUP<1d>. Jan 12 00:07:48 Cronus nmbd[581]: This response was from IP 192.168.0.14, reporting an IP address of 192.168.0.14. Jan 12 00:09:01 Cronus CRON[11294]: (root) CMD ( [ -x /usr/lib/php/sessionclean ] && if [ ! -d /run/systemd/system ]; then /usr/lib/php/sessionclean; fi) Jan 12 00:09:03 Cronus systemd[1]: Starting Clean php session files... Jan 12 00:09:04 Cronus systemd[1]: phpsessionclean.service: Succeeded. Jan 12 00:09:04 Cronus systemd[1]: Started Clean php session files. Jan 12 00:11:18 Cronus upsmon[597]: Poll UPS [[email protected]] failed - Server disconnected Jan 12 00:11:18 Cronus upsmon[597]: Communications with UPS [email protected] lost Jan 12 00:11:18 Cronus upssched[11641]: Executing command: notify Jan 12 00:11:20 Cronus collectd[745]: nut plugin: nut_read: upscli_list_start (0002) failed: Server disconnected Jan 12 00:11:20 Cronus collectd[745]: read-function of plugin `nut/[email protected]' failed. Will suspend it for 20.000 seconds. Jan 12 00:11:38 Cronus collectd[745]: nut plugin: nut_connect: upscli_connect (192.168.0.14, 3493) failed: Connection failure: No route to host Jan 12 00:11:38 Cronus collectd[745]: read-function of plugin `nut/[email protected]' failed. Will suspend it for 40.000 seconds. Jan 12 00:11:41 Cronus upsmon[597]: UPS [[email protected]]: connect failed: Connection failure: No route to host Jan 12 00:11:47 Cronus upsmon[597]: UPS [[email protected]]: connect failed: Connection failure: No route to host Jan 12 00:11:53 Cronus upsmon[597]: UPS [[email protected]]: connect failed: Connection failure: No route to host Jan 12 00:11:59 Cronus upsmon[597]: UPS [[email protected]]: connect failed: Connection failure: No route to host Jan 12 00:12:05 Cronus upsmon[597]: UPS [[email protected]]: connect failed: Connection failure: No route to host Jan 12 00:12:11 Cronus upsmon[597]: UPS [[email protected]]: connect failed: Connection failure: No route to host Jan 12 00:12:18 Cronus upsmon[597]: UPS [[email protected]]: connect failed: Connection failure: No route to host Jan 12 00:12:18 Cronus collectd[745]: nut plugin: nut_connect: upscli_connect (192.168.0.14, 3493) failed: Connection failure: No route to host Jan 12 00:12:18 Cronus collectd[745]: read-function of plugin `nut/[email protected]' failed. Will suspend it for 80.000 seconds. Jan 12 00:12:24 Cronus upsmon[597]: UPS [[email protected]]: connect failed: Connection failure: No route to host Maybe I didn't have it setup correctly. syslog (1)

Hey all, Need some help. Normally I can troubleshoot this stuff on my own, but for this, I really need some advice. I've been running UnRaid on some older hardware, 24/7, for the better part of 10+ years. The system up until the last few months has been rock solid (other than times when we have lost actual power). The hardware is the following: Motherboard: Asus P5B-VM DO CPU: Intel E4700 Core2Duo (the most recent upgrade) Memory: 4 sticks, 6 Gigs total, 2x 2GB Muskin Silverline, 2x 1GB Muskin Silverline Power Supply: Corsair CX600 11 Hard drives, most WD20EFRX/EFZX with a couple of Seagate Barracuda 2Tb drives, and 2x Hitachi 160Gig cache drives. LAN Card: TPLink Gig adapter (the motherboard LAN died) Promise SATA TX4 As mentioned, this machine was very reliable, up to until I upgraded to UnRAID 6.10. Then the system would just stop responding, and I had to do hard reboots to get it up again. It was rather random in occurrence, and unfortunately on every reboot, the syslog would clear, so I couldn't capture the event happening. I dropped back down to 6.9 thinking that was an issue, and though the system didn't crash so much, it still did periodically. I've blown the dust out (thinking overheating) several times, even though the temps in UnRAiD indicated they were all good. I replaced a fan that was faulting...and cycling the power supply at one point (I thought that might have been the culprit). Things seemed to run good after...and the system stayed up with out a crash for several weeks. So I updated to UnRaid 6.11. System ran for over 19 days straight, but then real crashes occurred over the last day, where the system just stops responding as soon as UnRAID boots up. I've connected a monitor now, and I've noticed this hardware error several times on boot: The most recent screen has been this after a successful reboot, and left at the login screen: Now I've re-seated the RAM, and the Promise card seemed to have popped up over time, so that was corrected. I've run through several MEMTests and all have passed, so I don't feel that the RAM is an issue. I'm thinking it could be one of 3 things, and this is where someone who has seen this issue may be able to help. I think it is either: a) the power supply is faulting (yet BIOS voltages are all good) b) the CPU c) the motherboard d) a combination of a), b), c) I am in an area where we get some pretty severe weather, so I wouldn't doubt at some point a brown out or power outage may have taken its toll on something, but I just can't correlate when the crashing issue occurred in relation to a severe power outage. One other thing I've noticed in the syslog, and captured the following picture of a network communication error. But I figured that happens during bootup prior to the LAN adapter drivers being installed: Once the system is booted up (and the system wasn't crashing), I've never noticed not having a network connection. Apologies for the long post. Hope someone can shed some light on what may be going on. Cheers,

I started a support thread here: but I think this may be more of an issue other than just that docker. I have Snoopy's LMS successfully running on another UnRAID server, and of all the dockers tried on this new server, only the LMS docker is giving me this webgui connection refused. And as noted, the log file just repeats the same lines over again, only the PID increases: Any ideas as to what could be going on is appreciated.

I'm hoping that someone can help figure this issue out. I installed unRaid on a 2nd machine, and setup the LMS docker on it. I have LMS running on my original machine, but was going to use this new one to offload dockers and items to create more space on the first yada, yada, and for other reasons. Anyways, LMS docker has been running on my first machine without issues. I've setup the new machine to match the old one in its configuration, LMS docker seems to start, but when I goto the WebUI, it is refusing to connect. I've done all the usual browser cleanup, but the problem persists. I've installed other dockers, like Plex and don't have any issues accessing them via their webUI...just LMS seems to be having an issue on this new machine. I also noticed that the log file is reporting the following image repeatedly. Only the PID value increases. I've uninstalled, and re-installed the docker plenty of times, but still having this issue. Any idea what could be going on? Any help is greatly appreciated.

I've been running LMS on my UnRaid box for about 5 years now, things have been running so well until about 6 months ago. I run multiple raspberry pi clients with PiCorePlayer, and control the system with Android Orange Squeeze. As mentioned, about 6 months ago the server seems to be creating phantom clients named after existing clients, but having the IP address of the UnRaid LMS server. They are fully controllable, and I guess if I had a soundcard and speakers connected to the server, I would most likely hear audio from these phantom clients, but I'm trying to figure out why this is occurring. I've actually just been renaming them as clientzone_fake so I can easily determine the actual client to the fake one. The most recent has been I just added a raspberry pi and called it OutdoorZone...which the server quickly added the phantom channel. Any advice on why this is happening...and more importantly, how do I stop it from happening? I've even logged into mysqueezebox and deleted extra clients showing there, but it hasn't transferred over to the server. Shown is my LMS Information screen that shows these phantom clients with their actual client and additional phantoms created that just reside on the server such as the Denon-AVR-X2000, and the HTPC. *EDIT* is it something to do with that RaopBridge Player Type? Not sure what that is. *EDIT UPDATE* Figured it out. I was using the AirPlay Bridge plugin, and it was configuring these device clients. Removed the plugin, all went back to normal and only the actaul clients are showing up.

I did do that. I've Corrected the issue. Set the interface to Default, then cleared my browsers cache. All back to normal now. Not sure why it got all f'd up like that, but thanks for everyone's suggestions.

Not sure what the heck is going on. The Default skin is even worse. Then there is a "Light" skin that, well, I won't even discuss. I've tried removing/deleting the docker files and starting over again. I've tried the different LMS dockers, but still getting that awful view.

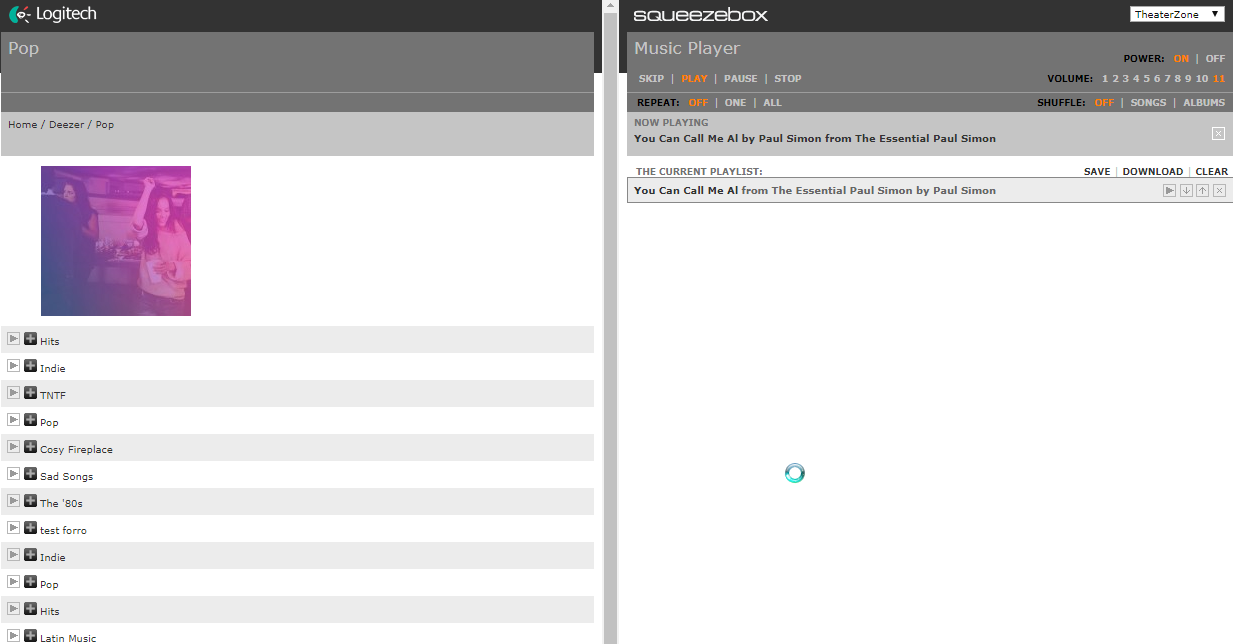

Anyone else get a new look to the server? Don't personally like it, is there a way of changing it back to how it was? This is my server view now:

I figured it out. Found a great youtube video on step by step procedures for setting up duckdns.org, setting up additional configurations in Unraid, and finally setting up the Letsencrypt docker properly. Video can be found here (for anyone else): Big thank you to Mr. Spaceinvader One.
