sauerm

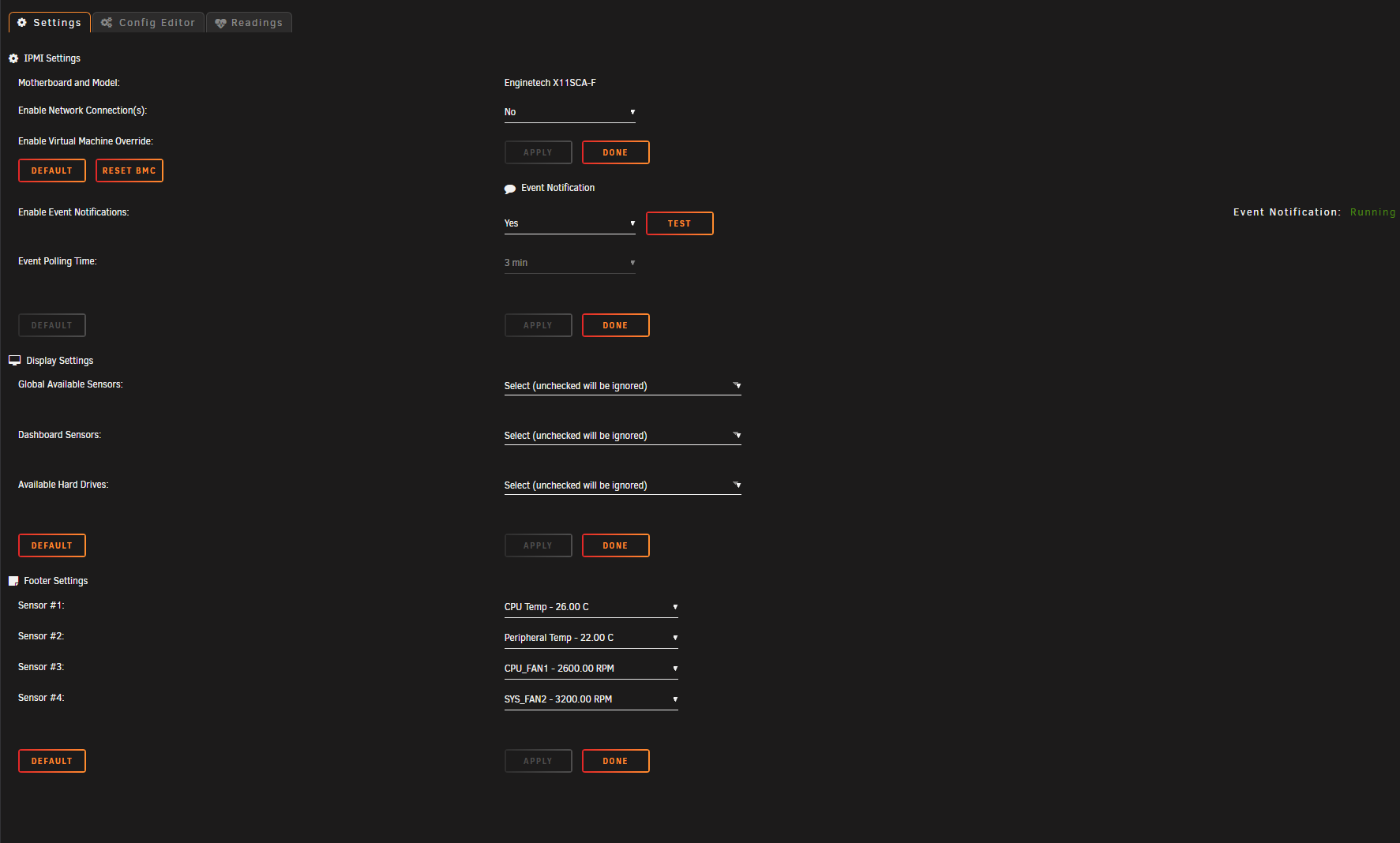

I get connection to and data from IPMI but now the "fan control" tab is gone Cant find a setting to bring it back. Isnt the board supported?

Oh yes, just tried something cheap in the beginning. As I see everywhere, it gets more expensive quickly I looked around a bit and found some posts from you and some reddit infos. I saw you recommended a LSI 9300-8i. Would a LSI 9201-8i do it as well? I found a IT preflashed on ebay for a price I could afford I guess. How bad is my actual situation - should I switch soon or can I spare money for better equipment? Hope I dont overuse your help

Thank you once more glad here are so many experts willing to help new members. Im really careful within this new topic so I really appreciate your support 👍 EDIT: Searched a bit and now guessing it would be a controller error (reffering to this thread )

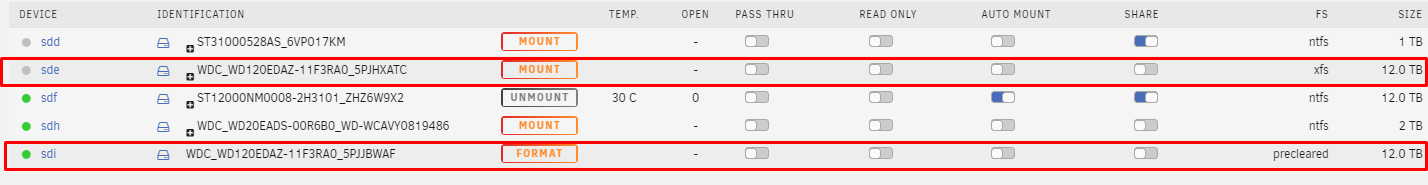

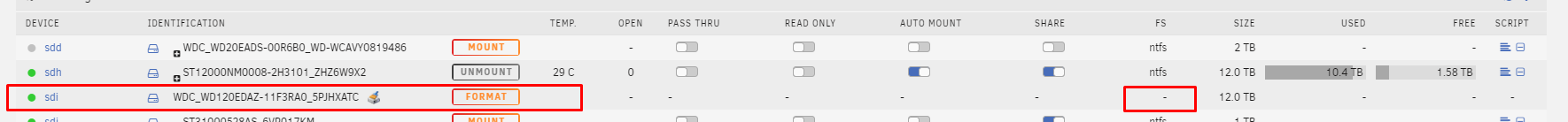

I now located the corresponding disk and changed cable and sata controller port. Message persists on reboot. I hope now it could be a controller issue. Should I post this in the forum? 😬 Of course that doesnt belong to this topic.

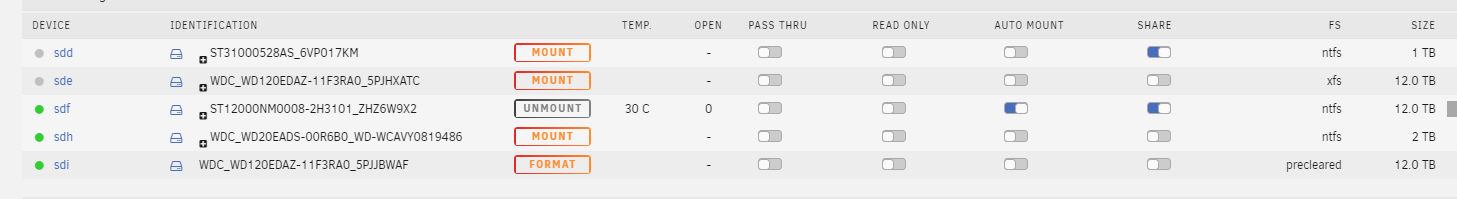

Thanks again, didnt recognized that. SMART values looked good. Yes, I had a second pre-clear running on another disk (same type). It finished just now. I will make a intense system diagnostic now. Thanks for your thoughts 👍 EDIT: A Server-Restart and/or deletion of the pre-clear plugin solved the problem. The disks are formatted as intended. EDIT2: I Still get these ATA6 Errors. Thought it would be a Cable issue. Could it be a controller issue or is the disk faulty? Dec 4 12:56:25 STORAGE kernel: ata6: SATA max UDMA/133 abar m2048@0xa1340000 port 0xa1340280 irq 128 Dec 4 12:56:25 STORAGE kernel: ata6: SATA link up 6.0 Gbps (SStatus 133 SControl 300) Dec 4 12:56:25 STORAGE kernel: ata6.15: Port Multiplier 1.2, 0x1b21:0x1092 r0, 3 ports, feat 0x5/0xf Dec 4 12:56:25 STORAGE kernel: ata6.00: hard resetting link Dec 4 12:56:25 STORAGE kernel: ata6.00: SATA link up 6.0 Gbps (SStatus 133 SControl 330) Dec 4 12:56:25 STORAGE kernel: ata6.01: hard resetting link Dec 4 12:56:25 STORAGE kernel: ata6.01: SATA link up 3.0 Gbps (SStatus 123 SControl 330) Dec 4 12:56:25 STORAGE kernel: ata6.02: hard resetting link Dec 4 12:56:25 STORAGE kernel: ata6.02: SATA link up 3.0 Gbps (SStatus 123 SControl 330) Dec 4 12:56:25 STORAGE kernel: ata6.00: supports DRM functions and may not be fully accessible Dec 4 12:56:25 STORAGE kernel: ata6.00: ATA-9: WDC WD120EDAZ-11F3RA0, 5PJJBWAF, 81.00A81, max UDMA/133 Dec 4 12:56:25 STORAGE kernel: ata6.00: 23437770752 sectors, multi 0: LBA48 NCQ (depth 32), AA Dec 4 12:56:25 STORAGE kernel: ata6.00: supports DRM functions and may not be fully accessible Dec 4 12:56:25 STORAGE kernel: ata6.00: configured for UDMA/133 Dec 4 12:56:25 STORAGE kernel: ata6.01: ATA-8: WDC WD20EADS-00R6B0, WD-WCAVY0819486, 01.00A01, max UDMA/133 Dec 4 12:56:25 STORAGE kernel: ata6.01: 3907029168 sectors, multi 0: LBA48 NCQ (depth 32), AA Dec 4 12:56:25 STORAGE kernel: ata6.01: configured for UDMA/133 Dec 4 12:56:25 STORAGE kernel: ata6.02: ATA-8: WDC WD20EARS-00J2GB0, WD-WCAYY0234353, 80.00A80, max UDMA/133 Dec 4 12:56:25 STORAGE kernel: ata6.02: 3907029168 sectors, multi 0: LBA48 NCQ (depth 32), AA Dec 4 12:56:25 STORAGE kernel: ata6.02: configured for UDMA/133 Dec 4 12:56:25 STORAGE kernel: ata6: EH complete Dec 4 12:56:25 STORAGE kernel: sd 6:0:0:0: [sdg] 23437770752 512-byte logical blocks: (12.0 TB/10.9 TiB) Dec 4 12:56:25 STORAGE kernel: sd 6:0:0:0: [sdg] 4096-byte physical blocks Dec 4 12:56:25 STORAGE kernel: sd 6:0:0:0: [sdg] Write Protect is off Dec 4 12:56:25 STORAGE kernel: sd 6:0:0:0: [sdg] Mode Sense: 00 3a 00 00 Dec 4 12:56:25 STORAGE kernel: sd 6:0:0:0: [sdg] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA Dec 4 12:56:25 STORAGE kernel: sdg: sdg1 Dec 4 12:56:25 STORAGE kernel: sd 6:0:0:0: [sdg] Attached SCSI removable disk Dec 4 12:56:58 STORAGE emhttpd: WDC_WD120EDAZ-11F3RA0_5PJJBWAF (sdg) 512 23437770752 Dec 4 12:57:13 STORAGE unassigned.devices: Issue spin down timer for device '/dev/sdg'.

Sure, thanks. I also attached the full disk log as I found two errors regarding UD in lines 164 and 194. I marked them with '-->'. storage-diagnostics-20201204-0823.zip UD_disk_log.txt

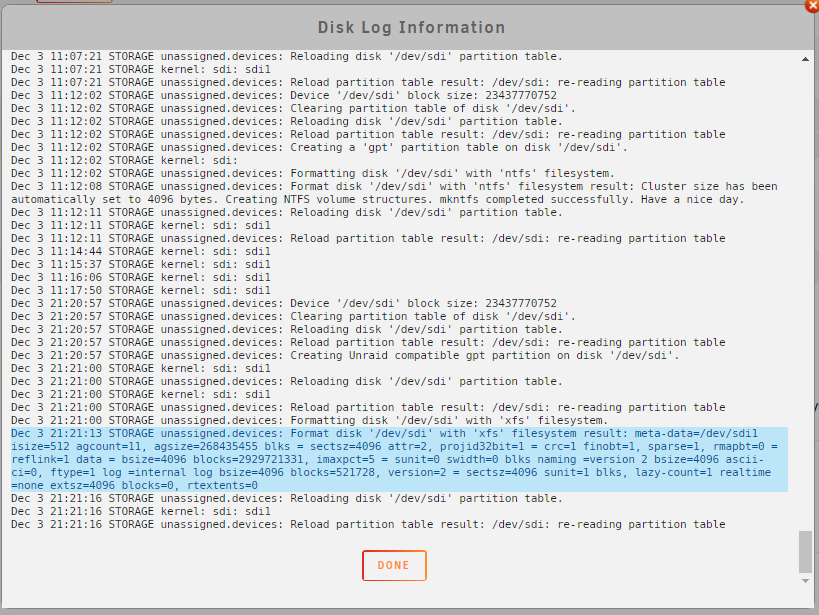

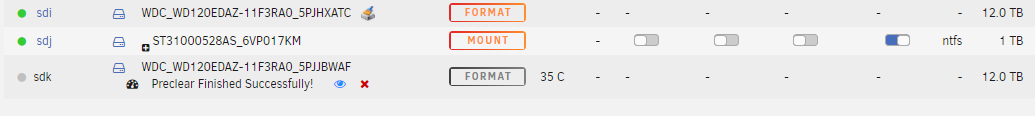

Hi, I used UD a while now - everything is working fine I now bought some new disks and precleared them. After preclear I tried to format one to ntfs but after the success message the disk ist still without filesystem nevertheless if I try ntfs or xfs... Does anyone has a cloue? The disk was freshly precleared and zeroed - I just clicked on the red X from preclear-disk plugin... Here is the last log from the formatting
