mladams

Here's the Pic of the card. It didn't attach on my last message Sent from my SM-G988U using Tapatalk

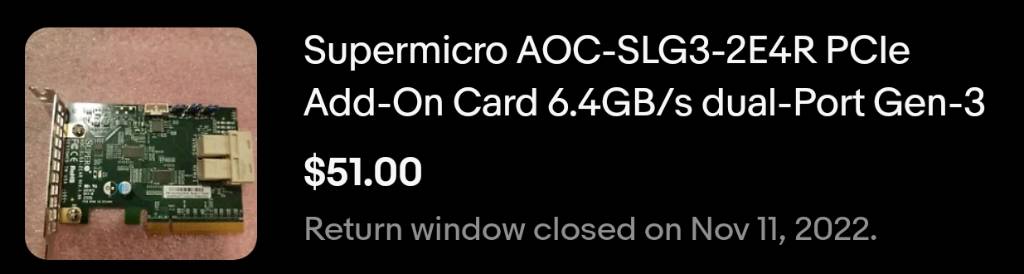

I never got them to work with the built in motherboard slots. I ended up buying a Supermicro pcie addon nvme card. I still have zero ideas on why it didn't work. If you have any luck please let me know! Thanks. I posted a pic of the card I used that worked. Sent from my SM-G988U using Tapatalk

Is there anyone that could direct me to someone that might be able to help me? Im at a loss here.... Thanks

I Cant locate anything specific to the NVME drives in the BIOS settings. I spent probably half an hour looking through each setting and didn't locate anything about them. I'm really at a loss of what to do? Any ideas would be appreciated...

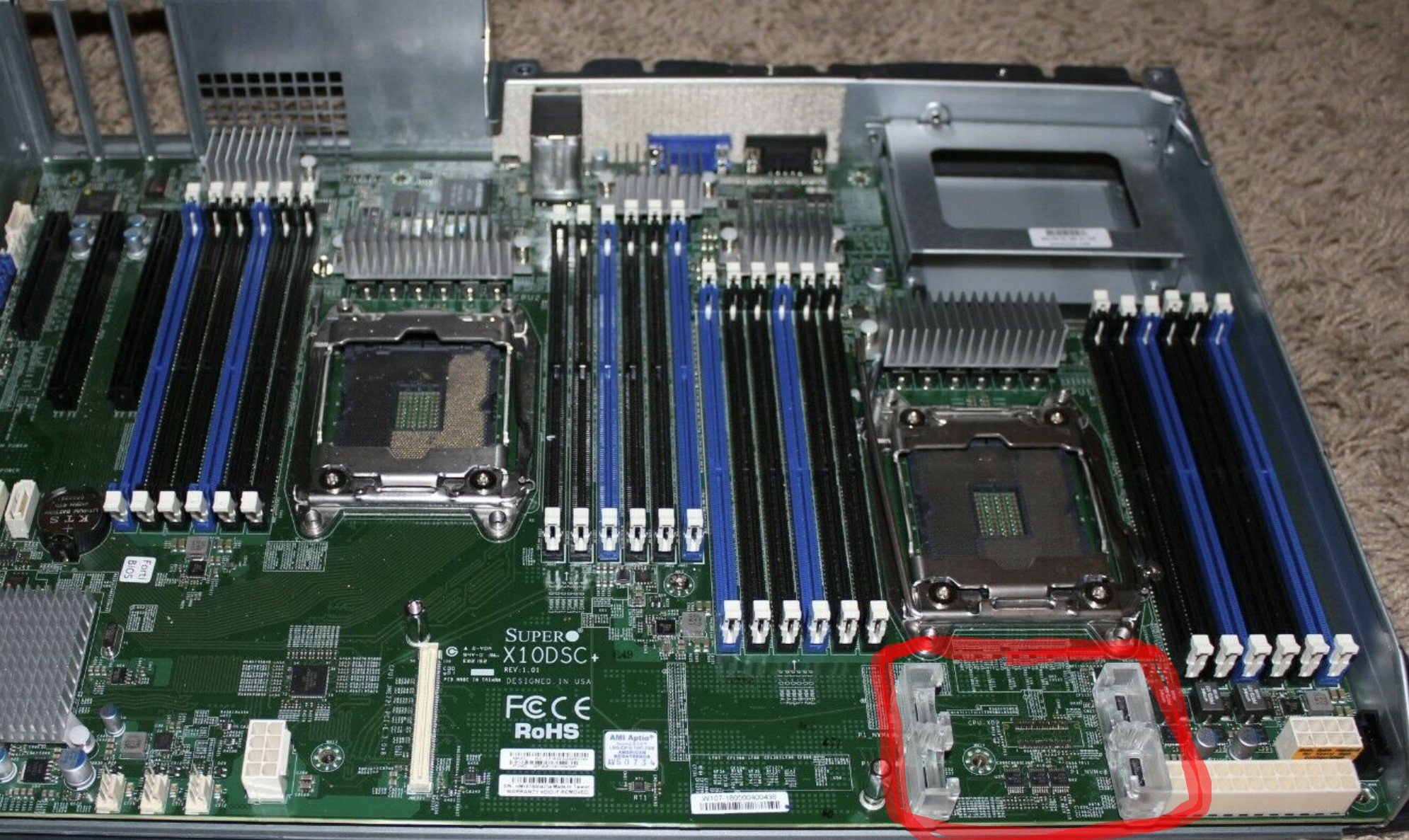

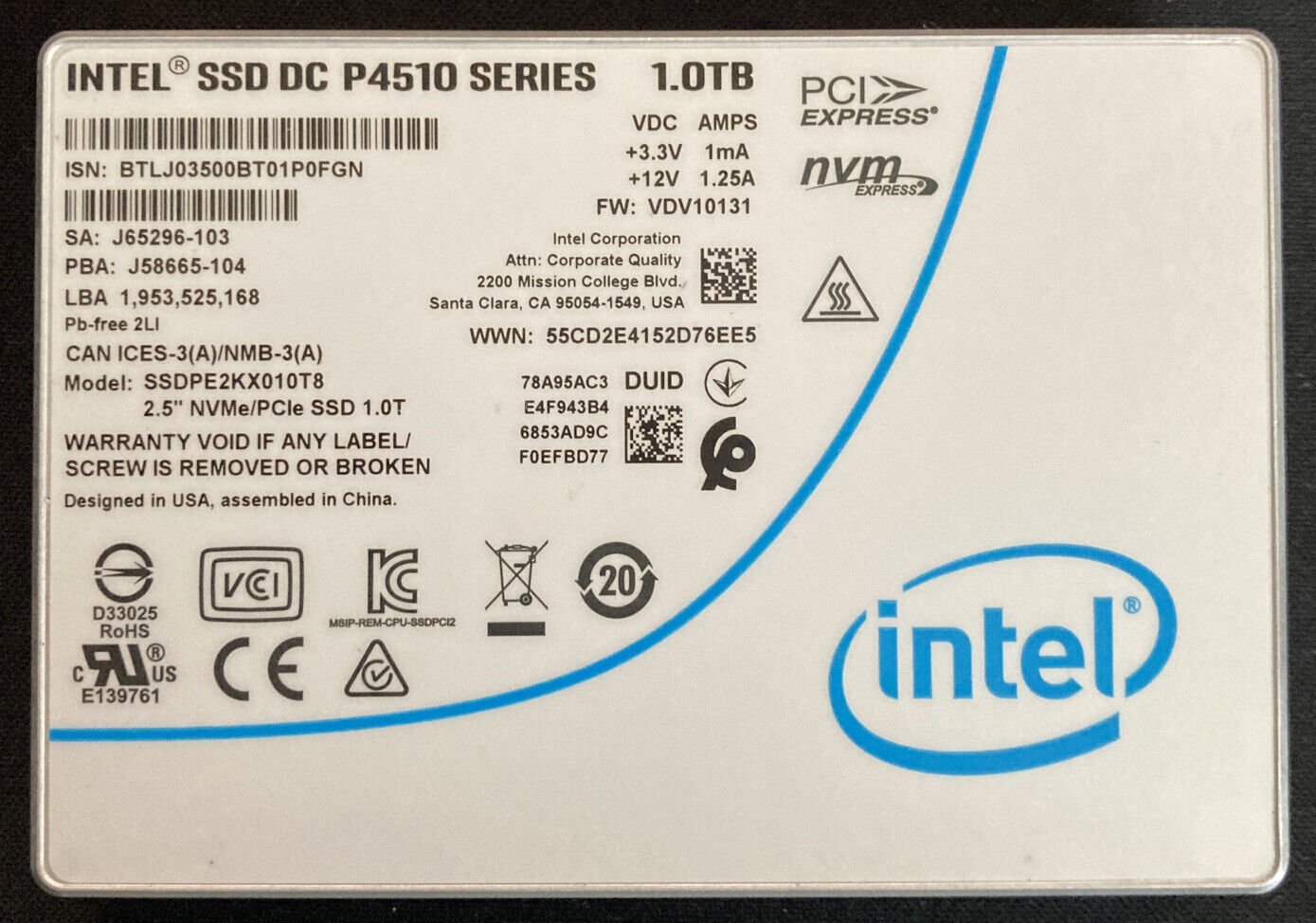

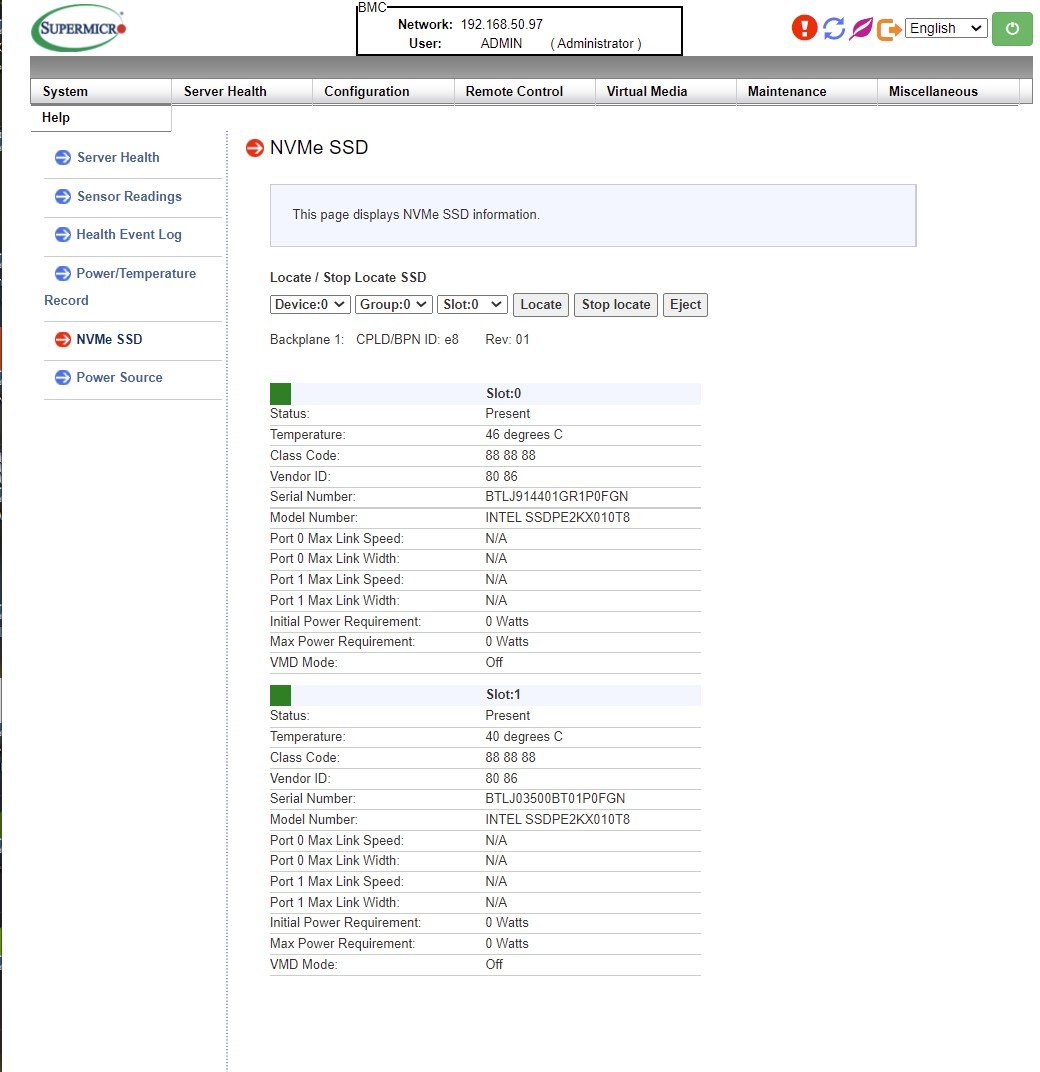

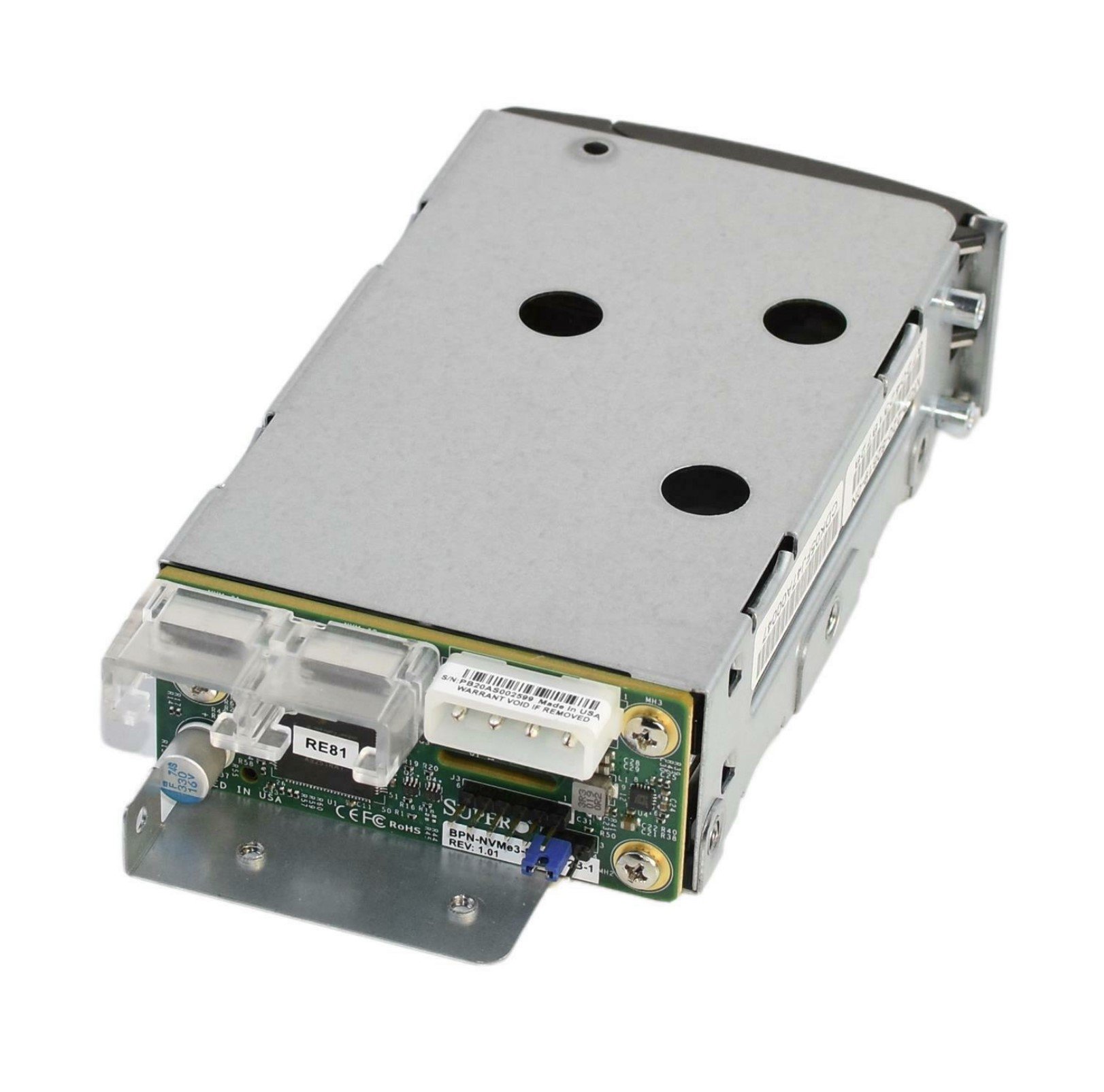

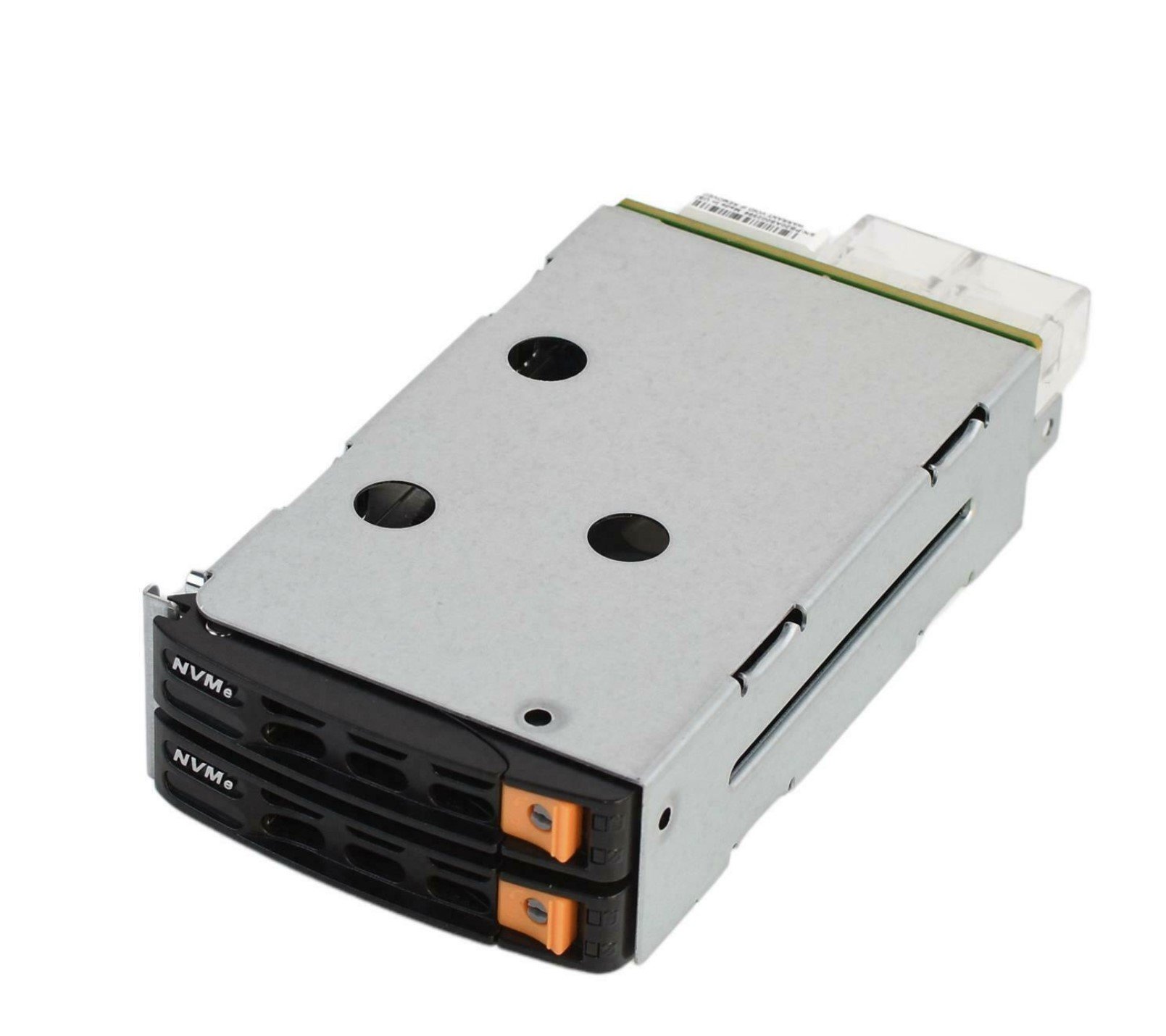

I cannot seem to get my 2 NVME drives to show up in unraid. Ive read the forum and googled with no successful answer. Im using a Supermicro Server with an X10DSC+ MB. This board has 4 built in NVME ports of which Im using 2. Ive connected my 2 NVME drives via oculink cables to a 2 drive rear backplane. These drives appear in my Server's IPMI, but not unraid. Ive attached my diagnostics. any help is appreciated. Thanks! Unraid Diagnostic logs 7-15-22.zip
