MatthewH12

Thanks for your help Jorge!

Good to know. How do I delete disk 15 from unRAID so I can put a blank drive there and not rebuild on it?

I don't :(. Based on other posts im trying data recovery on the 20tb based on the parity rebuild. Hope it works.

I ran the command multiple times with and without -L. It always crashes in the same place. Phase 1 - find and verify superblock... Phase 2 - using internal log - zero log... - scan filesystem freespace and inode maps... clearing needsrepair flag and regenerating metadata sb_icount 2858656, counted 32 sb_ifree 52847, counted 29 sb_fdblocks 549504460, counted 4394060152 - found root inode chunk Phase 3 - for each AG... - scan and clear agi unlinked lists... - process known inodes and perform inode discovery... - agno = 0 - agno = 1 - agno = 2 - agno = 3 - agno = 4 - agno = 5 - agno = 6 - agno = 7 - agno = 8 - agno = 9 - agno = 10 - agno = 11 - agno = 12 - agno = 13 - agno = 14 - agno = 15 - agno = 16 - process newly discovered inodes... Phase 4 - check for duplicate blocks... - setting up duplicate extent list... - check for inodes claiming duplicate blocks... - agno = 1 - agno = 4 - agno = 5 - agno = 11 - agno = 9 - agno = 7 - agno = 2 - agno = 8 - agno = 12 - agno = 3 - agno = 10 - agno = 13 - agno = 14 - agno = 15 - agno = 6 - agno = 0 - agno = 16 Phase 5 - rebuild AG headers and trees... - reset superblock... Phase 6 - check inode connectivity... - resetting contents of realtime bitmap and summary inodes - traversing filesystem ... - traversal finished ... - moving disconnected inodes to lost+found ... Phase 7 - verify and correct link counts... SB summary counter sanity check failed Metadata corruption detected at 0x49d6d5, xfs_sb block 0x0/0x200 libxfs_bwrite: write verifier failed on xfs_sb bno 0x0/0x1 SB summary counter sanity check failed Metadata corruption detected at 0x49d6d5, xfs_sb block 0x0/0x200 libxfs_bwrite: write verifier failed on xfs_sb bno 0x0/0x1 xfs_repair: Releasing dirty buffer to free list! xfs_repair: Refusing to write a corrupt buffer to the data device! xfs_repair: Lost a write to the data device! fatal error -- File system metadata writeout failed, err=117. Re-run xfs_repair. For now I pulled the 20tb just in case. unRAID shows disk 15 as empty but still unmountable.

I had an 18tb drive die. I put a 20tb drive in it's place but it says the xfs is unmountable after the parity rebuild? I have dual parity but am unsure how to proceed. Edit: So I think its worse than I thought? Here's diags: homesrv-diagnostics-20251127-2114.zip

8.5.6-unraid was just released a few hours ago. https://hub.docker.com/r/11notes/unifi/tags

Thank you so very much. Once I switched to the main PMS docker build instead of binhex's, the DVB just showed up and I got everything working! Now I just need an antenna and I'm all set. Keep up the awesome work, it's really appreciated!!

Got any tips for setting up tv headend with Plex? Sent from my iPhone using Tapatalk

EDIT: I just found out I have two cards with two different dates, so I swapped my C2013 card for a C2009 card, and it now shows in the DVB-driver page! 😮 Now to figure out how to pass it through to my plex docker.

Oh yeah, sorry! homesrv-diagnostics-20220216-1212.zip If I had to guess, these lines from the syslog, look problematic. Feb 16 15:17:31 HomeSRV kernel: mc: Linux media interface: v0.10 Feb 16 15:17:31 HomeSRV kernel: videodev: Linux video capture interface: v2.00 Feb 16 15:17:31 HomeSRV kernel: CORE saa7164[0]: subsystem: 0070:8851, board: Hauppauge WinTV-HVR2250 [card=7,insmod option] Feb 16 15:17:31 HomeSRV kernel: saa7164[0]/0: found at 0000:01:00.0, rev: 129, irq: 16, latency: 0, mmio: 0xdf000000 Feb 16 15:17:31 HomeSRV kernel: saa7164_downloadfirmware() no first image Feb 16 15:17:31 HomeSRV kernel: saa7164_downloadfirmware() Waiting for firmware upload (NXP7164-2010-03-10.1.fw) Feb 16 15:17:31 HomeSRV kernel: saa7164_downloadfirmware() firmware read 4019072 bytes. Feb 16 15:17:31 HomeSRV kernel: saa7164_downloadfirmware() firmware loaded. Feb 16 15:17:31 HomeSRV kernel: Firmware file header part 1: Feb 16 15:17:31 HomeSRV kernel: .FirmwareSize = 0x0 Feb 16 15:17:31 HomeSRV kernel: .BSLSize = 0x0 Feb 16 15:17:31 HomeSRV kernel: .Reserved = 0x3d538 Feb 16 15:17:31 HomeSRV kernel: .Version = 0x3 Feb 16 15:17:31 HomeSRV kernel: saa7164_downloadfirmware() SecBootLoader.FileSize = 4019072 Feb 16 15:17:31 HomeSRV kernel: saa7164_downloadfirmware() FirmwareSize = 0x1fd6 Feb 16 15:17:31 HomeSRV kernel: saa7164_downloadfirmware() BSLSize = 0x0 Feb 16 15:17:31 HomeSRV kernel: saa7164_downloadfirmware() Reserved = 0x0 Feb 16 15:17:31 HomeSRV kernel: saa7164_downloadfirmware() Version = 0x1661c00 Feb 16 15:17:31 HomeSRV root: Feb 16 15:17:31 HomeSRV root: ---------------Installation of DVB-Driver-Package successful---------------- Feb 16 15:17:31 HomeSRV root: Feb 16 15:17:31 HomeSRV root: plugin: dvb-driver.plg installed Feb 16 15:17:39 HomeSRV kernel: saa7164_downloadimage() Image downloaded, booting... Feb 16 15:18:05 HomeSRV kernel: md: unRAID driver 2.9.17 installed Feb 16 15:18:05 HomeSRV emhttpd: Pro key detected, GUID: 1..4 FILE: /boot/config/Pro.key Feb 16 15:18:31 HomeSRV kernel: saa7164_dl_wait_clr() timeout (no d/l clr) Feb 16 15:18:31 HomeSRV kernel: bootloader d/l has failed Feb 16 15:18:31 HomeSRV kernel: Failed to boot firmware, no features registered Feb 16 15:18:31 HomeSRV kernel: saa7164 driver loaded

Sadly still no dice.

Yep, rebooted twice just to be sure. Here's updated diagnostics. homesrv-diagnostics-20220216-0411.zip

No luck. =( root@HomeSRV:~# ls /dev/dvb /bin/ls: cannot access '/dev/dvb': No such file or directory

Of course, here ya go! homesrv-diagnostics-20220215-2143.zip Thanks for getting back so quickly! I was surprised it wasn't just install and go...

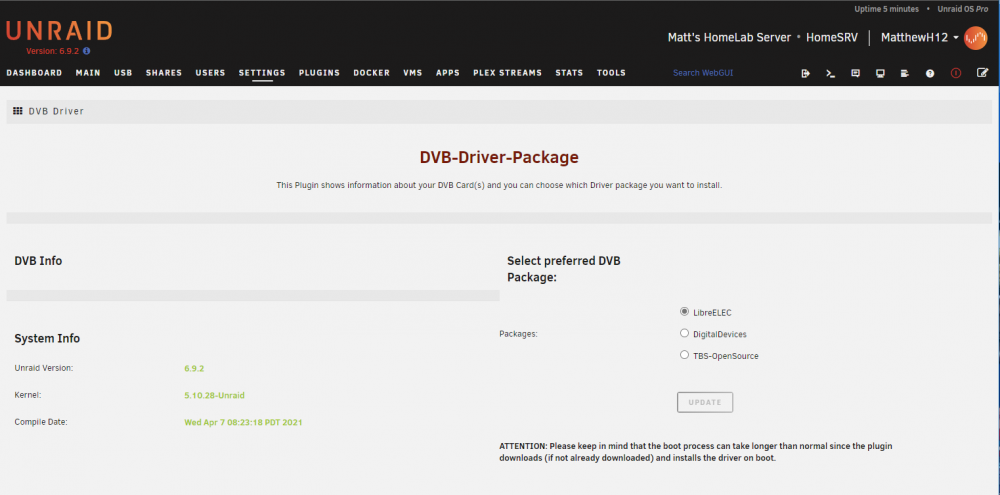

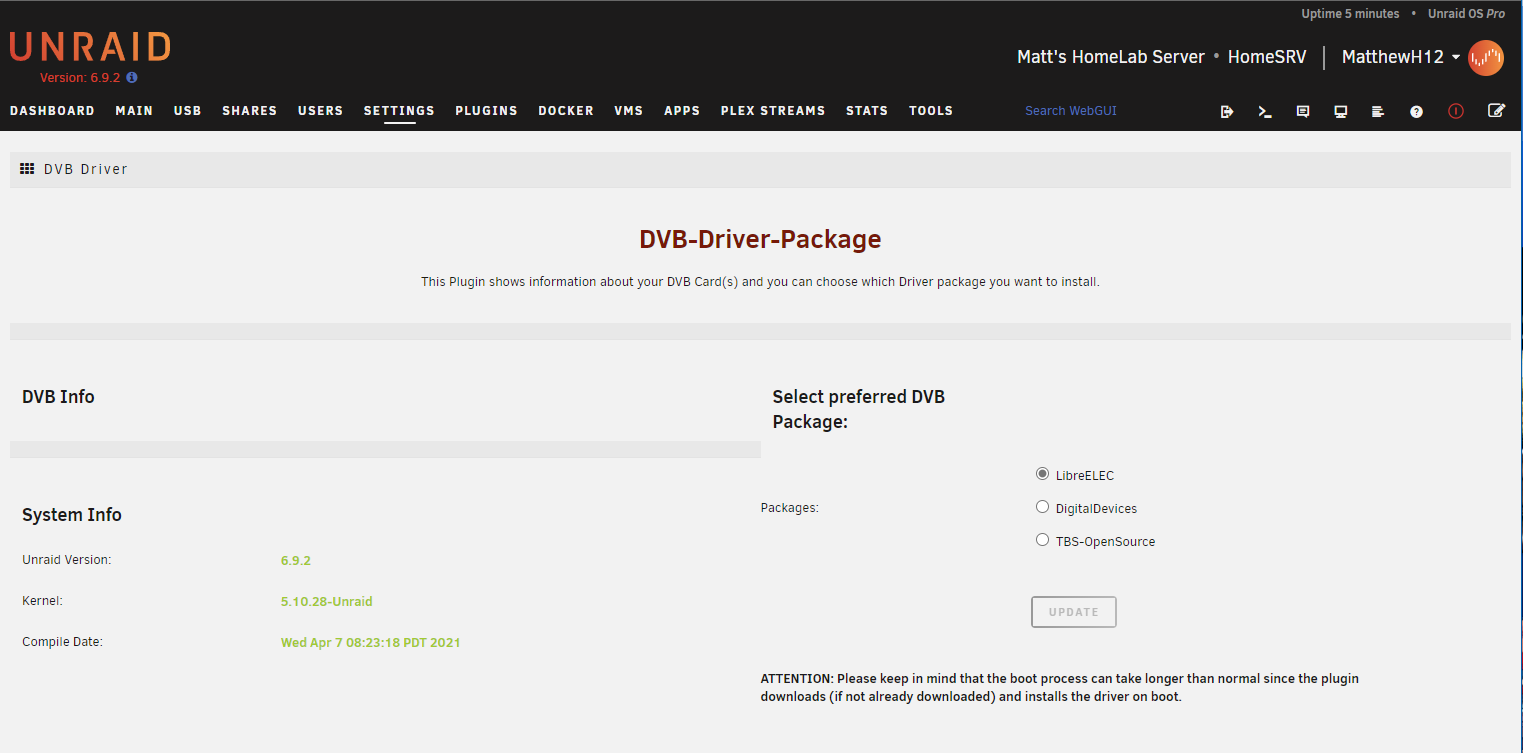

I can not for the life of me get my HVR2250/SAA7164 working. I finally got the DVB driver to install and modprobe, and it shows in the systemlog, but it doesn't show in the DBV Plugin, nor does /dev/dvb exist. Rebooted multiple times with no change. Trying to use it with Plex Live TV feature. System Info Unraid Version:6.9.2 Kernel:5.10.28-Unraid Compile Date:Wed Apr 7 08:23:18 PDT 2021 Logs.txt
