sysop-gwg

@ghost82 Getting this in log - I attached the diags as well. 2022-06-07 13:07:42.329+0000: starting up libvirt version: 8.2.0, qemu version: 6.2.0, kernel: 5.15.43-Unraid, hostname: RenderServer LC_ALL=C \ PATH=/bin:/sbin:/usr/bin:/usr/sbin \ HOME='/var/lib/libvirt/qemu/domain-1-001 Windows 10' \ XDG_DATA_HOME='/var/lib/libvirt/qemu/domain-1-001 Windows 10/.local/share' \ XDG_CACHE_HOME='/var/lib/libvirt/qemu/domain-1-001 Windows 10/.cache' \ XDG_CONFIG_HOME='/var/lib/libvirt/qemu/domain-1-001 Windows 10/.config' \ /usr/local/sbin/qemu \ -name 'guest=001 Windows 10,debug-threads=on' \ -S \ -object '{"qom-type":"secret","id":"masterKey0","format":"raw","file":"/var/lib/libvirt/qemu/domain-1-001 Windows 10/master-key.aes"}' \ -machine pc-i440fx-4.2,usb=off,dump-guest-core=off,mem-merge=off,memory-backend=pc.ram \ -accel kvm \ -cpu host,migratable=on,topoext=on,hv-time=on,hv-relaxed=on,hv-vapic=on,hv-spinlocks=0x1fff,hv-vendor-id=none,host-cache-info=on,l3-cache=off \ -m 50688 \ -object '{"qom-type":"memory-backend-ram","id":"pc.ram","size":53150220288}' \ -overcommit mem-lock=off \ -smp 10,sockets=1,dies=1,cores=5,threads=2 \ -uuid 8ff1b299-3467-488a-8a9e-1ffa44d87fa9 \ -display none \ -no-user-config \ -nodefaults \ -chardev socket,id=charmonitor,fd=36,server=on,wait=off \ -mon chardev=charmonitor,id=monitor,mode=control \ -rtc base=localtime \ -no-hpet \ -no-shutdown \ -boot strict=on \ -device nec-usb-xhci,p2=15,p3=15,id=usb,bus=pci.0,addr=0x7 \ -device virtio-serial-pci,id=virtio-serial0,bus=pci.0,addr=0x3 \ -blockdev '{"driver":"file","filename":"/mnt/user/domains/001 Windows 10/vdisk1.img","node-name":"libvirt-2-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-2-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-2-storage"}' \ -device virtio-blk-pci,bus=pci.0,addr=0x4,drive=libvirt-2-format,id=virtio-disk2,bootindex=1,write-cache=on \ -blockdev '{"driver":"file","filename":"/mnt/user/domains/001 Windows 10/vdisk2.img","node-name":"libvirt-1-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-1-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-1-storage"}' \ -device virtio-blk-pci,bus=pci.0,addr=0x5,drive=libvirt-1-format,id=virtio-disk3,write-cache=on \ -netdev tap,fd=37,id=hostnet0 \ -device virtio-net,netdev=hostnet0,id=net0,mac=38:7a:0e:12:a1:4f,bus=pci.0,addr=0x2 \ -chardev pty,id=charserial0 \ -device isa-serial,chardev=charserial0,id=serial0,index=0 \ -chardev socket,id=charchannel0,fd=35,server=on,wait=off \ -device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \ -device usb-tablet,id=input0,bus=usb.0,port=1 \ -audiodev '{"id":"audio1","driver":"none"}' \ -device vfio-pci,host=0000:21:00.0,id=hostdev0,bus=pci.0,multifunction=on,addr=0x6 \ -device vfio-pci,host=0000:21:00.1,id=hostdev1,bus=pci.0,addr=0x6.0x1 \ -device vfio-pci,host=0000:21:00.2,id=hostdev2,bus=pci.0,addr=0x6.0x2 \ -device vfio-pci,host=0000:21:00.3,id=hostdev3,bus=pci.0,addr=0x6.0x3 \ -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \ -msg timestamp=on char device redirected to /dev/pts/0 (label charserial0) 2022-06-07T13:07:47.633858Z qemu-system-x86_64: -device vfio-pci,host=0000:21:00.0,id=hostdev0,bus=pci.0,multifunction=on,addr=0x6: Failed to mmap 0000:21:00.0 BAR 1. Performance may be slow renderserver-diagnostics-20220607-0912.zip

@ghost82 Please see attached.renderserver-diagnostics-20220606-1732.zip

Here you go @trurl - Thank you.

@ghost82 Okay, we got both VM working, but when I try to add the Quadro RTX 5000 (21:00.0) Video Card, it won't boot completely and I get this in the log. I have to force it to stop VM. I attached the xml file with the update you suggested above. Thank you for all your help! ce or resource busy 2022-06-03T20:01:00.732021Z qemu-system-x86_64: vfio_region_write(0000:21:00.0:region1+0x1abf74, 0x0,1) failed: Device or resource busy 2022-06-03T20:01:00.732029Z qemu-system-x86_64: vfio_region_write(0000:21:00.0:region1+0x1abf75, 0x0,1) failed: Device or resource busy 2022-06-03T20:01:00.732038Z qemu-system-x86_64: vfio_region_write(0000:21:00.0:region1+0x1abf76, 0x0,1) failed: Device or resource busy 2022-06-03T20:01:00.732046Z qemu-system-x86_64: vfio_region_write(0000:21:00.0:region1+0x1abf77, 0x0,1) failed: Device or resource busy 2022-06-03T20:01:00.732054Z qemu-system-x86_64: vfio_region_write(0000:21:00.0:region1+0x1abf78, 0x0,1) failed: Device or resource busy 2022-06-03T20:01:00.732061Z qemu-system-x86_64: vfio_region_write(0000:2 001-Windows.xml

@trurl Attached are our diagnostics - Thank you for your assistance. diagnostics-unraid.zip

@ghost82 I figured it out with your help, I needed to update the other xml with this: <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/001 Windows 10/vdisk1.img'/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </disk> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/001 Windows 10/vdisk2.img'/> <target dev='hdd' bus='virtio'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x1'/> </disk>

@ghost82 Wow! That worked! Thank you!!!! I only had to add </domain> at the end of your XML file. Another question: I have 2nd machine with the same problem. What exactly do I need to add to that one to fix it? See attached. 001 Windows 10.xml

@trurl Hi, I'm a "newbee" here...I noticed a warning today that my cache disk is almost full. Should this be something to be concerned about? Or, is this dynamic - meaning it will remove files from cache overtime and they get "stale"?

@ghost82 Here is a list of my devices, any insight? BTW, everything was working for years...until the machine just became unreachable, so I rebooted, and all hell broke loose. I upgrade to the latest version of UNRAID and paid my $79 bucks too. PCI Devices and IOMMU Groups IOMMU group 0:[1022:1482] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 1:[1022:1483] 00:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge IOMMU group 2:[1022:1482] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 3:[1022:1482] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 4:[1022:1482] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 5:[1022:1482] 00:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 6:[1022:1482] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 7:[1022:1484] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] IOMMU group 8:[1022:1482] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 9:[1022:1484] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] IOMMU group 10:[1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 61) [1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51) IOMMU group 11:[1022:1490] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 0 [1022:1491] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 1 [1022:1492] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 2 [1022:1493] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 3 [1022:1494] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 4 [1022:1495] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 5 [1022:1496] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 6 [1022:1497] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship Device 24; Function 7 IOMMU group 12:[15b7:5002] 01:00.0 Non-Volatile memory controller: Sandisk Corp WD Black 2018/SN750 / PC SN720 NVMe SSD [N:0:8215:1] disk WDS100T3XHC-00SJG0__1 /dev/nvme0n1 1.00TB IOMMU group 13:[1022:148a] 02:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function IOMMU group 14:[1022:1485] 03:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP IOMMU group 15:[1022:148c] 03:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Starship USB 3.0 Host Controller Bus 001 Device 001 Port 1-0 ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 001 Device 002 Port 1-1 ID 413c:2113 Dell Computer Corp. KB216 Wired Keyboard Bus 002 Device 001 Port 2-0 ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 002 Device 002 Port 2-2 ID 0bc2:ab34 Seagate RSS LLC Backup Plus IOMMU group 16:[1022:1482] 20:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 17:[1022:1482] 20:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 18:[1022:1482] 20:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 19:[1022:1483] 20:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge IOMMU group 20:[1022:1482] 20:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 21:[1022:1482] 20:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 22:[1022:1482] 20:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 23:[1022:1484] 20:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] IOMMU group 24:[1022:1482] 20:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 25:[1022:1484] 20:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] IOMMU group 26:[10de:1eb0] 21:00.0 VGA compatible controller: NVIDIA Corporation TU104GL [Quadro RTX 5000] (rev a1) [10de:10f8] 21:00.1 Audio device: NVIDIA Corporation TU104 HD Audio Controller (rev a1) [10de:1ad8] 21:00.2 USB controller: NVIDIA Corporation TU104 USB 3.1 Host Controller (rev a1) Bus 003 Device 001 Port 3-0 ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 004 Device 001 Port 4-0 ID 1d6b:0003 Linux Foundation 3.0 root hub [10de:1ad9] 21:00.3 Serial bus controller: NVIDIA Corporation TU104 USB Type-C UCSI Controller (rev a1) IOMMU group 27:[1022:148a] 22:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function IOMMU group 28:[1022:1485] 23:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP IOMMU group 29:[1022:1486] 23:00.1 Encryption controller: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Cryptographic Coprocessor PSPCPP IOMMU group 30:[1022:148c] 23:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Starship USB 3.0 Host Controller Bus 005 Device 001 Port 5-0 ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 006 Device 001 Port 6-0 ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 006 Device 002 Port 6-2 ID 0bc2:2322 Seagate RSS LLC SRD0NF1 Expansion Portable (STEA) IOMMU group 31:[1022:1487] 23:00.4 Audio device: Advanced Micro Devices, Inc. [AMD] Starship/Matisse HD Audio Controller IOMMU group 32:[1022:1482] 40:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 33:[1022:1483] 40:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge IOMMU group 34:[1022:1482] 40:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 35:[1022:1482] 40:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 36:[1022:1482] 40:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 37:[1022:1482] 40:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 38:[1022:1482] 40:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 39:[1022:1484] 40:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] IOMMU group 40:[1022:1482] 40:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 41:[1022:1484] 40:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] IOMMU group 42:[1022:57ad] 41:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse Switch Upstream IOMMU group 43:[1022:57a3] 42:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge IOMMU group 44:[1022:57a3] 42:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge IOMMU group 45:[1022:57a3] 42:05.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge IOMMU group 46:[1022:57a3] 42:06.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge IOMMU group 47:[1022:57a4] 42:08.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:1485] 47:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP [1022:149c] 47:00.1 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller Bus 010 Device 001 Port 10-0 ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 009 Device 001 Port 9-0 ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 009 Device 002 Port 9-1 ID 1a2c:0042 China Resource Semico Co., Ltd Usb Mouse Bus 009 Device 003 Port 9-2 ID 154b:00c2 PNY USB 2.0 FD Bus 009 Device 004 Port 9-3 ID 051d:0002 American Power Conversion Uninterruptible Power Supply Bus 009 Device 005 Port 9-5 ID 0db0:543d Micro Star International USB Audio Bus 009 Device 006 Port 9-6 ID 1462:7c60 Micro Star International MYSTIC LIGHT [1022:149c] 47:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller Bus 011 Device 001 Port 11-0 ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 011 Device 002 Port 11-5 ID 8087:0029 Intel Corp. AX200 Bluetooth Bus 011 Device 003 Port 11-6 ID 05e3:0608 Genesys Logic, Inc. Hub Bus 011 Device 004 Port 11-6.1 ID 1b1c:1d00 Corsair 1000D Bus 011 Device 005 Port 11-6.2 ID 05e3:0610 Genesys Logic, Inc. Hub Bus 011 Device 006 Port 11-6.4 ID 1e71:3008 NZXT NZXT KrakenZ Device Bus 012 Device 001 Port 12-0 ID 1d6b:0003 Linux Foundation 3.0 root hub IOMMU group 48:[1022:57a4] 42:09.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:7901] 48:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51) [3:0:0:0] disk ATA WDC WD80EFAX-68K 0A81 /dev/sdd 8.00TB [4:0:0:0] disk ATA WDC WD80EFAX-68K 0A81 /dev/sde 8.00TB [5:0:0:0] disk ATA SHGS31-500GS-2 0Q00 /dev/sdf 500GB IOMMU group 49:[1022:57a4] 42:0a.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:7901] 49:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51) IOMMU group 50:[1b21:3242] 43:00.0 USB controller: ASMedia Technology Inc. ASM3242 USB 3.2 Host Controller Bus 007 Device 001 Port 7-0 ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 008 Device 001 Port 8-0 ID 1d6b:0003 Linux Foundation 3.0 root hub IOMMU group 51:[8086:1539] 44:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03) IOMMU group 52:[8086:1539] 45:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03) IOMMU group 53:[8086:2723] 46:00.0 Network controller: Intel Corporation Wi-Fi 6 AX200 (rev 1a) IOMMU group 54:[1022:148a] 4a:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function IOMMU group 55:[1022:1485] 4b:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP IOMMU group 56:[1022:1482] 60:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 57:[1022:1482] 60:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 58:[1022:1482] 60:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 59:[1022:1482] 60:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 60:[1022:1482] 60:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 61:[1022:1482] 60:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 62:[1022:1484] 60:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] IOMMU group 63:[1022:1482] 60:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 64:[1022:1484] 60:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] IOMMU group 65:[1022:148a] 61:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function IOMMU group 66:[1022:1485] 62:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP

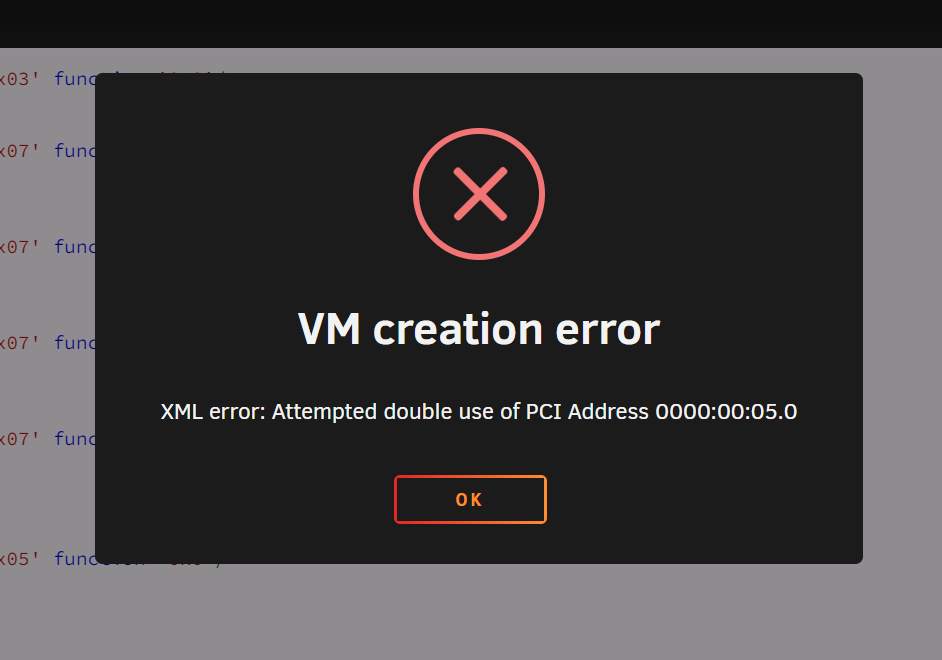

@ghost82 I tied your suggestion and couldn't update the VM because of this error: I suspect I have a pass-thru issue....??

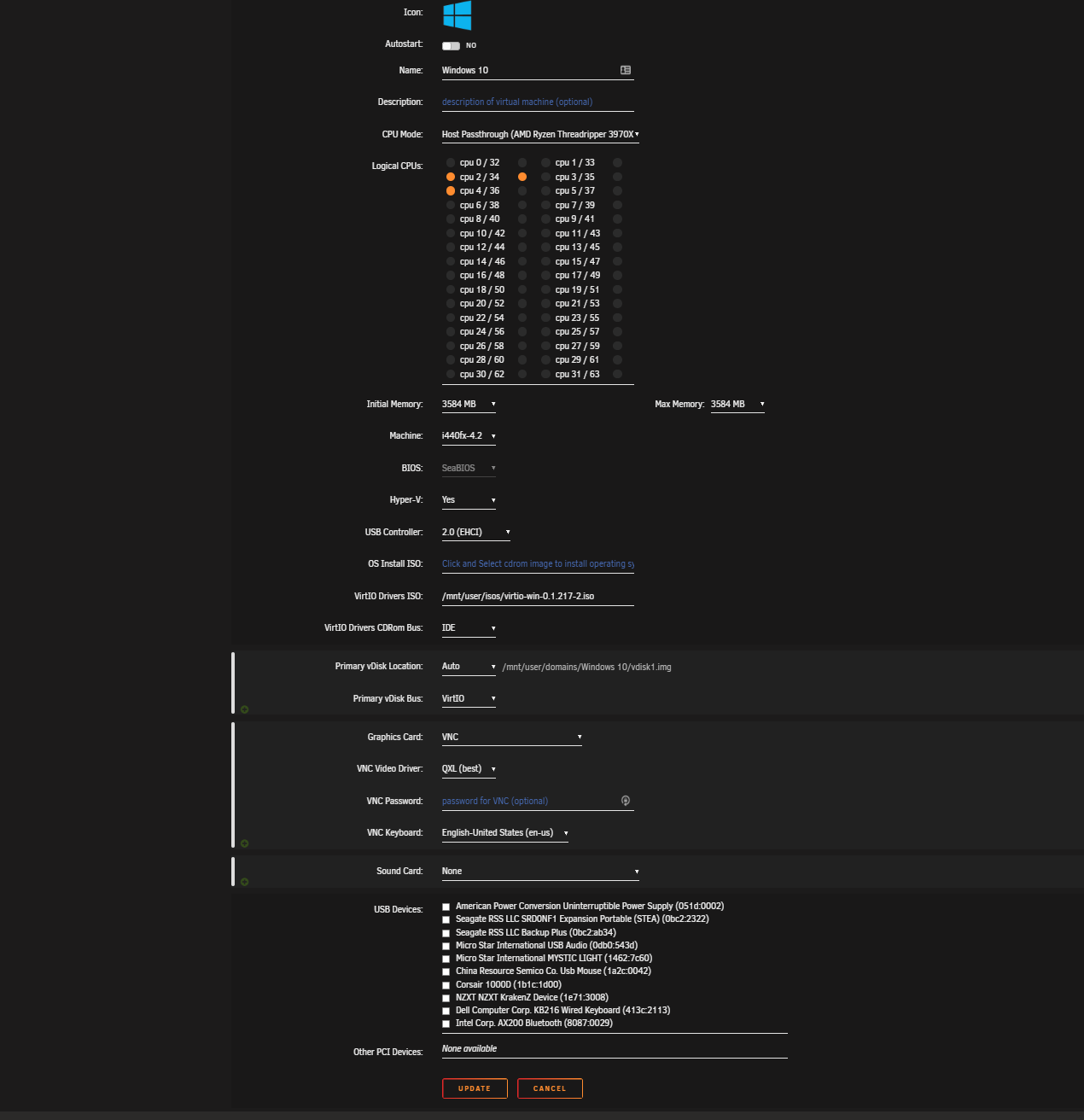

I will give it try. BTW, when I tried creating a new VM, I had the option to configure a network card, but after I booted the VM, it was removed from the config. That's what driving me crazy.

I had an issue with my unraid system. I can now access my it via the GUI via a browser. So, I know networking is working. However, my two VM seem to be missing a configuration section now for the ethernet card. I don't even get an option to add it. I can boot the VM and connect via VNC, but their isn't any network card. Nor does Device Manager look to install a new driver. These are Windows 10 Pro VMs. Attached is my config files. And a XML file for a VM. Any help would be greatly appreciated. renderserver-diagnostics-20220602-2217.zip VM-Win10-xml.txt

Do I need to configure the new card to be the console output? Or, will that happen on reboot?

Thank you. Can do this without it affecting previously created VMs?

I have a GPU that is dedicated to a VM. My motherboard doesn’t have a GPU on board. Can I simply add another GPU to support a console monitor. Back story, I has having issues with the server and couldn’t connect over the network. So, I am “blind” w/o a console.
