just want to make sure I'm understanding. When I create the flash drive using the creator tool, and my backup, it doesn't have anything in it but those bzroot bzfirmware make_bootable files but theres no OS or anything. If i just move the config folder over it doesn't boot. or do you mean create a fresh install of whatever version I had using the creator and then moving the config into that?

I was able to go into the zipped backup and those two folders were there. I copied everything in syslinux in and the Config / EFI folders. Now unraid boots, but its asking me to create a root password? i want to make sure i don't overwrite a backup if this thing connects to unraid connect. any idea what going on?

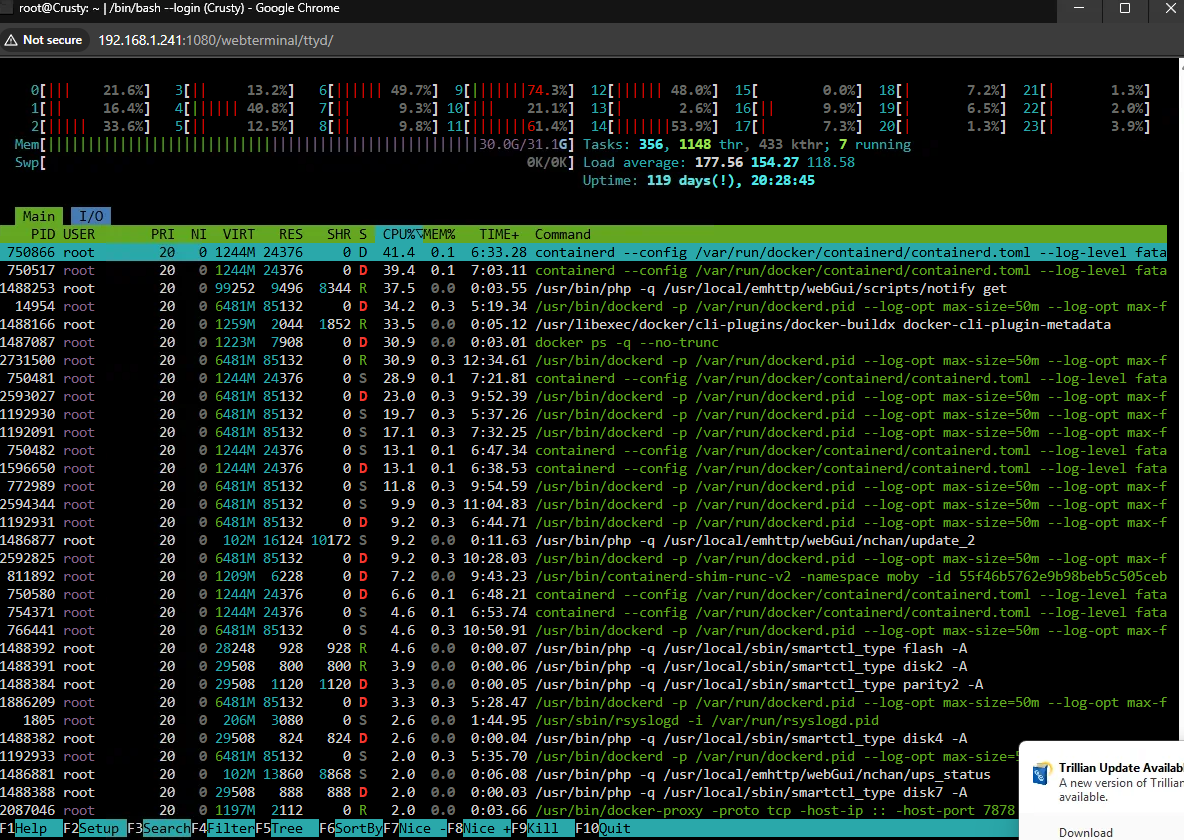

Over the weekend my server became unresponsive. It eventually opened the gui and i saw the CPU was 100%. I was able to run htop and this is what it showed. I tried to restart but it never came back up. Seems the USB drive is dead. I tried downloading the Boot Device Backup from Connect, first coupel times it gave me an error. Then it downloaded a backup, but when i used it to create the USB, it didn't install any data. Theres just an empty "syslinux" folder and the normal files on the root of the usb. No Config folder nor EFI folder. Does unraid connect have a bad backup? it says its from just 3 days ago.

root@Crusty:~# blkdiskcard -f /dev/nvme1n1 bash: blkdiskcard: command not found Tried that and got the above? I'm just typing that in the terminal window you get to from the >_ button at the top right? Edit: I found what you meant- blkdiscard* did the rest and attached diag. looks like that worked to me! Thanks for your help with this! crusty-diagnostics-20260217-0937.zip

ok, i did that and then removed the pool, readded the pool with 1 slot and added nvme0n1, it started and seems fine. crusty-diagnostics-20260216-1523.zip

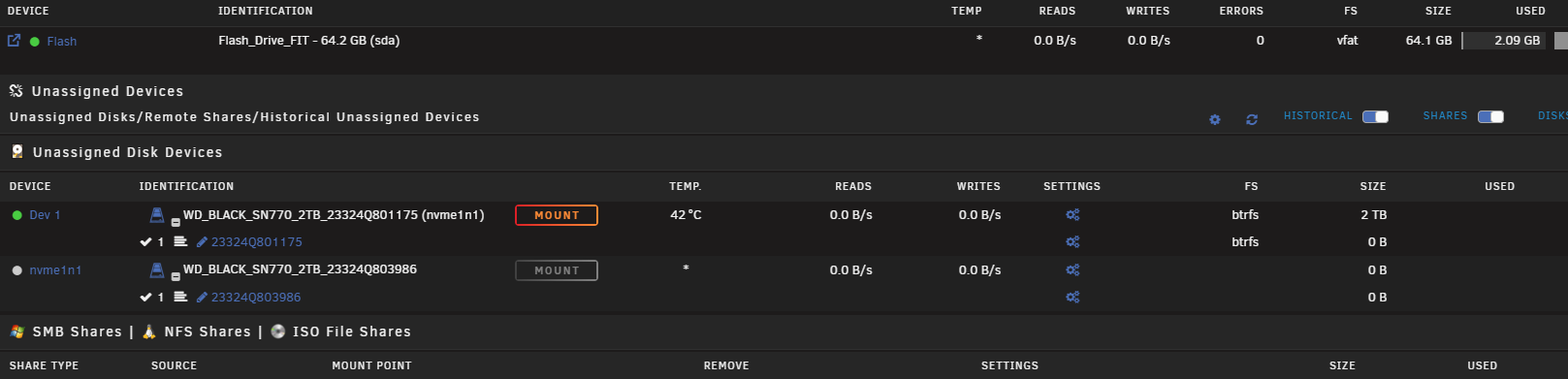

OK i believe I did that as instructed. even though i made it 1 slot it still says its not an uninstalled nvme2? crusty-diagnostics-20260216-1107.zip

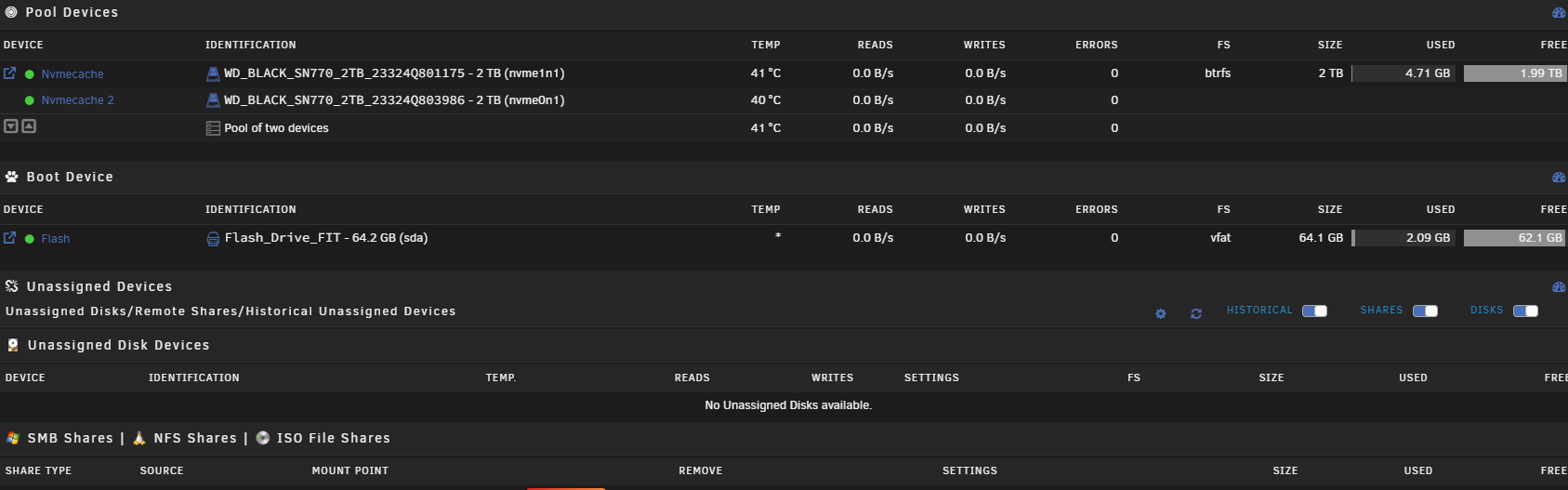

ok i did, seemingly, the same thing again, and this time it seems to have formatted the drive when i started the array. i think I'm good to go. gonna post diagnostics again if you could check if everything is looking ok. crusty-diagnostics-20260212-1634.zip

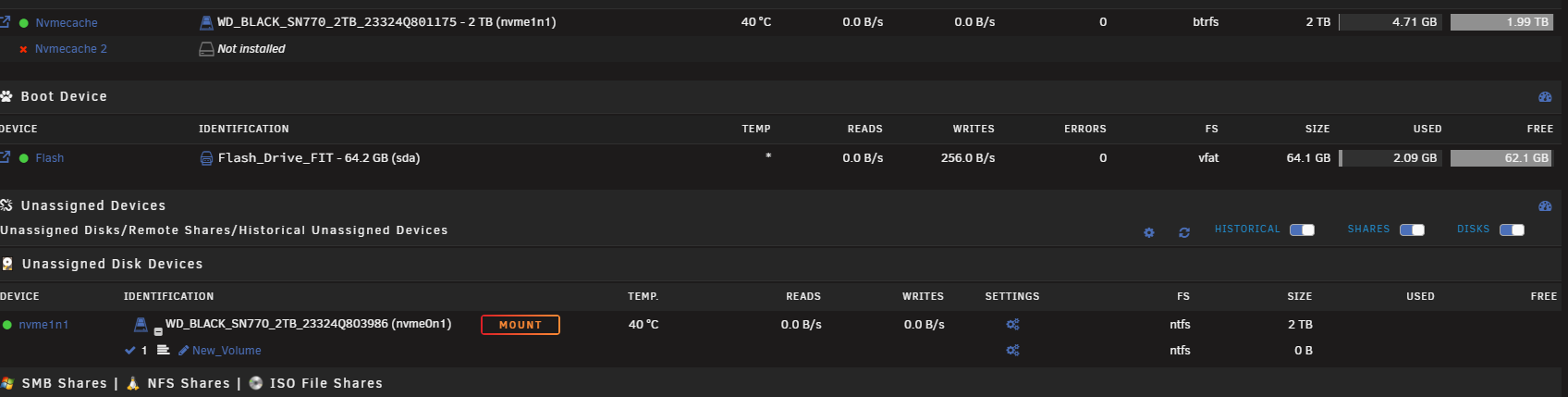

ok, I got the ssd onto a windows machine, deleted the volume in disk management and recreated a new NTFS volume. I installed it into the server and Its now showing up as mountable. my problem now is I'm not sure how to make unraid reformat the drive to use BTRFS so i can add it to my cache? screenshot+diag attached crusty-diagnostics-20260212-1612.zip

it shows in windows disk management, but the only option i have is to delete the partition on it. maybe ill try reformatting? or maybe try to upgrade firmware? I have it on a usb m.2 adapter. Sandisk/WD's own dashboard software can't find it. I'm gonna see if I can get sandisk to help/replace

I took the drive that wasn't working and swapped it to a 3rd m.2 port on my mobo. still not showing. (the other drive is under some "ssd armor" under the cpu heatsink, would be a pain to get to) i double checked that the new m.2 slot's lanes aren't being used for other sata ports. I'm gonna take the drive out and see if i can see it in windows i guess. new diag attached crusty-diagnostics-20260212-1240.zip

crusty-diagnostics-20260210-1356.zip

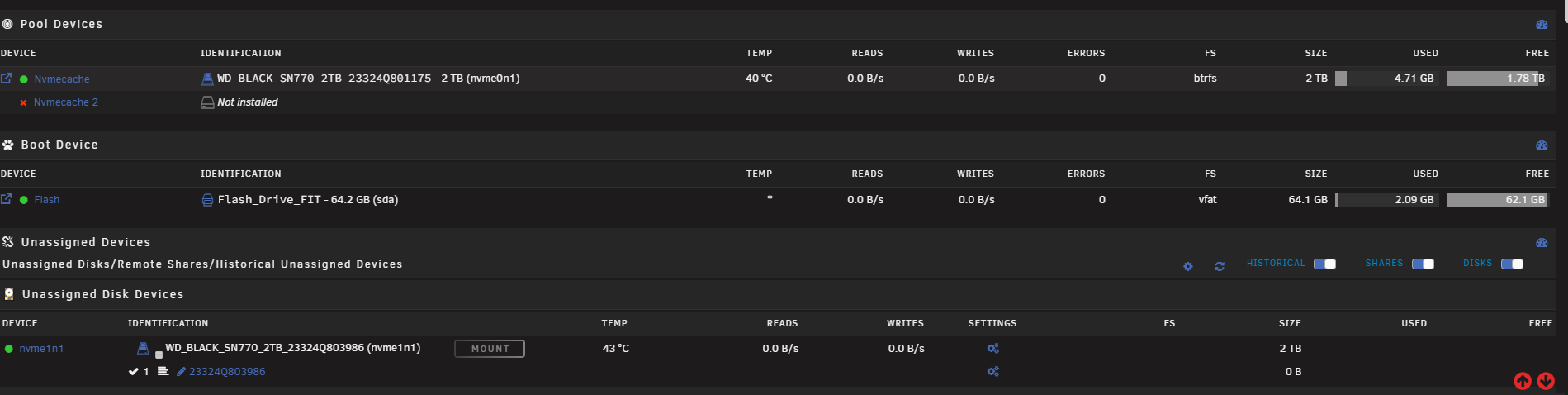

ok, I was able to shutdown the machine and bring it back up(even left it unplugged for a bit). still showing as unmountable. Luckily the drive is still under warranty so if its dead hopefully i can get it replaced.

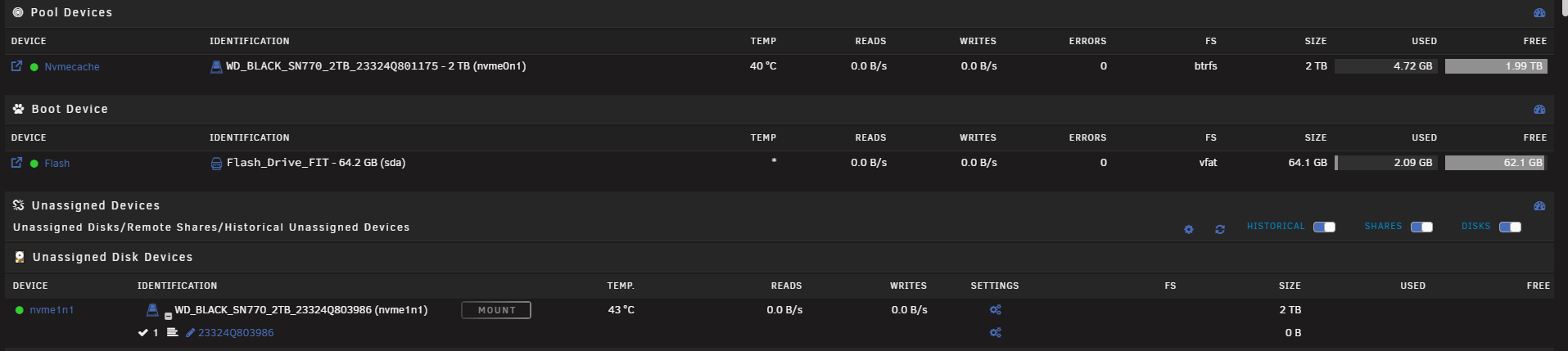

I gave that a try. still not showing. I'm not gonna be physically at its location to try a complete power cycle for a few days, but I did reboot. it shows as unassigned but unmountable. I guess that means its just dead? Fun time for a 2TB drive to die lol

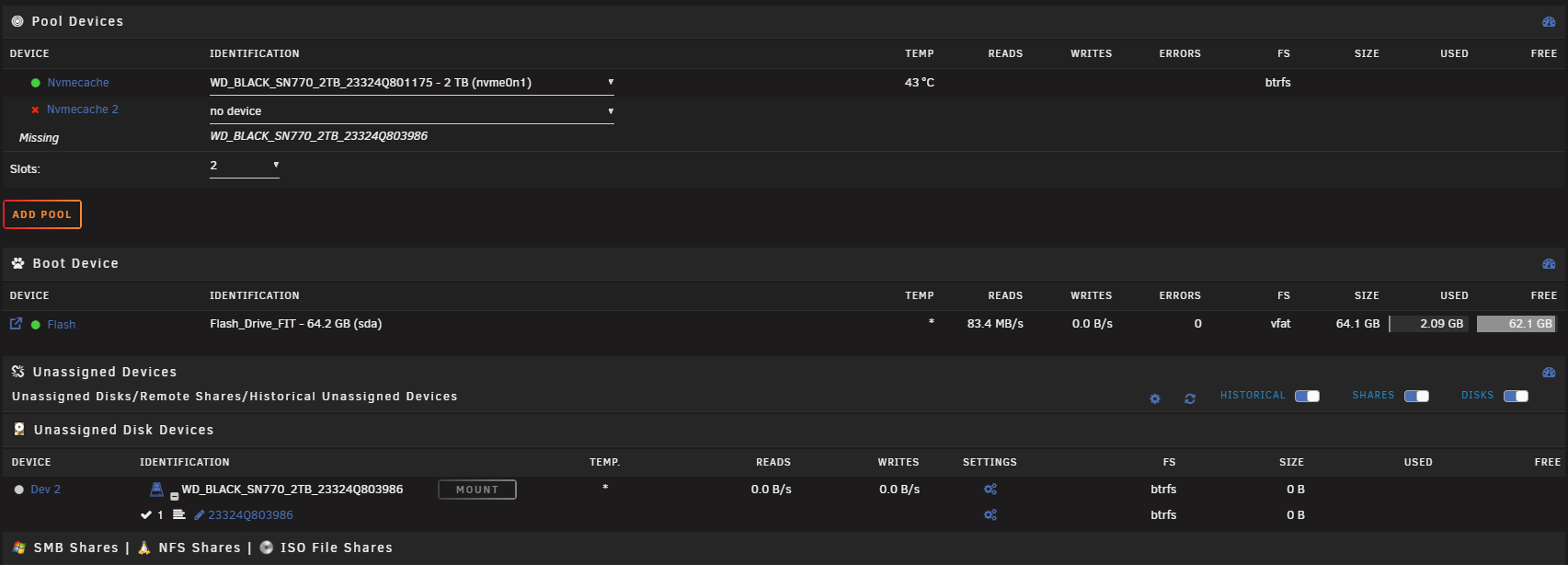

started with a dockerimage corruption. noticed BTRFS errors on my BTRFS NVME cache pool. while the array was running it showed both as green. when i stopped the array (after moving everything off the cache to change to ZFS) it showed my second NVME drive as no device. I also notice its showing up in the unassaigned devices. If its can see teh device, why isn't it able to be used in the pool? Not sure if it means my drive is dead or just the filesytem got corrupted and its not sure what to do with it? Like i said, no data is on the pool. suggestions to move forward? attached current Diagnostics and when i pulled diagnostics after the dockerimage corruption. crusty-diagnostics-20260205-1542.zip crusty-diagnostics-20260203-0904.zip

Last time I was in the case was when the HBA dropped a different drive. It was been closed for 20+ days before this happened.
