How to set fan rules .......

Dear Sir, Thanks for your reply. I just check my flash USB, the folder directory no have that two config(txz、cfg) I think it already delete by before. I need check this working fine . after that at all , I will using your mothed try to base on HDD temperture but I got a question. You said had to go through all possible fans and test them. including CPU FAN? is it possible just setting some fans not all fans to base on hdd temperture? I try to figure out my question. is here to setting which I wont make a group fans to base on hdd temperture? Thanks again.

Sorry, I mean I have tow Fan, one is cpu heat sink. It working fine about auto rpm base on cpu temperture. But my issue is the second Fan. it is my system fan . After boot to os. I try to get cpu temp high. it working fine about auto rpm base on cpu temperture. And ........ after a while about 30mins or 1 hours, My system fan it wont auto speed rpm. and stock rpm. maybe is 2400 RPM. BTW my system fan max speed rpm is 3000rpm. And I need know. maybe is install this plugin effect my system fan auto speed rpm. I remove the plugin. but it work the same issue... BTW. I tring to using this plugin to setting my system fan auto rpm base on HDD temperture. But it no work !! So I try to uninstall this plugin. but issue still .... Do you know how to uninstall about all about fan setting in terminal?

Hello Everyone, I have a issue, please help me My unraid system, My CPU Fan RPM is normal, but my system fan have some issue, my system fan speed rpm baee on cpu temperature First boot, all normal, all fine, but maybe after 30min or 1 hour, my system fan speed rpm be stuck, wont auto rpm base on cpu temperature. But other FANs All working fine. Have someone know what is happening? Tks

My unraid system, My CPU Fan is normal, but my system fan have some issue, my system fan speed rpm baee on cpu temperature First boot, all normal, all fine, but maybe after 30min or 1 hour, my system fan speed rpm be stuck, wont auto rpm base on cpu temperature. Have someone know what is happening? Tks 從我的iPhone使用Tapatalk 發送

Automatic Video Converter Preset can be set custom preset? In Unraid docker edit page , how to enter vaule ? Is it right? "General/My Custom Setting"

nerd tools delete tools,enter to flash directory . and enter the "extra" , delete what you want. after reboot, you will see nerd tools setting page which package already deleted. good luck ~

mce logged , usually some memory have ecc error. please using memtest86 pro . remember inject ecc check. its good for you check which memory dimm have error.

this is 980 pro fireware bugs. you need update 980 pro fireware. this issue on win10 have same issue by some fireware. good luck to try

All cause J4105 have too low io speed. how many file downlaod at same time ?

Change your jellyfin udp port and try again. Do you have install nerdpack or nerd tools plugin ? if you dont need python3 . you can uninstall it from nerdpack or nerd tools.

cause parity disk. do you have parity disk ? show your unraid gui main page image.

OK, Thank you~~~

@ich777Hello Sir, Unraid 6.11.2 already released. did you try yet? is it good for IT87 Driver ?

Hello, What bios version you using? Do you check BMC EventLog? This issue probably Memory Ecc Error , You have to use Memtest86 Pro to Inject Ecc Function, verify your memory all work perfect. (Not memtest86) And Server Motherboard dont recommend install memory 3 6 9 this multiple.

Hello Sir. Before I update the plugin. I try using your method. only write go file. and reboot it work perfect. now I update the plugin 2022.11.02 version. remove all custom option. and finally it work good ~~ I really thank your help. Best regards

make a config to /boot/config/modprobe.d/ and write go file? which better ?

is need make a config file to "/boot/config/modprobe.d/it87.conf"

Hello Sir. after reboot. sensor no work .... but when i type againg "modprobe it87 ignore_resource_conflict=1" in terminal. sensor back again .... what happened?

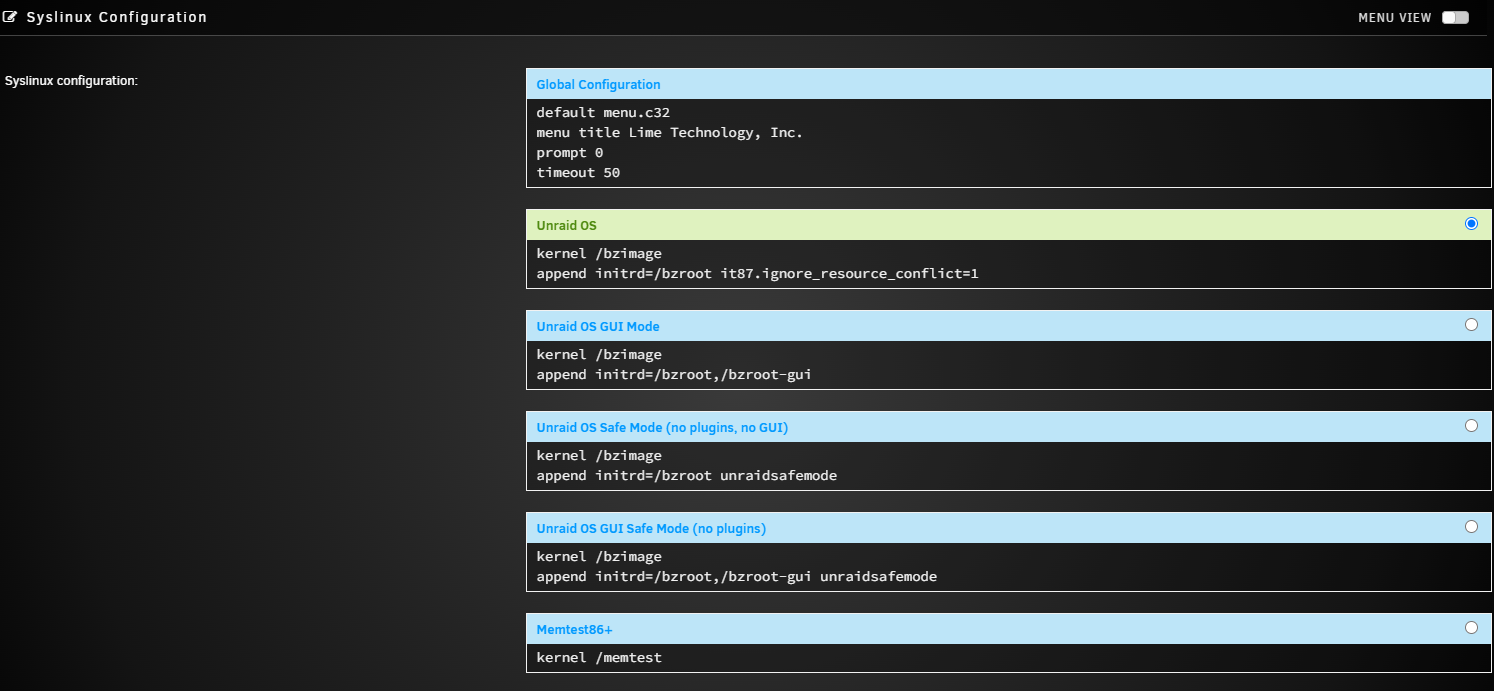

my image is correct ?

now it work. but what i need to do ? when I next boot on and no need do anything make sensor work ? and my syslog show below Nov 2 16:45:39 Tower kernel: it87: it87 driver version v1.0-80-g19bc9a4 Nov 2 16:45:39 Tower kernel: it87: Found IT8689E chip at 0xa40, revision 1 Nov 2 16:45:39 Tower kernel: it87: Beeping is supported Nov 2 16:45:39 Tower kernel: ACPI Warning: SystemIO range 0x0000000000000A45-0x0000000000000A46 conflicts with OpRegion 0x0000000000000A45-0x0000000000000A46 (\GSA1.SIO1) (20220331/utaddress-204) Nov 2 16:45:39 Tower kernel: ACPI: OSL: Resource conflict; ACPI support missing from driver? Is thin normal? need notice?

sir. when I type "modprobe it87 ignore_resource_conflict=1" in terminal my sensor is back ....... it work!! so how what I need to do ?

Cause I need vim package... yes. i try only use "it87.ignore_resource_conflict=1" to boot. still no work. no show anything. after type "modprobe it87 ignore_resource_conflict=1" in terminal lsmod follow below Module Size Used by it87 61440 0 hwmon_vid 16384 1 it87 wireguard 73728 0 curve25519_x86_64 32768 1 wireguard libcurve25519_generic 49152 2 curve25519_x86_64,wireguard libchacha20poly1305 16384 1 wireguard chacha_x86_64 28672 1 libchacha20poly1305 poly1305_x86_64 28672 1 libchacha20poly1305 ip6_udp_tunnel 16384 1 wireguard udp_tunnel 20480 1 wireguard libchacha 16384 1 chacha_x86_64 ccp 32768 0 xt_CHECKSUM 16384 1 ipt_REJECT 16384 2 nf_reject_ipv4 16384 1 ipt_REJECT ip6table_mangle 16384 1 ip6table_nat 16384 1 xt_nat 16384 14 xt_tcpudp 16384 52 iptable_mangle 16384 1 vhost_net 28672 0 tun 53248 1 vhost_net vhost 40960 1 vhost_net vhost_iotlb 16384 1 vhost tap 24576 1 vhost_net veth 32768 0 xt_conntrack 16384 2 xt_MASQUERADE 16384 19 nf_conntrack_netlink 49152 0 nfnetlink 16384 2 nf_conntrack_netlink xfrm_user 36864 1 xfrm_algo 16384 1 xfrm_user xt_addrtype 16384 2 iptable_nat 16384 2 nf_nat 49152 4 ip6table_nat,xt_nat,iptable_nat,xt_MASQUERADE nf_conntrack 139264 5 xt_conntrack,nf_nat,xt_nat,nf_conntrack_netlink,xt_MASQUERADE nf_defrag_ipv6 16384 1 nf_conntrack nf_defrag_ipv4 16384 1 nf_conntrack br_netfilter 32768 0 xfs 1654784 5 md_mod 53248 5 efivarfs 16384 1 ip6table_filter 16384 1 ip6_tables 28672 3 ip6table_filter,ip6table_nat,ip6table_mangle iptable_filter 16384 2 ip_tables 28672 3 iptable_filter,iptable_nat,iptable_mangle x_tables 45056 15 ip6table_filter,xt_conntrack,iptable_filter,ip6table_nat,xt_tcpudp,xt_addrtype,xt_CHECKSUM,xt_nat,ip6_tables,ipt_REJECT,ip_tables,iptable_nat,ip6table_mangle,xt_MASQUERADE,iptable_mangle bridge 266240 1 br_netfilter stp 16384 1 bridge llc 16384 2 bridge,stp ipv6 536576 164 bridge,br_netfilter,wireguard,ip6table_mangle igc 114688 0 r8125 143360 0 i915 2441216 0 gigabyte_wmi 20480 0 wmi_bmof 16384 0 intel_wmi_thunderbolt 16384 0 iosf_mbi 16384 1 i915 drm_buddy 16384 1 i915 i2c_algo_bit 16384 1 i915 ttm 73728 1 i915 drm_display_helper 135168 1 i915 drm_kms_helper 159744 2 drm_display_helper,i915 i2c_i801 24576 0 x86_pkg_temp_thermal 16384 0 intel_powerclamp 16384 0 coretemp 16384 0 kvm_intel 258048 0 kvm 954368 1 kvm_intel crct10dif_pclmul 16384 1 crc32_pclmul 16384 0 crc32c_intel 24576 4 ghash_clmulni_intel 16384 0 aesni_intel 380928 0 crypto_simd 16384 1 aesni_intel cryptd 24576 2 crypto_simd,ghash_clmulni_intel intel_cstate 20480 0 intel_uncore 200704 0 i2c_smbus 16384 1 i2c_i801 drm 479232 6 drm_kms_helper,drm_display_helper,drm_buddy,i915,ttm joydev 24576 0 input_leds 16384 0 led_class 16384 1 input_leds ahci 45056 6 nvme 49152 2 intel_gtt 20480 1 i915 libahci 40960 1 ahci agpgart 40960 2 intel_gtt,ttm nvme_core 106496 3 nvme i2c_core 86016 7 drm_kms_helper,i2c_algo_bit,drm_display_helper,i2c_smbus,i2c_i801,i915,drm syscopyarea 16384 1 drm_kms_helper sysfillrect 16384 1 drm_kms_helper sysimgblt 16384 1 drm_kms_helper fb_sys_fops 16384 1 drm_kms_helper wmi 28672 3 intel_wmi_thunderbolt,gigabyte_wmi,wmi_bmof thermal 20480 0 fan 16384 0 tpm_crb 16384 0 tpm_tis 16384 0 video 53248 1 i915 tpm_tis_core 20480 1 tpm_tis tpm 73728 3 tpm_tis,tpm_crb,tpm_tis_core backlight 20480 4 video,drm_display_helper,i915,drm acpi_tad 16384 0 acpi_pad 24576 0 button 20480 0 unix 53248 345

Hello Sir, I try to downgrade to 6.10.3, and it work perfect. but i try again upgrade to 6.11.1 or 6.11.0 nothing to change by setting. only uninstall nerdpack and install nerd tools . no luck ....... no working . post my diagnostics, thank your help .

I know nerdpack is no longer supported. but nerd tools is new support for 6.11 series is that wrong ? is any plugin good for check my config ? any suggest?
