Nozle

root@Tower:~# powertop --auto-tune modprobe cpufreq_stats failed Cannot load from file /var/cache/powertop/saved_results.powertop Cannot load from file /var/cache/powertop/saved_parameters.powertop File will be loaded after taking minimum number of measurement(s) with battery only RAPL device for cpu 0 RAPL Using PowerCap Sysfs : Domain Mask d RAPL device for cpu 0 RAPL Using PowerCap Sysfs : Domain Mask d Devfreq not enabled glob returned GLOB_ABORTED Cannot load from file /var/cache/powertop/saved_parameters.powertop File will be loaded after taking minimum number of measurement(s) with battery only Leaving PowerTOP

It appears that powertop --auto-tune is not working for the latest version unraid 7.3.0

trapped in c3 package

I have left Asrock, I'm building a new system with unRAID and I'm having a small problem with the power saving states in package C. Has anyone here with an MSI Tomahawk Z790 WiFi motherboard been able to get past the C3 package? I have one installed with a 14500t processor, but it's stuck on the C3 package. The BIOS configuration looks like this: Powertop --auto-tune running I've also tried Ubuntu Live USB with the same result. Nothing else is connected besides RAM, CPU, and mouse/keyboard (apart from the USB drive with Ubuntu Live USB or unRAID).

Hi, I'm building a new system with unRAID and I'm having a small problem with the power saving states in package C. Has anyone here with an MSI Tomahawk Z790 WiFi motherboard been able to get past the C3 package? I have one installed with a 14500t processor, but it's stuck on the C3 package. The BIOS configuration looks like this: Powertop --auto-tune running I've also tried Ubuntu Live USB with the same result. Nothing else is connected besides RAM, CPU, and mouse/keyboard (apart from the USB drive with Ubuntu Live USB or unRAID).

So if I remove the Intel x710da2 I can reach c3, but if I install it, I only reach c2. Why is this and how can I prevent it? ASPM accepted/enabled.

This motherboard can reach C10 on Windows without any problems. I reinstalled an Ubuntu live USB and everything was clean, it reaches C2, once I remove the Intel x710 I can see up to C3 maximum.

ower:~# root@Tower:~# lspci -vvv | grep -B 20 'ASPM Disabled' Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 125 IOMMU group: 9 Bus: primary=00, secondary=04, subordinate=09, sec-latency=0 I/O behind bridge: 3000-4fff [size=8K] [16-bit] Memory behind bridge: 50800000-511fffff [size=10M] [32-bit] Prefetchable memory behind bridge: 4019000000-40194fffff [size=5M] [32-bit] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: [40] Express (v2) Root Port (Slot+), IntMsgNum 0 DevCap: MaxPayload 256 bytes, PhantFunc 0 ExtTag- RBE+ TEE-IO- DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend- LnkCap: Port #21, Speed 16GT/s, Width x4, ASPM L1, Exit Latency L1 <64us ClockPM- Surprise- LLActRep+ BwNot+ ASPMOptComp+ LnkCtl: ASPM Disabled; RCB 64 bytes, LnkDisable- CommClk+ -- Memory behind bridge: 50800000-510fffff [size=9M] [32-bit] Prefetchable memory behind bridge: 4019000000-40194fffff [size=5M] [32-bit] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: [80] Power Management version 3 Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+) Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME- Capabilities: [88] MSI: Enable- Count=1/1 Maskable- 64bit+ Address: 0000000000000000 Data: 0000 Capabilities: [ac] Subsystem: Intel Corporation Device 0000 Capabilities: [c0] Express (v2) Upstream Port, IntMsgNum 0 DevCap: MaxPayload 128 bytes, PhantFunc 0 ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ SlotPowerLimit 25W TEE-IO- DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+ RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+ MaxPayload 128 bytes, MaxReadReq 512 bytes DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend- LnkCap: Port #0, Speed 8GT/s, Width x4, ASPM L0s L1, Exit Latency L0s <2us, L1 <4us ClockPM+ Surprise- LLActRep- BwNot- ASPMOptComp+ LnkCtl: ASPM Disabled; LnkDisable- CommClk+ root@Tower:~# root@Tower:~# lspci -vvv | grep -B 20 'ASPM Disabled' Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 125 IOMMU group: 9 Bus: primary=00, secondary=04, subordinate=09, sec-latency=0 I/O behind bridge: 3000-4fff [size=8K] [16-bit] Memory behind bridge: 50800000-511fffff [size=10M] [32-bit] Prefetchable memory behind bridge: 4019000000-40194fffff [size=5M] [32-bit] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: [40] Express (v2) Root Port (Slot+), IntMsgNum 0 DevCap: MaxPayload 256 bytes, PhantFunc 0 ExtTag- RBE+ TEE-IO- DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend- LnkCap: Port #21, Speed 16GT/s, Width x4, ASPM L1, Exit Latency L1 <64us ClockPM- Surprise- LLActRep+ BwNot+ ASPMOptComp+ LnkCtl: ASPM Disabled; RCB 64 bytes, LnkDisable- CommClk+ -- Memory behind bridge: 50800000-510fffff [size=9M] [32-bit] Prefetchable memory behind bridge: 4019000000-40194fffff [size=5M] [32-bit] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: [80] Power Management version 3 Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+) Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME- Capabilities: [88] MSI: Enable- Count=1/1 Maskable- 64bit+ Address: 0000000000000000 Data: 0000 Capabilities: [ac] Subsystem: Intel Corporation Device 0000 Capabilities: [c0] Express (v2) Upstream Port, IntMsgNum 0 DevCap: MaxPayload 128 bytes, PhantFunc 0 ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ SlotPowerLimit 25W TEE-IO- DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+ RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+ MaxPayload 128 bytes, MaxReadReq 512 bytes DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend- LnkCap: Port #0, Speed 8GT/s, Width x4, ASPM L0s L1, Exit Latency L0s <2us, L1 <4us ClockPM+ Surprise- LLActRep- BwNot- ASPMOptComp+ LnkCtl: ASPM Disabled; LnkDisable- CommClk+

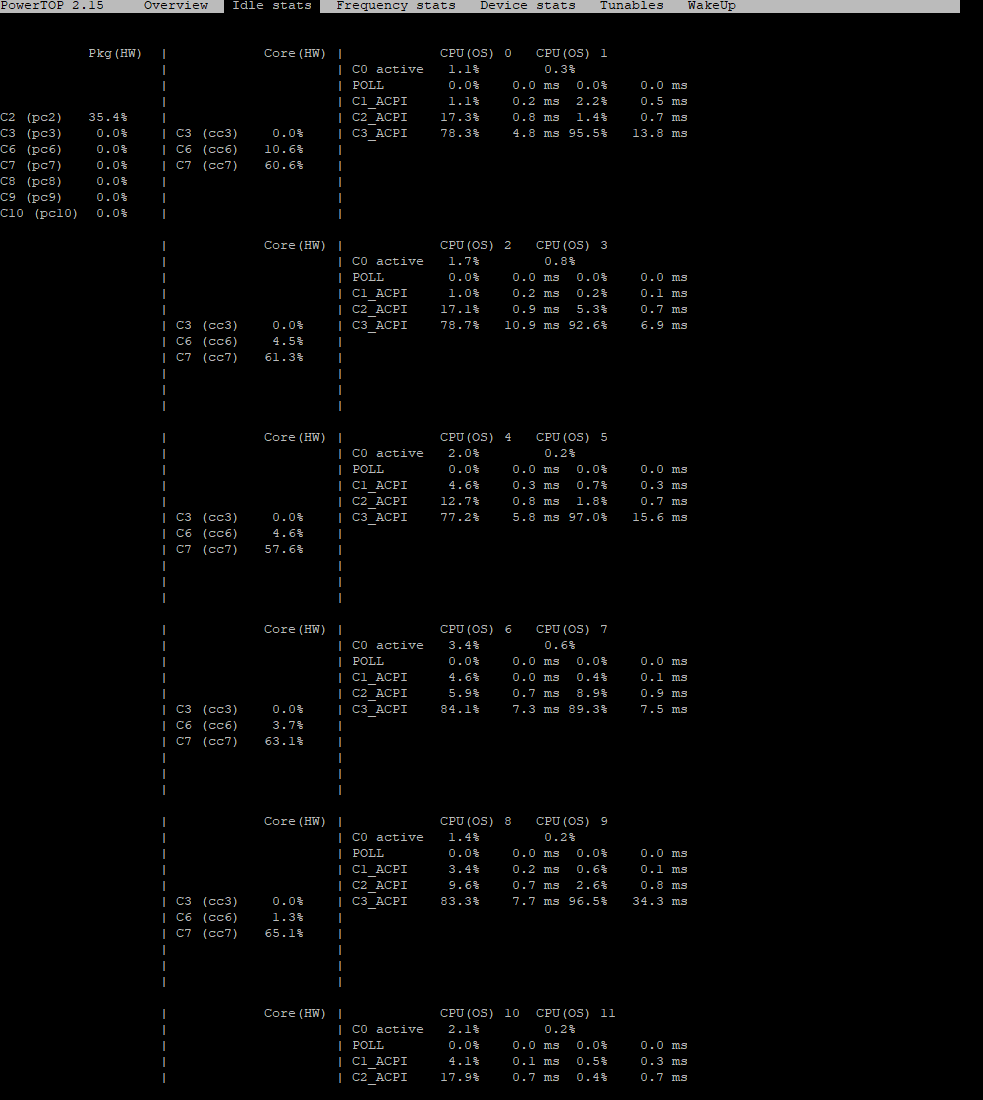

Hi, So I have UNRAID installed on: Intel 14500 (soon to be upgraded to a 13500t I have lying around) 64GB of DDR5 RAM without XMP enabled ASROCK Z790 TB4 PG ITX motherboard updated to the latest version. nvme slot1 -> WD 1TB SN850X nvme slot 2-> WD 1TB SN850X nvme slot 3 -> sata adapter x6 asm1166 update last versión pcie -> Intel x710 DA2 update firmware oficial intel last version Seasonic SPX650 HDDs Toshiba and seagate. I'm trying to get past C2 in the package and I'm unable to (it's enabled in the BIOS). https://i.ibb.co/PGFpzw5t/Screenshot-1.png https://einfoldtech.com/wp-content/uploads/2022/11/Block-Diagram-e1667970796153-768x555.png Has anyone else encountered this problem? I'd like to try to achieve the highest possible C state to reduce power consumption as much as possible, but I haven't been able to so far. Everything is up to date, including unraid.

Hi, So I have UNRAID installed on: Intel 14500 (soon to be upgraded to a 13500t I have lying around) 64GB of DDR5 RAM without XMP enabled ASROCK Z790 TB4 PG ITX motherboard updated to the latest version. nvme slot1 -> WD 1TB SN850X nvme slot 2-> WD 1TB SN850X nvme slot 3 -> sata adapter x6 asm1166 update last versión pcie -> Intel x710 DA2 update firmware oficial intel last version Seasonic SPX650 HDDs Toshiba and seagate. I'm trying to get past C2 in the package and I'm unable to (it's enabled in the BIOS). https://i.ibb.co/PGFpzw5t/Screenshot-1.png Has anyone else encountered this problem? I'd like to try to achieve the highest possible C state to reduce power consumption as much as possible, but I haven't been able to so far. Everything is up to date, including unraid.

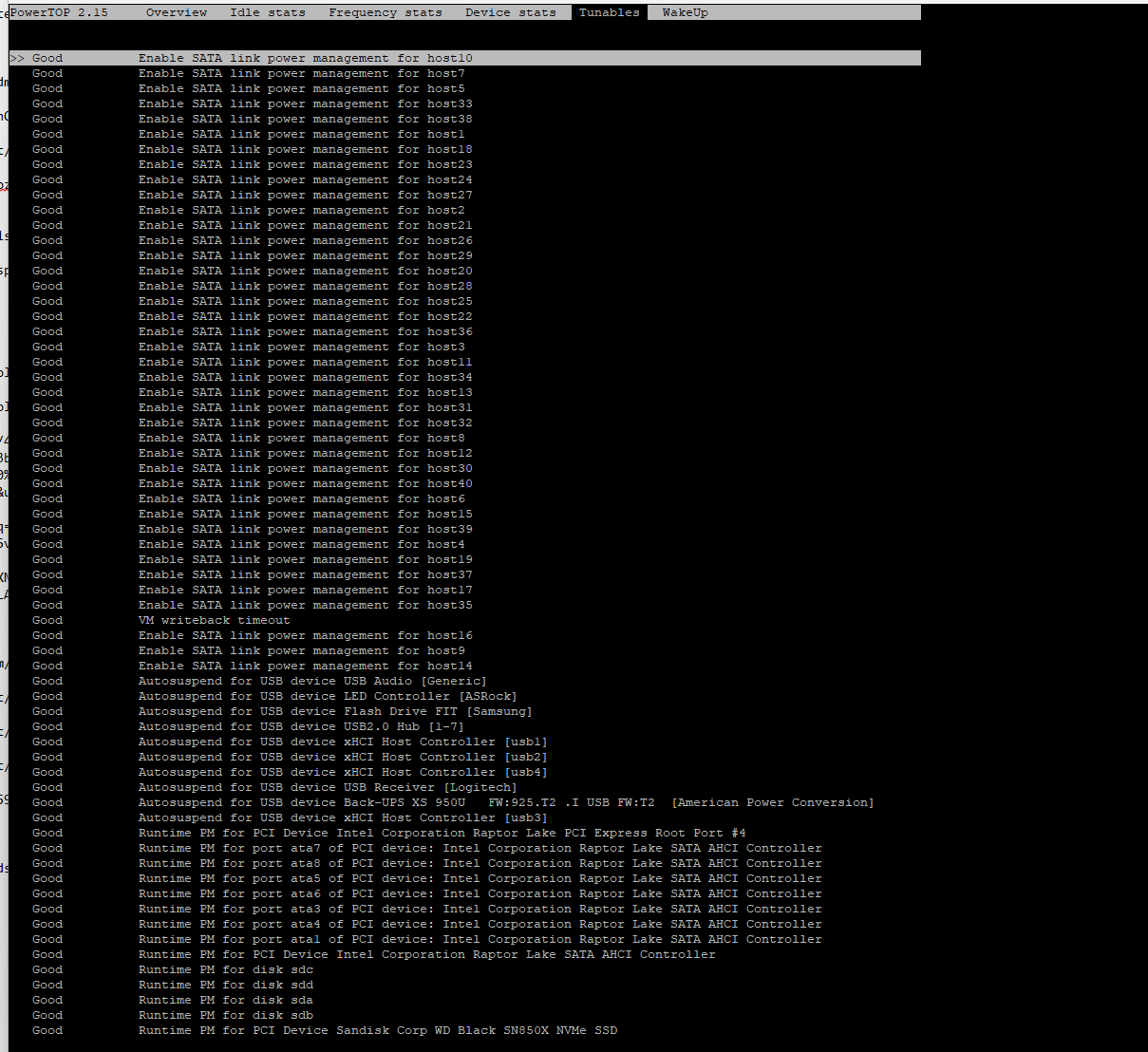

Hello, I have an Intel 13500, configured as best power efficiency in unraid, and the HDDs stop spinning when in use. I have several Dockers (approximately 10) and a virtual machine with HomeAssistant. The server is: Intel 13500 ASrock Z790 ITX TB4 64GB DDR5 6600MHz Corsair 2 x SN850X WD, 1TB each for cache. ASM1166 2 x Toshiba N300 8TB HDD I've run: powertop --auto-tune &> /dev/null In the BIOS, I'm configured to enter Cstates, but I can't see any very high Cstates... I've attached screenshots. What could be happening? I have stopped all the dockers and virtual machines that I have, and C2 goes to 80% pkg, but nothing more than that, I am not able to get a deeper C state, why? I also have a problem, since I activated something related to PCIE (I don't remember if it was ASPM mode or reactivate from PCIE) is that when I turn off the server, it automatically turns on by itself (it has been happening to me since I installed X710 Intel. Also perform the following steps: Bios I modified with AMISCE 5.5: Change to Enabled(0x1) .\SCEWIN_64.exe /i /lang 'en-US' /ms "Low Power S0 Idle Capability" /qv 0x1 /cpwd YOUR-BIOS-ADMIN-PASSWORD /hb Change to Disabled (0x0) .\SCEWIN_64.exe /i /lang 'en-US' /ms "Native ASPM" /qv 0x0 /cpwd YOUR-BIOS-ADMIN-PASSWORD /hb .\SCEWIN_64.exe /i /lang 'en-US' /ms "Discrete Bluetooth Interface" /qv 0x0 /cpwd YOUR-BIOS-ADMIN-PASSWORD /hb

It would also be nice to have options like multiple months to select from.

I just set it up like this when my colleague told me that it could be the problem.

Looking at it, I think you're right. That every day runs the entire first week of each month... I've set it to run on the Sunday of the first week of the month (every 3 months) to see how that works. I think 3 months is fine to check parity? Or any other advice here?

I actually think it coincided with reboots and tests in the past few months (since that's when I started the entire server and was testing). I can't be 100% sure. What I want is for the parity check to work every 2-3 months, but something is happening that's causing it to happen daily (for about a week now).
