maxita

I have the same problem, what I noticed is that by setting MTU to 9000 for a while everything seems to work as it should but after a few hours the performance collapses. At this point looking at the speeds of @JorgeB it could be a problem with the network card drivers (maybe just some) that negatively affects. In another post I asked for help for a problem with the jDownloader docker that was running at 10 MB/s. I discovered that it was a problem with the MTU of the docker that had taken the same MTU as the network card (9000 at that time). Forcing it to 1500 or full bandwidth download. It is not normal however that there is ALL this difference. Something in the network cards is not working properly...

UPDATE: i have fixed the problem of jDownloader forcing the MTU of docker to 1500 also if my network works well at 9000 (10Gbit network) But… After several tests I came to the conclusion that UNRAID 7 has some bug that limits the speed of writing and reading the disks. Not because of FUSE because I tried to bypass it but without improvements. I am working on nvme disks not on arrays. When I use commands like DD the disks go at high speeds even using real files. When I use the unraid file manager I go at least half the speed if not less. When I transfer via SMB on a 10 Gbit network after a thousand tweaks I managed to transfer at 500/600 MB/s. The strange thing is that if I change the MTU of UNRAID and the windows client to 9000 for a few hours I transfer at 1.2 GB/s and then align again at 500/600 MB/s. Something inside unraid caps the speeds.

After several tests I came to the conclusion that UNRAID 7 has some bug that limits the speed of writing and reading the disks. Not because of FUSE because I tried to bypass it but without improvements. I am working on nvme disks not on arrays. When I use commands like DD the disks go at high speeds even using real files. When I use the unraid file manager I go at least half the speed if not less. When I transfer via SMB on a 10 Gbit network after a thousand tweaks I managed to transfer at 500/600 MB/s. The strange thing is that if I change the MTU of UNRAID and the windows client to 9000 for a few hours I transfer at 1.2 GB/s and then align again at 500/600 MB/s. Something inside unraid caps the speeds.

After last patch of Unraid 7 I also started to encounter the error: "vendor command returned unparseable data unraid gpu" on my arc A310. I confirm that by setting .7.1.9 as "Intel_top_command_timeout" I solved the problem!

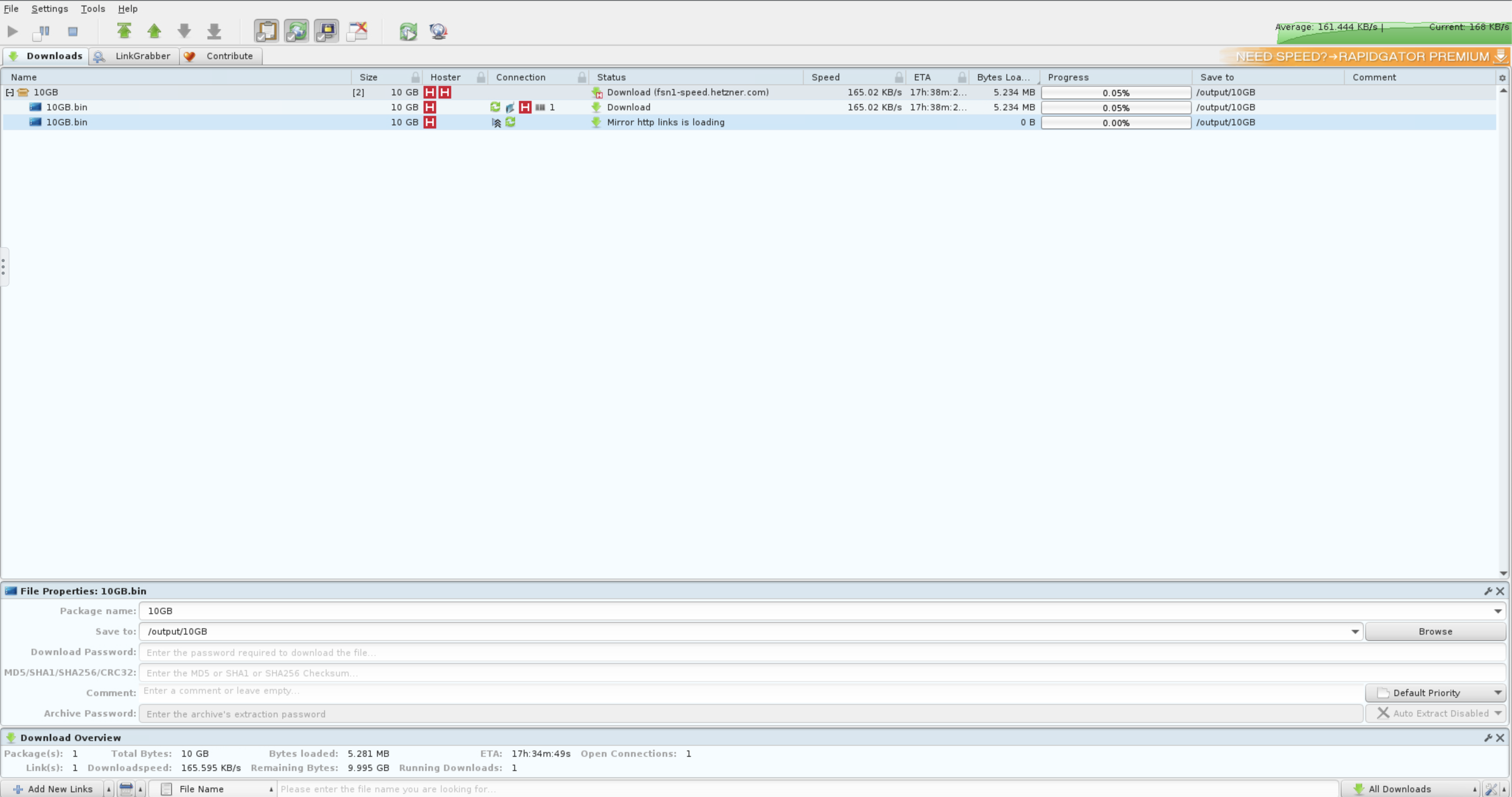

UPDATE seems a problem with only jDownloader containers as you can see here:

Hey everyone, Quick update on my previous SMB transfer speed issues. I discovered that disabling the Tailscale plugin entirely resolved most of my SMB bottlenecks. After removing Tailscale and all related virtual interfaces, I’m now seeing full 10 Gbit throughput when copying via SMB—whether I use user shares or disk shares. It seems that Tailscale and its virtual network interfaces were introducing a bottleneck for the SMB protocol, so if you’re having similar speed problems and happen to be running Tailscale, try disabling it to see if it helps! However, I still have one lingering problem: the jDownloader Docker containers are stuck around 10 Mbit/s download speeds, which is significantly slower than expected. I tested by installing the Speedtest CLI inside the container: • The first Speedtest sometimes reports a relatively good download rate. • But subsequent Speedtests (and real downloads via jDownloader) plummet to very low throughput—as if there’s some sort of QoS or bandwidth cap kicking in. On my firewall side, I have no traffic shaping or throttling configured. The same version of jDownloader running on Windows in the same network saturates my connection without any issues. So it’s definitely isolated to the container environment on Unraid. Any ideas on what could be throttling the Docker container’s traffic? If anyone has come across a similar jDownloader Docker speed cap or any Docker networking QoS problem, please let me know. I’ve tried all the usual suspects (disabling Tailscale, checking container network modes, etc.) without success. Thanks in advance for any tips! @trurl any ideas?

Hi, I have the same problem as indicated in my post here: I transfer both internally and between servers at 10 Gbit and SMB is stuck at 150 MB/s, jDownloader's docker is even worse, if I download I go to 5MB/s, if I install speedtest inside docker the tests do 10 Gbit. I write on NVME disks, I think there is some problem with some process that manages the writing of the disks. I can't explain anything else. With DD the disks fly...

Yes thanks @trurl I have enabled 2 days ago ssh for connect from home without vpn. Now I have changed rules on firewall for accept just my home ip to the ssh port.

@trurlsorry for forgetting, I attached the diagnostics to the post as requested. I would like to point out that the problem is not only with the array but also with the nvme disk pools where there is no active array.

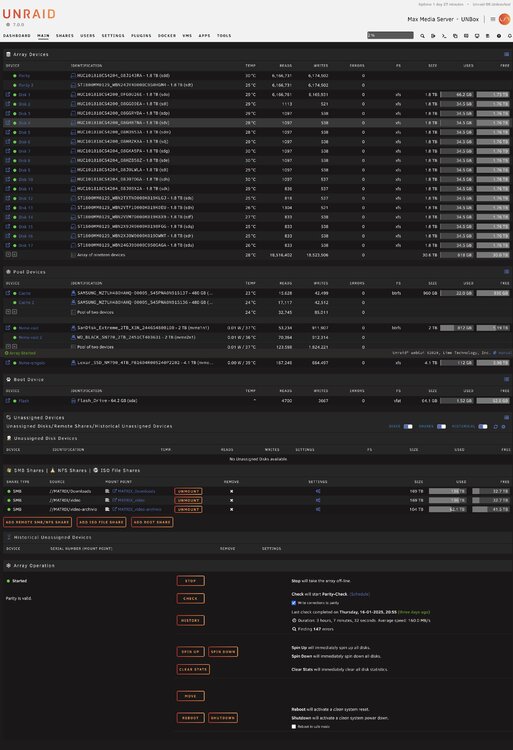

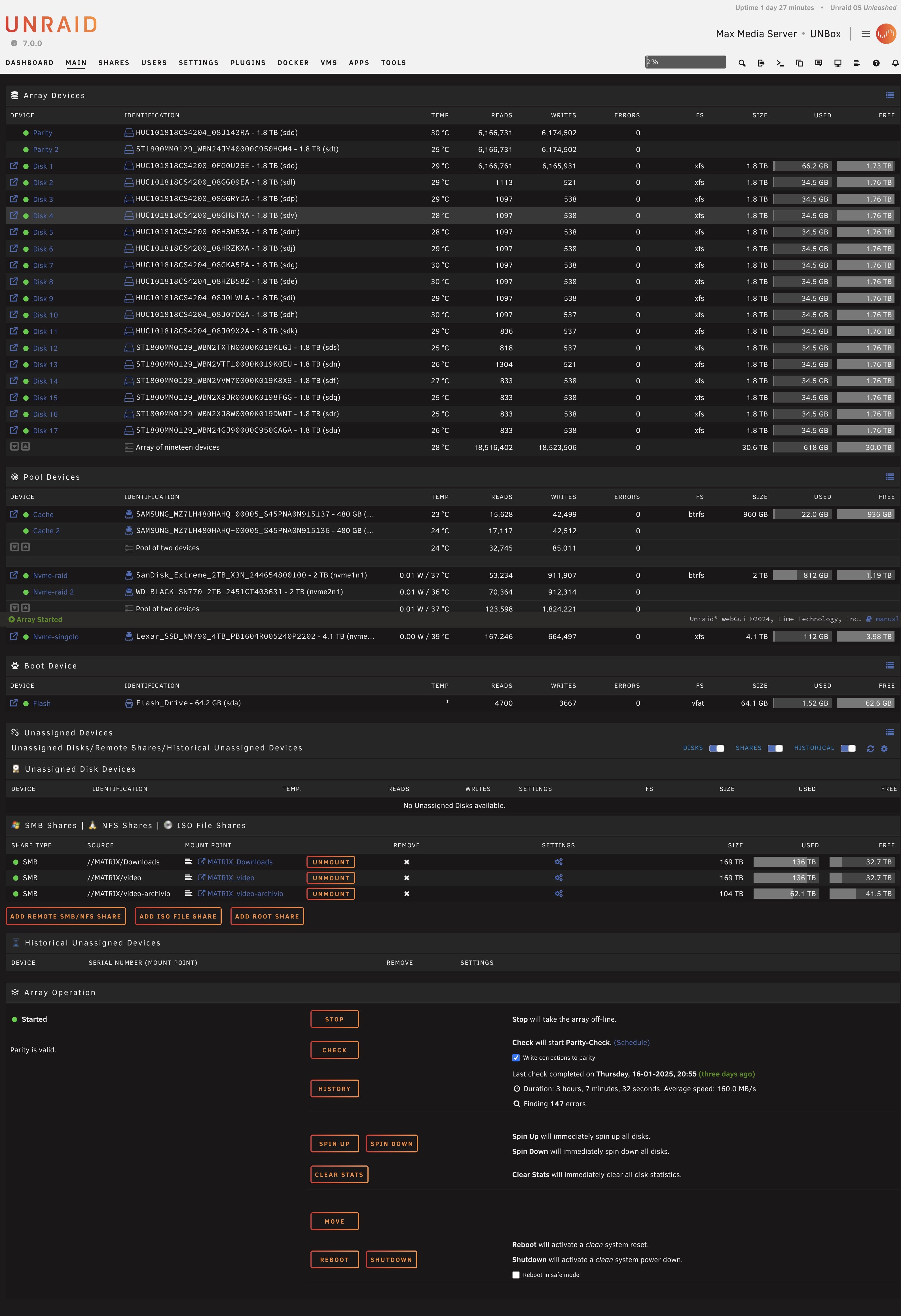

Hello everyone, I’m new to the UNRAID world, and this is my first experience with the system, which I find amazing. I immediately purchased the Unleashed version. However, I’m experiencing major performance issues and can’t resolve them, so I’m asking for assistance from this very active community! Problem Summary With some processes/services, I can transfer files over LAN and between server disks at decent/expected speeds (around 10 Gb/s on LAN and 1.80 GiB/s between NVMe drives). With other services, speeds drop drastically, to about 150 MB/s or even 5–10 MB/s inside certain Docker containers. Server Configuration: Hardware: Model: HPE Proliant DL380 G9 (24x 2.5" SF) CPUs: 2x Xeon E5-2667 V3, 8 cores each @ 3.20 GHz RAM: 384GB DDR4 (24 x 16GB) Drives: 19 x 1.8TB 10K SAS (12Gb/s) 2 x 480GB SATA SSD 2 x 2TB NVMe (Gen4) 1 x 4TB NVMe (Gen4) Storage Configuration: Array: 17 SAS drives + 2 parity drives (XFS) Cache Array: 2 SSDs in RAID1 (Btrfs) Pool 1 (nvme-raid): 2 NVMe drives (2TB each) in RAID1 (Btrfs) Pool 2 (nvme-singolo): 1 NVMe drive (4TB) (XFS) Additional Info Unraid Version: v7 stable Network Card: 10 Gb fiber Internet Connection (ISP): 10 Gb download, 2.5 Gb upload Various Options Tested (enabled/disabled): Permit exclusive shares: YES Tunable (md_write_method): reconstruct write Samba extra configuration: [global] server multi channel support = yes use sendfile = yes min receivefile size = 16384 aio read size = 1 aio write size = 1 socket options = TCP_NODELAY IPTOS_LOWDELAY SO_RCVBUF=131072 SO_SNDBUF=131072 max protocol = SMB3 read raw = yes write raw = yes Test Summary Ookla Speed Test from Unraid CLI (OK) Server: TIM SpA - Milan (id: 3667) ISP: TIM Business Download: 8127.59 Mbps (data used: 9.8 GB) Upload: 2086.88 Mbps (data used: 2.1 GB) Result URL: https://www.speedtest.net/result/c/7edff5bc-9268-4d48-9fb5-9bc4ef62c98a 2. Ookla Speed Test from Docker (jDownloader) (OK) Same performance as the CLI. 3. File Downloads from jDownloader (Docker) (KO) Starts fast, then drops to ~10 MB/s. 4. Copy from Windows 11 PC (10 Gb NIC, NVMe) to an Unraid NVMe Share (KO) Transfer doesn’t exceed 160 MB/s. On other servers, I can easily reach 900 MB/s or more. 5. Local VM on NVMe, SMB speed depends on Virtio driver Virtio-net: max ~150 MB/s Virtio: ~990 MB/s (full bandwidth) 6. Transfers between NVMe disks using rsync (KO) rsync -ah --progress --info=stats1 \ /mnt/nvme-singolo/Downloads/TESTFILE.mkv /mnt/nvme-raid/ 21.98G 100% 367.99MB/s in 56s (~382 MB/s effective) 7. Transfers between NVMe disks using pv (OK) pv /mnt/nvme-singolo/Downloads/TESTFILE.mkv > /mnt/cache/TESTFILE.mkv 20.5GiB 0:00:16 [1.27GiB/s] [============================>] 100% 8. iPerf Test between Windows 11 PC and Unraid (OK) [SUM] 0.00-10.00 sec 11.6 GBytes 9.92 Gbits/sec sender [SUM] 0.00-10.01 sec 11.5 GBytes 9.91 Gbits/sec receiver In Summary Internet speed test: OK Transfers between NVMe/SSD using Unraid GUI or rsync: slow Transfers between NVMe/SSD using pv: fast SMB transfers from local VM to external server: speed varies (depends on Virtio driver) jDownloader (Docker): ~10 MB/s (very slow) SMB transfers to/from Unraid: ~160 MB/s (underwhelming for a 10 Gb link) Thanks in advance to anyone who can help solve this mystery! unbox-diagnostics-20250119-1046.zip
