Hunter M

This is the DAS, if that is helpful. I am trying to understand why this specific drive is marked as unrecognized, but all of my other drives work regardless of the bay they are connected to. Could it be something with the specific drive? The SMART tests all passed without errors and it has relatively low POH. TerraMaster Official StoreD4-320High-Speed Data Transmission: Utilizing the USB 3.2 Gen2 protocol, the D4-320 hard drive enclosure achieves data transfers up to 10Gbps. With four hard drives installed, it delivers read/write speeds

I wasn't aware that USB connections weren't recommended. I don't fully understand all of this stuff, but if usb disconnected, wouldn't all 4 drives not be available? As opposed to just the individual Parity Drive? The DAS is connected my mini-pc with single USB-c cable.

Sorry, I should have included more information in my initial post. All four of my drives are in a DAS that connects to a mini-PC over USB. I rearranged the drives in the bays to test whether the bay holding the parity drive had failed, but all three of my data drives mount correctly regardless of which bay they are in.

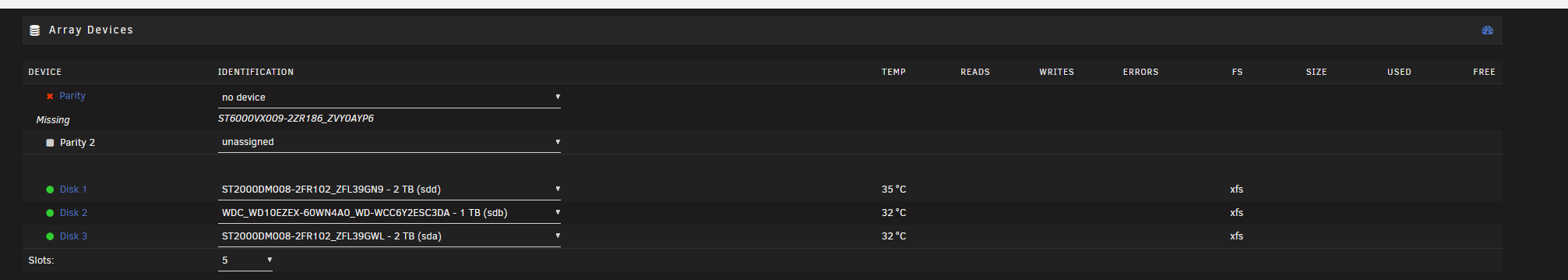

Hello, I got a used 6TB drive I intended to use for my parity drive. I replaced my existing 4TB parity drive and rebuilt parity. Now, when I stop my array to swap the old 4TB parity drive into my data array, my new parity drive is marked as missing. I haven't had to debug a drive issue since I started using Unraid, so I was hoping that someone could help me out. I see the following in the SYSLOG and have shared the full diagnostics if they are useful. SYSLOG snippet about the drive mounting: Aug 29 12:33:39 Evergreen webgui: Successful login user root from 192.168.68.64 Aug 29 12:36:17 Evergreen emhttpd: online: ST6000VX009-2ZR186_ZVY0AYP6 (sdc) 512 11721045168 => MBR read error Aug 29 12:36:17 Evergreen kernel: usb 4-1.3: USB disconnect, device number 5 Aug 29 12:36:17 Evergreen kernel: sd 3:0:0:0: [sdc] tag#14 uas_zap_pending 0 uas-tag 1 inflight: CMD Aug 29 12:36:17 Evergreen kernel: sd 3:0:0:0: [sdc] tag#14 CDB: opcode=0x88 88 00 00 00 00 00 00 00 00 00 00 00 00 20 00 00 Aug 29 12:36:17 Evergreen kernel: sd 3:0:0:0: [sdc] tag#14 UNKNOWN(0x2003) Result: hostbyte=0x01 driverbyte=DRIVER_OK cmd_age=0s Aug 29 12:36:17 Evergreen kernel: sd 3:0:0:0: [sdc] tag#14 CDB: opcode=0x88 88 00 00 00 00 00 00 00 00 00 00 00 00 20 00 00 Aug 29 12:36:17 Evergreen kernel: I/O error, dev sdc, sector 0 op 0x0:(READ) flags 0x80700 phys_seg 4 prio class 2 Aug 29 12:36:17 Evergreen kernel: device offline error, dev sdc, sector 0 op 0x0:(READ) flags 0x0 phys_seg 1 prio class 2 Aug 29 12:36:17 Evergreen kernel: Buffer I/O error on dev sdc, logical block 0, async page read Any help or advice would be appreciated. Thanks, Hunter. evergreen-diagnostics-20260829-1237.zip
