xFlawless11x

Thanks for reviewing! I do have plex transcode going to ram and have for several years but this is the first time I've gotten that OOM warning. I'll trim some of the RAM allocated to the HA-VM for now and see if it happens again next time there is a heavy transcode overlap.

My Fix Common Problems is set to run on the first of the month and notified me of a new error I haven't personally seen before related to an "Out of Memory" error. It recommended posting the diagnostic file so here we are! I am assuming it's VM related somehow but have yet to be able to pinpoint it myself. Any advice is appreciated! unraid-diagnostics-20250901-1134.zip

I'm looking to move to an expanded case and saw this on reddit: https://www.alibaba.com/product-detail/Nas24-drive-Rackmount-Storage-Server-SupportEATX_1601393728689.html I realize it's shorter in depth then a lot of 'standard' ones but it fits my desired use case/utility space. Here's my current setup, acquired over several years and various upgrades: https://pcpartpicker.com/list/2TgcyW But the critical components are: MB: https://www.gigabyte.com/Motherboard/C246-WU4-rev-10 PSU: https://seasonic.ru/product/g-550/ Card (spare/not in use): LSI 9211-8i 8-port PCI-E Card I was leaning expanded backplane but had a follow questions/wanted some outside opinions/feedback: Expanded backplane New PSU to support the required backplane molex #s? I'd like to eventually utilize all 24 slots, so assuming I would need different card to direct support mini sas? Direct Connect Backplane New PSU? To support all the drives? Use the existing LSI in conjunction to the standard MB sata ports? Any other things I'm missing or not thinking of?

You know I've had this setup for a while and only recently users started reporting the "disk space" error. Every time I go in, the RAM transcode is full and not auto-clearing. Still haven't found a good fix or root cause (unless it's a bug that plex introduced sometime in 2024).

All set now! Thanks for the prompt replies and awesome plugin!

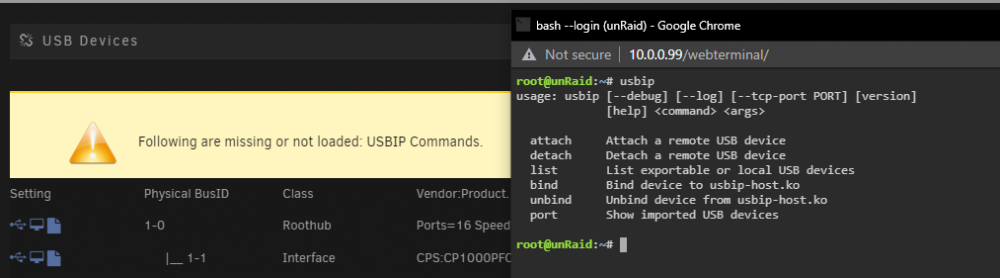

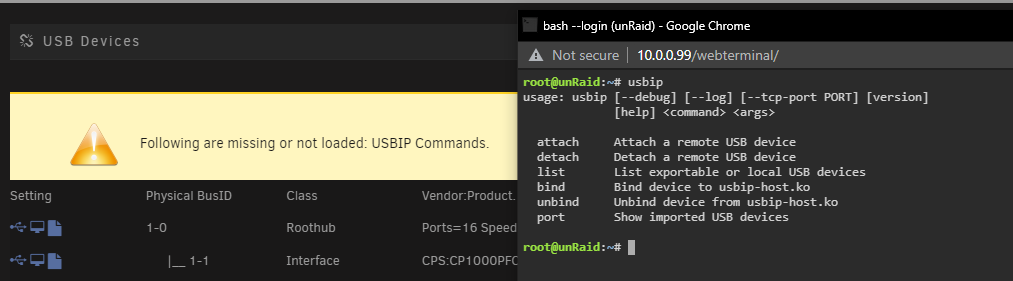

Results from command line: And yea if I disable USBIP in the plugin settings then no error and things look as expected

I am running 6.9.2 and not out of the gate planning to use USBIP but just wanted to make sure everything was setup correctly.

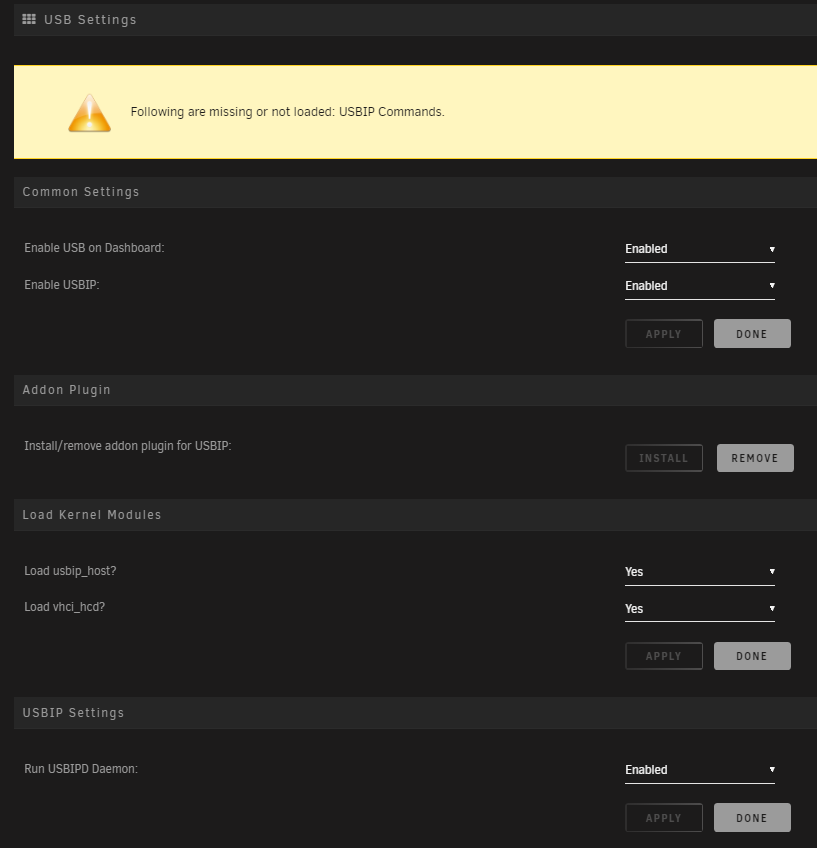

Looking to get this up and running but getting the following error message "Following are missing or not loaded: USBIP Commands." from the above replies it seems that the "usbip-1 package" is not being installed for whatever reason? I tried uninstalling both plug-ins, restarting unraid, etc however no luck. Any tips? I'm installing the latest "USB Manager (BETA)" from the App store and have not installed any versions of this plugin previously. I can see the libvirt.img was created under a system share. Here are my settings:

So figured I would give this a whirl, getting the error "No data in Elasticsearch index! After a crawl starts it can take up to 30 sec (refresh time) for index to be updated... Reload." I followed this guide from raqisasim. Installation right now looks like: Redis version = 6.0.9 Elasticsearch version = 5.6.16 Diskover version = v1.5.0.9 I saw from the latest Diskover Github readme that it mentions an Auth token; would that be the reason it's not crawling any data? Anyone tried to set this up recently with the latest versions have any tips? The UI loads fine and I don't see any errors or warnings in the log, they all appear to have started successfully.

Updated Plugin, ran a pre-clear sucessfully, logs attached for reference. ############################################################################################################################ # # # unRAID Server Preclear of disk S246J9FB804046 # # Cycle 1 of 1, partition start on sector 64. # # # # # # Step 1 of 5 - Pre-read verification: [2:22:13 @ 117 MB/s] SUCCESS # # Step 2 of 5 - Zeroing the disk: [2:21:46 @ 117 MB/s] SUCCESS # # Step 3 of 5 - Writing unRAID's Preclear signature: SUCCESS # # Step 4 of 5 - Verifying unRAID's Preclear signature: SUCCESS # # Step 5 of 5 - Post-Read verification: [2:22:57 @ 116 MB/s] SUCCESS # # # # # # # # # # # # # # # ############################################################################################################################ # Cycle elapsed time: 7:07:04 | Total elapsed time: 7:07:06 # ############################################################################################################################ ############################################################################################################################ # # # S.M.A.R.T. Status default # # # # # # ATTRIBUTE INITIAL CYCLE 1 STATUS # # 5-Reallocated_Sector_Ct 0 0 - # # 9-Power_On_Hours 17347 17354 Up 7 # # 194-Temperature_Celsius 28 42 Up 14 # # 196-Reallocated_Event_Count 0 0 - # # 197-Current_Pending_Sector 0 0 - # # 198-Offline_Uncorrectable 0 0 - # # 199-UDMA_CRC_Error_Count 0 0 - # # # # # # # # # # # ############################################################################################################################ # SMART overall-health self-assessment test result: PASSED # ############################################################################################################################ --> ATTENTION: Please take a look into the SMART report above for drive health issues. --> RESULT: Preclear Finished Successfully!. TOWER-preclear.disk-20180507-0010.zip tower-diagnostics-20180507-0016.zip

Enabled smart, ran a short test, downloaded (attached). I saw gfjardim mentioned there was an issue with the plugin so I'll probably just wait and re-try once that's updated as I'm in no rush to move this drive over the array. Smart-20180429-1747.zip

Not 100% sure the disk is okay, part of the reason for the pre-clear. It came from an old desktop that had been decommissioned for a bit, last I remember it was working fine though. Full copy of diagnostics and pre-clear logs attached. The drive in question is: ST33000651AS_9XK0AKZH Preclear.disk-20180429-0756.zip Diagnostics-20180429-0756.zip

Right so since I'm just re-using my own drive, I skipped the erase. It aborted in the post-read verification Plugin Version: 018.04.24 Script: gfjardim - 0.9.5-beta Operation: Clear Preclear_Disk_Log: Apr 26 16:24:38 preclear_disk_9XK0AKZH_29218: Command: /usr/local/emhttp/plugins/preclear.disk/script/preclear_disk.sh --notify 4 --frequency 4 --cycles 1 --skip-preread --no-prompt /dev/sdb Apr 26 16:24:38 preclear_disk_9XK0AKZH_29218: Preclear Disk Version: 0.9.5-beta Apr 26 16:24:38 preclear_disk_9XK0AKZH_29218: S.M.A.R.T. info type: default Apr 26 16:24:39 preclear_disk_9XK0AKZH_29218: Zeroing: dd if=/dev/zero of=/dev/sdb bs=2097152 seek=2097152 count=3000590884864 conv=notrunc iflag=count_bytes,nocache oflag=seek_bytes 2>/tmp/.preclear/sdb/dd_output Apr 26 16:24:39 preclear_disk_9XK0AKZH_29218: Zeroing: dd pid [30378] Apr 26 17:39:55 preclear_disk_9XK0AKZH_29218: smartctl exec_time: 1s Apr 26 23:30:13 preclear_disk_9XK0AKZH_29218: smartctl exec_time: 8s Apr 26 23:56:51 preclear_disk_9XK0AKZH_29218: smartctl exec_time: 7s Apr 26 23:58:59 preclear_disk_9XK0AKZH_29218: Zeroing: dd - wrote 3000560017408 of 3000592982016. Apr 26 23:59:00 preclear_disk_9XK0AKZH_29218: Zeroing: dd exit code - 0 Apr 26 23:59:01 preclear_disk_9XK0AKZH_29218: Post-Read: verifying the beggining of the disk. Apr 26 23:59:01 preclear_disk_9XK0AKZH_29218: Post-Read: dd if=/dev/sdb bs=512 count=4095 skip=1 conv=notrunc iflag=direct 2>/tmp/.preclear/sdb/dd_output | cmp - /dev/zero &>/tmp/.preclear/sdb/cmp_out Apr 26 23:59:01 preclear_disk_9XK0AKZH_29218: Post-Read: dd pid [1437] Apr 26 23:59:01 preclear_disk_9XK0AKZH_29218: Post-Read: verifying the rest of the disk. Apr 26 23:59:01 preclear_disk_9XK0AKZH_29218: Post-Read: dd if=/dev/sdb bs=2097152 skip=2097152 count=3000590884864 conv=notrunc iflag=nocache,sync,count_bytes,skip_bytes 2>/tmp/.preclear/sdb/dd_output | cmp - /dev/zero &>/tmp/.preclear/sdb/cmp_out Apr 26 23:59:01 preclear_disk_9XK0AKZH_29218: Post-Read: dd pid [1459] Apr 27 07:08:15 preclear_disk_9XK0AKZH_29218: Post-Read: dd - read 3000523292672 of 3000592982016. Apr 27 07:08:15 preclear_disk_9XK0AKZH_29218: Post-Read: dd command failed, exit code [141]. Apr 27 07:08:15 preclear_disk_9XK0AKZH_29218: Post-Read: dd output -> 434+0 records in

Just recently re-installed the plugin. Plugin Version: 018.04.24 Script: gfjardim - 0.9.5-beta Operation: Erase and Clear the disk Should I just skip the erase part and clear it? In the past I've only used new drives and thus just cleared but this is being re-purposed from an old desktop.

Is this the right place to post the results and ask questions on the clear itself? I remember there used to be a thread for that before this plugin so wasn't sure. Was clearing an older drive using "erase and clear" option, got the following error which stopped the process. Apr 25 17:11:46 preclear_disk_9XK0AKZH_24453: Command: /usr/local/emhttp/plugins/preclear.disk/script/preclear_disk.sh --erase-clear --notify 4 --frequency 4 --cycles 1 --no-prompt /dev/sdb Apr 25 17:11:46 preclear_disk_9XK0AKZH_24453: Preclear Disk Version: 0.9.5-beta Apr 25 17:11:46 preclear_disk_9XK0AKZH_24453: S.M.A.R.T. info type: default Apr 25 17:11:47 preclear_disk_9XK0AKZH_24453: Pre-Read: dd if=/dev/sdb of=/dev/null bs=2097152 skip=2097152 count=3000590884864 conv=notrunc iflag=nocache,sync,count_bytes,skip_bytes Apr 25 17:11:47 preclear_disk_9XK0AKZH_24453: Pre-Read: dd pid [25616] Apr 25 18:34:22 preclear_disk_9XK0AKZH_24453: dd[25616]: pausing (sync command issued) Apr 25 18:34:54 preclear_disk_9XK0AKZH_24453: dd[25616]: resumed Apr 26 00:21:41 preclear_disk_9XK0AKZH_24453: Pre-Read: dd - read 3000592982016 of 3000592982016. Apr 26 00:21:41 preclear_disk_9XK0AKZH_24453: Pre-Read: dd exit code - 0 Apr 26 00:21:41 preclear_disk_9XK0AKZH_24453: Erasing: openssl enc -aes-256-ctr -pass pass:'oKM2mDN6kqiPry0mztZP3xtE9uQYyMy7pgsjCZEjsAVkcHSJZwPBXjXi9fn26Z7a03BkSRqAsebJYeIRyzKppVg+XEyWK+U/WNi+D0riDiF+Zq36MXHL2v3K2W1WiFUpAy7hNGXNq5aWQbClWKltpTCXXLHEMVHpndMRSCyKdTk=' -nosalt < /dev/zero 2>/dev/null | dd of=/dev/sdb bs=2097152 seek=2097152 count=3000590884864 conv=notrunc iflag=count_bytes,nocache oflag=seek_bytes iflag=fullblock 2>/tmp/.preclear/sdb/dd_output Apr 26 00:21:41 preclear_disk_9XK0AKZH_24453: Erasing: dd pid [13610] Apr 26 07:23:55 preclear_disk_9XK0AKZH_24453: smartctl exec_time: 7s Apr 26 07:30:11 preclear_disk_9XK0AKZH_24453: smartctl exec_time: 7s Apr 26 07:39:02 preclear_disk_9XK0AKZH_24453: smartctl exec_time: 1s Apr 26 07:39:09 preclear_disk_9XK0AKZH_24453: smartctl exec_time: 8s Apr 26 07:55:47 preclear_disk_9XK0AKZH_24453: dd process hung at 3000577818624, killing.... Apr 26 07:55:47 preclear_disk_9XK0AKZH_24453: Continuing disk write on byte 3000575721472 Apr 26 07:56:01 preclear_disk_9XK0AKZH_24453: /usr/local/emhttp/plugins/preclear.disk/script/preclear_disk.sh: line 446: 13609 Exit 1 openssl enc -aes-256-ctr -pass pass:'oKM2mDN6kqiPry0mztZP3xtE9uQYyMy7pgsjCZEjsAVkcHSJZwPBXjXi9fn26Z7a03BkSRqAsebJYeIRyzKppVg+XEyWK+U/WNi+D0riDiF+Zq36MXHL2v3K2W1WiFUpAy7hNGXNq5aWQbClWKltpTCXXLHEMVHpndMRSCyKdTk=' -nosalt < /dev/zero 2> /dev/null Apr 26 07:56:01 preclear_disk_9XK0AKZH_24453: 13610 Killed | dd of=/dev/sdb bs=2097152 seek=2097152 count=3000590884864 conv=notrunc iflag=count_bytes,nocache oflag=seek_bytes iflag=fullblock 2> /tmp/.preclear/sdb/dd_output Apr 26 07:56:01 preclear_disk_9XK0AKZH_24453: Erasing: openssl enc -aes-256-ctr -pass pass:'vhk+SaVdyeTevJEBVabhQeoj4g5qT1XuobgHBZJspcEN+iY84H6/Hl1ZBwJgrIaCCWziEn9HsE8iWI2/8dQzfWBbeY0Dsxl/KD6Yvslw/WxJOhXKnMZDAKT4oqH52+tX7WL3pQgtahw8YH8XhdYjYbNof45P5WTlroTf6LKP1g0=' -nosalt < /dev/zero 2>/dev/null | dd of=/dev/sdb bs=2097152 seek=3000575721472 count=17260544 conv=notrunc iflag=count_bytes,nocache oflag=seek_bytes iflag=fullblock 2>/tmp/.preclear/sdb/dd_output Apr 26 07:56:01 preclear_disk_9XK0AKZH_24453: Erasing: dd pid [16010] Apr 26 07:56:02 preclear_disk_9XK0AKZH_24453: Erasing: dd command failed -> 8+1 records in 8+1 records out 17260544 bytes (17 MB, 16 MiB) copied, 0.0164792 s, 1.0 GB/s
