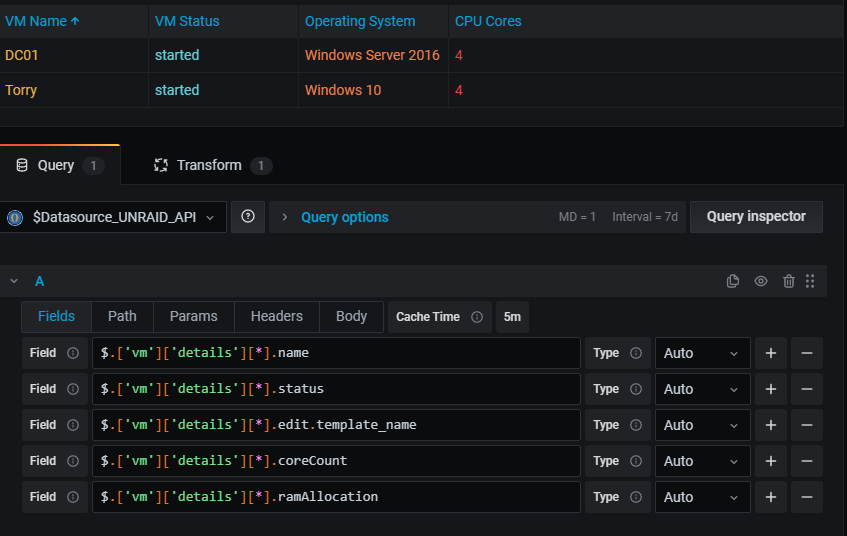

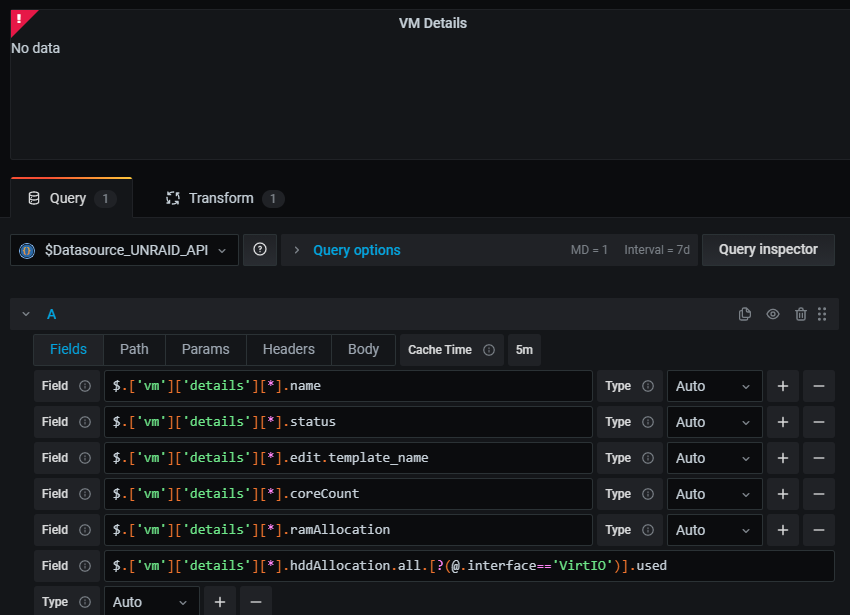

  1. For my VM Details section, I removed the primary gpu field as well as the two fields for the hddallocation. With the hddallocation fields removed I can see my data in the panel, but with hddallocation in there, I get nothing displayed and fields have different lengths error. I've verified that both VMs are running with VirtIO for the drives (one has 2 VirtIO drives, one has 1 VirtIO drive). Not sure if thats part of the issue or not.
  2. For me, I had to open up the query and then right click on the icon. However, it still is not working for me. I've tried a mix of HTTPS and HTTP to no avail.
  3. I think that I might have figured it out. I just found a setting in my bios that allows both dies to enumerate the IMMOU groups. This was not enabled previously. I swapped the hardware back around, as well, and I am now able to see both graphics cards in the IMMOU groups and can even see the GPU in the first slot. I'm extremely happy that this is a BIOS issue and not a config issue with unraid.
  4. No, it is not. However it is working without issues. My other Nvidia card, the old one, was not shown in the IMMOU groups either, nor was it an option in the drop down menu. Here is what my IMMOU groups currently show. IOMMU group 0: [1022:1452] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge IOMMU group 1: [1022:1453] 00:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge IOMMU group 2: [1022:1453] 00:01.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge IOMMU group 3: [1022:1453] 00:01.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge IOMMU group 4: [1022:1452] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge IOMMU group 5: [1022:1452] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge IOMMU group 6: [1022:1452] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge IOMMU group 7: [1022:1452] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge IOMMU group 8: [1022:1454] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B IOMMU group 9: [1022:1452] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge IOMMU group 10: [1022:1454] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B IOMMU group 11: [1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 59) [1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51) IOMMU group 12: [1022:1460] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 0 [1022:1461] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 1 [1022:1462] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 2 [1022:1463] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 3 [1022:1464] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 4 [1022:1465] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 5 [1022:1466] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 6 [1022:1467] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 7 IOMMU group 13: [1022:1460] 00:19.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 0 [1022:1461] 00:19.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 1 [1022:1462] 00:19.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 2 [1022:1463] 00:19.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 3 [1022:1464] 00:19.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 4 [1022:1465] 00:19.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 5 [1022:1466] 00:19.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 6 [1022:1467] 00:19.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 7 IOMMU group 14: [1022:43ba] 01:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset USB 3.1 xHCI Controller (rev 02) IOMMU group 15: [1022:43b6] 01:00.1 SATA controller: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset SATA Controller (rev 02) IOMMU group 16: [1022:43b1] 01:00.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset PCIe Bridge (rev 02) IOMMU group 17: [1022:43b4] 02:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) IOMMU group 18: [1022:43b4] 02:03.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) IOMMU group 19: [1022:43b4] 02:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) IOMMU group 20: [1022:43b4] 02:09.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) IOMMU group 21: [8086:1539] 03:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03) IOMMU group 22: [10ec:8168] 04:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller (rev 06) IOMMU group 23: [1b21:2142] 06:00.0 USB controller: ASMedia Technology Inc. ASM2142 USB 3.1 Host Controller IOMMU group 24: [144d:a804] 07:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM961/PM961 IOMMU group 25: [1b21:1242] 08:00.0 USB controller: ASMedia Technology Inc. ASM1142 USB 3.1 Host Controller IOMMU group 26: [1022:145a] 09:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Zeppelin/Raven/Raven2 PCIe Dummy Function IOMMU group 27: [1022:1456] 09:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Platform Security Processor IOMMU group 28: [1022:145c] 09:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) USB 3.0 Host Controller IOMMU group 29: [1022:1455] 0a:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Zeppelin/Renoir PCIe Dummy Function IOMMU group 30: [1022:7901] 0a:00.2 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51) IOMMU group 31: [1022:1457] 0a:00.3 Audio device: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) HD Audio Controller
  5. Hello, I was hoping that someone could shed some light on this situation for me. When I had my old single slot gpu in the first slot, I could stub my 1080 and it worked just fine. However, when I removed the old gpu and moved the 1080 to the first slot, it is no longer showing up as an option anywhere. I am using a Threadripper 1920x, and ASUS x399-e gaming board. When I search in the IMMOU groups, it is not listed there at all. I am assuming that this is normal behavior, as the display is working just fine showing either the bios, unraid command line or the unraid gui. In Space Invader's video he is able to select the graphics cards in the VM editor menu. I am not able to do so. I am kind of at a loss on this and want to avoid putting in my old graphics card again. I was able to locate this information from the hardware profile menu: </resources> <node id="display" class="display" handle="PCI:0000:41:00.0"> <description>VGA compatible controller</description> <product>GP104 [GeForce GTX 1080]</product> <vendor>NVIDIA Corporation</vendor> <physid>0</physid> <businfo>pci@0000:41:00.0</businfo> <version>a1</version> <width units="bits">64</width> <clock units="Hz">33000000</clock> <configuration> <setting id="latency" value="0" /> </configuration> <capabilities> <capability id="pm" >Power Management</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="vga_controller" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="memory" value="9e000000-9effffff" /> <resource type="memory" value="80000000-8fffffff" /> <resource type="memory" value="90000000-91ffffff" /> <resource type="ioport" value="3000(size=128)" /> <resource type="memory" value="c0000-dffff" /> </resources> </node> <node id="multimedia" class="multimedia" handle="PCI:0000:41:00.1"> <description>Audio device</description> <product>GP104 High Definition Audio Controller</product> <vendor>NVIDIA Corporation</vendor> <physid>0.1</physid> <businfo>pci@0000:41:00.1</businfo> <version>a1</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="latency" value="0" /> </configuration> <capabilities> <capability id="pm" >Power Management</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="memory" value="9f080000-9f083fff" /> </resources> </node> However, I cannot seem to figure out what I need to do next. Since I am unable to locate the device in the xml, because I cannot specify that the vm use the gpu in the basic editor, what are my next steps? Do I manually make a like for it in the xml? How can I prevent unraid from using the gpu in the first place, as my old stub is not working. Any assistance in this would be greatly appreciated.
  6. The only problem with systems that are manufactured is that they usually use proprietary board configs that don't translate well in to an off brand case. Going to have to do some more searching it seems, so I can mount the graphics card properly.
  7. Your pictures came up with errors for me. I am definitely considering building my own, but was curious if it was even feasible to do what I was envisioning. I had found some great deals on ebay for several dual 10 core systems with lots of ram that would have been perfect if not in a 2u case that would have prevented me from putting in my graphics cards. While I do not have a rack yet, it is in the plans - as I have a rack mount switch and router, one rack mount server as of now and would like to mount everything away nice and neat. Back to the drawing board.
  8. I've been looking around at various different servers on ebay. I've found several that I'd like to get, but they seem to typically be in 2u cases. Because of this, space is at a premium inside the case, and am unsure about fitting my 970 in the 2u chassis I have found . I might have to abandon this route and build my own from various parts, but I was curious if anyone had attempted this before or knew if it was even possible.
  9. I'm looking at getting a hold of a server soon, and am extremely interested in moving everything to one system with VMs for Windows (among others). My main thing is this, it is hard to get a server that has the space and ability to put a regular graphics card in it without some sort of modification or spending more than I can. I wanted to know what the chances, or if anyone has already done this, of using something like the Razer Core to power the external GPU and pass it in to the server for use with a VM. My gut tells me this is possible, but I don't want to spend money on a maybe. Ultimately, I could build myself a server that would do everything I need it to from scratch, but was wondering about this possibility as well. Any thing that you guys can share as far as insight goes would be appreciated. Thanks!
  10. Sorry for the delayed reply, I've been trying to find a sitter these past two days. A process almost as frustrating as dealing with this issue, lol. I can try to hook back up the m5015, but I may have to redo the firmware on it. I had started to follow directions for flashing the m1015 cards without realizing it was not the right card. I would have to flash it back to it's original rom and bin files to do so. I'll try that a little later on today and report back. Thanks.
  11. After posting that information last night, I checked the array this morning. I'm back to the original smart error saying it's a 600 PB drive, and the array is down. I've attached another diagnostic file. Could this be a controller issue or is my WD 1tb drive cooked? If you're needing more info, what do you need? tower-diagnostics-20150801-0904.zip
  12. This is the info from my parity drive as it stands after completing the parity check earlier today. smartctl 6.2 2013-07-26 r3841 [x86_64-linux-4.0.4-unRAID] (local build) Copyright (C) 2002-13, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Device Model: WDC WD10JFCX-68N6GN0 Serial Number: WD-WXK1EC4FN0N4 LU WWN Device Id: 5 0014ee 65af70a4d Firmware Version: 82.00A82 User Capacity: 1,000,204,886,016 bytes [1.00 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 5400 rpm Device is: Not in smartctl database [for details use: -P showall] ATA Version is: ACS-2 (minor revision not indicated) SATA Version is: SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Fri Jul 31 21:55:00 2015 EDT SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x00) Offline data collection activity was never started. Auto Offline Data Collection: Disabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: (18720) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: ( 209) minutes. Conveyance self-test routine recommended polling time: ( 5) minutes. SCT capabilities: (0x703d) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x002f 200 200 051 Pre-fail Always - 0 3 Spin_Up_Time 0x0027 179 179 021 Pre-fail Always - 2041 4 Start_Stop_Count 0x0032 100 100 000 Old_age Always - 9 5 Reallocated_Sector_Ct 0x0033 200 200 140 Pre-fail Always - 0 7 Seek_Error_Rate 0x002e 200 200 000 Old_age Always - 0 9 Power_On_Hours 0x0032 100 100 000 Old_age Always - 132 10 Spin_Retry_Count 0x0032 100 253 000 Old_age Always - 0 11 Calibration_Retry_Count 0x0032 100 253 000 Old_age Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 9 192 Power-Off_Retract_Count 0x0032 200 200 000 Old_age Always - 5 193 Load_Cycle_Count 0x0032 200 200 000 Old_age Always - 104 194 Temperature_Celsius 0x0022 121 114 000 Old_age Always - 26 196 Reallocated_Event_Count 0x0032 200 200 000 Old_age Always - 0 197 Current_Pending_Sector 0x0032 200 200 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0030 100 253 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x0032 200 200 000 Old_age Always - 0 200 Multi_Zone_Error_Rate 0x0008 200 200 000 Old_age Offline - 0 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Short offline Completed without error 00% 126 - # 2 Short offline Completed without error 00% 126 - # 3 Short offline Completed without error 00% 126 - # 4 Short offline Completed without error 00% 46 - # 5 Short offline Completed without error 00% 46 - # 6 Extended offline Completed without error 00% 45 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay. I'll get this once the drive is readded to the array, and the parity check is done. Then later on, I get the read out in the first posting here. It only seems to be the WD drive. I never had an issue with the SAS drives.
  13. Hardware is as follows: IBM xServe x3550 m3 with dual L5640s, 32gb ram, 2x 147gb 15k 6.0gbps SAS drives (IBM branded), 2x 900gb 10k 6.0 gbps SAS drives (no labels but supposedly WD), 1 WD 1tb Red drive. All drives are the 2.5" versions. I'm using the supermicro controller to connect to the sas backplane, and it is installed in the slot where the original M5015 was installed (front left side behind drives). Here is a screenshot of my main. I turned the server back on today, it recognized the WD red drive as a new drive and started a parity check. This will always pass, but no other ones will for some reason, even with no data written or accessed between. I don't know if the drive is dead, as I never had an issue with just the SAS drives connected to unraid. All of the smart tests that I've run on it in unraid have come back as good no errors. The controller sees it as a 1tb drive as well. As far as the drive identifications, I have no clue. They used to be part of a raid array (not counting the WD red drive), but I can't imagine that it would cause the drive ID to change. I could be completely wrong. I will post another diagnostic file and all the smart info for all the drives once the parity check finishes again - it will be another couple of hours.
  14. I'm at a complete loss now. I'm running a supermicro AOC-SAS2LP-MV8, connected to mainly sas drives, but I do have one new WD Red 2.5" 1tb drive that is connected as the parity drive. Ever since I've installed it, I build the array just fine, it works all day just fine and then when trying to run a parity automatically, I get errors and the drive drops out. I've run the long and short smart scans through the webgui with no errors reported, and cannot figure out why. I've attached the download from the hard drive, as well as the diagnostic zip file from unraid. When I encounter this error, I have never written anything new to the drives, I can re add the drive, run a parity check and it works just fine, until unraid again does an automatic parity check and I get the drive dropping due to errors. If someone wouldn't mind taking a look at the attachments and offering some suggestions, I would really appreciate it. Actually, I wasn't allowed to upload the .rtf file. So I've copied and pasted the contents here. smartctl 6.2 2013-07-26 r3841 [x86_64-linux-4.0.4-unRAID] (local build) Copyright (C) 2002-13, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Vendor: /1:0:3:0 Product: User Capacity: 600,332,565,813,390,450 bytes [600 PB] Logical block size: 774843950 bytes Physical block size: 1903784304 bytes Lowest aligned LBA: 14896 scsiModePageOffset: response length too short, resp_len=47 offset=50 bd_len=46 scsiModePageOffset: response length too short, resp_len=47 offset=50 bd_len=46 >> Terminate command early due to bad response to IEC mode page A mandatory SMART command failed: exiting. To continue, add one or more '-T permissive' options. tower-diagnostics-20150731-0006.zip
  15. I recently replaced a 900Gb 2.5" SAS drive with a WD Red 1Tb 2.5" drive as my parity drive. I'd had a couple errors over the past couple of days, due to this new parity disk returning errors during initialization parity check. I never thought to try and get the errors. I work up this morning to see the following message on my unraid server. smartctl 6.2 2013-07-26 r3841 [x86_64-linux-4.0.4-unRAID] (local build) Copyright (C) 2002-13, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Vendor: /1:0:3:0 Product: User Capacity: 600,332,565,813,390,450 bytes [600 PB] Logical block size: 774843950 bytes Physical block size: 1903784304 bytes Lowest aligned LBA: 14896 scsiModePageOffset: response length too short, resp_len=47 offset=50 bd_len=46 scsiModePageOffset: response length too short, resp_len=47 offset=50 bd_len=46 >> Terminate command early due to bad response to IEC mode page A mandatory SMART command failed: exiting. To continue, add one or more '-T permissive' options. I'm hoping I have to just log into the server via telnet and modify some smart settings, or changing it to never spin down, and that will be the end of it. Does anyone have any thoughts on the matter? This is the first time I've run into any kind of errors like this.
