  1. Yep Dumped it by dual booting into windows! But that's great if there's no benefit from it then it works fine without 🙂
  2. Thankyou that seems to have fixed the topology and interestingly identifies as a QuadCore i7-8700 which obviously doesn't exist. Intel power Gadget showed low Processor Freq which was mainly why I didn't use the Penryn Family flag as to not try and reduce performance but as you can see the benchmark is quite respectable for running 8/12 threads overall. Not overly important I don't think? but I am not able to boot with a rom loaded for my GPU is this necessary anymore but when I define the rom file in XML I can't even show the Post Screen for UEFI so ill keep looking into that. Has anyone noticed any significant differences by loading the ROM?
  3. I feel Ive touched on this before but can't seem to find it anywhere in the forum did we ever sort out the multiple CPU's and displaying correct topology to Mac when not using Penryn CPU's Thanks if anyone is able to shed some light on this or see if its the same for everyone else <vcpu placement='static'>8</vcpu> <vcpus> <vcpu id='0' enabled='yes' hotpluggable='no' order='1'/> <vcpu id='1' enabled='yes' hotpluggable='yes' order='2'/> <vcpu id='2' enabled='yes' hotpluggable='yes' order='3'/> <vcpu id='3' enabled='yes' hotpluggable='yes' order='4'/> <vcpu id='4' enabled='yes' hotpluggable='yes' order='5'/> <vcpu id='5' enabled='yes' hotpluggable='yes' order='6'/> <vcpu id='6' enabled='yes' hotpluggable='yes' order='7'/> <vcpu id='7' enabled='yes' hotpluggable='yes' order='8'/> </vcpus> <iothreads>1</iothreads> <cputune> <vcpupin vcpu='0' cpuset='1'/> <vcpupin vcpu='1' cpuset='7'/> <vcpupin vcpu='2' cpuset='2'/> <vcpupin vcpu='3' cpuset='8'/> <vcpupin vcpu='4' cpuset='3'/> <vcpupin vcpu='5' cpuset='9'/> <vcpupin vcpu='6' cpuset='4'/> <vcpupin vcpu='7' cpuset='10'/> <iothreadpin iothread='1' cpuset='3,9'/> </cputune> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough' check='none'> <topology sockets='1' cores='8' threads='1'/> </cpu>
  4. It would yes but if so idve thought it would then default and recreate the topology line anyway to sockets=4 or 2 depending on how many he is choosing to passthrough
  5. My 8700 requires the topology patch and his will too as his XML shows him using cores and threads if he swaps just to using sockets <topology sockets='2’ cores='1’ threads='1'/> rather than <topology sockets='1' cores='2' threads='1'/> it will work for him
  6. See earlier post regarding Kernel patch required to boot CPUs that aren’t Penryn it’s also mentioned in the first post if this thread section 1.2 Are you using clover or opencore this will also make a difference to how you patch it
  7. Try with less cores mine works with 4 cores 2 threads. Leoyzen has done tests and there doesn't totally seem to be a performance benefit however I noticed sound differences with mine. id also Avoid using an odd number of cores as this wouldn't be found in an actual Mac Spaceinvaderone mentioned this quite a while back.
  8. Just an experiment I was doing that day but I had to have my wifi card as built in 0x1 to make handoff and AppStore work properly Sent from my iPhone using Tapatalk
  9. This is what I'm seeing now with 4 cores 2 threads. Anything higher won't boot for me. But im happy to leave it for now.
  10. Okay well reducing the cores from 12 to 8 seems to have fixed audio and booting and im booted with topology with opencore. TSC Frequency is stable at 3,200,00 at boot for three reboots now too scared to touch the config to figure exactly what the problem was i also added this back into my XML which might have something to do with it <clock offset='utc'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='tsc' present='no'/>
  11. Interesting thank you had to remove the \\ but UNRaid is showing the cores correctly but only with topology passed through without windows VM stuck and only shows 4 cores rather than 12 but the Host does still turbo boost and show all cores working when running benchmark in the guest
  12. Yeah I have the Audio Passing through from My GPU fine without the need for kexts (ALC or HDA) only the function was needed but problem is with that Bluetooth and USB card audio I’m still trying to get clover to boot with no avail and no luck with topology still either ill keep experimenting i suppose
  13. Still no luck With the extra flags sadly it showed 3,200,600 Hz for one boot rebooted without changing anything and back to 3,199,999 clover on Hackinabox doesn’t boot past clover flash so i will try and get a working clover config to test out tomorrow I suppose the real question as well is what is your audio like when playing videos music seems fine but videos I always seem to skip no matter the bus they are outputting

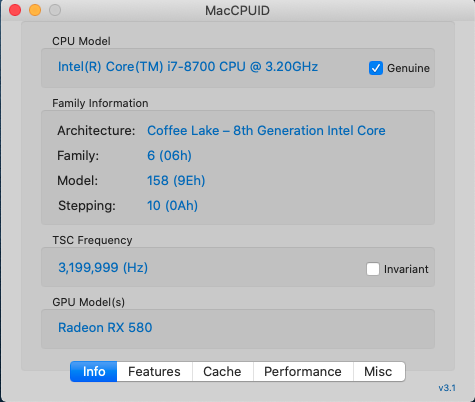

  14. Im lost with what else to try My VM's seem to be unable to run at the same Clock Speed as the host In VM's Unraid Host: $lscpu | grep MHz CPU MHz: 4300.040 Ubuntu Guest Q35 3.1 Lscpu | grep MHz CPU MHz: 3190.244 MacOS Guest Q35 3.1 MacCPUID TSC Frequency 3,199,999 (Hz) Windows 10 Guest PC-i440fx 3.1 CPUID Core Speed 3192.00 MHz Host is Intel i7-8700 Unraid 6.7.0 All machines are using <cpu mode='host-passthrough' check='none'> with the exception of the extra -cpu flags for macOS virus capabilities shows host as Skylake-client-IBRS rather then CoffeeLake which is what happens if setting VM to mode=host-model The VM also acknowledged both changes in the CPU architecture but clock speeds stay the same Hopefully that's enough information for someone to help.
  15. Thanks for figuring that one out! Still only showing 3,199,999Hz Does yours show the correct Frequency for your CPU? My QEMU arg now is -cpu host,migratable=no,+invtsc,kvm=on,+hypervisor with host-passthrough as the only cpu value up the top of my XML
  16. Update INVTSC is not showing up detected by the OS even tho its in my XML.... this is perhaps the problem or one of them
  17. Hopefully it’s clear enough to read 6 cores and that patch result in black screen 4 cores (both 2 threads) results in the kernel panic as shown Both Still only displaying 3.199GHz Interesting aswell Unraid shows 100% on core 0 only when it is sitting on the black screen. Sent from my iPhone using Tapatalk
  18. Switched to my open core setup which ive been running for the last week but was swapping to clover incase that seemed to work at all. Im feeling it might be something on my Unraid side but here is what I have if you're able to see where im wrong I had it working for one reboot but of course I can't remember what it actually was that had the TSC frequency correct. Power Metrics same as yours Package 0 C-state residency: 0.00% (C2: 0.00% C3: 0.00% C6: 0.00% C7: 0.00% C8: 0.00% C9: 0.00% C10: 0.00% ) Core 0 C-state residency: 0.00% (C3: 0.00% C6: 0.00% C7: 0.00% ) Core 1 C-state residency: 0.00% (C3: 0.00% C6: 0.00% C7: 0.00% ) Core 2 C-state residency: 0.00% (C3: 0.00% C6: 0.00% C7: 0.00% ) Core 3 C-state residency: 0.00% (C3: 0.00% C6: 0.00% C7: 0.00% ) Core 4 C-state residency: 0.00% (C3: 0.00% C6: 0.00% C7: 0.00% ) Core 5 C-state residency: 0.00% (C3: 0.00% C6: 0.00% C7: 0.00% ) Core 6 C-state residency: 0.00% (C3: 0.00% C6: 0.00% C7: 0.00% ) Core 7 C-state residency: 0.00% (C3: 0.00% C6: 0.00% C7: 0.00% ) Core 8 C-state residency: 0.00% (C3: 0.00% C6: 0.00% C7: 0.00% ) My XML <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm' id='18' xmlns:qemu=''> <name>Catalina</name> <uuid>0ddd6343-5321-0d66-54e0-8d9323087b00</uuid> <description>MacOS Catalina</description> <metadata> <vmtemplate xmlns="unraid" name="Linux" icon="macOS-catalina.png" os="linux"/> </metadata> <memory unit='KiB'>16777216</memory> <currentMemory unit='KiB'>16777216</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>12</vcpu> <cputune> <vcpupin vcpu='0' cpuset='0'/> <vcpupin vcpu='1' cpuset='6'/> <vcpupin vcpu='2' cpuset='1'/> <vcpupin vcpu='3' cpuset='7'/> <vcpupin vcpu='4' cpuset='2'/> <vcpupin vcpu='5' cpuset='8'/> <vcpupin vcpu='6' cpuset='3'/> <vcpupin vcpu='7' cpuset='9'/> <vcpupin vcpu='8' cpuset='4'/> <vcpupin vcpu='9' cpuset='10'/> <vcpupin vcpu='10' cpuset='5'/> <vcpupin vcpu='11' cpuset='11'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-3.1'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/0ddd6343-5321-0d66-54e0-8d9323087b00_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough' check='none'/> <clock offset='utc'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='yes'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='qcow2'/> <source file='/mnt/user/Virtual/opencore.release.qcow2'/> <backingStore/> <target dev='sda' bus='sata'/> <boot order='2'/> <alias name='sata0-0-0'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <alias name='usb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <alias name='usb'/> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <alias name='usb'/> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <alias name='usb'/> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='sata' index='0'> <alias name='ide'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'> <alias name='pcie.0'/> </controller> <controller type='pci' index='1' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='1' port='0x8'/> <alias name='pci.1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/> </controller> <controller type='pci' index='2' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='2' port='0x9'/> <alias name='pci.2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='pci' index='3' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='3' port='0xa'/> <alias name='pci.3'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/> </controller> <controller type='pci' index='4' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='4' port='0xb'/> <alias name='pci.4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x3'/> </controller> <controller type='pci' index='5' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='5' port='0xc'/> <alias name='pci.5'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x4'/> </controller> <controller type='pci' index='6' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='6' port='0xd'/> <alias name='pci.6'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x5'/> </controller> <controller type='pci' index='7' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='7' port='0xe'/> <alias name='pci.7'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x6'/> </controller> <controller type='pci' index='8' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='8' port='0xf'/> <alias name='pci.8'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x7'/> </controller> <controller type='pci' index='9' model='pcie-to-pci-bridge'> <model name='pcie-pci-bridge'/> <alias name='pci.9'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <alias name='virtio-serial0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </controller> <interface type='network'> <source network='default' bridge='virbr0'/> <target dev='vnet0'/> <model type='e1000-82545em'/> <alias name='net0'/> <address type='pci' domain='0x0000' bus='0x09' slot='0x01' function='0x0'/> </interface> <serial type='pty'> <source path='/dev/pts/0'/> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> <alias name='serial0'/> </serial> <console type='pty' tty='/dev/pts/0'> <source path='/dev/pts/0'/> <target type='serial' port='0'/> <alias name='serial0'/> </console> <channel type='unix'> <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-18-Catalina/org.qemu.guest_agent.0'/> <target type='virtio' name='org.qemu.guest_agent.0' state='connected'/> <alias name='channel0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='mouse' bus='ps2'> <alias name='input0'/> </input> <input type='keyboard' bus='ps2'> <alias name='input1'/> </input> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </source> <alias name='hostdev0'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0' multifunction='on'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x1'/> </source> <alias name='hostdev1'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x1'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </source> <alias name='hostdev2'/> <address type='pci' domain='0x0000' bus='0x06' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </source> <boot order='1'/> <alias name='hostdev3'/> <address type='pci' domain='0x0000' bus='0x07' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x04' slot='0x00' function='0x0'/> </source> <alias name='hostdev4'/> <address type='pci' domain='0x0000' bus='0x08' slot='0x00' function='0x0'/> </hostdev> <memballoon model='none'/> </devices> <seclabel type='dynamic' model='dac' relabel='yes'> <label>+0:+100</label> <imagelabel>+0:+100</imagelabel> </seclabel> <qemu:commandline> <qemu:arg value='-device'/> <qemu:arg value='isa-applesmc <qemu:arg value='-smbios'/> <qemu:arg value='type=2'/> <qemu:arg value='-cpu'/> <qemu:arg value='host,kvm=on,+invtsc,+hypervisor,+avx,+avx2,+fma,+popcnt,+xsave,check'/> </qemu:commandline> </domain> And my Opencore config <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" ""> <plist version="1.0"> <dict> <key>ACPI</key> <dict> <key>Add</key> <array> <dict> <key>Comment</key> <string>Graphics</string> <key>Enabled</key> <true/> <key>Path</key> <string>SSDT-1.aml</string> </dict> <dict> <key>Comment</key> <string>CPUS</string> <key>Enabled</key> <true/> <key>Path</key> <string>SSDT-cpu.aml</string> </dict> <dict> <key>Comment</key> <string>QEMU</string> <key>Enabled</key> <false/> <key>Path</key> <string>q35-acpi-dsdt.aml</string> </dict> </array> <key>Quirks</key> <dict> <key>FadtEnableReset</key> <false/> <key>NormalizeHeaders</key> <false/> <key>RebaseRegions</key> <false/> <key>ResetHwSig</key> <false/> <key>ResetLogoStatus</key> <false/> </dict> </dict> <key>Booter</key> <dict> <key>Quirks</key> <dict> <key>AvoidRuntimeDefrag</key> <true/> <key>DevirtualiseMmio</key> <true/> <key>DisableSingleUser</key> <false/> <key>DisableVariableWrite</key> <false/> <key>DiscardHibernateMap</key> <false/> <key>EnableSafeModeSlide</key> <true/> <key>EnableWriteUnprotector</key> <true/> <key>ForceExitBootServices</key> <false/> <key>ProtectCsmRegion</key> <false/> <key>ProvideCustomSlide</key> <false/> <key>SetupVirtualMap</key> <true/> <key>ShrinkMemoryMap</key> <false/> </dict> </dict> <key>DeviceProperties</key> <dict> <key>Add</key> <dict> <key>PciRoot(0x1)/Pci(0x0,0x0)</key> <dict> <key>AAPL,slot-name</key> <string>Internal@1,0,0</string> <key>device_type</key> <string>Host bridge</string> <key>model</key> <string>82G33/G31/P35/P31 Express DRAM Controller</string> </dict> <key>PciRoot(0x1)/Pci(0x1,0x0)/Pci(0x0,0x0)</key> <dict> <key>AAPL,slot-name</key> <string>Internal@1,1,0/0,0</string> <key>device_type</key> <string>Audio device</string> <key>hda-gfx</key> <string>onboard-1</string> <key>model</key> <string>Ellesmere HDMI Audio [Radeon RX 470/480 / 570/580/590]</string> </dict> <key>PciRoot(0x1)/Pci(0x1,0x1)/Pci(0x0,0x0)</key> <dict> <key>AAPL,slot-name</key> <string>Internal@1,1,1/0,0</string> <key>built-in</key> <string>0x01</string> <key>device_type</key> <string>Network controller</string> <key>model</key> <string>BCM43602 802.11ac Wireless LAN SoC</string> </dict> <key>PciRoot(0x1)/Pci(0x2,0x0)/Pci(0x0,0x0)/Pci(0x1,0x0)</key> <dict> <key>AAPL,slot-name</key> <string>Internal@1,2,0/0,0/1,0</string> <key>device_type</key> <string>Ethernet controller</string> <key>model</key> <string>82545EM Gigabit Ethernet Controller (Copper)</string> </dict> <key>PciRoot(0x1)/Pci(0x2,0x3)/Pci(0x0,0x0)</key> <dict> <key>AAPL,slot-name</key> <string>Internal@1,2,3/0,0</string> <key>device_type</key> <string>Non-Volatile memory controller</string> <key>model</key> <string>NVMe SSD Controller SM961/PM961</string> </dict> <key>PciRoot(0x1)/Pci(0x2,0x4)/Pci(0x0,0x0)</key> <dict> <key>AAPL,slot-name</key> <string>Internal@1,2,4/0,0</string> <key>device_type</key> <string>USB controller</string> <key>model</key> <string>FL1100 USB 3.0 Host Controller</string> </dict> <key>PciRoot(0x1)/Pci(0x2,0x5)/Pci(0x0,0x0)</key> <dict> <key>AAPL,slot-name</key> <string>Internal@1,2,5/0,0</string> <key>device_type</key> <string>VGA compatible controller</string> <key>model</key> <string>Ellesmere [Radeon RX 470/480/570/570X/580/580X/590]</string> </dict> </dict> </dict> <key>Kernel</key> <dict> <key>Block</key> <array> <dict> <key>Enabled</key> <true/> <key>Identifier</key> <string></string> <key>MatchKernel</key> <string></string> </dict> </array> <key>Patch</key> <array> <dict> <key>Comment</key> <string>Black Screen Patch Vega 56/64, RX580 etc. (c)Pike R. Alpha</string> <key>Count</key> <integer>1</integer> <key>Enabled</key> <true/> <key>Find</key> <data> Ym9hcmQtaWQ= </data> <key>Identifier</key> <string></string> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data> </data> <key>MatchKernel</key> <string></string> <key>Replace</key> <data> Ym9hcmQtaXg= </data> <key>ReplaceMask</key> <data> </data> <key>Skip</key> <integer>0</integer> </dict> </array> <key>Quirks</key> <dict> <key>AppleCpuPmCfgLock</key> <false/> <key>AppleXcpmCfgLock</key> <false/> <key>AppleXcpmExtraMsrs</key> <false/> <key>CustomSMBIOSGuid</key> <false/> <key>DisableIoMapper</key> <false/> <key>ExternalDiskIcons</key> <true/> <key>LapicKernelPanic</key> <true/> <key>PanicNoKextDump</key> <false/> <key>PowerTimeoutKernelPanic</key> <true/> <key>ThirdPartyTrim</key> <false/> <key>XhciPortLimit</key> <true/> </dict> </dict> <key>Misc</key> <dict> <key>Boot</key> <dict> <key>ConsoleBehaviourOs</key> <string>Graphics</string> <key>ConsoleBehaviourUi</key> <string>Graphics</string> <key>ConsoleMode</key> <string>Max</string> <key>HibernateMode</key> <string>Auto</string> <key>HideSelf</key> <true/> <key>PollAppleHotKeys</key> <false/> <key>Resolution</key> <string>1680x1050</string> <key>ShowPicker</key> <true/> <key>Timeout</key> <integer>5</integer> <key>UsePicker</key> <true/> </dict> <key>Debug</key> <dict> <key>DisableWatchDog</key> <false/> <key>DisplayDelay</key> <integer>0</integer> <key>DisplayLevel</key> <integer>0</integer> <key>Target</key> <integer>64</integer> </dict> <key>Security</key> <dict> <key>AllowNvramReset</key> <false/> <key>ExposeSensitiveData</key> <integer>2</integer> <key>HaltLevel</key> <integer>2147483648</integer> <key>RequireSignature</key> <false/> <key>RequireVault</key> <false/> <key>ScanPolicy</key> <integer>983299</integer> </dict> <key>Tools</key> <array> <dict> <key>Comment</key> <string>Not signed for security reasons</string> <key>Enabled</key> <false/> <key>Name</key> <string>UEFI Shell</string> <key>Path</key> <string>Shell.efi</string> </dict> <dict> <key>Comment</key> <string>Memory testing utility</string> <key>Enabled</key> <false/> <key>Name</key> <string>memcheck</string> <key>Path</key> <string>memcheck/memcheck.efi</string> </dict> </array> </dict> <key>NVRAM</key> <dict> <key>Add</key> <dict> <key>4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14</key> <dict> <key>UIScale</key> <data> AA== </data> </dict> <key>7C436110-AB2A-4BBB-A880-FE41995C9F82</key> <dict> <key>boot-args</key> <string>kext-dev-mode=1 -v</string> <key>csr-active-config</key> <data> ZwAAAA== </data> <key>nvda_drv</key> <data> MQ== </data> <key>prev-lang:kbd</key> <data> cnUtUlU6MjUy </data> </dict> </dict> <key>Block</key> <dict> <key>4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14</key> <array> <string>UIScale</string> </array> <key>7C436110-AB2A-4BBB-A880-FE41995C9F82</key> <array> <string>boot-args</string> </array> </dict> <key>LegacyEnable</key> <false/> <key>LegacySchema</key> <dict> <key>7C436110-AB2A-4BBB-A880-FE41995C9F82</key> <array> <string>EFIBluetoothDelay</string> <string>EFILoginHiDPI</string> <string>LocationServicesEnabled</string> <string>SystemAudioVolume</string> <string>SystemAudioVolumeDB</string> <string>bluetoothActiveControllerInfo</string> <string>bluetoothInternalControllerInfo</string> <string>flagstate</string> <string>fmm-computer-name</string> <string>nvda_drv</string> <string>prev-lang:kbd</string> </array> <key>8BE4DF61-93CA-11D2-AA0D-00E098032B8C</key> <array> <string>Boot0080</string> <string>Boot0081</string> <string>Boot0082</string> <string>BootNext</string> <string>BootOrder</string> </array> </dict> </dict> <key>PlatformInfo</key> <dict> </dict> <key>UpdateDataHub</key> <true/> <key>UpdateNVRAM</key> <true/> <key>UpdateSMBIOS</key> <true/> <key>UpdateSMBIOSMode</key> <string>Create</string> </dict> <key>UEFI</key> <dict> <key>ConnectDrivers</key> <true/> <key>Drivers</key> <array> <string>apfs.efi</string> <string>VBoxHfs.efi</string> <string>ApfsDriverLoader.efi</string> <string>AppleGenericInput.efi</string> <string>AptioInputFix.efi</string> <string>FwRuntimeServices.efi</string> <string>UsbKbDxe.efi</string> </array> <key>Input</key> <dict> <key>KeyForgetThreshold</key> <integer>5</integer> <key>KeyMergeThreshold</key> <integer>2</integer> <key>KeySupport</key> <false/> <key>KeySupportMode</key> <string></string> <key>KeySwap</key> <false/> <key>PointerSupport</key> <false/> <key>PointerSupportMode</key> <string></string> <key>TimerResolution</key> <integer>0</integer> </dict> <key>Protocols</key> <dict> <key>AppleBootPolicy</key> <false/> <key>AppleEvent</key> <false/> <key>AppleImageConversion</key> <false/> <key>AppleKeyMap</key> <false/> <key>AppleUserInterfaceTheme</key> <false/> <key>ConsoleControl</key> <true/> <key>DataHub</key> <false/> <key>DeviceProperties</key> <false/> <key>FirmwareVolume</key> <false/> <key>HashServices</key> <false/> <key>UnicodeCollation</key> <false/> </dict> <key>Quirks</key> <dict> <key>AvoidHighAlloc</key> <false/> <key>ClearScreenOnModeSwitch</key> <false/> <key>ExitBootServicesDelay</key> <integer>0</integer> <key>IgnoreInvalidFlexRatio</key> <true/> <key>IgnoreTextInGraphics</key> <true/> <key>ProvideConsoleGop</key> <true/> <key>ReconnectOnResChange</key> <false/> <key>ReleaseUsbOwnership</key> <false/> <key>ReplaceTabWithSpace</key> <false/> <key>RequestBootVarFallback</key> <false/> <key>RequestBootVarRouting</key> <false/> <key>SanitiseClearScreen</key> <true/> <key>UnblockFsConnect</key> <false/> </dict> </dict> </dict> </plist> Ive tested with topology and it just results in black screen after "UEFI splash screen" if I lower the cores to 8 I get kernel panic but haven't diagnosed this further but would prefer to stick to 12
  19. Sorry but for me only being able to read clover in English regarding the original post image what is the topology patch to be able to boot with defined topology I’ve tried looking for an identical tab in clover with no luck. I’m having very stuttered audio from Bluetooth USB Card and HDMI outputs so I’m thinking this is a clock issue which topology may fix?
  20. You will also have to correctly set ROM,MLB and SMBIOS I also had to Custom UUID Inject iD and ExposeSysVariables to get it working finally and its all perfect now. This script from another forum works well to see if anything is missing or wrong iMessageDebug
  21. Its somewhat possible depending what format you have the vDisk in but generally it ends up corrupted APFS can sometimes be funny but if you have success let us know
  22. I’m running clover sorry yes I realised that’s important

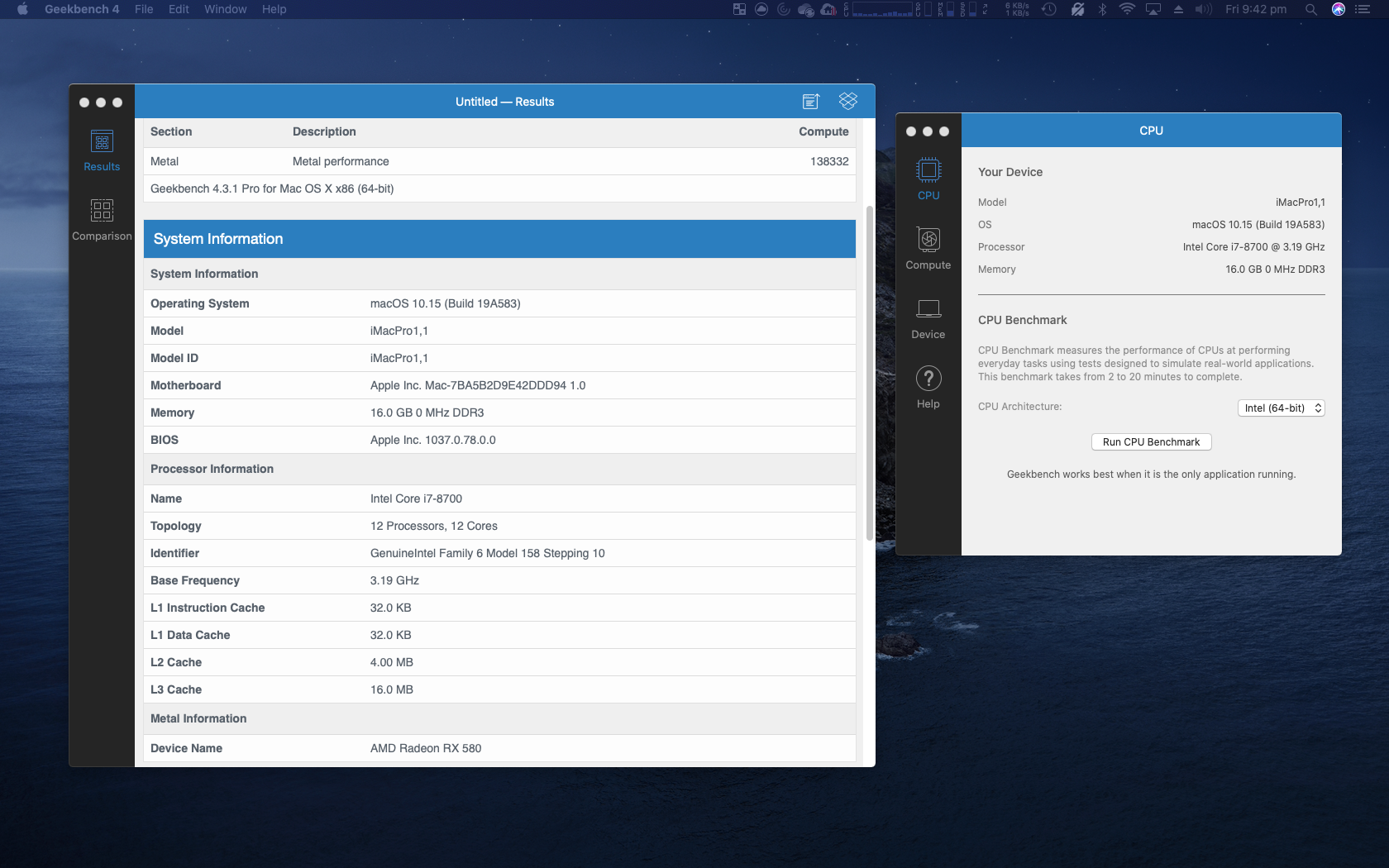

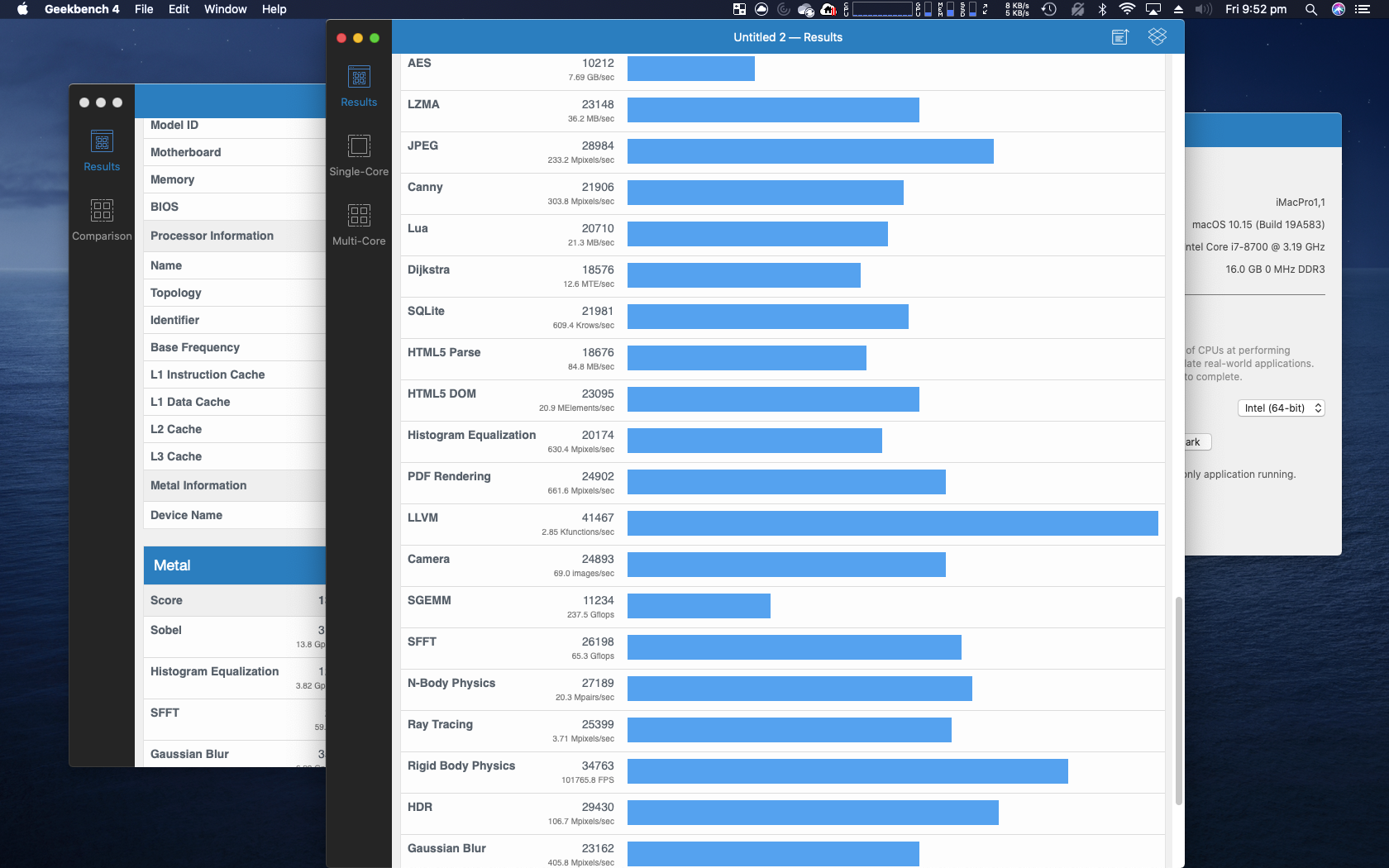

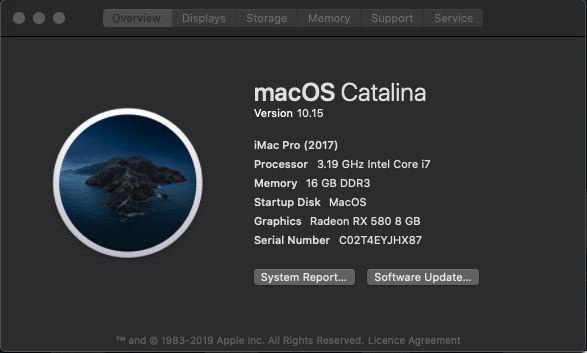

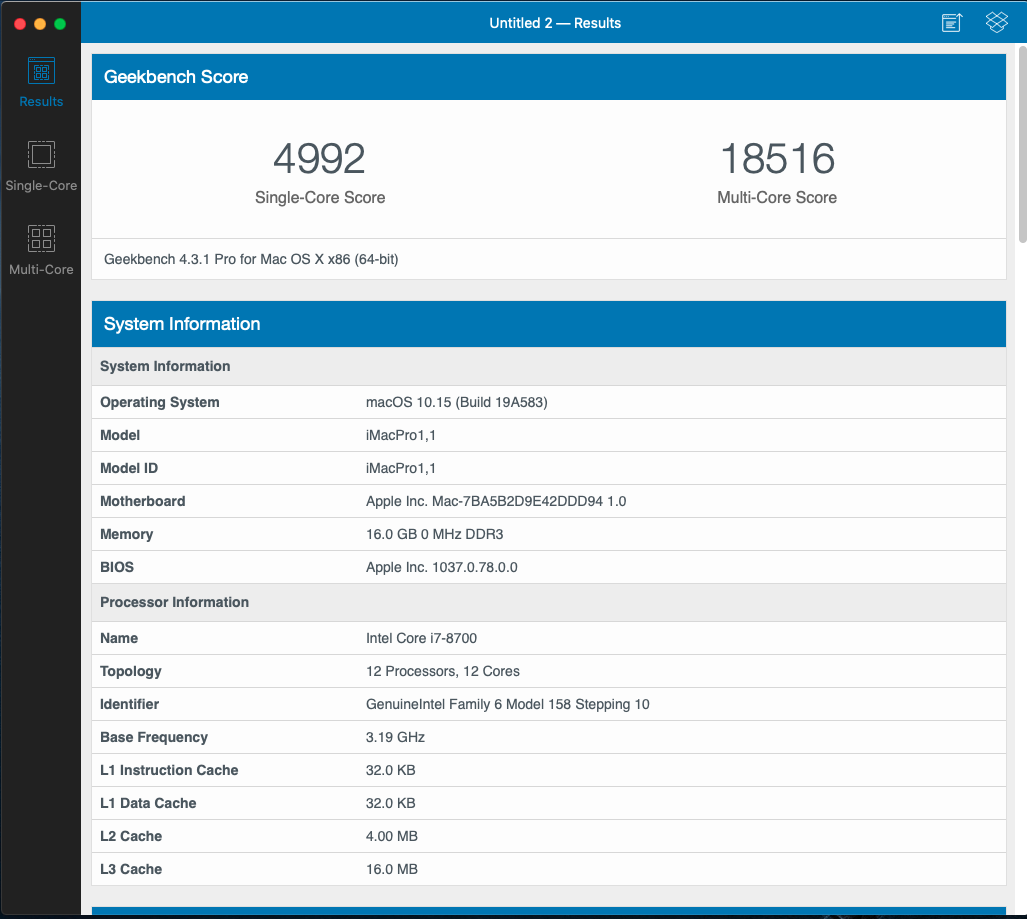

  23. This might interest a few of you im passing through all 12 cores of my i7-8700 my RX580 and using the 1,1 bios and these are my Geekbench scores after adding <qemu:arg value='-cpu'/> <qemu:arg value='host,vendor=GenuineIntel,kvm=on,vmware-cpuid-freq=on,+invtsc,+hypervisor'/> no longer having to use Penryn on Catalina booted first time

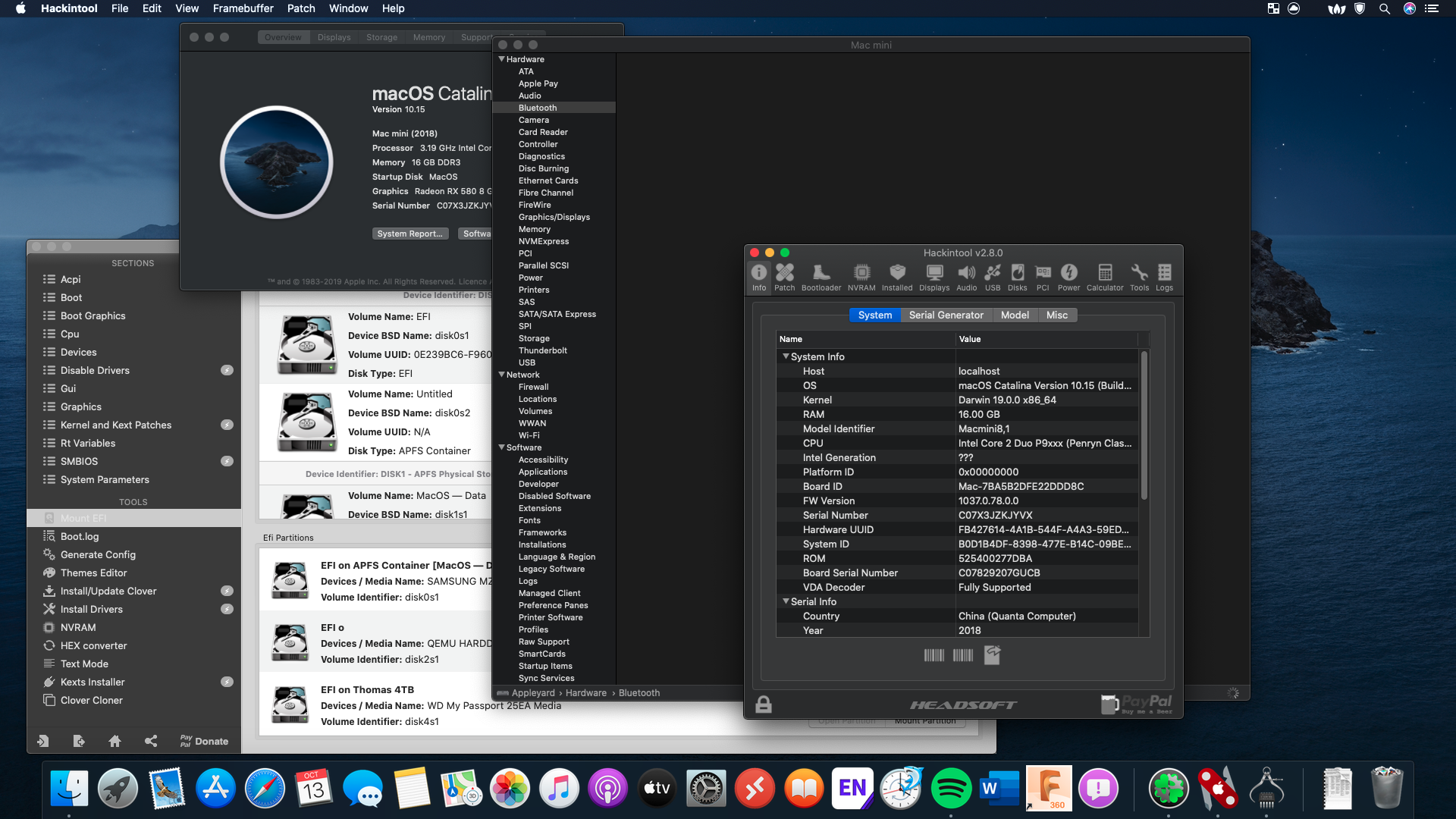

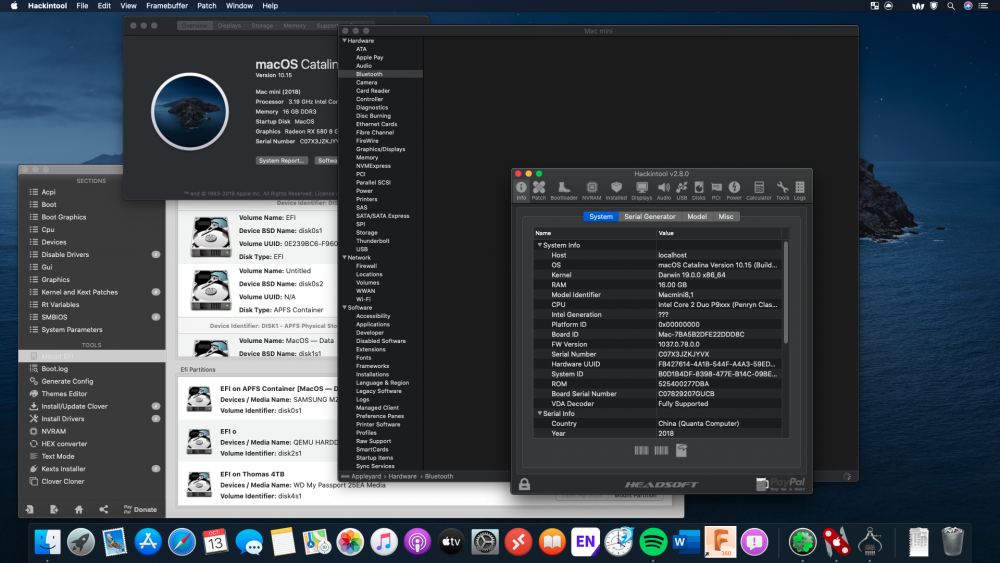

  24. Okay now I have a weird problem if anyone has any ideas I can't seem to replicate it ever its "random" as it would seem when I boot into OSX Catalina sometimes finder fails to launch sometimes a reboot fixes this sometimes it takes three or four. I've attached my XML Clover config and boot log if that helps but im kind of stuck I've tried different SMBIOS's and doesn't seem to make it much better either the screenshot is of the failed boot with no Networking or desktop icons either.config.plistCatalinaXML.rtfbootlog.txt bootlog failed.txt
  25. Adding the extra CPU flags a few pages back seems to have fixed the problem Sent from my iPhone using Tapatalk
