Teshiburu

Ok thanks good to know Guessing it'll fix one day haha

Playing around it seems to be giving me raid1c3 which according to the calculator should only give 2tb of usable space, whereas raid1 SHOULd give me 3tb but im only seeing 2.... Kinda need the 3tb can anyone advise?

Hey all, Am I being blind or stupid somewhere here: in the documentation for storage management and pool modes it points to a calculator for btrfs raids. https://carfax.org.uk/btrfs-usage/?c=2&slo=1&shi=1&p=0&dg=1&d=2000&d=2000&d=2000 and it shows that i should be able to get 3tb of usable space out of 3 x 2tb drives? However, when i assign these 3 drives to the pool: It displays total size of 3tb but only 2tb usable? Am I missing something? did I hit my head when I woke up this morning haha! Regards T

If i went with the Quadro p2000 i shouldn't encounter any issues with power requirements over the PCI at x8 should I?

Thankee, i did imagine it would be, but wanted to be sure before I ended up doing another return haha! already returned one mobo as i didn't see all the pci16x were on the CPU at 4x

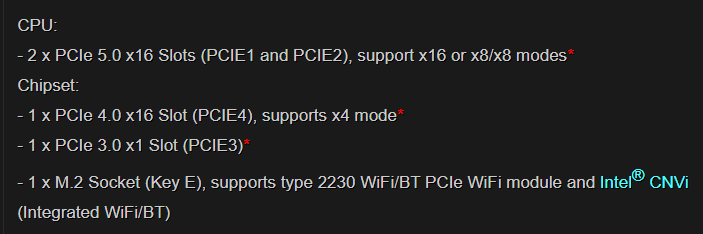

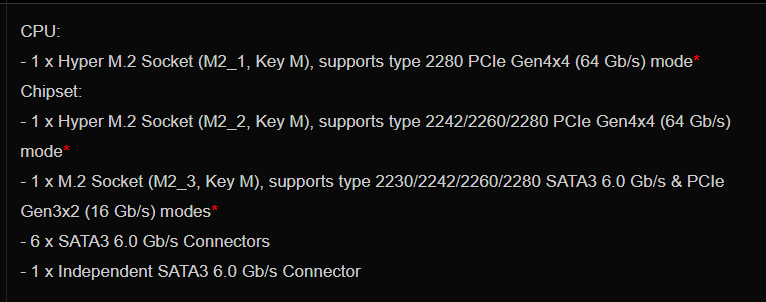

Hi All, In the midst of a new build, and trying to stay low power (as much as I can, and within budget) I've opted for a 12900 and a Z690 taichi board after some discussion about HBA cards. Ive got the LSI 9305-24i coming. I've already got a 10Gb SFP NIC (NC5552SFP) Now I've a question about PCIe lanes here is the spec from the mainboard: I know the Storage will also utilize the PCI lanes so those specs are here: I know I've 20 to work with on the CPU and the z690 chipset adds another 28 for 48 total, this is my plan can anyone confirm that I'm not mad and it should work haha This is my plan for PCI layout can someone please confirm that this should work CPU Slots PCIe_1 - Unoccupied maybe a GPU later like the p2200 PCIe_2 - LSI 9305-24i M2_1 - NVME drive I believe in this setup if i incorporate a GPU later it will be forced to run at 8x but looking at this article from GamersNexus i shouldn't see too much of a performance hit? (https://www.gamersnexus.net/guides/2488-pci-e-3-x8-vs-x16-performance-impact-on-gpus) This would also occupy all 20 lanes on the CPU? And then I was planning on adding the following to the chipset: PCIe_3 (the final 16x slot at x4): this would have my 10Gb NIC, i think from looking at the max speeds of x4 i should still get the full 10Gb i need/want here M2_2: NVME drive M2_3: NVME drive 2 X Sata Drives I think this should be around 12x on the PCI devices on the chipset (and what ever the 2 sata will use) Am i mad? this should work right?
