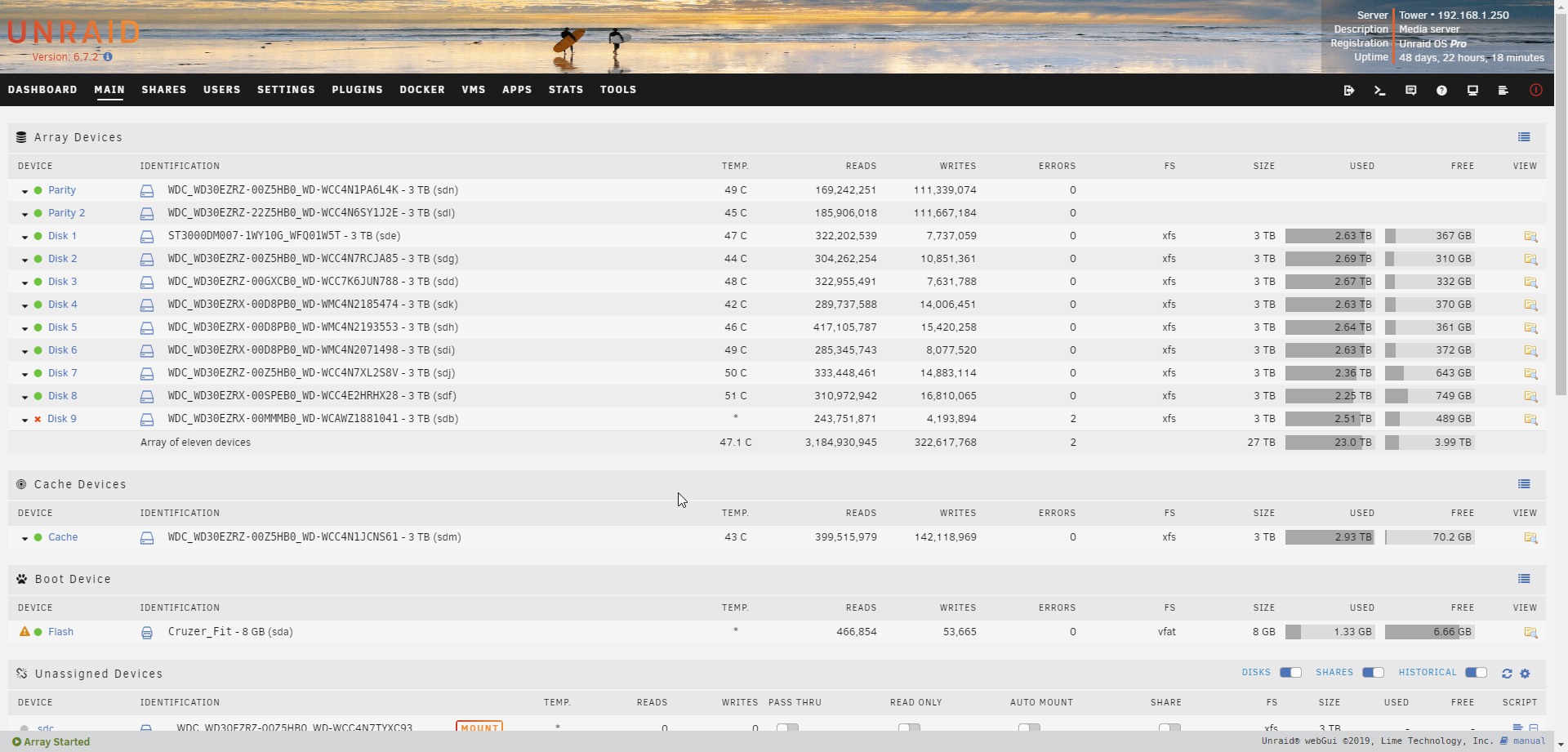

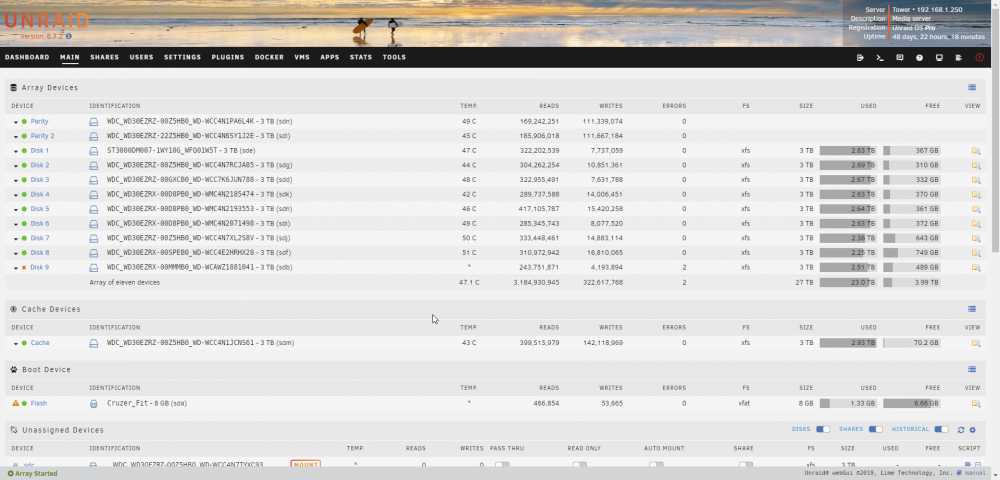

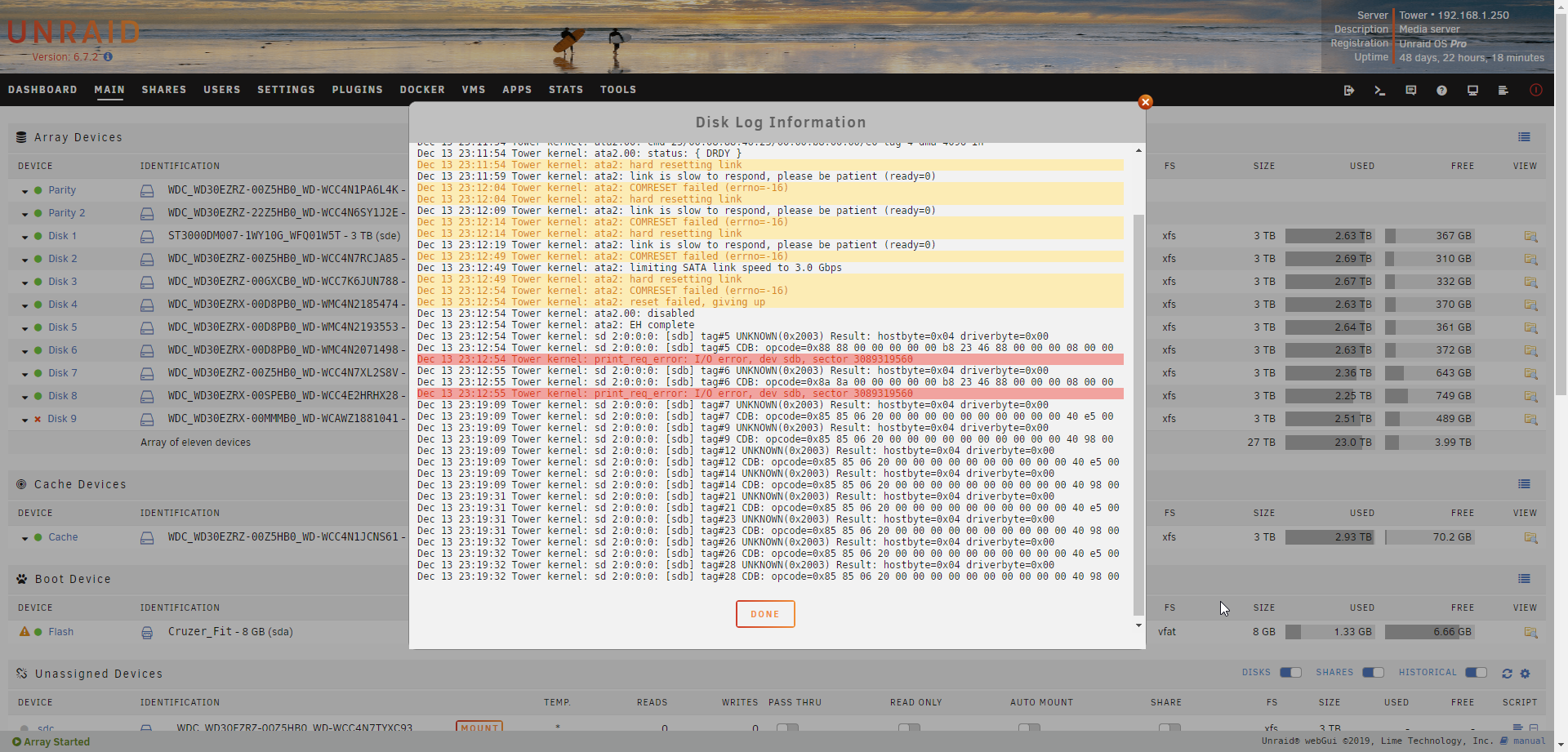

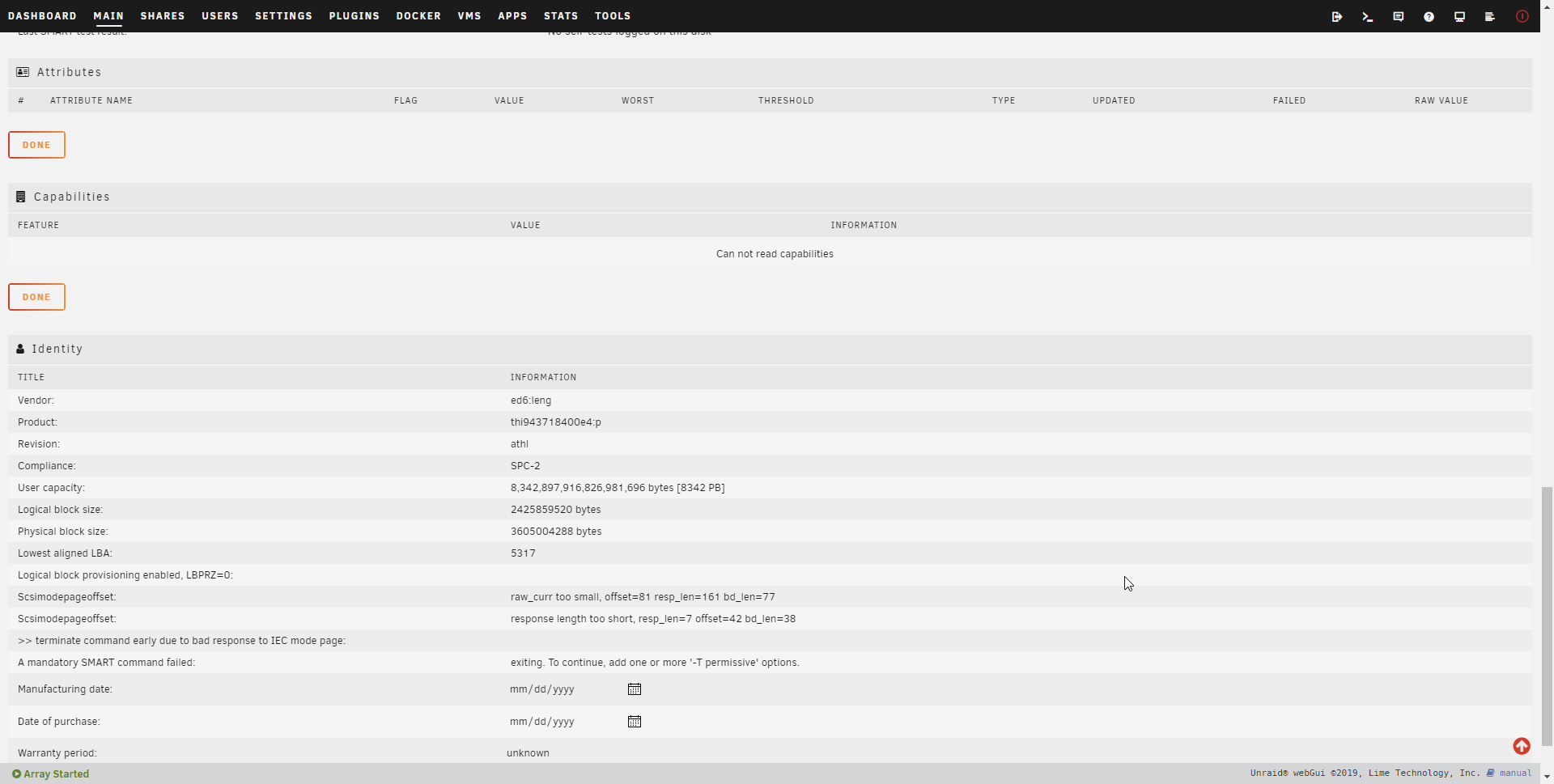

publicENEMY Posted December 13, 2020 Share Posted December 13, 2020 One of my drive shows this status. Please advise. Attached are logs and stuff. Thanks. tower-diagnostics-20201213-1522.zip tower-smart-20201213-2323.zip Quote Link to comment

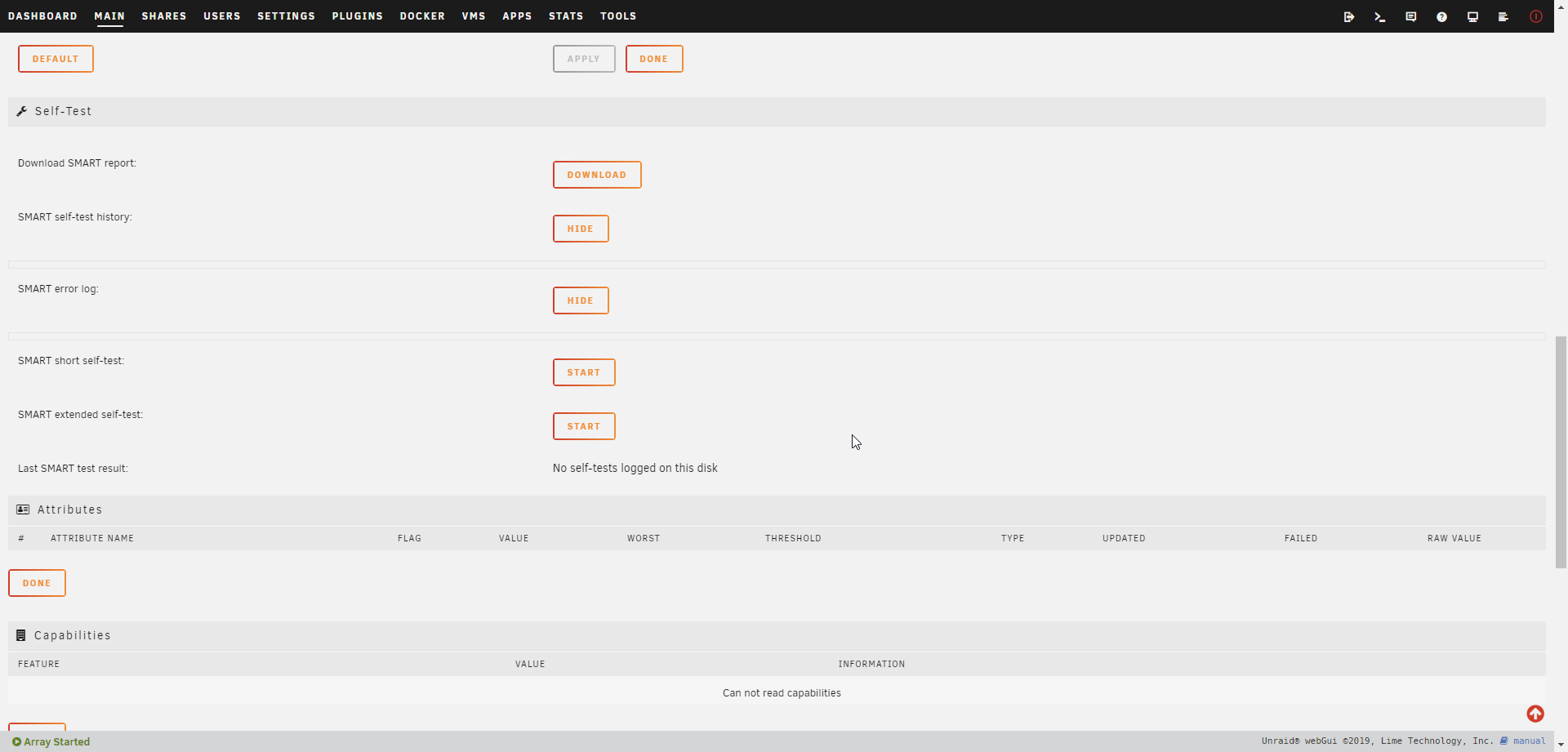

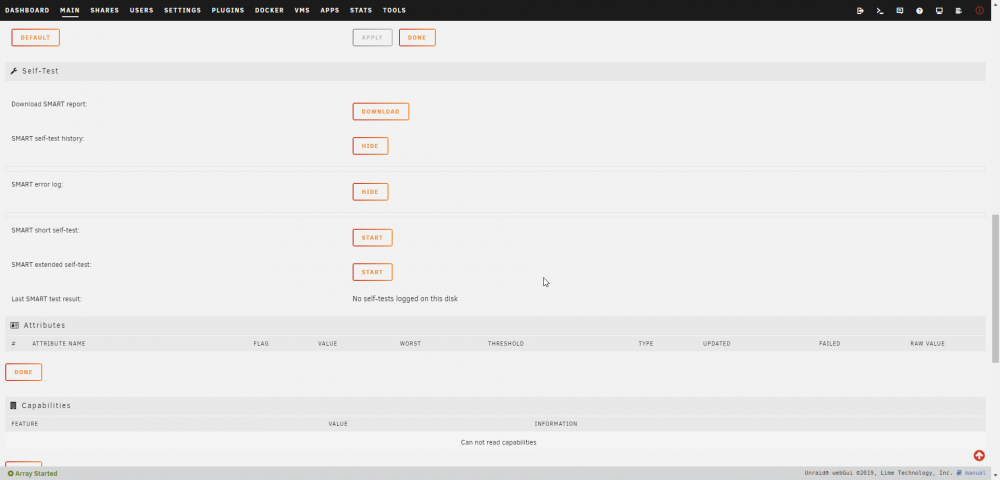

JorgeB Posted December 14, 2020 Share Posted December 14, 2020 Disk dropped offline so there's no SMART report, check/replace cables and post new diags. Quote Link to comment
publicENEMY Posted December 14, 2020 Author Share Posted December 14, 2020 Switched to different slot. This is the new diags. Please advise. Thanks. tower-diagnostics-20201214-1248.ziptower-smart-20201214-2045.zip Quote Link to comment
JorgeB Posted December 14, 2020 Share Posted December 14, 2020 SMART is showing some issues, you should run an extended test. Quote Link to comment
publicENEMY Posted December 15, 2020 Author Share Posted December 15, 2020 The result of extended tests. tower-smart-20201214-2247.zip Quote Link to comment
JorgeB Posted December 15, 2020 Share Posted December 15, 2020 It passed so it's fine for now, recommend replacing/swapping cables just to rule them out and if the emulated disk contenrs look correct rebuild on top. Quote Link to comment
publicENEMY Posted December 16, 2020 Author Share Posted December 16, 2020 How to reuse the drive? Quote Link to comment
publicENEMY Posted December 16, 2020 Author Share Posted December 16, 2020 When I assigned the drive it says device emulated. Is there a steps I should follow? Im not sure what are the keyword to search in the wiki. Please advise. thanks. Quote Link to comment
JorgeB Posted December 16, 2020 Share Posted December 16, 2020 https://wiki.unraid.net/Troubleshooting#Re-enable_the_drive Quote Link to comment

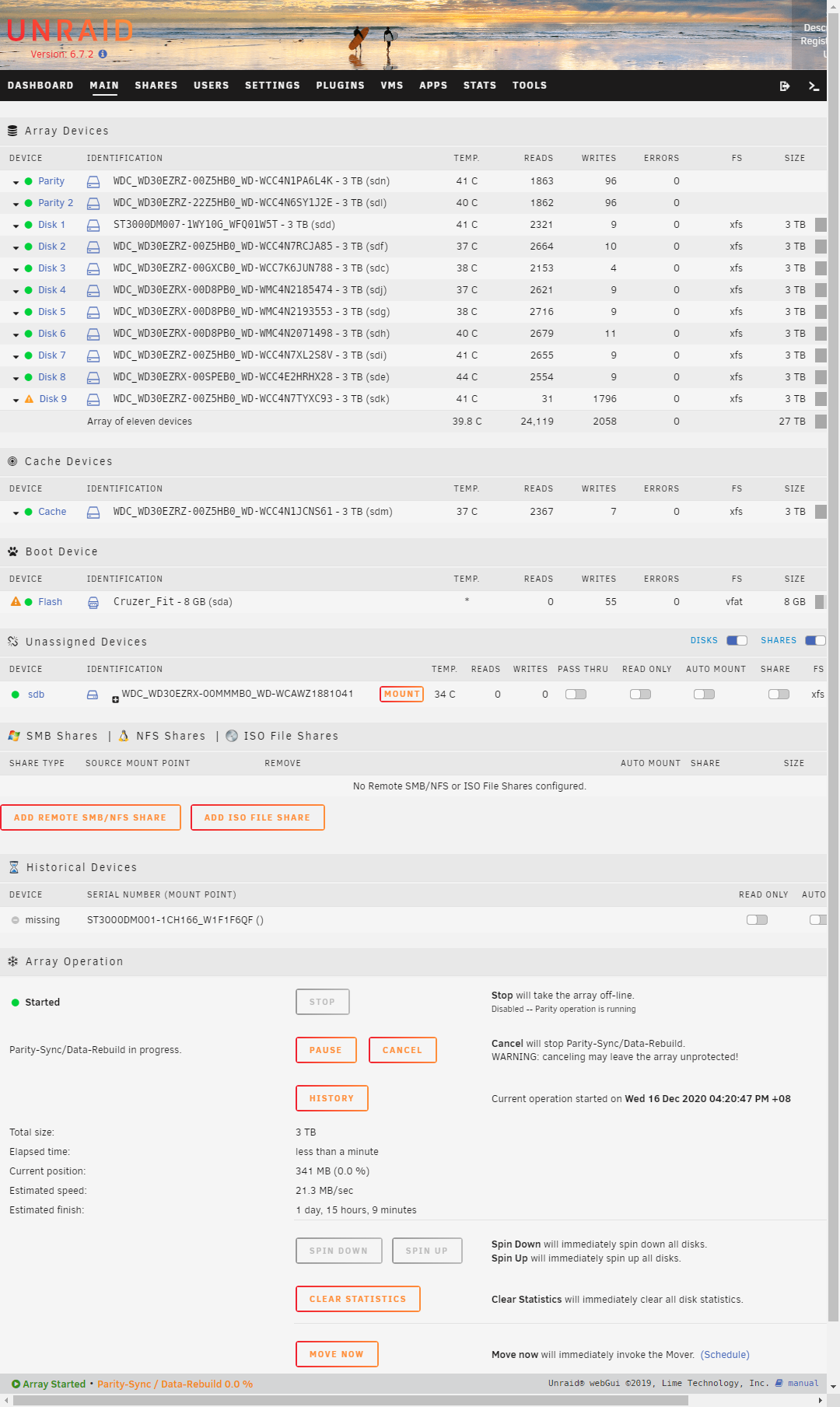

publicENEMY Posted December 16, 2020 Author Share Posted December 16, 2020 Thanks. Rebuilding now. Quote Link to comment

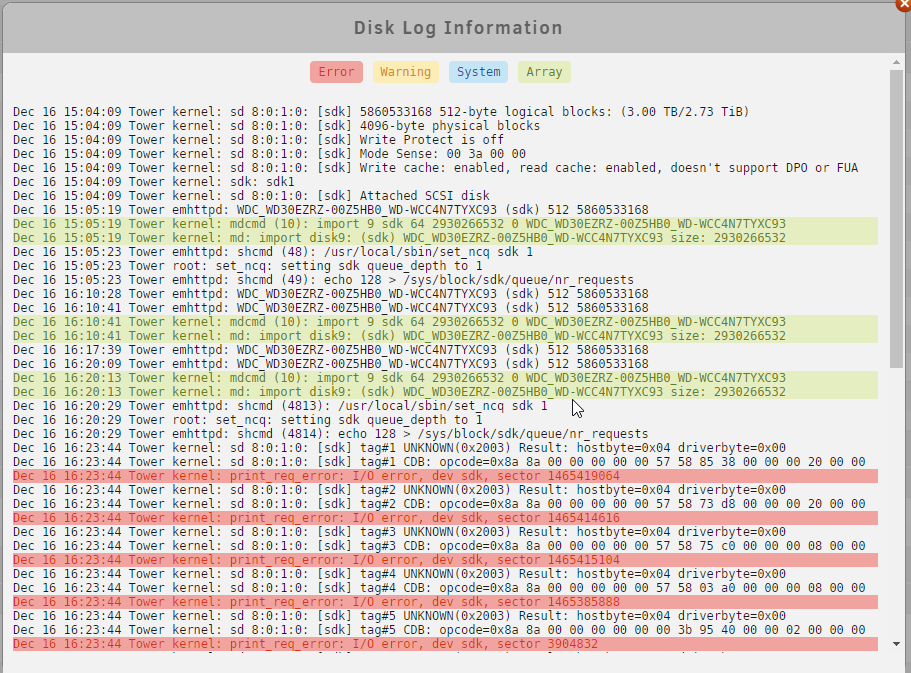

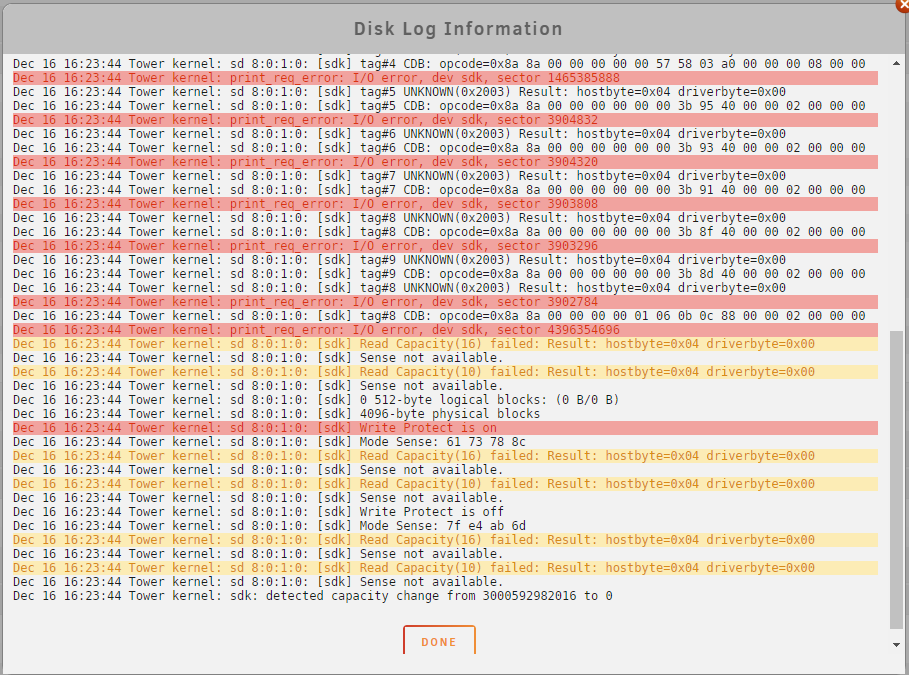

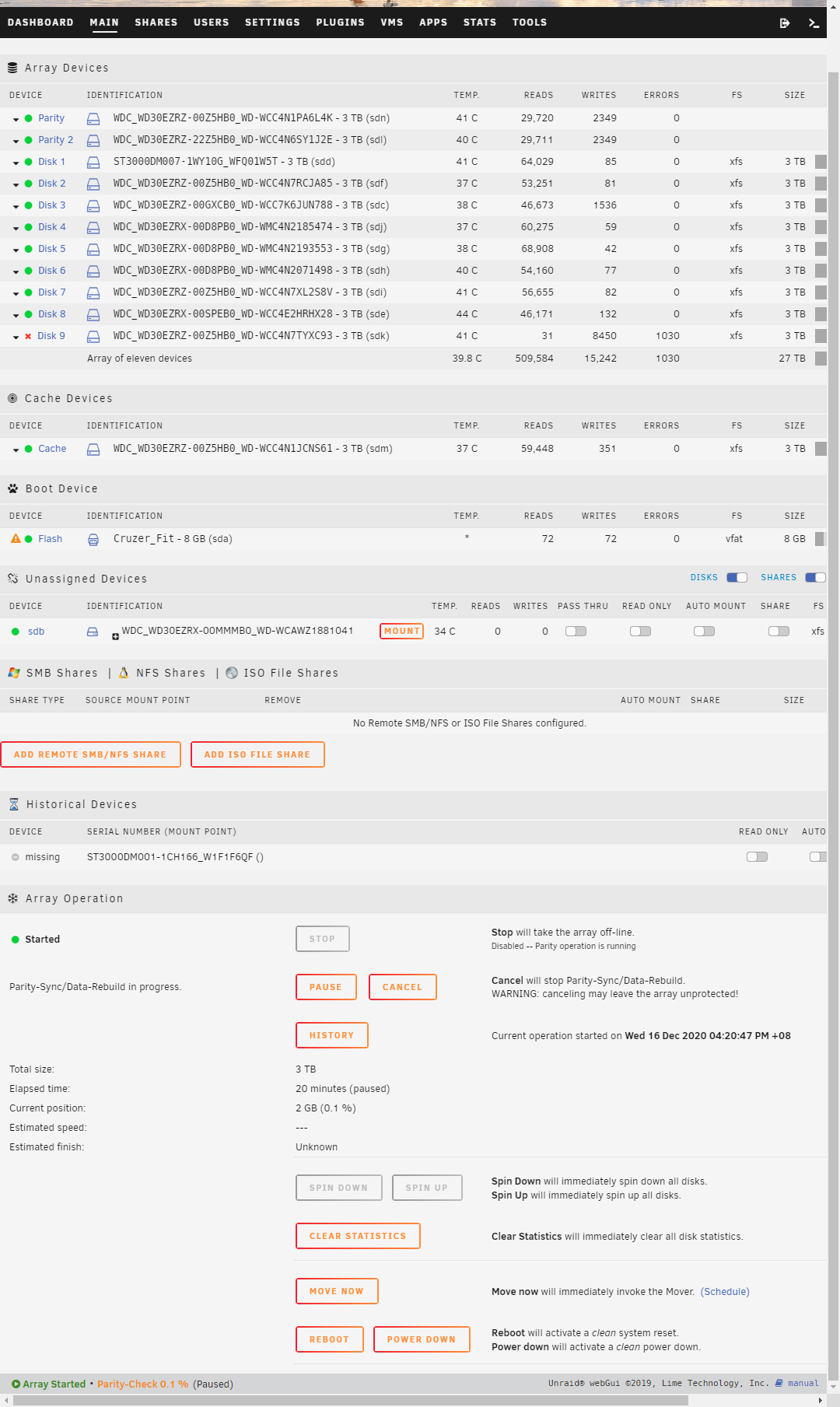

publicENEMY Posted December 16, 2020 Author Share Posted December 16, 2020 After a while, I get red x again. Elapse time is 21 minutes (paused). What should I do? This is the disk log information. tower-diagnostics-20201216-0845.zip I have attached latest diagnostics. What should I do? Buy a new replacement drive? Quote Link to comment
JorgeB Posted December 16, 2020 Share Posted December 16, 2020 Did you On 12/15/2020 at 8:25 AM, JorgeB said: recommend replacing/swapping cables ? If yes, replace the drive. Quote Link to comment
