Bolagnaise Posted March 2, 2021 Author Share Posted March 2, 2021 7 minutes ago, ich777 said: Yep, exactly you have to download the new version for this Kernel version (so to speak the link has changed): cd /tmp wget https://github.com/ich777/unraid-plugins-repo/releases/download/5.10.19-Unraid/nct6687d-1.txz installpkg nct6687d-1.txz depmod -a modprobe nct6687 Perfect, thanks again! Quote Link to comment
ich777 Posted March 2, 2021 Share Posted March 2, 2021 4 hours ago, Bolagnaise said: Perfect, thanks again! I will create a plugin for your Nuvoton chip. 1 1 Quote Link to comment
dbinott Posted March 2, 2021 Share Posted March 2, 2021 Hope you can help with mine as well? I thought this would be working in 6.9.0? M/B: ASRock B450 Pro4 Version - BIOS: American Megatrends Inc. Version P4.10. Dated: 03/05/2020 CPU: AMD Ryzen 5 3600 6-Core @ 3600 MHz sensors nct6779-isa-0290 Adapter: ISA adapter Vcore: 0.00 V (min = +0.00 V, max = +1.74 V) in1: 0.00 V (min = +0.00 V, max = +0.00 V) AVCC: 0.00 V (min = +0.00 V, max = +0.00 V) +3.3V: 0.00 V (min = +0.00 V, max = +0.00 V) in4: 0.00 V (min = +0.00 V, max = +0.00 V) in5: 0.00 V (min = +0.00 V, max = +0.00 V) in6: 0.00 V (min = +0.00 V, max = +0.00 V) 3VSB: 0.00 V (min = +0.00 V, max = +0.00 V) Vbat: 0.00 V (min = +0.00 V, max = +0.00 V) in9: 0.00 V (min = +0.00 V, max = +0.00 V) in10: 0.00 V (min = +0.00 V, max = +0.00 V) in11: 0.00 V (min = +0.00 V, max = +0.00 V) in12: 0.00 V (min = +0.00 V, max = +0.00 V) in13: 0.00 V (min = +0.00 V, max = +0.00 V) in14: 0.00 V (min = +0.00 V, max = +0.00 V) Array Fan: 2872 RPM (min = 0 RPM) Array Fan: 2445 RPM (min = 0 RPM) Array Fan: 2106 RPM (min = 0 RPM) Array Fan: 3020 RPM (min = 0 RPM) CPU Temp: +52.5°C intrusion0: ALARM intrusion1: ALARM beep_enable: disabled sensors-detect # sensors-detect version 3.6.0 # Board: ASRock B450 Pro4 # Kernel: 5.10.19-Unraid x86_64 # Processor: AMD Ryzen 5 3600 6-Core Processor (23/113/0) This program will help you determine which kernel modules you need to load to use lm_sensors most effectively. It is generally safe and recommended to accept the default answers to all questions, unless you know what you're doing. Some south bridges, CPUs or memory controllers contain embedded sensors. Do you want to scan for them? This is totally safe. (YES/no): Silicon Integrated Systems SIS5595... No VIA VT82C686 Integrated Sensors... No VIA VT8231 Integrated Sensors... No AMD K8 thermal sensors... No AMD Family 10h thermal sensors... No AMD Family 11h thermal sensors... No AMD Family 12h and 14h thermal sensors... No AMD Family 15h thermal sensors... No AMD Family 16h thermal sensors... No AMD Family 17h thermal sensors... Success! (driver `k10temp') AMD Family 15h power sensors... No AMD Family 16h power sensors... No Hygon Family 18h thermal sensors... No Intel digital thermal sensor... No Intel AMB FB-DIMM thermal sensor... No Intel 5500/5520/X58 thermal sensor... No VIA C7 thermal sensor... No VIA Nano thermal sensor... No Some Super I/O chips contain embedded sensors. We have to write to standard I/O ports to probe them. This is usually safe. Do you want to scan for Super I/O sensors? (YES/no): Probing for Super-I/O at 0x2e/0x2f Trying family `National Semiconductor/ITE'... No Trying family `SMSC'... No Trying family `VIA/Winbond/Nuvoton/Fintek'... Yes Found `Nuvoton NCT5532D/NCT6779D Super IO Sensors' Success! (address 0x290, driver `nct6775') Probing for Super-I/O at 0x4e/0x4f Trying family `National Semiconductor/ITE'... No Trying family `SMSC'... No Trying family `VIA/Winbond/Nuvoton/Fintek'... No Trying family `ITE'... No Some systems (mainly servers) implement IPMI, a set of common interfaces through which system health data may be retrieved, amongst other things. We first try to get the information from SMBIOS. If we don't find it there, we have to read from arbitrary I/O ports to probe for such interfaces. This is normally safe. Do you want to scan for IPMI interfaces? (YES/no): Probing for `IPMI BMC KCS' at 0xca0... No Probing for `IPMI BMC SMIC' at 0xca8... No Some hardware monitoring chips are accessible through the ISA I/O ports. We have to write to arbitrary I/O ports to probe them. This is usually safe though. Yes, you do have ISA I/O ports even if you do not have any ISA slots! Do you want to scan the ISA I/O ports? (yes/NO): YES Probing for `National Semiconductor LM78' at 0x290... No Probing for `National Semiconductor LM79' at 0x290... No Probing for `Winbond W83781D' at 0x290... No Probing for `Winbond W83782D' at 0x290... No Lastly, we can probe the I2C/SMBus adapters for connected hardware monitoring devices. This is the most risky part, and while it works reasonably well on most systems, it has been reported to cause trouble on some systems. Do you want to probe the I2C/SMBus adapters now? (YES/no): Using driver `i2c-piix4' for device 0000:00:14.0: AMD KERNCZ SMBus Module i2c-dev loaded successfully. Next adapter: SMBus PIIX4 adapter port 0 at 0b00 (i2c-0) Do you want to scan it? (yes/NO/selectively): yes Client found at address 0x4f Probing for `National Semiconductor LM75'... No Probing for `National Semiconductor LM75A'... No Probing for `Dallas Semiconductor DS75'... No Probing for `Maxim MAX6642'... No Probing for `Texas Instruments TMP421'... No Probing for `Texas Instruments TMP422'... No Probing for `Texas Instruments TMP435'... No Probing for `Texas Instruments TMP441'... No Probing for `Maxim MAX6633/MAX6634/MAX6635'... No Probing for `NXP/Philips SA56004'... No Client found at address 0x52 Probing for `Analog Devices ADM1033'... No Probing for `Analog Devices ADM1034'... No Probing for `SPD EEPROM'... Yes (confidence 8, not a hardware monitoring chip) Client found at address 0x53 Probing for `Analog Devices ADM1033'... No Probing for `Analog Devices ADM1034'... No Probing for `SPD EEPROM'... Yes (confidence 8, not a hardware monitoring chip) Next adapter: SMBus PIIX4 adapter port 2 at 0b00 (i2c-1) Do you want to scan it? (yes/NO/selectively): yes Next adapter: SMBus PIIX4 adapter port 1 at 0b20 (i2c-2) Do you want to scan it? (yes/NO/selectively): yes Next adapter: NVIDIA i2c adapter 4 at a:00.0 (i2c-3) Do you want to scan it? (yes/NO/selectively): yes Adapter cannot be probed, skipping. Next adapter: NVIDIA i2c adapter 6 at a:00.0 (i2c-4) Do you want to scan it? (yes/NO/selectively): yes Adapter cannot be probed, skipping. Next adapter: NVIDIA i2c adapter 7 at a:00.0 (i2c-5) Do you want to scan it? (yes/NO/selectively): yes Adapter cannot be probed, skipping. Next adapter: NVIDIA i2c adapter 8 at a:00.0 (i2c-6) Do you want to scan it? (yes/NO/selectively): yes Adapter cannot be probed, skipping. Now follows a summary of the probes I have just done. Just press ENTER to continue: Driver `k10temp': * Chip `AMD Family 17h thermal sensors' (confidence: 9) Driver `nct6775': * ISA bus, address 0x290 Chip `Nuvoton NCT5532D/NCT6779D Super IO Sensors' (confidence: 9) Quote Link to comment
feins Posted March 4, 2021 Share Posted March 4, 2021 Hi ich777 im using the Nuvoton NCT6681D/6682D eSIO would you be able to create a plugin that support this sensors? root@TS-S30:~# sensors coretemp-isa-0000 Adapter: ISA adapter MB Temp: +43.0°C (high = +76.0°C, crit = +92.0°C) CPU Temp: +37.0°C (high = +76.0°C, crit = +92.0°C) Core 1: +43.0°C (high = +76.0°C, crit = +92.0°C) Core 2: +41.0°C (high = +76.0°C, crit = +92.0°C) Core 3: +37.0°C (high = +76.0°C, crit = +92.0°C) Core 4: +42.0°C (high = +76.0°C, crit = +92.0°C) Core 5: +42.0°C (high = +76.0°C, crit = +92.0°C) Core 8: +41.0°C (high = +76.0°C, crit = +92.0°C) Core 9: +42.0°C (high = +76.0°C, crit = +92.0°C) Core 10: +40.0°C (high = +76.0°C, crit = +92.0°C) Core 11: +42.0°C (high = +76.0°C, crit = +92.0°C) Core 12: +35.0°C (high = +76.0°C, crit = +92.0°C) Core 13: +35.0°C (high = +76.0°C, crit = +92.0°C) root@TS-S30:~# sensors-detect # sensors-detect version 3.6.0 # System: LENOVO 43517J2 [ThinkStation S30] # Board: LENOVO LENOVO # Kernel: 5.10.19-Unraid x86_64 # Processor: Intel(R) Xeon(R) CPU E5-2695 v2 @ 2.40GHz (6/62/4) This program will help you determine which kernel modules you need to load to use lm_sensors most effectively. It is generally safe and recommended to accept the default answers to all questions, unless you know what you're doing. Some south bridges, CPUs or memory controllers contain embedded sensors. Do you want to scan for them? This is totally safe. (YES/no): yes Silicon Integrated Systems SIS5595... No VIA VT82C686 Integrated Sensors... No VIA VT8231 Integrated Sensors... No AMD K8 thermal sensors... No AMD Family 10h thermal sensors... No AMD Family 11h thermal sensors... No AMD Family 12h and 14h thermal sensors... No AMD Family 15h thermal sensors... No AMD Family 16h thermal sensors... No AMD Family 17h thermal sensors... No AMD Family 15h power sensors... No AMD Family 16h power sensors... No Hygon Family 18h thermal sensors... No Intel digital thermal sensor... Success! (driver `coretemp') Intel AMB FB-DIMM thermal sensor... No Intel 5500/5520/X58 thermal sensor... No VIA C7 thermal sensor... No VIA Nano thermal sensor... No Some Super I/O chips contain embedded sensors. We have to write to standard I/O ports to probe them. This is usually safe. Do you want to scan for Super I/O sensors? (YES/no): yes Probing for Super-I/O at 0x2e/0x2f Trying family `National Semiconductor/ITE'... No Trying family `SMSC'... No Trying family `VIA/Winbond/Nuvoton/Fintek'... Yes Found `Nuvoton NCT6681D/NCT6682D eSIO' Success! (address 0xa00, driver `to-be-written') Probing for Super-I/O at 0x4e/0x4f Trying family `National Semiconductor/ITE'... No Trying family `SMSC'... No Trying family `VIA/Winbond/Nuvoton/Fintek'... No Trying family `ITE'... No Some systems (mainly servers) implement IPMI, a set of common interfaces through which system health data may be retrieved, amongst other things. We first try to get the information from SMBIOS. If we don't find it there, we have to read from arbitrary I/O ports to probe for such interfaces. This is normally safe. Do you want to scan for IPMI interfaces? (YES/no): Quote Link to comment

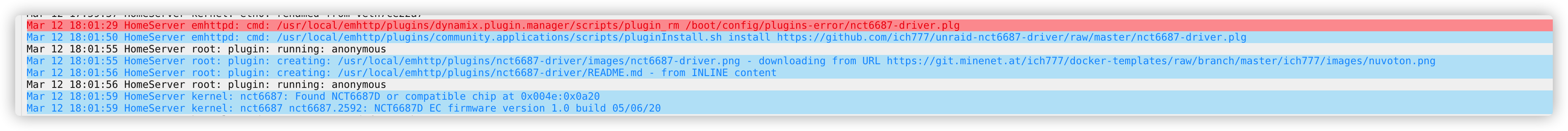

jackge0323 Posted March 12, 2021 Share Posted March 12, 2021 if i restart unraid, nct6687 tell me error,i need reinstall nct6687,Please tell me how to solve it? Quote Link to comment
lgil Posted March 13, 2021 Share Posted March 13, 2021 if i restart unraid, nct6687 tell me error,i need reinstall nct6687,Please tell me how to solve it? You can try install from CA the Novuton NCT6687 Driver, for me did the trick https://forums.unraid.net/index.php?/topic/103762-Add-driver-drive-NCT6687#entry958058Sent from my SM-G988B using Tapatalk Quote Link to comment
jackge0323 Posted March 13, 2021 Share Posted March 13, 2021 1 hour ago, lgil said: You can try install from CA the Novuton NCT6687 Driver, for me did the trick https://forums.unraid.net/index.php?/topic/103762-Add-driver-drive-NCT6687#entry958058 Sent from my SM-G988B using Tapatalk I installed it from here. if i restart unraid, an error will be reported and I need to reinstall it. Quote Link to comment
jackge0323 Posted March 13, 2021 Share Posted March 13, 2021 1 hour ago, lgil said: You can try install from CA the Novuton NCT6687 Driver, for me did the trick https://forums.unraid.net/index.php?/topic/103762-Add-driver-drive-NCT6687#entry958058 Sent from my SM-G988B using Tapatalk Quote Link to comment
cobhc Posted April 14, 2021 Share Posted April 14, 2021 (edited) Managed to get temps on my Strix B550-E with acpi_enforce_resources=lax in my boot options, otherwise I get nothing but CPU temps. But the SYSTIN temp that seems to relate to motherboard temps goes up to 80-90C and won't come down even at idle which I know is not correct as it goes back down after a restart and is okay for a while, it also isn't showing anywhere near that in the BIOS. Is this because of the boot argument? Edited April 29, 2021 by cobhc Quote Link to comment
KnifeFed Posted April 29, 2021 Share Posted April 29, 2021 On 4/14/2021 at 1:55 PM, cobhc said: Managed to get temps on my Strix B550-E with acpi_enforce_resources=lax in my boot options, otherwise I get nothing but COU temps. But the SYSTIN temp that seems to relate to motherboard temps goes up to 80-90C and won't come down even at idle which I know is not correct as it goes back down after a restart and is okay for a while, it also isn't showing anywhere near that in the BIOS. Is this because of the boot argument? Did you get any clarity on this? I have the same mobo with the same issue. Quote Link to comment
cobhc Posted April 29, 2021 Share Posted April 29, 2021 1 hour ago, KnifeFed said: Did you get any clarity on this? I have the same mobo with the same issue. Nope, forgot I posted this to be honest. I've just learnt to ignore the false reading I guess. Quote Link to comment
raftrider Posted December 20, 2021 Share Posted December 20, 2021 Is there any work being performed on a driver for Nuvoton NCT6681D/NCT6682D eSIO? I have a Thinkstation D30. Any assistance will be greatly appreciated. Quote Link to comment
dopeytree Posted September 19, 2022 Share Posted September 19, 2022 Thanks for making this plugin. I now have cpu temps & also fan speeds working on MSI MAG B560M MORTAR WIFI Motherboard 1 Quote Link to comment

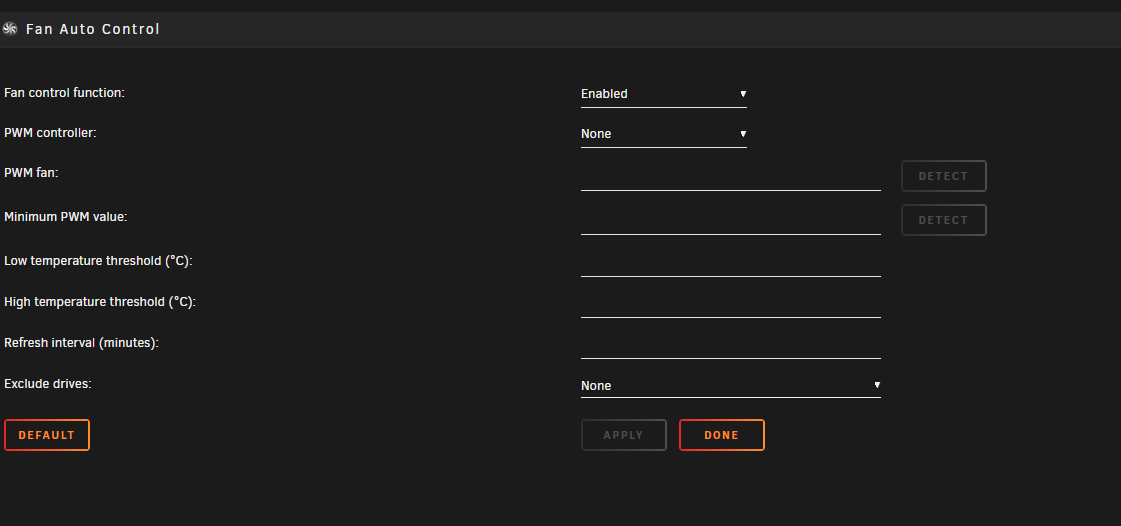

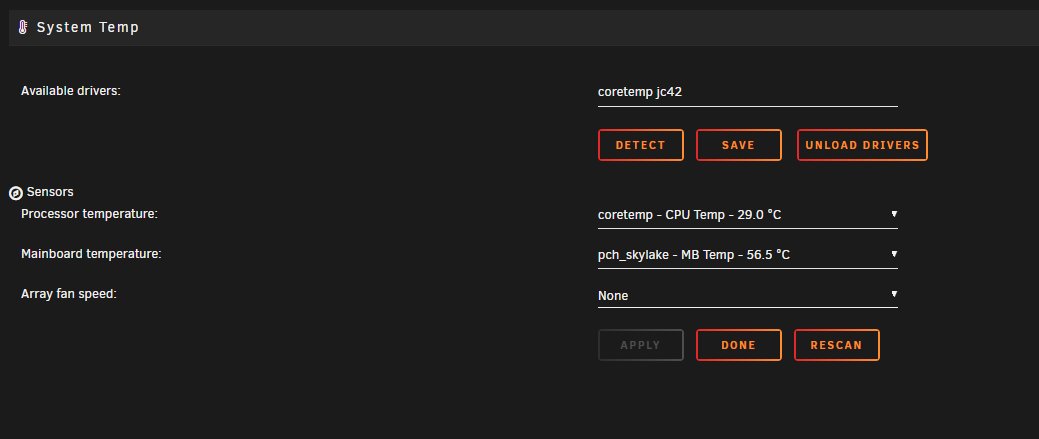

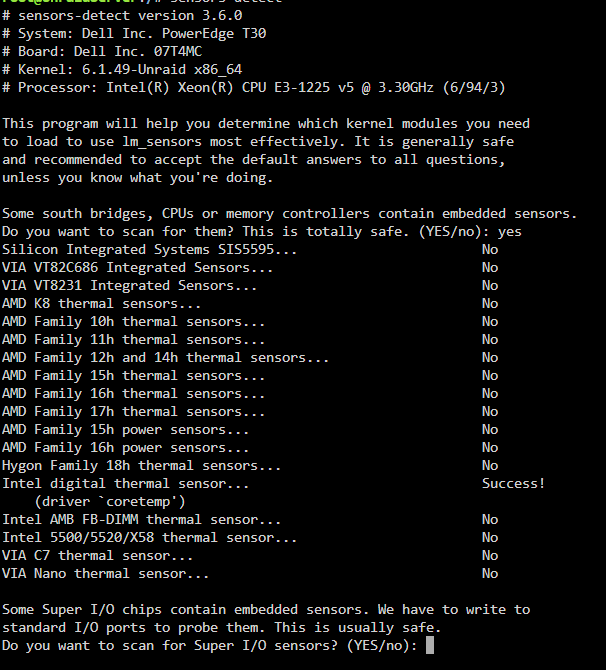

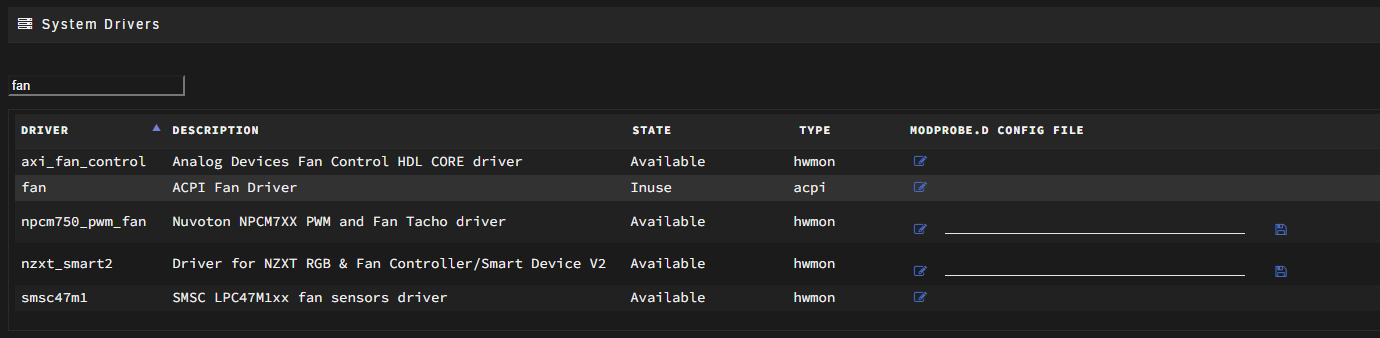

rogales Posted October 30 Share Posted October 30 (edited) Hello there, I know its quite old topic, but I'd like to ask you for help with my problem. My CPU and additonal fan keeps running on full speed. I cant do anything about it. I've installed: 1. 2. 3. but nothing seems to work to have control on speed of those fans. Is there any way I can configure it? Any help would be much appreciated. Ohh btw. thats my unraid server setup: Edited October 30 by rogales Quote Link to comment
ich777 Posted October 30 Share Posted October 30 8 hours ago, rogales said: Ohh btw. thats my unraid server setup: This is to little information, please post your Diagnostics. I also think that your Dell PowerEdge T30 (this is the only real hardware information which I can see from your screenshot) has a IPMI interface and you should look into that first to control your fans since I don't think that this system is controllable like a consumer system. Can't help much with server hardware because I don't have hardware on hand to test and I also don't like these locked down systems (especially Dell, HP,...). Quote Link to comment
rogales Posted October 30 Share Posted October 30 Here is my diagnostics file. unraidserver-diagnostics-20231030-1031.zip Quote Link to comment
ich777 Posted October 30 Share Posted October 30 Just now, rogales said: Here is my diagnostics file. Have you yet looked into your IPMI? There are also plugins for that in the CA App, but as said I can't help with that because I don't have such hardware. As said above server hardware work most of the times differently than consumer hardware. I don't see any indication that you have a NCT chip on your motherboard, so to speak, you should open up your own thread for that, however you should really look into IPMI and what you can do with it <- as said I can't help with that because I don't have such hardware and even don't know how to use it. Quote Link to comment
rogales Posted October 30 Share Posted October 30 @ich777 thank You for Your quick response. I'll try to manage my problem with IPMI tool. I've found pretty similar topic, so I try to find my answers there. thank You. Quote Link to comment
ich777 Posted October 30 Share Posted October 30 7 minutes ago, rogales said: @ich777 thank You for Your quick response. I would also recommend that you search for IPMI in the CA App since you'll find these: Quote Link to comment

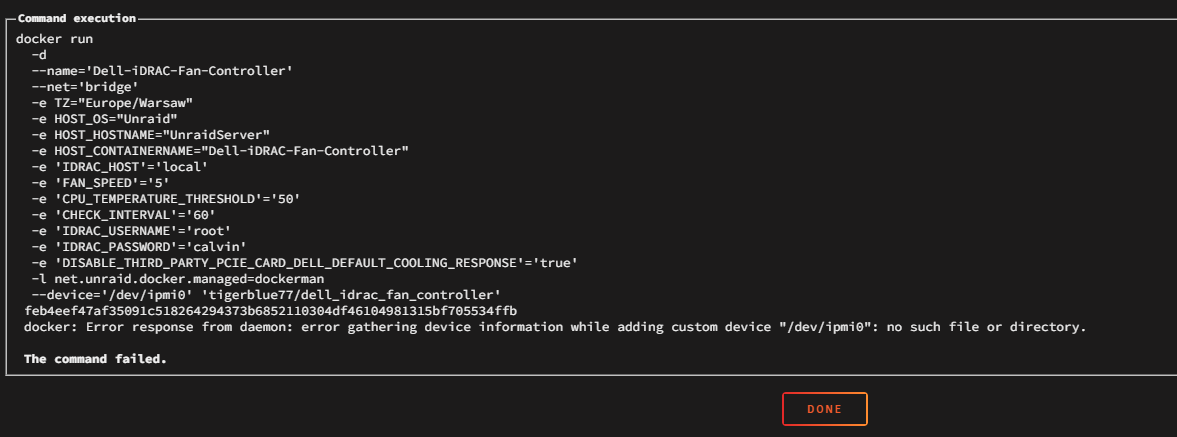

rogales Posted October 30 Share Posted October 30 I really appreaciate Your help, but i can't even install dhis Dell-iDRAC-FAN-Controller. I don't have such directory in my /dev folder. Quote Link to comment
ich777 Posted October 30 Share Posted October 30 19 minutes ago, rogales said: I really appreaciate Your help, but i can't even install dhis Dell-iDRAC-FAN-Controller. Please report that in the appropriate support thread: 1 Quote Link to comment
Tidus1307 Posted November 23 Share Posted November 23 Hello Everybody, I´ve also a little stuck with a System Temp and Auto Fan Control on a B550 Taichi from Asrock. Maybe someone has already done it with this bord. The Problem is that the Fans are not shown in the “System temp” Plugin also not the NCT 6775. I think the Driver is a problem What I’ve done until now. reinstalled the System Temp Plugin (alot) reinstall Nerd Pack tipped Sensor Detect in the console and added the sensors with Mudprobe in the go file changed Bios fan settings to every possible setting Installed the Nuvoton NCT 6687 Driver pack Added "append initrd=/bzroot acpi_enforce_resources=lax" in the start sequenz of the flash drive Ask in the German forum Googled a lot. Attempt this workaround asked in the Dynamx support Forum And now here. Would be nice, if someone has some advice and could help me. I´m realy out of ideas. sensors.txt sensors-detect.txt Quote Link to comment
Tidus1307 Posted November 23 Share Posted November 23 5 minutes ago, Tidus1307 said: Hello Everybody, I´ve also a little stuck with a System Temp and Auto Fan Control on a B550 Taichi from Asrock. Maybe someone has already done it with this bord. The Problem is that the Fans are not shown in the “System temp” Plugin also not the NCT 6775. I think the Driver is a problem What I’ve done until now. reinstalled the System Temp Plugin (alot) reinstall Nerd Pack tipped Sensor Detect in the console and added the sensors with Mudprobe in the go file changed Bios fan settings to every possible setting Installed the Nuvoton NCT 6687 Driver pack Added "append initrd=/bzroot acpi_enforce_resources=lax" in the start sequenz of the flash drive Ask in the German forum Googled a lot. Attempt this workaround asked in the Dynamx support Forum And now here. Would be nice, if someone has some advice and could help me. I´m realy out of ideas. sensors.txt 2.33 kB · 0 downloads sensors-detect.txt 10.64 kB · 0 downloads got it running. done a bios downgrade at the same time. That was the issue. newer than 1,9 wasn´t working with the bord 1 Quote Link to comment
