July 8, 20232 yr Author 11 minutes ago, dopeytree said: Ok my bad. Dodgy mini usb cable. 3 of 5 are power only. 🤪 it shows up in the manager and in the VM but still doesn't update properly. The working method is use the esphome web app in chrome on mac. Depends if you need to map as a whole device or as a serial port. I can see the device in HA.

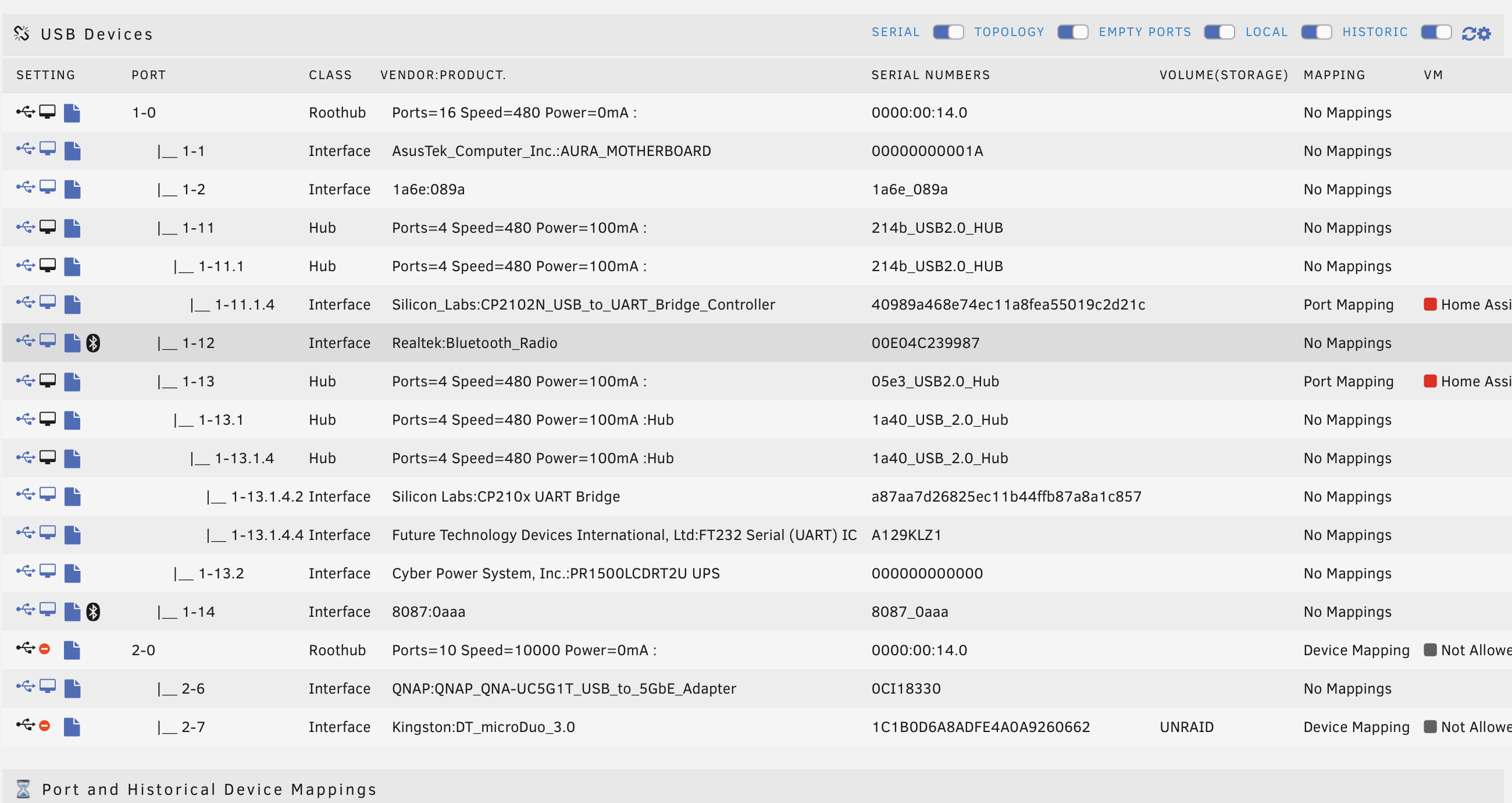

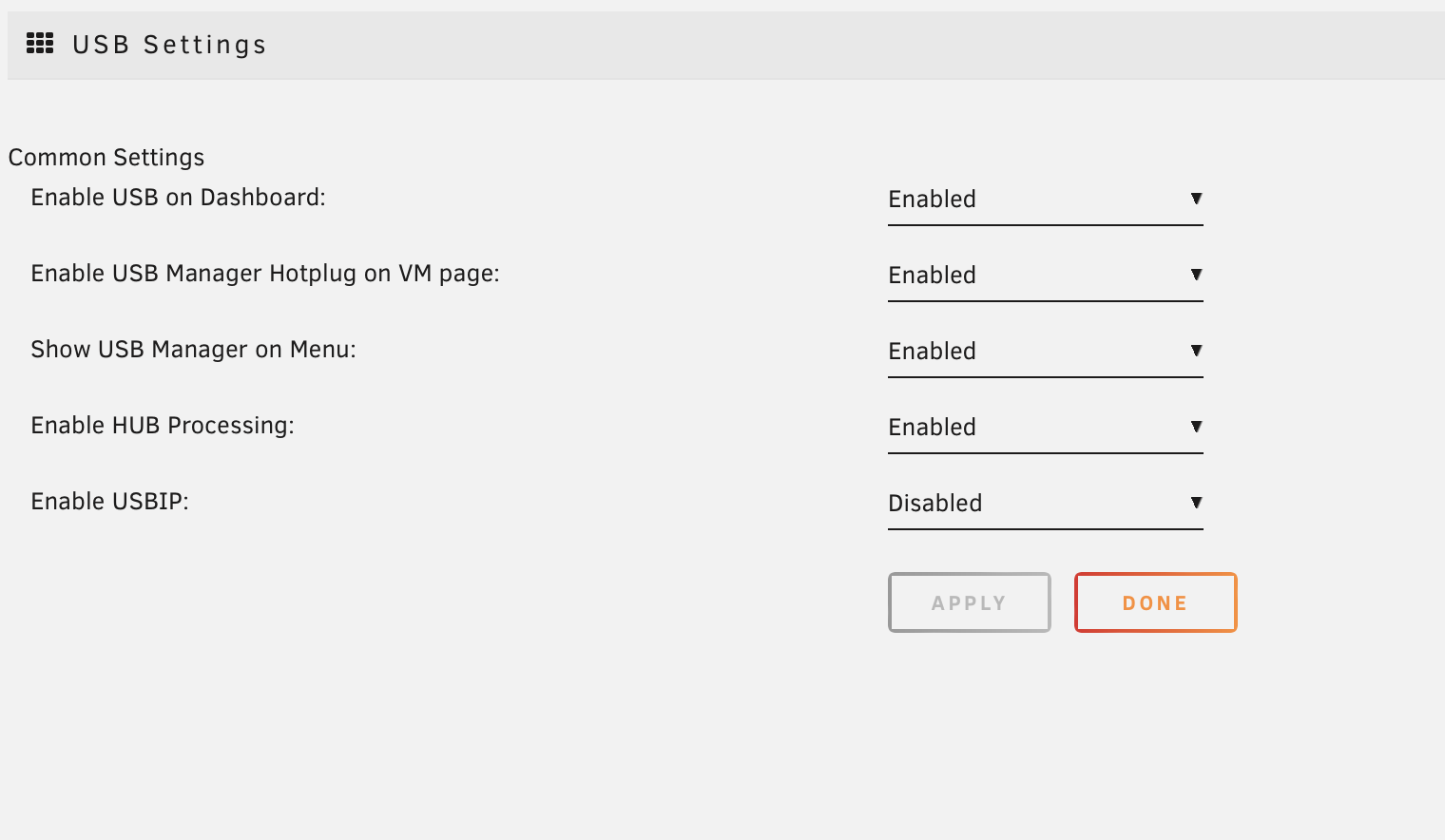

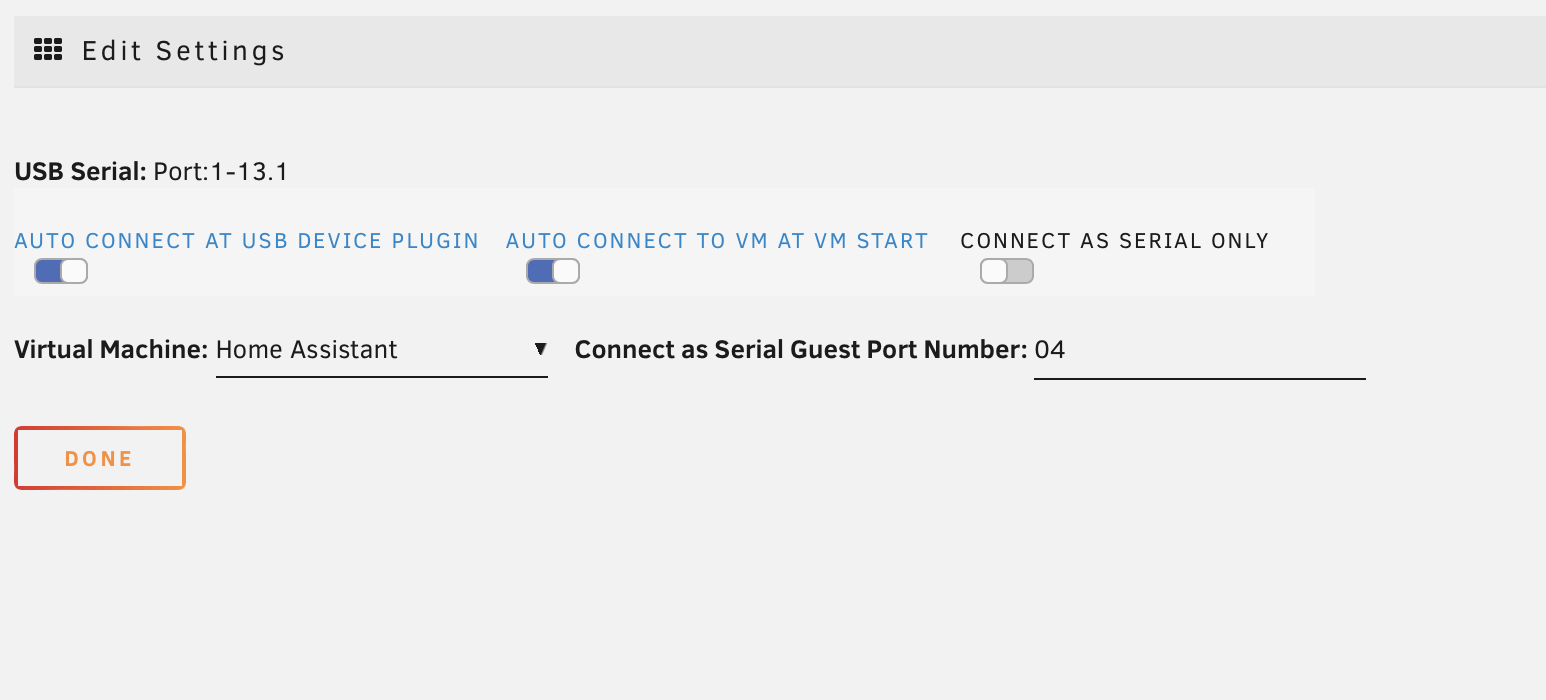

July 29, 20232 yr How is it when I would like to pass a whole USB 2.0 Hub to a VM? As Home Assistant like USB 2.0 Hub, especially on zigbee I would like to pass the whole hub though. Is it any reliable way to do that? For me it seems like 1-13.1 -> is the hub as 1-13.2 is the UPS plugged on the USB2 plug next to the HUB. Also of the three options should I usually choose? Automount on start, or on vm. What does serial do? And lastly dpes Connect as Serial Guest Port Number do, and why is it always 4?
July 29, 20232 yr Author 1 hour ago, Aumoenoav said: How is it when I would like to pass a whole USB 2.0 Hub to a VM? As Home Assistant like USB 2.0 Hub, especially on zigbee I would like to pass the whole hub though. Is it any reliable way to do that? For me it seems like 1-13.1 -> is the hub as 1-13.2 is the UPS plugged on the USB2 plug next to the HUB. Also of the three options should I usually choose? Automount on start, or on vm. What does serial do? And lastly dpes Connect as Serial Guest Port Number do, and why is it always 4? It is not possible to pass a hub through to a VM so the plugin emulates this as passes through each device that is connected to that hub. Auto connect at plugin will attach a device to a VM if it is running if you physically connect a device i.e. hotplug. Auto connect at start will connect the device to the VM when it starts. Connect as serial changes the way the device is connected to the VM. it will be connected as serial port rather than a usb device. Conbee II need this option. The port number is the device number on the VM USB hub, so if you had two devices then you would need to set the other one to a different port number, this is only used for serial option. in HA the serial mapped device will show like this. -4 is the port number

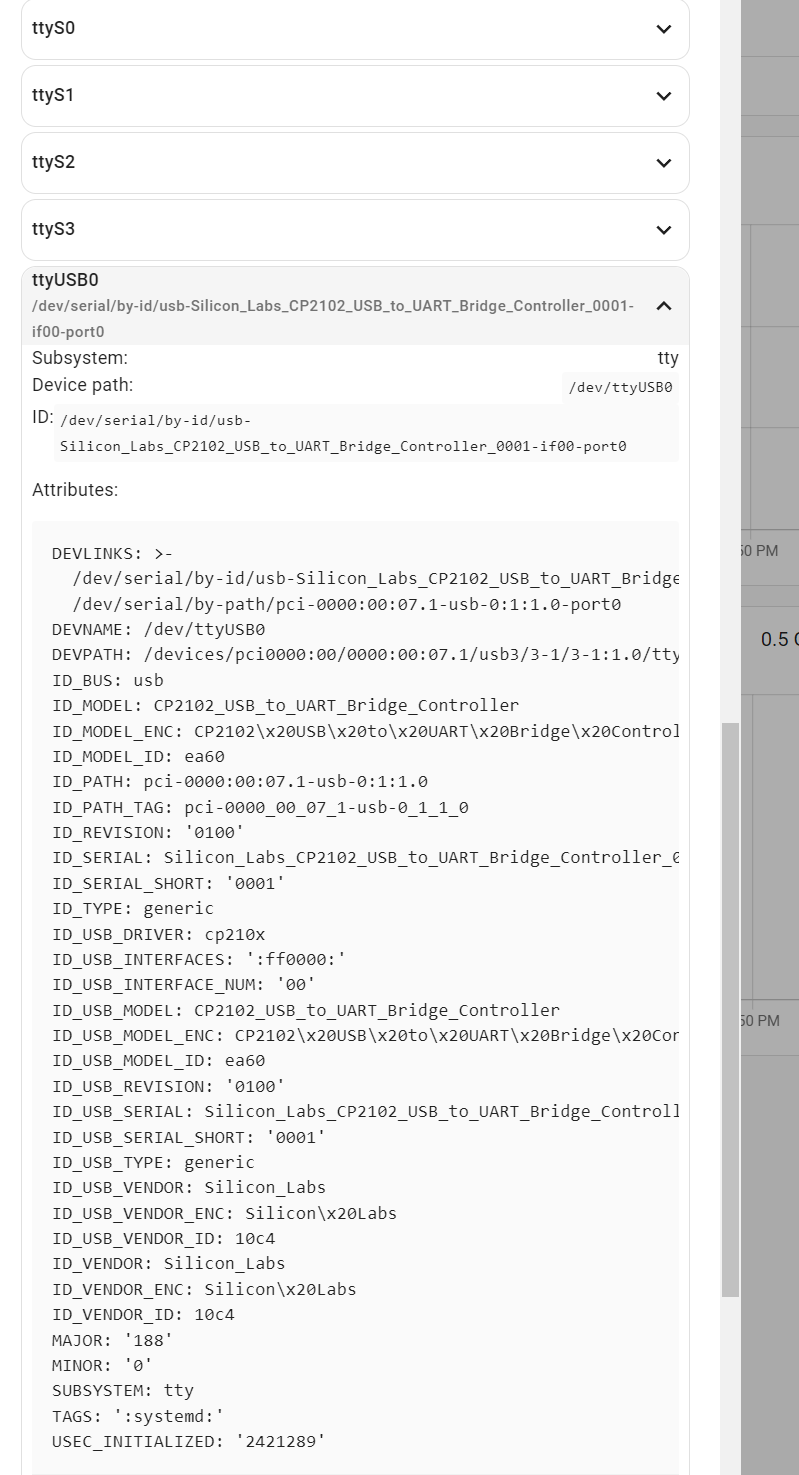

August 27, 20232 yr I'm having an issue where Connect as Serial Guest Port Number won't change from 04. I need to change it to 00, since that is what my HA VM is expecting. I recently ran into this issue after upgrading Unraid. I can get it to work if I hotplug the USB devices in the correct order, but ideally I would like to set it and forget it like I had it before. It works when the device is classified as ttyUSB0. Here is the hardware info when it works: DEVLINKS: >- /dev/serial/by-id/usb-ITead_Sonoff_Zigbee_3.0_USB_Dongle_Plus_xxx-if00-port0 /dev/serial/by-path/pci-0000:00:07.0-usb-0:1:1.0-port0 DEVNAME: /dev/ttyUSB0 DEVPATH: /devices/pci0000:00/0000:00:07.0/usb2/2-1/2-1:1.0/ttyUSB0/tty/ttyUSB0 ID_BUS: usb ID_MODEL: Sonoff_Zigbee_3.0_USB_Dongle_Plus ID_MODEL_ENC: Sonoff\x20Zigbee\x203.0\x20USB\x20Dongle\x20Plus ID_MODEL_ID: ea60 ID_PATH: pci-0000:00:07.0-usb-0:1:1.0 ID_PATH_TAG: pci-0000_00_07_0-usb-0_1_1_0 ID_REVISION: '0100' ID_SERIAL: ITead_Sonoff_Zigbee_3.0_USB_Dongle_Plus_xxx ID_SERIAL_SHORT: xxx ID_TYPE: generic ID_USB_DRIVER: cp210x ID_USB_INTERFACES: ':ff0000:' ID_USB_INTERFACE_NUM: '00' ID_USB_MODEL: Sonoff_Zigbee_3.0_USB_Dongle_Plus ID_USB_MODEL_ENC: Sonoff\x20Zigbee\x203.0\x20USB\x20Dongle\x20Plus ID_USB_MODEL_ID: ea60 ID_USB_REVISION: '0100' ID_USB_SERIAL: ITead_Sonoff_Zigbee_3.0_USB_Dongle_Plus_xxx ID_USB_SERIAL_SHORT: xxx ID_USB_TYPE: generic ID_USB_VENDOR: ITead ID_USB_VENDOR_ENC: ITead ID_USB_VENDOR_ID: 10c4 ID_VENDOR: ITead ID_VENDOR_ENC: ITead ID_VENDOR_ID: 10c4 MAJOR: '188' MINOR: '0' SUBSYSTEM: tty TAGS: ':systemd:' USEC_INITIALIZED: '1830641' (replaced actual serial with xxx). Edited August 27, 20232 yr by clowncracker
August 27, 20232 yr Author 1 hour ago, clowncracker said: I'm having an issue where Connect as Serial Guest Port Number won't change from 04. I need to change it to 00, since that is what my HA VM is expecting. I recently ran into this issue after upgrading Unraid. I can get it to work if I hotplug the USB devices in the correct order, but ideally I would like to set it and forget it like I had it before. It works when the device is classified as ttyUSB0. Here is the hardware info when it works: DEVLINKS: >- /dev/serial/by-id/usb-ITead_Sonoff_Zigbee_3.0_USB_Dongle_Plus_xxx-if00-port0 /dev/serial/by-path/pci-0000:00:07.0-usb-0:1:1.0-port0 DEVNAME: /dev/ttyUSB0 DEVPATH: /devices/pci0000:00/0000:00:07.0/usb2/2-1/2-1:1.0/ttyUSB0/tty/ttyUSB0 ID_BUS: usb ID_MODEL: Sonoff_Zigbee_3.0_USB_Dongle_Plus ID_MODEL_ENC: Sonoff\x20Zigbee\x203.0\x20USB\x20Dongle\x20Plus ID_MODEL_ID: ea60 ID_PATH: pci-0000:00:07.0-usb-0:1:1.0 ID_PATH_TAG: pci-0000_00_07_0-usb-0_1_1_0 ID_REVISION: '0100' ID_SERIAL: ITead_Sonoff_Zigbee_3.0_USB_Dongle_Plus_xxx ID_SERIAL_SHORT: xxx ID_TYPE: generic ID_USB_DRIVER: cp210x ID_USB_INTERFACES: ':ff0000:' ID_USB_INTERFACE_NUM: '00' ID_USB_MODEL: Sonoff_Zigbee_3.0_USB_Dongle_Plus ID_USB_MODEL_ENC: Sonoff\x20Zigbee\x203.0\x20USB\x20Dongle\x20Plus ID_USB_MODEL_ID: ea60 ID_USB_REVISION: '0100' ID_USB_SERIAL: ITead_Sonoff_Zigbee_3.0_USB_Dongle_Plus_xxx ID_USB_SERIAL_SHORT: xxx ID_USB_TYPE: generic ID_USB_VENDOR: ITead ID_USB_VENDOR_ENC: ITead ID_USB_VENDOR_ID: 10c4 ID_VENDOR: ITead ID_VENDOR_ENC: ITead ID_VENDOR_ID: 10c4 MAJOR: '188' MINOR: '0' SUBSYSTEM: tty TAGS: ':systemd:' USEC_INITIALIZED: '1830641' (replaced actual serial with xxx). Which port are you using in HA you should map using /dev/serial/by-id rather than tty Id will have qemu in the path. port number is the device port on tbe usb hub within Ha not related to tty name. Only reason to change port would be if you need two devices or another usb device is i. port 4 /dev/serial/by-id/usb-QEMU_QEMU_USB_SERIAL_1-0000:00:07.7-4-if00-port0 if ($port == "") $port="04" ; usb_manager_log("Info: connect as serial guest port is:".$port); $usbstr .= "<serial type='dev'> <source path='{$isSerialPath}'/> <target type='usb-serial' port='1'> <model name='usb-serial'/> </target> <alias name='ua-serial{$usbbus}{$usbdev}'/> <address type='usb' bus='0' port='{$port}'/> </serial>" ; }

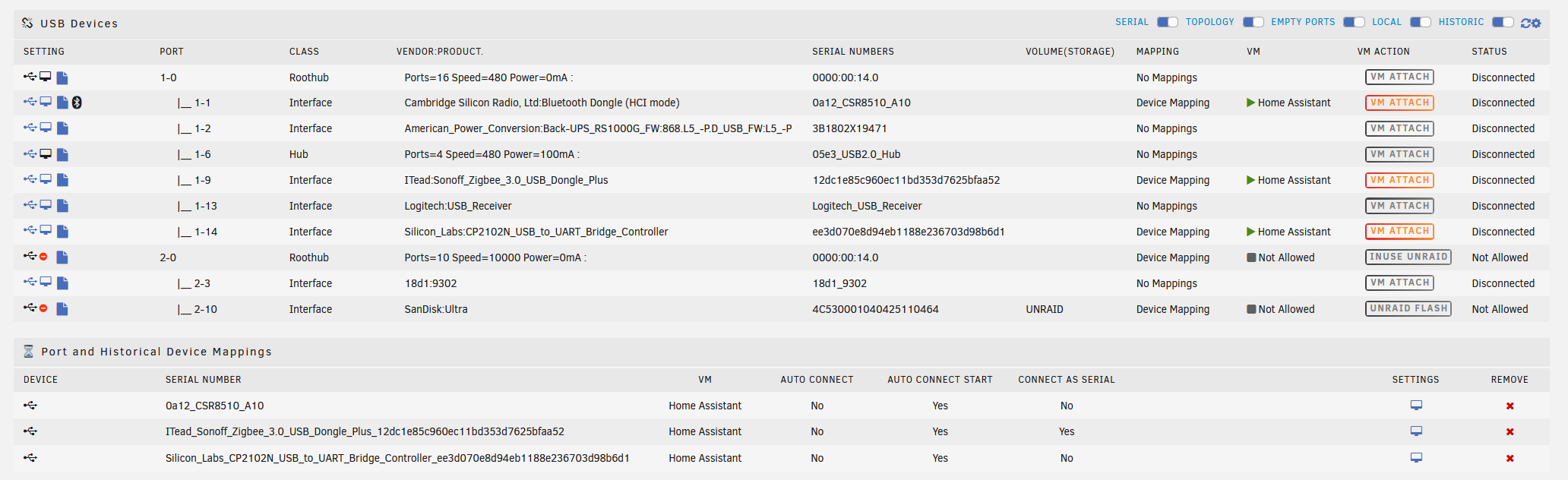

August 27, 20232 yr I've run into an entirely new issue. Now the USB devices will not even attach when the VM starts. It just shows VM Attach. I've tried uninstalling and reinstalling the plugin. I just recently upgraded to version 6.11.5. Here are my logs/outputs: ls /etc/libvirt/hooks/ qemu* qemu.d/ ls /etc/libvirt/hooks/qemu.d/ USB_Manager* Unraid Logs: Aug 27 08:40:13 clowncracker-NAS usb_manager: Info: virsh called Home Assistant 001 005 error: Failed to attach device from /tmp/libvirthotplugusbbybusHome Assistant-001-005.xml error: internal error: unable to execute QEMU command 'chardev-add': Failed to add chardev 'charua-serial001005': Could not open '/dev/serial/by-id/': Is a directory Aug 27 08:40:16 clowncracker-NAS usb_manager: Info: virsh called Home Assistant 001 002 Device attached successfully Aug 27 08:40:17 clowncracker-NAS kernel: TCP: request_sock_TCP: Possible SYN flooding on port 31242. Sending cookies. Check SNMP counters. Aug 27 08:44:04 clowncracker-NAS kernel: br0: port 2(vnet4) entered disabled state Aug 27 08:44:04 clowncracker-NAS kernel: device vnet4 left promiscuous mode Aug 27 08:44:04 clowncracker-NAS kernel: br0: port 2(vnet4) entered disabled state Aug 27 08:44:04 clowncracker-NAS kernel: usb 1-1: reset full-speed USB device number 2 using xhci_hcd Aug 27 08:44:04 clowncracker-NAS kernel: usb 1-14: reset full-speed USB device number 7 using xhci_hcd Aug 27 08:44:05 clowncracker-NAS kernel: cp210x 1-14:1.0: cp210x converter detected Aug 27 08:44:05 clowncracker-NAS kernel: usb 1-14: cp210x converter now attached to ttyUSB1 Aug 27 08:44:05 clowncracker-NAS usb_manager: Info: rc.usb_manager tty_add Silicon_Labs_CP2102N_USB_to_UART_Bridge_Controller_ee3d070e8d94eb1188e236703d98b6d1 /dev/ttyUSB1 Aug 27 08:44:05 clowncracker-NAS usb_manager: Info: rc.usb_manager Processing tty attach Silicon_Labs_CP2102N_USB_to_UART_Bridge_Controller_ee3d070e8d94eb1188e236703d98b6d1 /dev/ttyUSB1 Aug 27 08:44:05 clowncracker-NAS usb_manager: Info: rc.usb_manager vm_action Home Assistant stopped end - Aug 27 08:44:05 clowncracker-NAS usb_manager: Info: rc.usb_manager VM Shutdown 001/005 vm: Home Assistant Aug 27 08:44:05 clowncracker-NAS usb_manager: Info: rc.usb_manager VM Shutdown 001/007 vm: Home Assistant Aug 27 08:44:05 clowncracker-NAS usb_manager: Info: rc.usb_manager VM Shutdown 001/002 vm: Home Assistant Aug 27 08:44:05 clowncracker-NAS usb_manager: Info: rc.usb_manager Autoconnect No Mapping found Silicon_Labs_CP2102N_USB_to_UART_Bridge_Controller_ee3d070e8d94eb1188e236703d98b6d1 /dev/ttyUSB1 port Aug 27 08:44:32 clowncracker-NAS kernel: br0: port 2(vnet5) entered blocking state Aug 27 08:44:32 clowncracker-NAS kernel: br0: port 2(vnet5) entered disabled state Aug 27 08:44:32 clowncracker-NAS kernel: device vnet5 entered promiscuous mode Aug 27 08:44:32 clowncracker-NAS kernel: br0: port 2(vnet5) entered blocking state Aug 27 08:44:32 clowncracker-NAS kernel: br0: port 2(vnet5) entered forwarding state Aug 27 08:44:32 clowncracker-NAS usb_manager: Info: rc.usb_manager vm_action Home Assistant prepare begin - If I hit VM Attach manually, the device configured to Serial has a Virsh error: Unraid Logs: Aug 27 08:48:55 clowncracker-NAS kernel: cp210x ttyUSB1: cp210x converter now disconnected from ttyUSB1 Aug 27 08:48:55 clowncracker-NAS kernel: cp210x 1-14:1.0: device disconnected Aug 27 08:48:55 clowncracker-NAS usb_manager: Info: virsh called Home Assistant 001 007 Device attached successfully Aug 27 08:48:56 clowncracker-NAS usb_manager: Info: connect as serial guest port is:04 Aug 27 08:48:56 clowncracker-NAS usb_manager: Info: virsh called Home Assistant 001 005 error: Failed to attach device from /tmp/libvirthotplugusbbybusHome Assistant-001-005.xml error: internal error: unable to execute QEMU command 'chardev-add': Failed to add chardev 'charua-serial001005': Could not open '/dev/serial/by-id/': Is a directory Aug 27 08:48:58 clowncracker-NAS usb_manager: Info: virsh called Home Assistant 001 002 Device attached successfully ls /dev/serial/by-id usb-ITead_Sonoff_Zigbee_3.0_USB_Dongle_Plus_xxx-if00-port0@ Edited August 27, 20232 yr by clowncracker

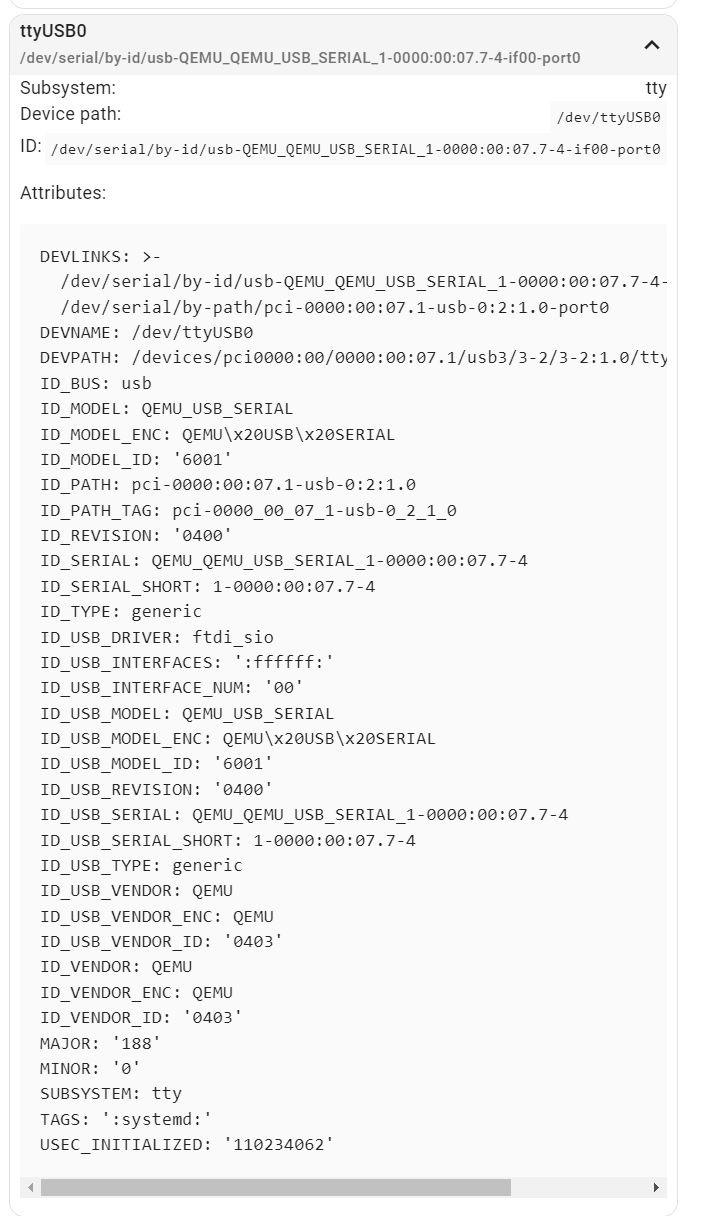

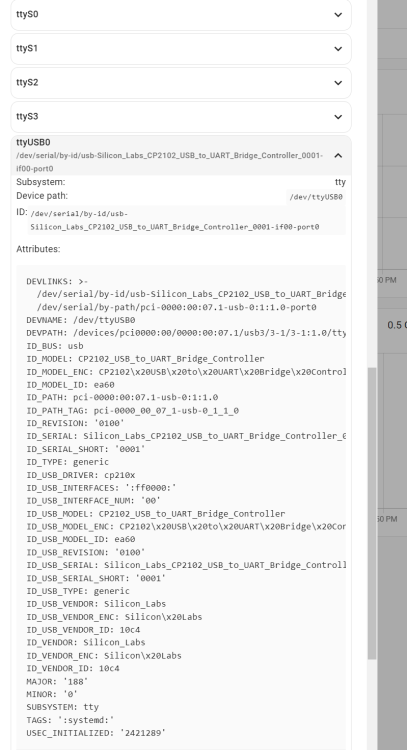

August 27, 20232 yr Author 41 minutes ago, clowncracker said: So I'm not exactly sure what I should do. Right now I do have three USB devices hooked up to the VM, but Zigbee only works if it's the first device connected. Do you want me to add that code somewhere? In HA do you see a device with the following path in the Hardware details? /dev/serial/by-id/usb-QEMU_QEMU_USB_SERIAL_1-0000:00:07.7-4-if00-port0 Use this for the path to the dongle for the integration rather than ttyUSB0 What output do you get in system->hardware
August 27, 20232 yr 3 minutes ago, SimonF said: In HA do you see a device with the following path in the Hardware details? /dev/serial/by-id/usb-QEMU_QEMU_USB_SERIAL_1-0000:00:07.7-4-if00-port0 Use this for the path to the dongle for the integration rather than ttyUSB0 What output do you get in system->hardware Just updated my post, having an entirely different issue now.
August 27, 20232 yr Author 40 minutes ago, clowncracker said: Just updated my post, having an entirely different issue now. Can you provide output of the following cat /usr/local/emhttp/state/usb.ini
August 27, 20232 yr Just now, SimonF said: Can you provide output of the following cat /usr/local/emhttp/state/usb.ini [001/005] VM = "" virsh = "error: Failed to attach device from /tmp/libvirthotplugusbbybusHome Assistant-001-005.xml error: internal error: unable to execute QEMU command 'chardev-add': Failed to add chardev 'charua-serial001005': Could not open '/dev/serial/by-id/': Is a directory " connectmethod = "Manual" connectmap = "Serial" virsherror = "" connected = "" [001/007] virsherror = "" connected = "" VM = "" virsh = "Device attached successfully " connectmethod = "Manual" connectmap = "Device" [001/002] virsherror = "" connected = "" VM = "" virsh = "Device attached successfully " connectmethod = "Manual"
August 27, 20232 yr Author 23 minutes ago, clowncracker said: [001/005] VM = "" virsh = "error: Failed to attach device from /tmp/libvirthotplugusbbybusHome Assistant-001-005.xml error: internal error: unable to execute QEMU command 'chardev-add': Failed to add chardev 'charua-serial001005': Could not open '/dev/serial/by-id/': Is a directory " connectmethod = "Manual" connectmap = "Serial" virsherror = "" connected = "" [001/007] virsherror = "" connected = "" VM = "" virsh = "Device attached successfully " connectmethod = "Manual" connectmap = "Device" [001/002] virsherror = "" connected = "" VM = "" virsh = "Device attached successfully " connectmethod = "Manual" Not sure why this is incorrect. Suggest disconnect USBs from VM and run the following and then post results of file. /usr/local/emhttp/plugins/usb_manager/scripts/rc.usb_manager USBMgrBuildConnectedStatus
August 27, 20232 yr 17 minutes ago, SimonF said: Not sure why this is incorrect. Suggest disconnect USBs from VM and run the following and then post results of file. /usr/local/emhttp/plugins/usb_manager/scripts/rc.usb_manager USBMgrBuildConnectedStatus The USB devices were disconnected from the VM when I ran that (the VM was off). Reran it with the VM on (when VM Attach was still showing) and after manually attaching the USB devices in manager, both led to the same output. Where is the output of that script? It didn't display anything after running. Edited August 27, 20232 yr by clowncracker
August 27, 20232 yr Author 2 minutes ago, clowncracker said: The USB devices were disconnected from the VM when I ran that (the VM was off). Reran it with the VM on when VM Attach was still showing and after manually attaching the USB devices in manager led to the same output. Where is the output of that script? It didn't display anything after running. No it should rebuild the /usr/local/emhttp/state/usb.ini file entries should look like this. Only suggestion I have is to maybe do a reboot if you can? [001/023] ishub = "" connected = "" parents = "1-9,usb1,0000:00:14.0,pci0000:00" bus = 001 dev = 023 ID_VENDOR_FROM_DATABASE = "Dresden Elektronik" ID_VENDOR_ID = "1cf1" ID_MODEL = "ConBee_II" ID_MODEL_ID = 0030 USBPort = "1-9.3" class = "interface" ID_SERIAL = "dresden_elektronik_ingenieurtechnik_GmbH_ConBee_II_xx" isSerial = "1" isSerialPath = "usb-dresden_elektronik_ingenieurtechnik_GmbH_ConBee_II_xx-if00" bNumInterfaces = 2 isSerialDevPath = "/dev/ttyACM0"
August 27, 20232 yr 22 minutes ago, SimonF said: No it should rebuild the /usr/local/emhttp/state/usb.ini file entries should look like this. Only suggestion I have is to maybe do a reboot if you can? [001/023] ishub = "" connected = "" parents = "1-9,usb1,0000:00:14.0,pci0000:00" bus = 001 dev = 023 ID_VENDOR_FROM_DATABASE = "Dresden Elektronik" ID_VENDOR_ID = "1cf1" ID_MODEL = "ConBee_II" ID_MODEL_ID = 0030 USBPort = "1-9.3" class = "interface" ID_SERIAL = "dresden_elektronik_ingenieurtechnik_GmbH_ConBee_II_xx" isSerial = "1" isSerialPath = "usb-dresden_elektronik_ingenieurtechnik_GmbH_ConBee_II_xx-if00" bNumInterfaces = 2 isSerialDevPath = "/dev/ttyACM0" /usr/local/emhttp/state/usb.ini before restarting server: [001/005] VM = "" virsh = "error: Failed to attach device from /tmp/libvirthotplugusbbybusHome Assistant-001-005.xml error: internal error: unable to execute QEMU command 'chardev-add': Failed to add chardev 'charua-serial001005': Could not open '/dev/serial/by-id/': Is a directory " connectmethod = "Manual" connectmap = "Serial" virsherror = "" connected = "" bus = 001 dev = 005 ID_VENDOR_FROM_DATABASE = "" ID_VENDOR_ID = "10c4" ID_MODEL = "Sonoff_Zigbee_3.0_USB_Dongle_Plus" ID_MODEL_ID = "ea60" USBPort = "1-9" class = "interface" parents = "usb1,0000:00:14.0,pci0000:00" ID_SERIAL = "ITead_Sonoff_Zigbee_3.0_USB_Dongle_Plus_12dc1e85c960ec11bd353d7625bfaa52" isSerial = "1" isSerialPath = "usb-ITead_Sonoff_Zigbee_3.0_USB_Dongle_Plus_12dc1e85c960ec11bd353d7625bfaa52-if00-port0" [001/007] virsherror = "" connected = "" VM = "" virsh = "Device attached successfully " connectmethod = "Manual" connectmap = "Device" bus = 001 dev = 007 ID_VENDOR_FROM_DATABASE = "" ID_VENDOR_ID = "10c4" ID_MODEL = "CP2102N_USB_to_UART_Bridge_Controller" ID_MODEL_ID = "ea60" USBPort = "1-14" class = "interface" parents = "usb1,0000:00:14.0,pci0000:00" ID_SERIAL = "Silicon_Labs_CP2102N_USB_to_UART_Bridge_Controller_ee3d070e8d94eb1188e236703d98b6d1" isSerial = "1" isSerialPath = "usb-Silicon_Labs_CP2102N_USB_to_UART_Bridge_Controller_ee3d070e8d94eb1188e236703d98b6d1-if00-port0" [001/002] virsherror = "" connected = "" VM = "" virsh = "Device attached successfully " connectmethod = "Manual" connectmap = "Device" bus = 001 dev = 002 ID_VENDOR_FROM_DATABASE = "Cambridge Silicon Radio, Ltd" ID_VENDOR_ID = "0a12" ID_MODEL = "CSR8510_A10" ID_MODEL_ID = 0001 USBPort = "1-1" class = "interface" parents = "usb1,0000:00:14.0,pci0000:00" ID_SERIAL = "0a12_CSR8510_A10" isSerial = "" isSerialPath = "" [001/001] connected = "" bus = 001 dev = 001 ID_VENDOR_FROM_DATABASE = "Ports=16 Speed=480 Power=0mA " ID_VENDOR_ID = "1d6b" ID_MODEL = "" ID_MODEL_ID = 0002 USBPort = "1-0" class = "roothub" parents = "0000:00:14.0,pci0000:00" ID_SERIAL = "Linux_5.19.17-Unraid_xhci-hcd_xHCI_Host_Controller_0000:00:14.0" isSerial = "" isSerialPath = "" [001/006] connected = "" bus = 001 dev = 006 ID_VENDOR_FROM_DATABASE = "" ID_VENDOR_ID = "046d" ID_MODEL = "USB_Receiver" ID_MODEL_ID = "c52b" USBPort = "1-13" class = "interface" parents = "usb1,0000:00:14.0,pci0000:00" ID_SERIAL = "Logitech_USB_Receiver" isSerial = "" isSerialPath = "" [001/003] connected = "" bus = 001 dev = 003 ID_VENDOR_FROM_DATABASE = "" ID_VENDOR_ID = "051d" ID_MODEL = "Back-UPS_RS1000G_FW:868.L5_-P.D_USB_FW:L5_-P" ID_MODEL_ID = 0002 USBPort = "1-2" class = "interface" parents = "usb1,0000:00:14.0,pci0000:00" ID_SERIAL = "American_Power_Conversion_Back-UPS_RS1000G_FW:868.L5_-P.D_USB_FW:L5_-P_3B1802X19471" isSerial = "" isSerialPath = "" [001/004] connected = "" bus = 001 dev = 004 ID_VENDOR_FROM_DATABASE = "Ports=4 Speed=480 Power=100mA " ID_VENDOR_ID = 05e3 ID_MODEL = "" ID_MODEL_ID = 0610 USBPort = "1-6" class = "hub" parents = "usb1,0000:00:14.0,pci0000:00" ID_SERIAL = "05e3_USB2.0_Hub" isSerial = "" isSerialPath = "" [002/003] connected = "" bus = 002 dev = 003 ID_VENDOR_FROM_DATABASE = "" ID_VENDOR_ID = "18d1" ID_MODEL = 9302 ID_MODEL_ID = 9302 USBPort = "2-3" class = "interface" parents = "usb2,0000:00:14.0,pci0000:00" ID_SERIAL = "18d1_9302" isSerial = "" I rebooted the server the and USB devices connected correctly. Go figure sometimes all you need is a reboot. Thanks for the help! EDIT: I also got the updated serial ID in HA working correctly. So all of my problems are solved. Edited August 27, 20232 yr by clowncracker
September 19, 20232 yr On 2/12/2023 at 8:42 AM, SimonF said: Plugins do a re-install at each boot. But found the issue, /etc/libvirt will not be mounted at boot time so will not create qemu.d and at the hooks file. Will look to add the processing when VM manager is started. So this is still "an issue". From time to time (don't know why yet), when my server goes down unexpectedly, my libvirt image gets corrupted. I recreate it, but after that, I need to reinstall USB manager as devices no longer auto-attach after VM is started. Is there something that can be done about it?
September 20, 20232 yr Author 7 hours ago, stefan.tomko said: So this is still "an issue". From time to time (don't know why yet), when my server goes down unexpectedly, my libvirt image gets corrupted. I recreate it, but after that, I need to reinstall USB manager as devices no longer auto-attach after VM is started. Is there something that can be done about it? You can run install.sh from the directory below. root@computenode:/usr/local/emhttp/plugins/usb_manager/scripts# ls install.sh install.sh* root@computenode:/usr/local/emhttp/plugins/usb_manager/scripts# If you are are on 6.10 or above this will create you could manually to. you may need to create qemu.d directory. root@computenode:/etc/libvirt/hooks/qemu.d# cat USB_Manager #!/usr/bin/env php <?php #begin USB_MANAGER if ($argv[2] == 'prepare' || $argv[2] == 'stopped'){ shell_exec("/usr/local/emhttp/plugins/usb_manager/scripts/rc.usb_manager vm_action '{$argv[1]}' {$argv[2]} {$argv[3]} {$argv[4]} >/dev/null 2>&1 & disown") ; } #end USB_MANAGER ?> root@computenode:/etc/libvirt/hooks/qemu.d#
October 4, 20232 yr does the plugin shows somehow/somewhere what are the actual speeds of connected devices?
October 4, 20232 yr Author 8 hours ago, ihazcat said: does the plugin shows somehow/somewhere what are the actual speeds of connected devices? No but may be able to add. Will need to investigate.
October 4, 20232 yr 28 minutes ago, SimonF said: No but may be able to add. Will need to investigate. wow. good to hear that. i thought that may the plugin shows the hub's speed and/or the exact device (for example a USB drive's) capability. it would be helpful cause sometimes the plastic in the usb connectors are all black while some of them 3.0. and device manufacturers also lazy some cases. it is painful to figure the capabilities. Edited October 4, 20232 yr by ihazcat

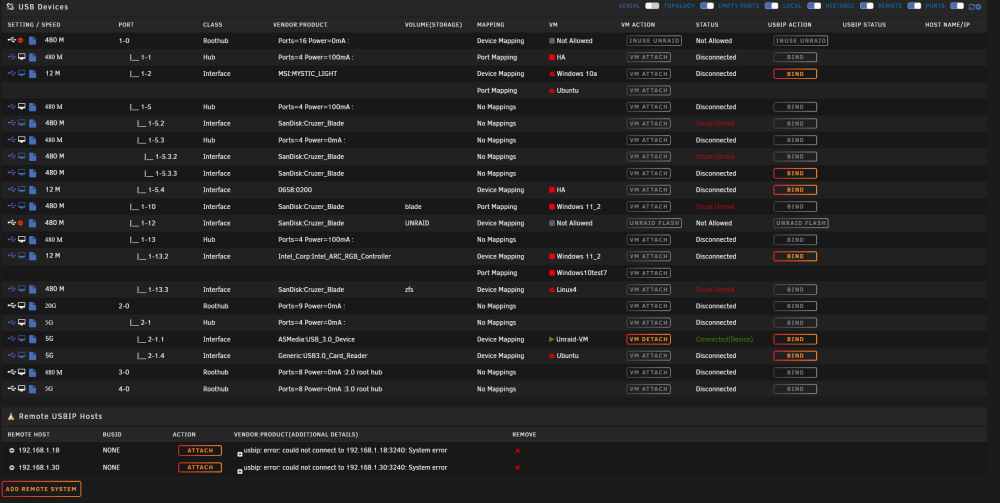

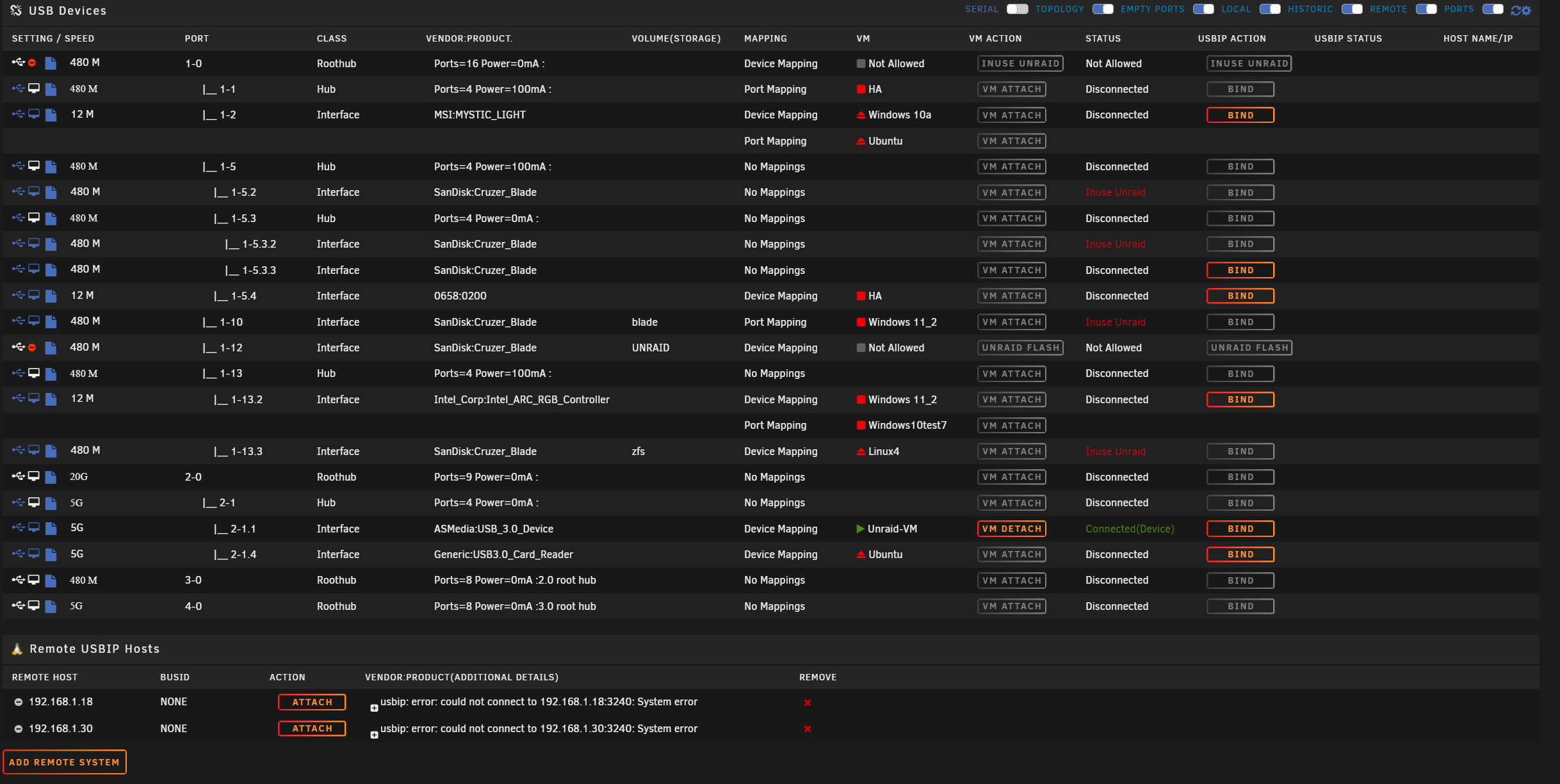

October 6, 20232 yr Author On 10/4/2023 at 7:19 PM, ihazcat said: wow. good to hear that. i thought that may the plugin shows the hub's speed and/or the exact device (for example a USB drive's) capability. it would be helpful cause sometimes the plastic in the usb connectors are all black while some of them 3.0. and device manufacturers also lazy some cases. it is painful to figure the capabilities. Is this the type of info you are looking for? I have added next to class type.
October 6, 20232 yr 1 hour ago, SimonF said: Is this the type of info you are looking for? I have added next to class type. yes! could you please make it a bit compact? because my guess it won't fit well on dashboard. maybe just a column with the actual protocol or icons. and is it possible to detect the connected devices max supported speeds?
October 6, 20232 yr Author 40 minutes ago, ihazcat said: yes! could you please make it a bit compact? because my guess it won't fit well on dashboard. maybe just a column with the actual protocol or icons. and is it possible to detect the connected devices max supported speeds? The usb speed icons are not available in the icons used within unraid. Available values are below, I dont think there is a way to show the max supportable value, just the value it it currently connected at. root@computenode:~# udevadm info -a --path=/sys/bus/usb/devices/1-13.2 Udevadm info starts with the device specified by the devpath and then walks up the chain of parent devices. It prints for every device found, all possible attributes in the udev rules key format. A rule to match, can be composed by the attributes of the device and the attributes from one single parent device. looking at device '/devices/pci0000:00/0000:00:14.0/usb1/1-13/1-13.2': KERNEL=="1-13.2" SUBSYSTEM=="usb" DRIVER=="usb" ATTR{configuration}=="" ATTR{bMaxPacketSize0}=="64" ATTR{bDeviceClass}=="00" ATTR{bcdDevice}=="0110" ATTR{bNumInterfaces}==" 3" ATTR{bConfigurationValue}=="1" ATTR{manufacturer}=="Intel Corp" ATTR{bNumConfigurations}=="1" ATTR{authorized}=="1" ATTR{speed}=="12" ATTR{idProduct}=="01b5" ATTR{urbnum}=="22" ATTR{devnum}=="10" ATTR{product}=="Intel ARC RGB Controller" ATTR{maxchild}=="0" ATTR{bmAttributes}=="e0" ATTR{bDeviceSubClass}=="00" ATTR{bMaxPower}=="100mA" ATTR{rx_lanes}=="1" ATTR{removable}=="removable" ATTR{idVendor}=="2516" ATTR{version}==" 2.00" ATTR{avoid_reset_quirk}=="0" ATTR{bDeviceProtocol}=="00" ATTR{tx_lanes}=="1" ATTR{ltm_capable}=="no" ATTR{devpath}=="13.2" ATTR{busnum}=="1" ATTR{quirks}=="0x0"

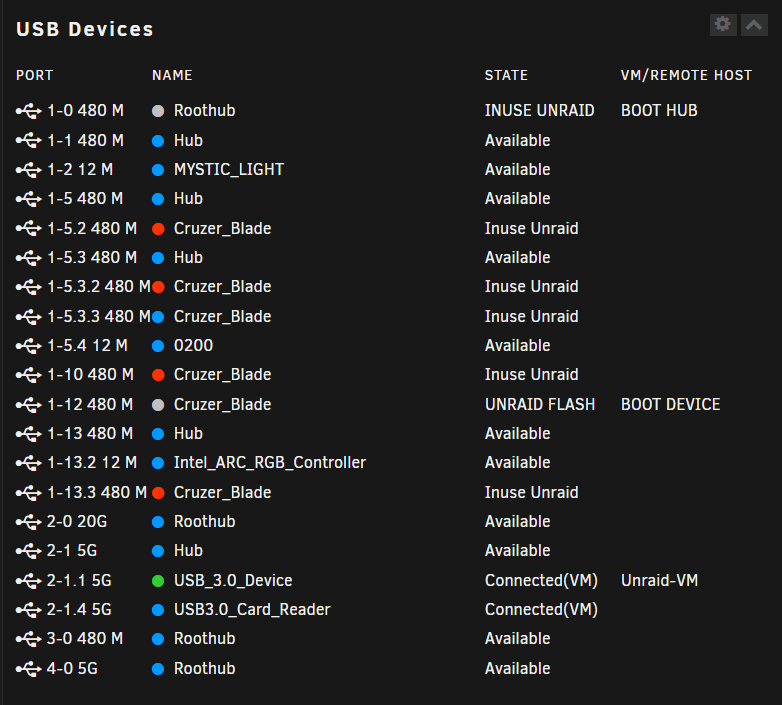

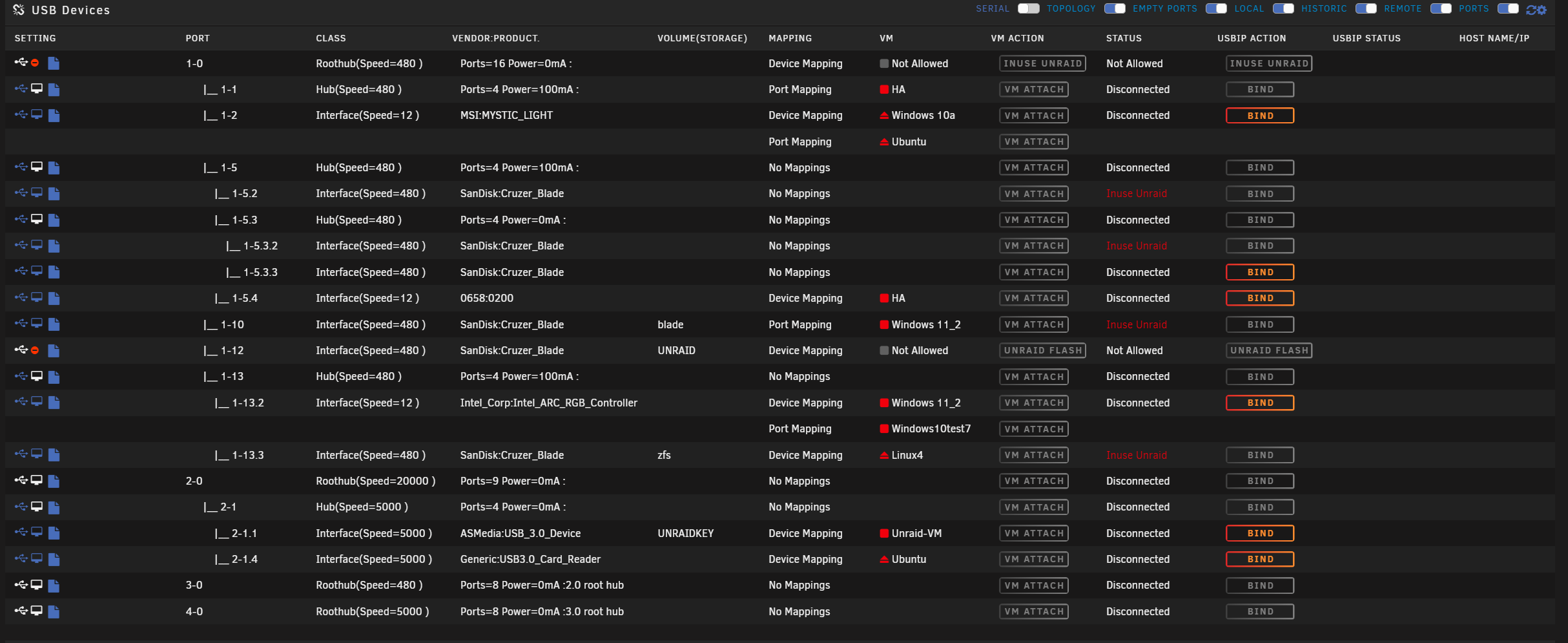

October 7, 20232 yr Author 15 hours ago, ihazcat said: yes! could you please make it a bit compact? because my guess it won't fit well on dashboard. maybe just a column with the actual protocol or icons. and is it possible to detect the connected devices max supported speeds? I have moved the location but not sure will be able to put onto dashboard as does not look great or a place to put it. So can add as hoover text which would look better.
October 7, 20232 yr 3 hours ago, SimonF said: I have moved the location but not sure will be able to put onto dashboard as does not look great or a place to put it. So can add as hoover text which would look better. oh okay. i thought it is easy to add graphical elements or shorter/more relevant strings. is it out or polishing it?
