Help with sas controller

[Davidbrierley 0]

Hello, first post on here but could really do with some help or opinions .



I have started my build and I want to utilise a number of 2tb sas drives I have



I know I cant use them natively with an matx build as its backplane is sata however I am struggling to find any detail regarding pci-e sas controllers



From what I am aware sas combines power and the connector but I'm struggling to understand how I could connect my sas drives to my build . If anyone has any recommendations it would be appreciated .



My build is as follows



Ryzen 5

16gb

2 x 4tb ironwolf

1 x 500 GB m2 for cache



I really want to add my 6 x 2tb sas to my array as I already have these drives



Thanks in advance

[JorgeB 3474]

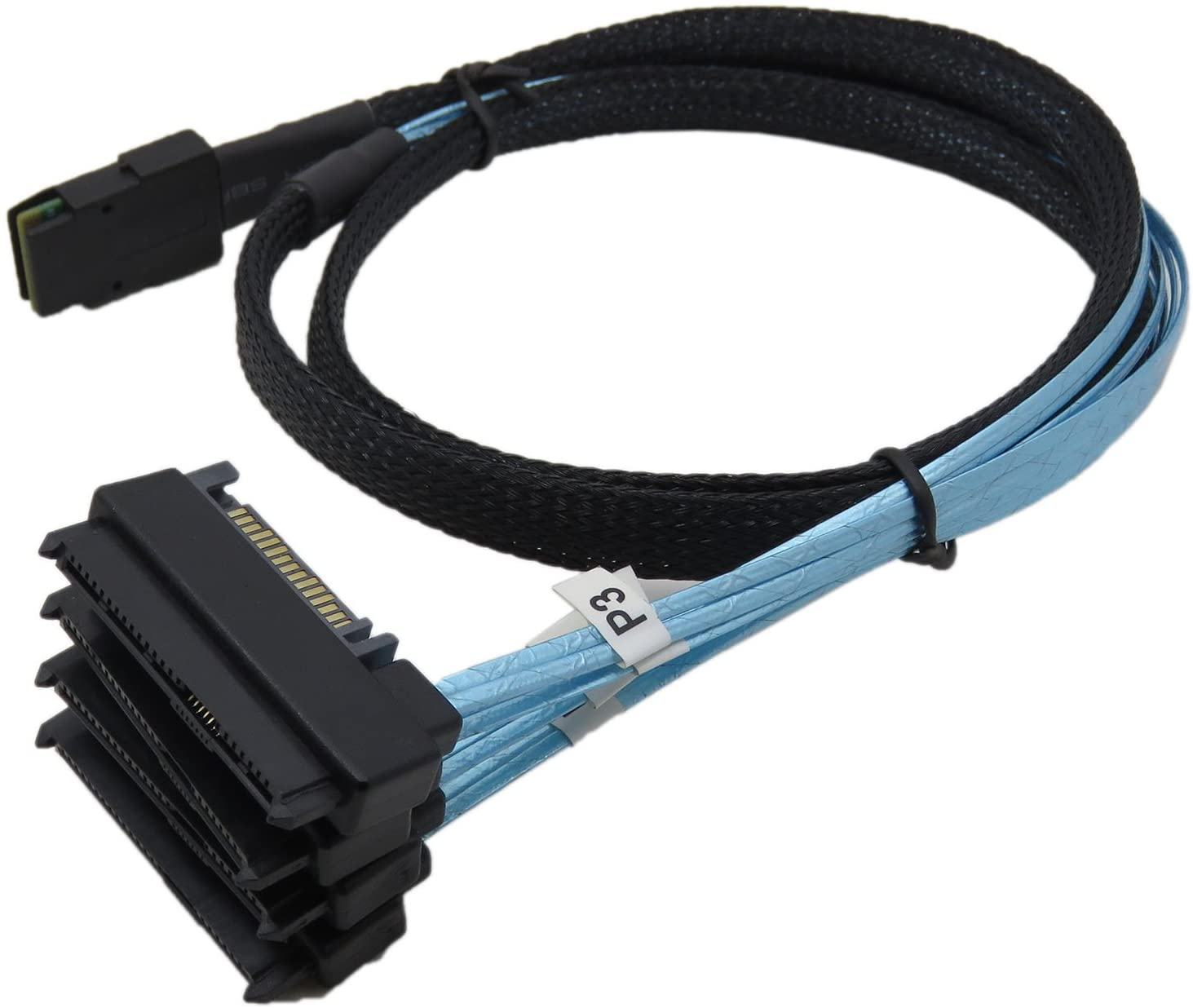

With a cable similar to this:

[Davidbrierley 0]

Thanks,  will this work with any sas controller and is there any recommended for unraid or will any do ?

[JorgeB 3474]

Any will do but the other end depends on the controller, e.g. sff-8087 is usually used for SAS2 controllers, sff-8643 for SAS3.

[Davidbrierley 0]

Thanks , found the cable , I'll have a look for controllers and give it a go.



Appreciate the help on this.
