Nic passthrough unraid 6.8.3

teo85rm
in VM Engine (KVM)

Featured Replies

Hi guys,



i have a problem with passthrough two intel nic's (pci-express x1 slot) in a vm for pfsense testing.

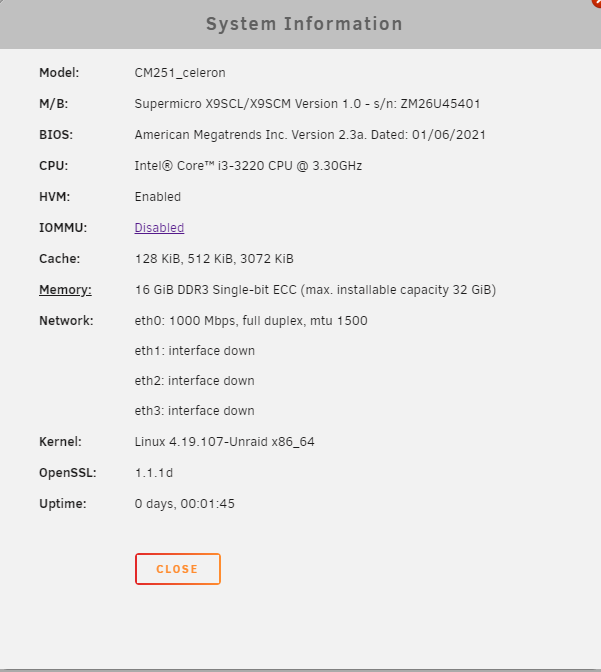

I have tried everything, videos on internet, this forum ecc.. but i not resolve the problem. The iommu gruop is disabled in "unraid info".



the vt-d and vt-x is enable on bios.

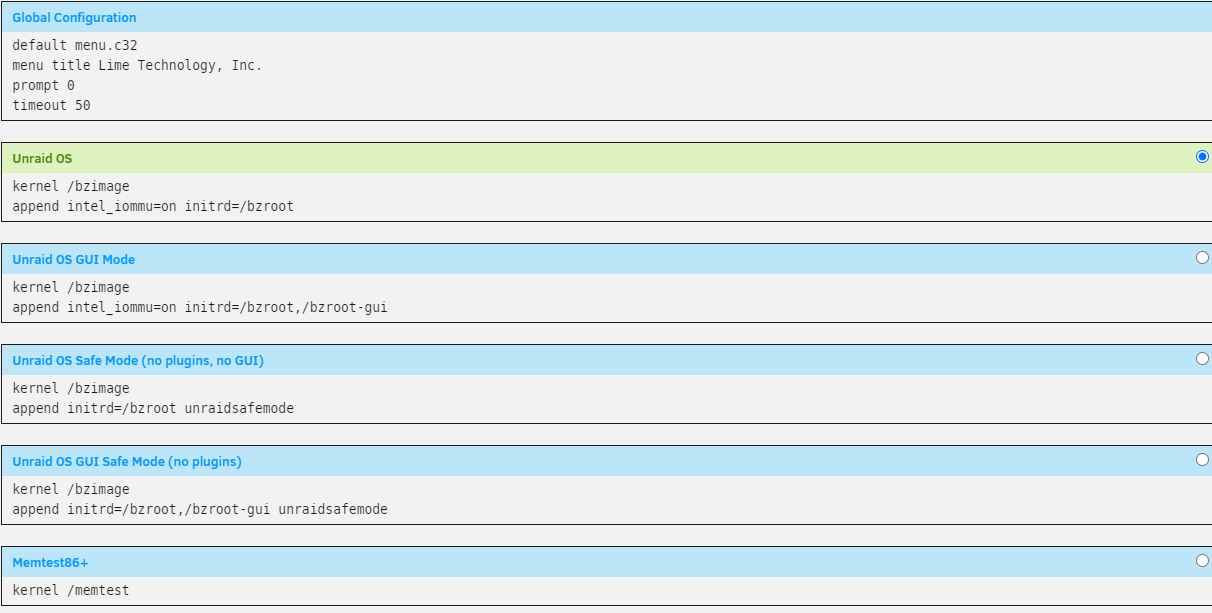

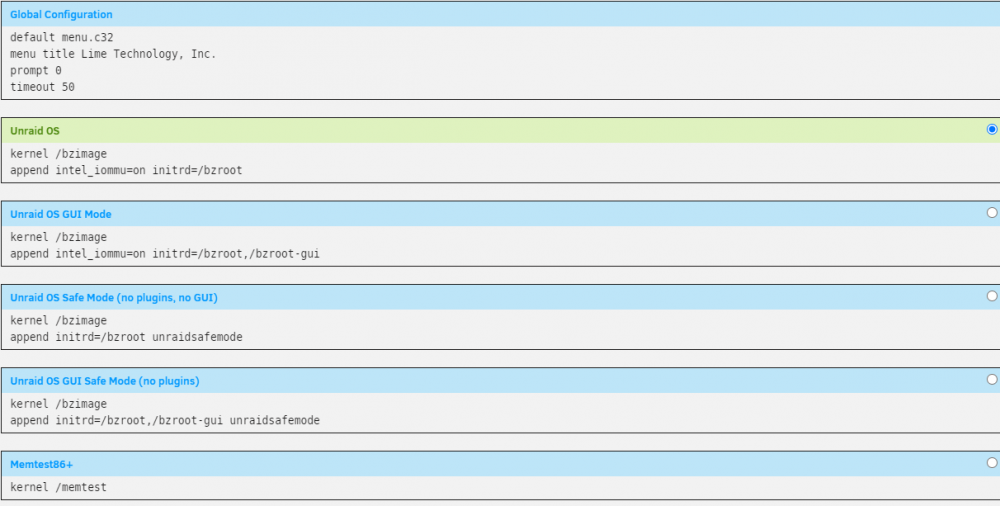

The screenshots and the diagnostics are in atttached, do you have any ideas? 🙂



for completeness:

recently, i changed my configuration for a supermicro x9scl+- F + i3 3220.  Before i hava an asorck itx + celeron processor on board, but I had no problem with the replacement: vms, dockers, array ecc... are fully fuctional



the motherboard bios is the lastes.



thanks



teo



nas-srv-diagnostics-20210115-1443.zip

  • Quote

    The i3-3220 does not support VT-d, which is required for passthrough to work

  • Quote
    • Author

    thanks Toastman!
