Hello

I just replaced my old motherboard+CPU (Atlhon X2 250) that has been working perfectly for several years (as a vanilla server) by a faster CPU (but still old) : a Phenom X6 1055T (with another motherboard as well)

I just swapped the board, nothing more......

I was able to access the BIOS, to tell the motherboard to boot from the flash drive

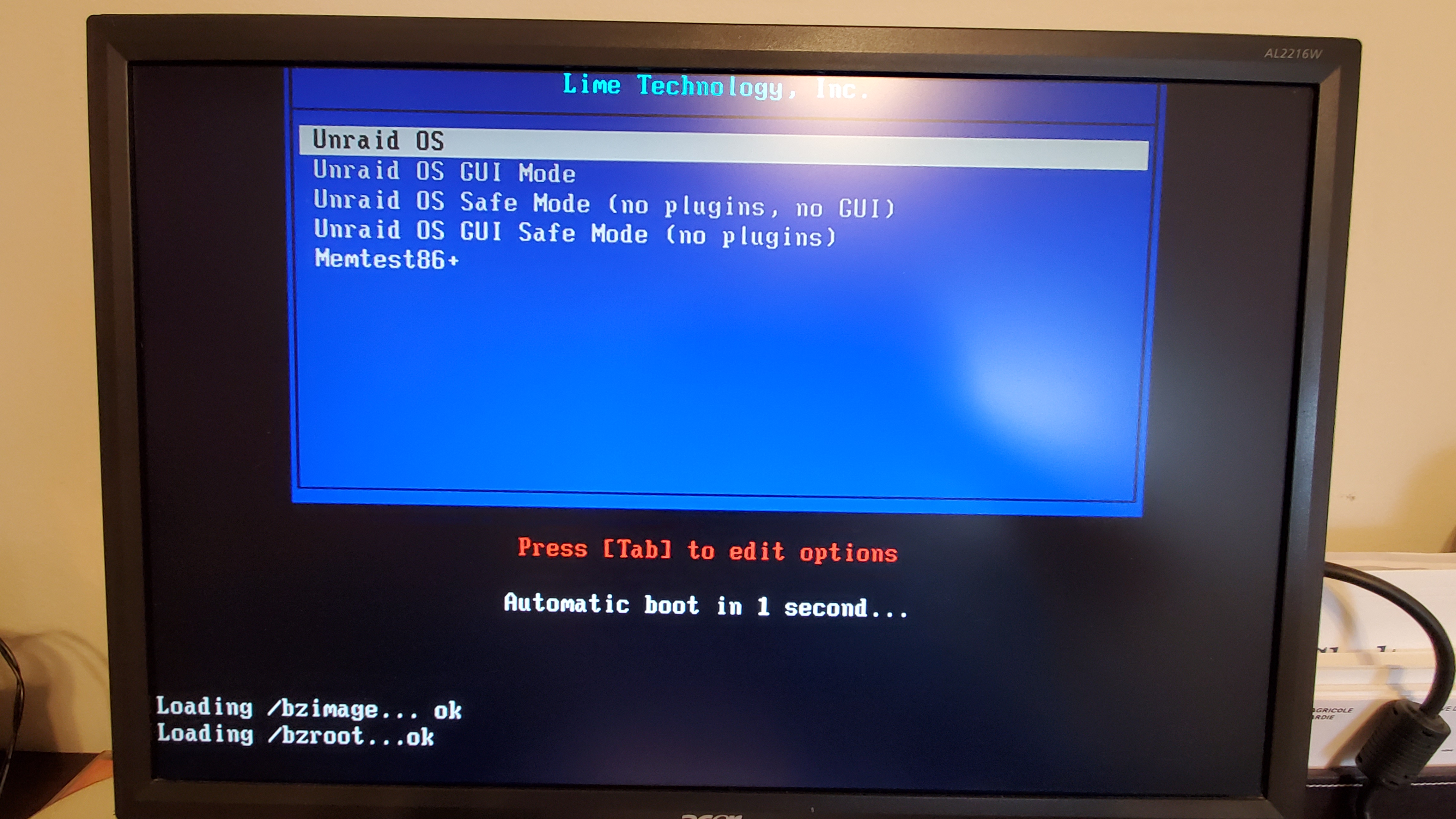

But when I get to the attached screen, it seems to stop.....!

The cursor under the 2 lines is blinking, but nothing happens

What should I look for ?

I'm running the latest stable version by the way....Again, has been working flawlessly for several years with no hiccups !!!



Thanks



Edited January 17, 20215 yr by French-Guy

I tried to download the latest release (6.8.3 - the one I was running) and extracted bzimage, bzroot and bzroot-gui and replaced them on my flash drive

Didn't change anything

I also tried the safe mode (with or without GUI) but nothing

Same thing for the memtest.....it says download memtest, but nothing happens

I know this mobo+cpu+ram works because I used it as my main computer with Windows 10 for many years !!!



Please help.....what should I check?

Is there anything in the BIOS I may have missed?

I would hate to have to reinstall the previous motherboard+CPU....!



Thanks

Edited January 17, 20215 yr by French-Guy

Could it be the power supply (Corsair CX430) being too weak for this CPU ?

What would be the symptoms then?

But.....knowing I can access the BIOS, and Unraid starts the boot process anyway (loading bzimage, then loading bzroot...) doesn't it mean the PSU is enough?



37 minutes ago, French-Guy said:

Could it be the power supply (Corsair CX430) being too weak for this CPU ?

Unlikely, looks more like a board compatibility problem, you could try a different flash drive.

How should I try with a different flash drive?

Use the USB creator first, and then what are the folders or files to copy from my current flash drive to the new one?



My current flash drive is a Sansisk Cruzer Fit 4Gb (which is not that old by the way)...What other recommended brand should I try then?



Thank you

Use a trial flash first, without your config, just to see if it boots.

Or try disable SVM ( AMD-V ) / IOMMU in BIOS.

11 minutes ago, Vr2Io said:

Or try disable SVM ( AMD-V ) / IOMMU in BIOS.

It's an old motherboard (Gigabite GA880) and I don't think I've seen anything about SVM ( AMD-V ) / IOMMU in the BIOS................But I will look again



18 minutes ago, JorgeB said:

Use a trial flash first, without your config, just to see if it boots.

I will check what flash drives I have on hand, and will give it a try....

If I were to buy a new one, what brands/models are recommended?

Kingston DTSE9 (first gen USB 2.0) is known to work and also be reliable.

5 hours ago, JorgeB said:

Use a trial flash first, without your config, just to see if it boots.

So when I try that, there is no risk to alter any of my drives, right?

I just let the server boots, but don't go any further?



Just now, French-Guy said:

right?

right.

1 hour ago, JorgeB said:

right.

Well, I just tried with a Kinsgton Datatraveler 2.0, and I'm getting the exact same results. Blinking cursor after "Loading  /bzroot...OK"

That's weird

Even when I try the memtest86+, it says loading memtest...OK, but then nothing other than a blinking cursor

That's very frustrating......!



I'm also having this same issue when switching to a new motherboard after the old one failed. I'm now using the MSI MAG B460 TORPEDO and UnRaid 6.9-RC2, when previously I was on 6.8.3 stable. I had to use the RC2 in order for my networking drivers to work with the new motherboard. I can't get to the Web UI on the server itself (just see the blinking cursor), but I can access it over the network from my other computers.

3 minutes ago, dansushi said:

I'm also having this same issue when switching to a new motherboard after the old one failed. I'm now using the MSI MAG B460 TORPEDO and UnRaid 6.9-RC2, when previously I was on 6.8.3 stable. I had to use the RC2 in order for my networking drivers to work with the new motherboard. I can't get to the Web UI on the server itself (just see the blinking cursor), but I can access it over the network from my other computers.

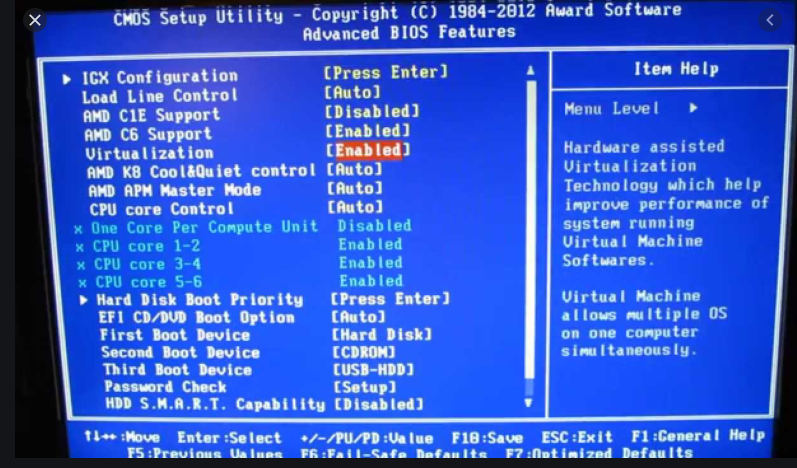

Try below BIOS setting



17 minutes ago, French-Guy said:

Blinking cursor after "Loading  /bzroot...OK"

That's weird

Yep, most likely some board compatibility issue with Linux/Unraid.

1 minute ago, JorgeB said:

Yep, most likely some board compatibility issue with Linux/Unraid.

Grrrrrrr..........................!!!

11 minutes ago, Vr2Io said:



Try below BIOS setting



I did come across this post, and set it to Enabled, but it didn't fix the issue unfortunately...

2 minutes ago, dansushi said:

I did come across this post, and set it to Enabled, but it didn't fix the issue unfortunately...

I misunderstand you are talking about local GUI, but your problem should be NIC or driver relate, pls open a new post and post diagnostics file.

7 hours ago, French-Guy said:

It's an old motherboard (Gigabite GA880) and I don't think I've seen anything about SVM ( AMD-V ) / IOMMU in the BIOS................But I will look again







Not exactly BIOS for GA880, pls check have Virtualization option or check EFI CD/DVD Boot Option too.





Edited January 18, 20215 yr by Vr2Io

1 minute ago, Vr2Io said:





Not exactly BIOS for GA880, pls check have such option or check EFI CD/DVD Boot Option





I have virtualization in my BIOS, and it is set to DISABLED...



I must be cursed...I've put back the previous motherboard+CPU

And this time, it's the whole box that doesn't even turn on !!!!

I did verify at least 5 times the jumpers from the front panel, and they are properly plugged

If the PSU quit, then I'm really out of luck.... !

well, false alarm....my server is back in business and running as it was before

Too bad it seems my X6 1055T with the gigabyte GA880 didn't work......well, maybe not since power consumption would have not been ideal with such CPU

I may need to find something more efficient but still cheap

well...that's weird !

I've installed the X6 1055T and its motherboard (GA 880) in another case to use it as a Windows machine

I wanted to try 1 more time with the trial flash drive.....and it seems to work !

The only difference is the PSU (I doubt it's the reason) and the absence of the LSI card (SAS 9211 -8i) I have in my server

Would it be a compatibility issue between the LSI card and the GA880?



It's not impossible.  You could just try this which is a simple reversible modification that I and others have had to perform on similar cards...



I had to do this on a Dell H310 card (same chip set I believe) after changing to a Gigabyte motherboard from an Asrock of a similar age.  You can try just masking the two pins on the top side of the LSI HBA board and see if it makes any difference.  If it doesn't help, then there's no harm done.

Edited January 23, 20215 yr by S80_UK
