Hey All



Got myself a ds2246 for my slave unraid server

With a NetApp 111-00341+F2 4-Port HBA card



Unraid shows the card in system devices as

[11f8:8001] 05:00.0 Serial Attached SCSI controller: PMC-Sierra Inc. Device 8001 (rev 05)

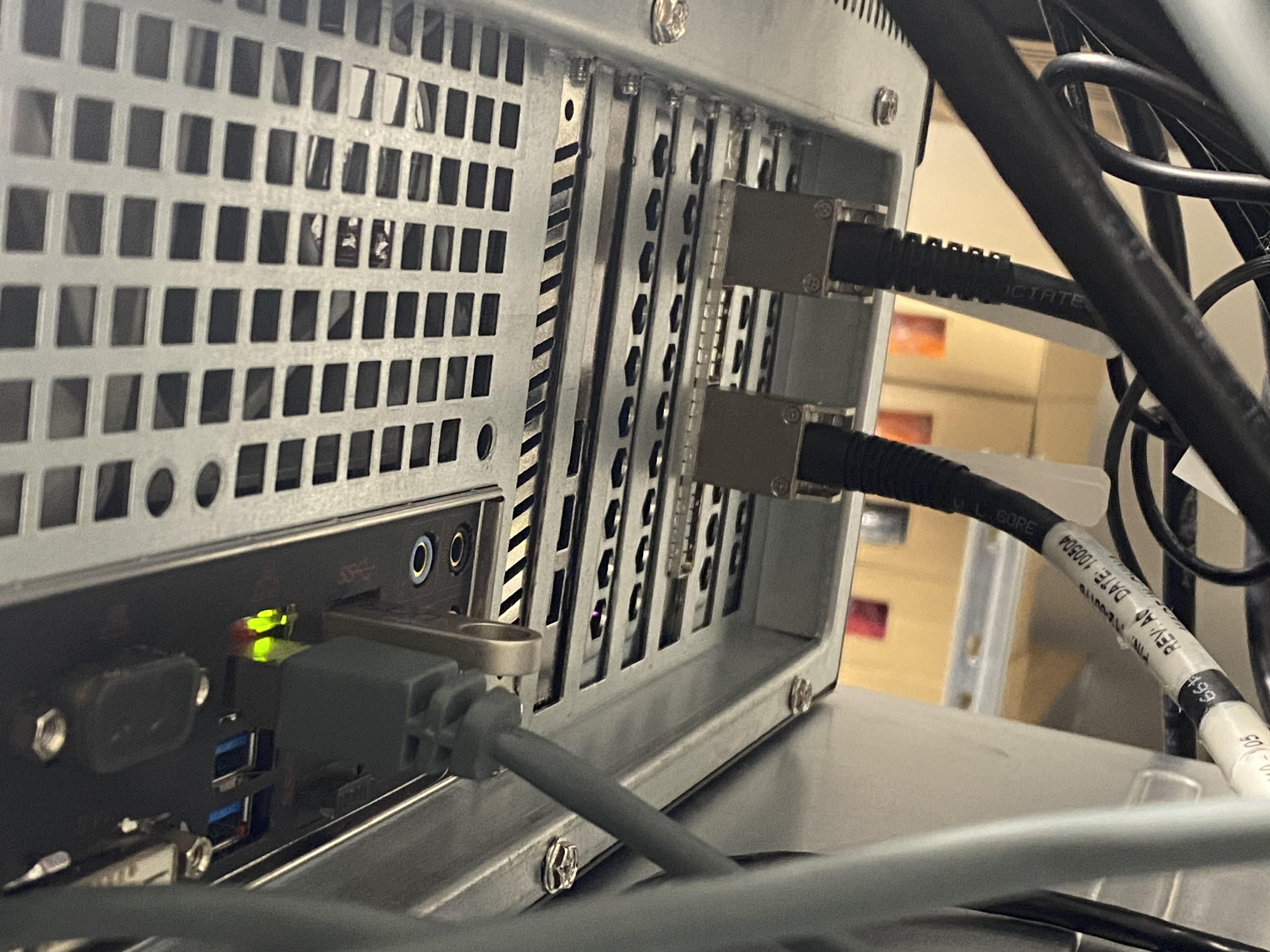

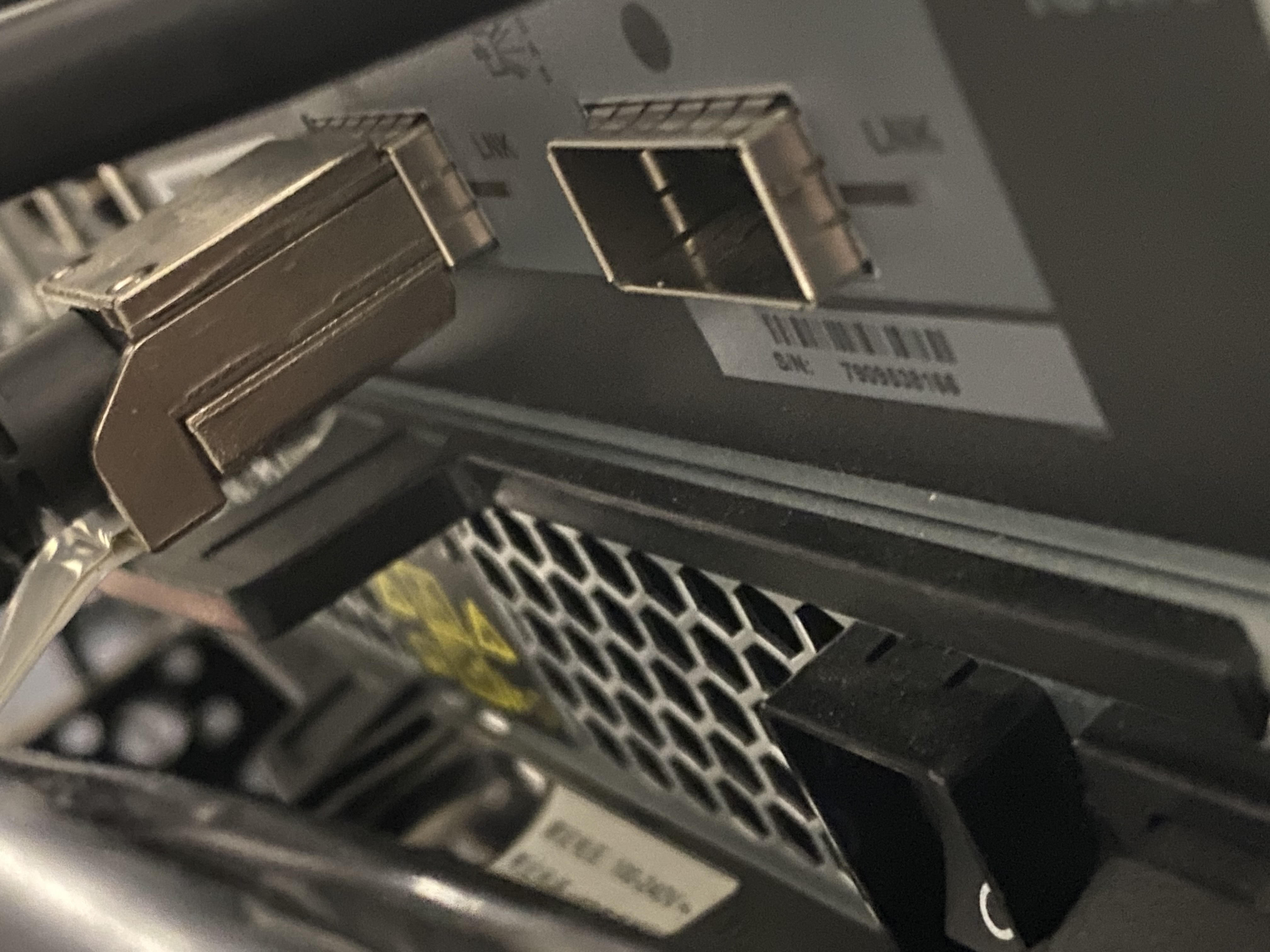

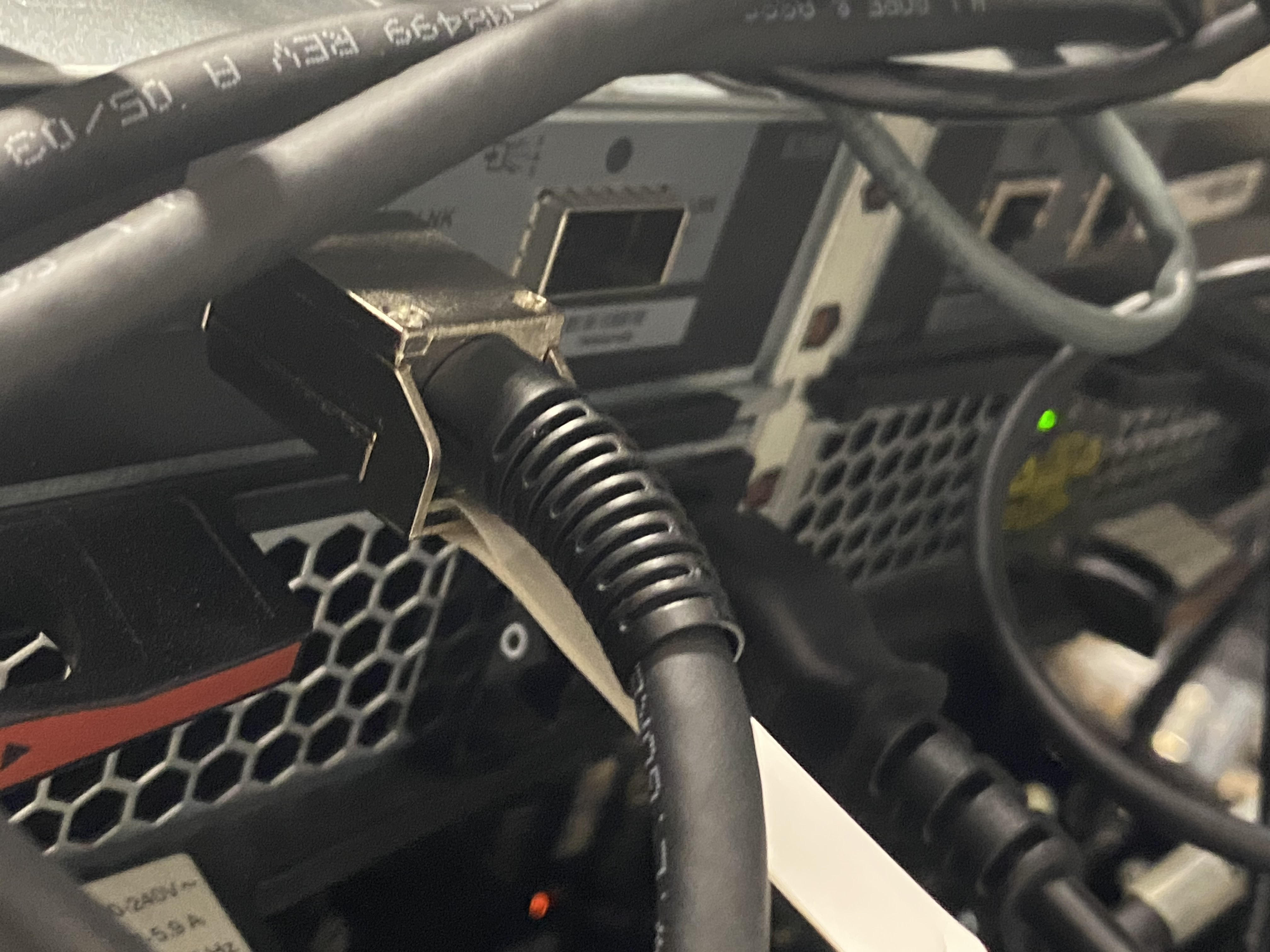

I have connected port 1 of the HBA to the left port of the first iom6 controller and port 3 to the first port on the right 2nd iom6 controller



No drives in unraid



No experience with these shelves or hba's



Any help would be much appropriated.



Unraid log from startup



Feb 3 19:57:11 Slave emhttpd: shcmd (88): umount /mnt/cache
Feb 3 19:57:11 Slave emhttpd: shcmd (89): rmdir /mnt/cache
Feb 3 19:57:11 Slave root: Stopping diskload
Feb 3 19:57:11 Slave kernel: mdcmd (37): stop
Feb 3 19:57:11 Slave kernel: md1: stopping
Feb 3 19:57:11 Slave emhttpd: shcmd (91): rm -f /boot/config/forcesync
Feb 3 19:57:11 Slave emhttpd: shcmd (92): sync
Feb 3 19:57:11 Slave emhttpd: Starting services...
Feb 3 19:57:11 Slave emhttpd: shcmd (94): /etc/rc.d/rc.samba start
Feb 3 19:57:11 Slave root: Starting Samba: /usr/sbin/smbd -D
Feb 3 19:57:11 Slave root: /usr/sbin/nmbd -D
Feb 3 19:57:11 Slave smbd[11264]: [2021/02/03 19:57:11.843226, 0] ../../lib/util/become_daemon.c:135(daemon_ready)
Feb 3 19:57:11 Slave smbd[11264]: daemon_ready: daemon 'smbd' finished starting up and ready to serve connections
Feb 3 19:57:11 Slave root: /usr/sbin/wsdd
Feb 3 19:57:11 Slave nmbd[11269]: [2021/02/03 19:57:11.854199, 0] ../../lib/util/become_daemon.c:135(daemon_ready)
Feb 3 19:57:11 Slave nmbd[11269]: daemon_ready: daemon 'nmbd' finished starting up and ready to serve connections
Feb 3 19:57:11 Slave root: /usr/sbin/winbindd -D
Feb 3 19:57:11 Slave winbindd[11279]: [2021/02/03 19:57:11.894502, 0] ../../source3/winbindd/winbindd_cache.c:3203(initialize_winbindd_cache)
Feb 3 19:57:11 Slave winbindd[11279]: initialize_winbindd_cache: clearing cache and re-creating with version number 2
Feb 3 19:57:11 Slave winbindd[11279]: [2021/02/03 19:57:11.895051, 0] ../../lib/util/become_daemon.c:135(daemon_ready)
Feb 3 19:57:11 Slave winbindd[11279]: daemon_ready: daemon 'winbindd' finished starting up and ready to serve connections
Feb 3 19:57:11 Slave emhttpd: shcmd (95): cp /tmp/emhttp/smb.service /etc/avahi/services/smb.service
Feb 3 19:57:11 Slave avahi-daemon[4933]: Files changed, reloading.
Feb 3 19:57:11 Slave avahi-daemon[4933]: Loading service file /services/smb.service.
Feb 3 19:57:11 Slave emhttpd: no mountpoint along path: /mnt/user/system/docker
Feb 3 19:57:12 Slave avahi-daemon[4933]: Service "Slave" (/services/smb.service) successfully established.
Feb 3 20:00:01 Slave crond[1712]: exit status 3 from user root /usr/local/sbin/mover &> /dev/null
Feb 3 20:06:21 Slave kernel: resource sanity check: requesting [mem 0x000c0000-0x000fffff], which spans more than PCI Bus 0000:00 [mem 0x000d0000-0x000d3fff window]
Feb 3 20:06:21 Slave kernel: caller _nv000709rm+0x1af/0x200 [nvidia] mapping multiple BARs
Feb 3 20:06:22 Slave kernel: resource sanity check: requesting [mem 0x000c0000-0x000fffff], which spans more than PCI Bus 0000:00 [mem 0x000d0000-0x000d3fff window]
Feb 3 20:06:22 Slave kernel: caller _nv000709rm+0x1af/0x200 [nvidia] mapping multiple BARs
Feb 3 20:06:23 Slave kernel: resource sanity check: requesting [mem 0x000c0000-0x000fffff], which spans more than PCI Bus 0000:00 [mem 0x000d0000-0x000d3fff window]
Feb 3 20:06:23 Slave kernel: caller _nv000709rm+0x1af/0x200 [nvidia] mapping multiple BARs
Feb 3 20:06:24 Slave kernel: resource sanity check: requesting [mem 0x000c0000-0x000fffff], which spans more than PCI Bus 0000:00 [mem 0x000d0000-0x000d3fff window]
Feb 3 20:06:24 Slave kernel: caller _nv000709rm+0x1af/0x200 [nvidia] mapping multiple BARs
Feb 3 20:08:21 Slave ntpd[1691]: receive: Unexpected origin timestamp 0xe3c58135.37b28728 does not match aorg 0000000000.00000000 from [email protected] xmt 0xe3c58135.3b6264f3
Feb 3 20:09:24 Slave ntpd[1691]: receive: Unexpected origin timestamp 0xe3c58174.37b2c826 does not match aorg 0000000000.00000000 from [email protected] xmt 0xe3c58174.3b9fe1fd
Feb 3 20:26:13 Slave ntpd[1691]: receive: Unexpected origin timestamp 0xe3c58565.533131a4 does not match aorg 0000000000.00000000 from [email protected] xmt 0xe3c58565.585b237e





Edited February 3, 20215 yr by purplechris

My NetApp HBA does not work on the latest version of Unraid. I had to rollback to a previous version to be able to see my drives at all.

I'm now waiting for an LSI HBA to arrive so I can throw the NetApp one out of my server.



Link:



On 2/3/2021 at 8:30 PM, purplechris said:

No drives in unraid

Please post the diagnostics: Tools -> Diagnostics
