Dear Community,



can someone help me how to configure the fans in my new server properly on a Supermicro X11SCH-LN4F (same model as X11SCH-F).

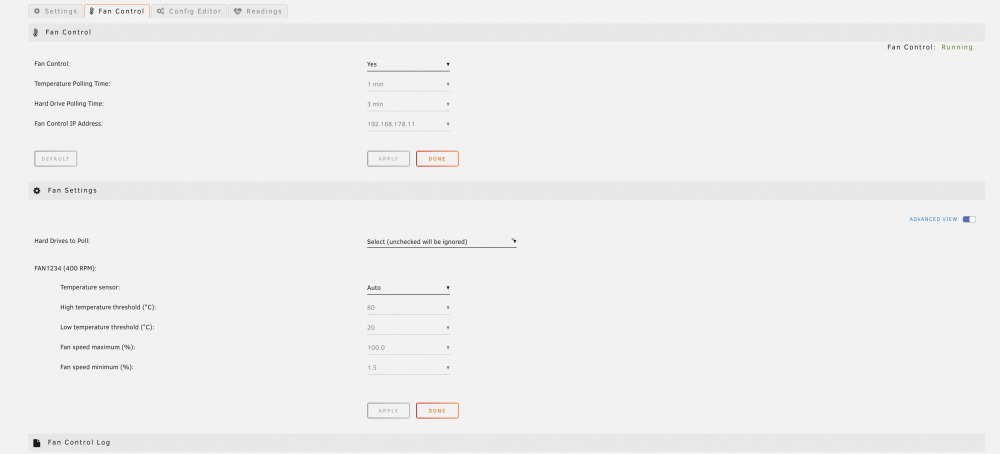

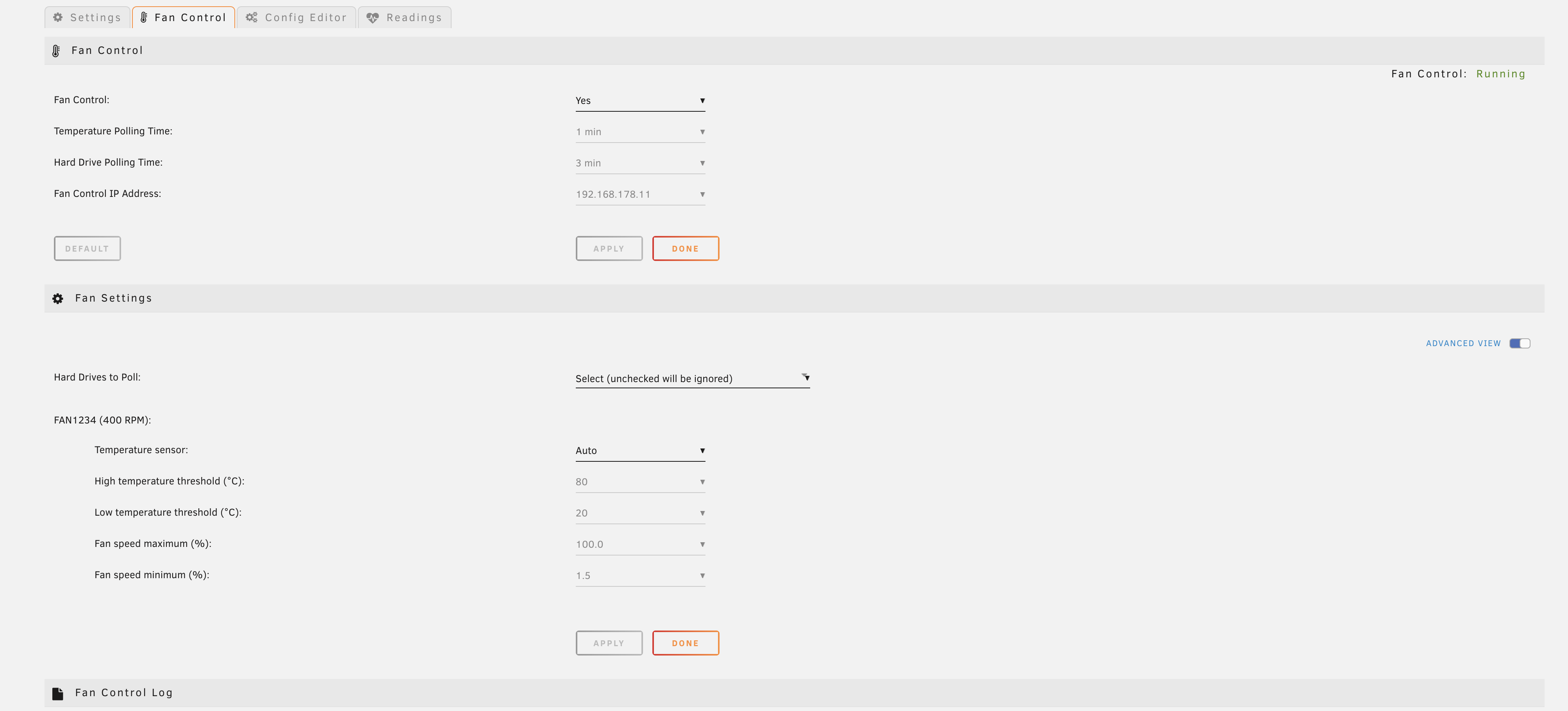

The board uses IPMI and i made the connection to it with Unraids IPMI Plugin. I also configured the fan threshholds via command line (upper and lower)

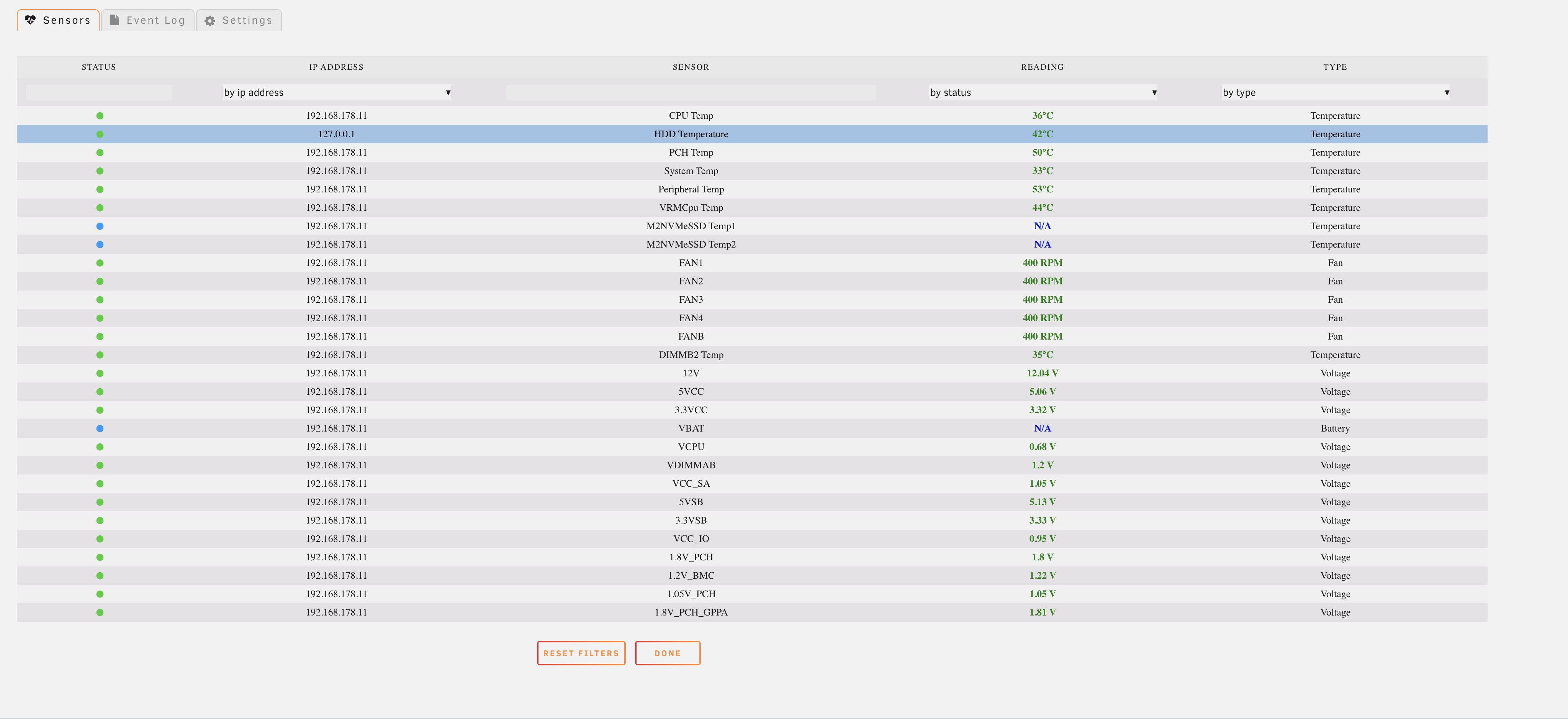

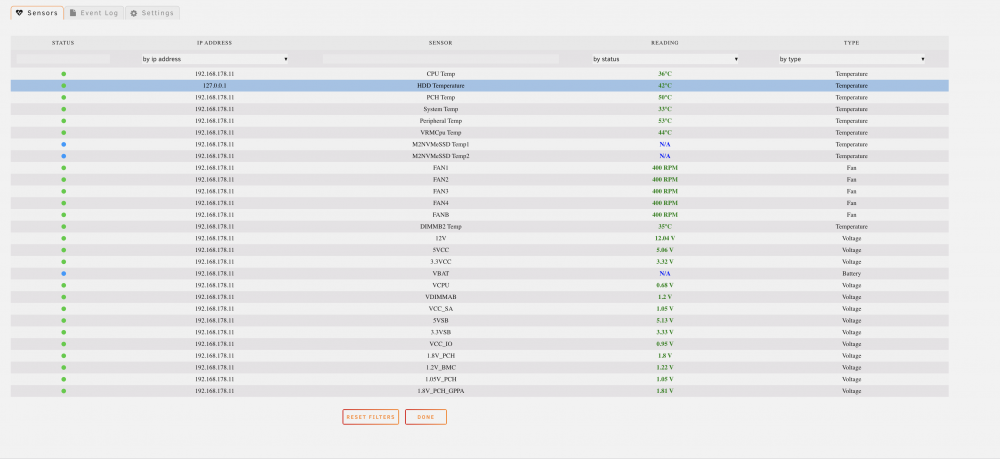

No matter what i'm doing or setting, the Fans either run at the lowest threshold (400 rpm) or the upper threshold (2000 rpm). only full - or low. nothing in between.



any help highly appreciated, thanks!









Edited February 7, 20215 yr by Saeros

34 minutes ago, Saeros said:

I also configured the fan threshholds via command line

please show your low thresholds, and FAN mode setting from Supermicro IPMI.

Low thresholds are 150 225 300 on all fans to avoid "pumping"

I tried different Fan Modes in the Supermicro IPMI Setting with not a lot of success.

Was hoping to find someone who can share his best practices for this motherboard/Unraid combination...

9 minutes ago, Saeros said:

I tried different Fan Modes in the Supermicro IPMI Setting with not a lot of success.



if you wanna control them by unraid, then you must set Fan mode Full Speed on Supermicro impi side to avoid any confusion for concurrent controlling processes.

and what is your goal? to control fun speed by HDD Temp?

my goal is that the fan speed will adjust according to (whatever configured) temperature. at the moment it is either minimum or maximum fan speed - nothing in between.

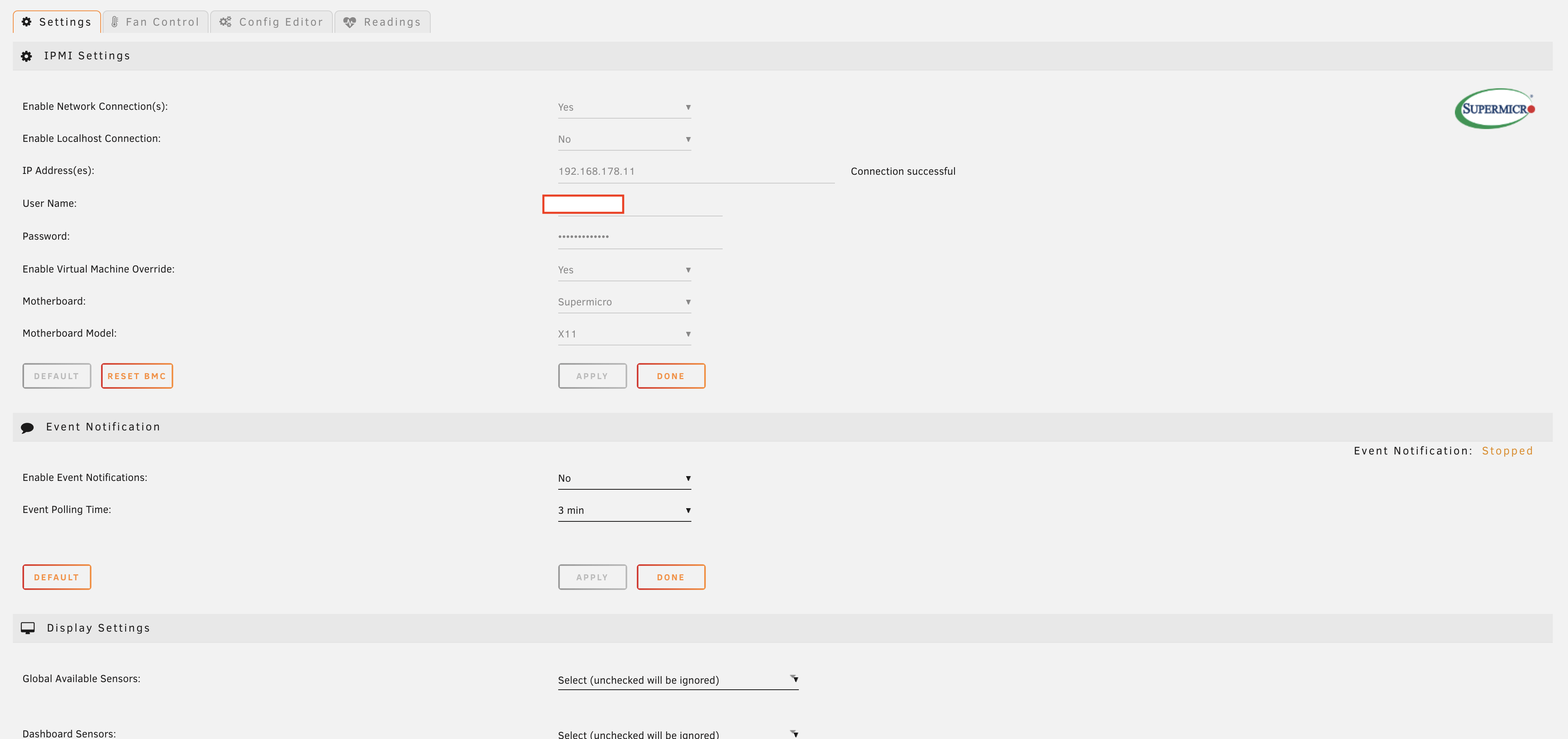

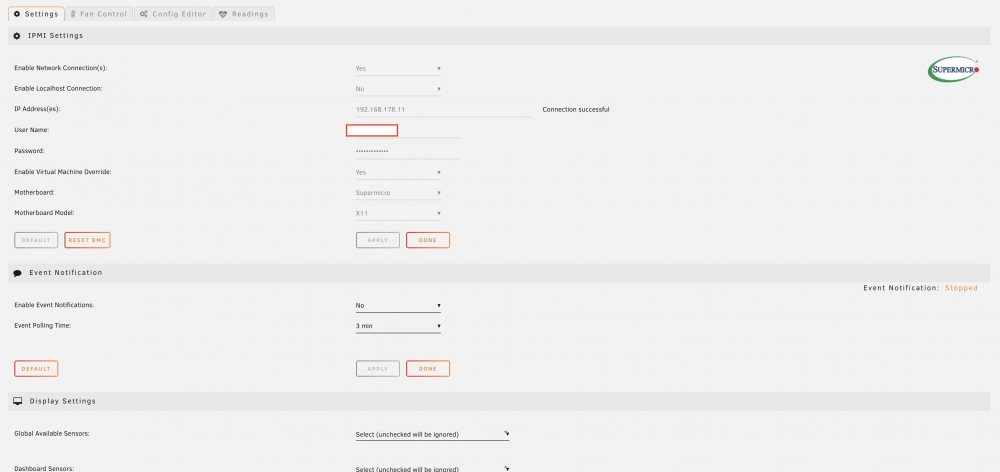

*EDIT Thats working now, i had to change it from network to localhost and now thats working, unfortunately only for FANS1-4 - i can not configure the FAN in FANA or FANB... see https://forums.unraid.net/topic/38108-plugin-ipmi-for-unraid-61/?do=findComment&comment=944788

Edited February 7, 20215 yr by Saeros
solved
