Guide: SabNzb, Sonarr, Radarr, Plex setup

[petesweeps2]

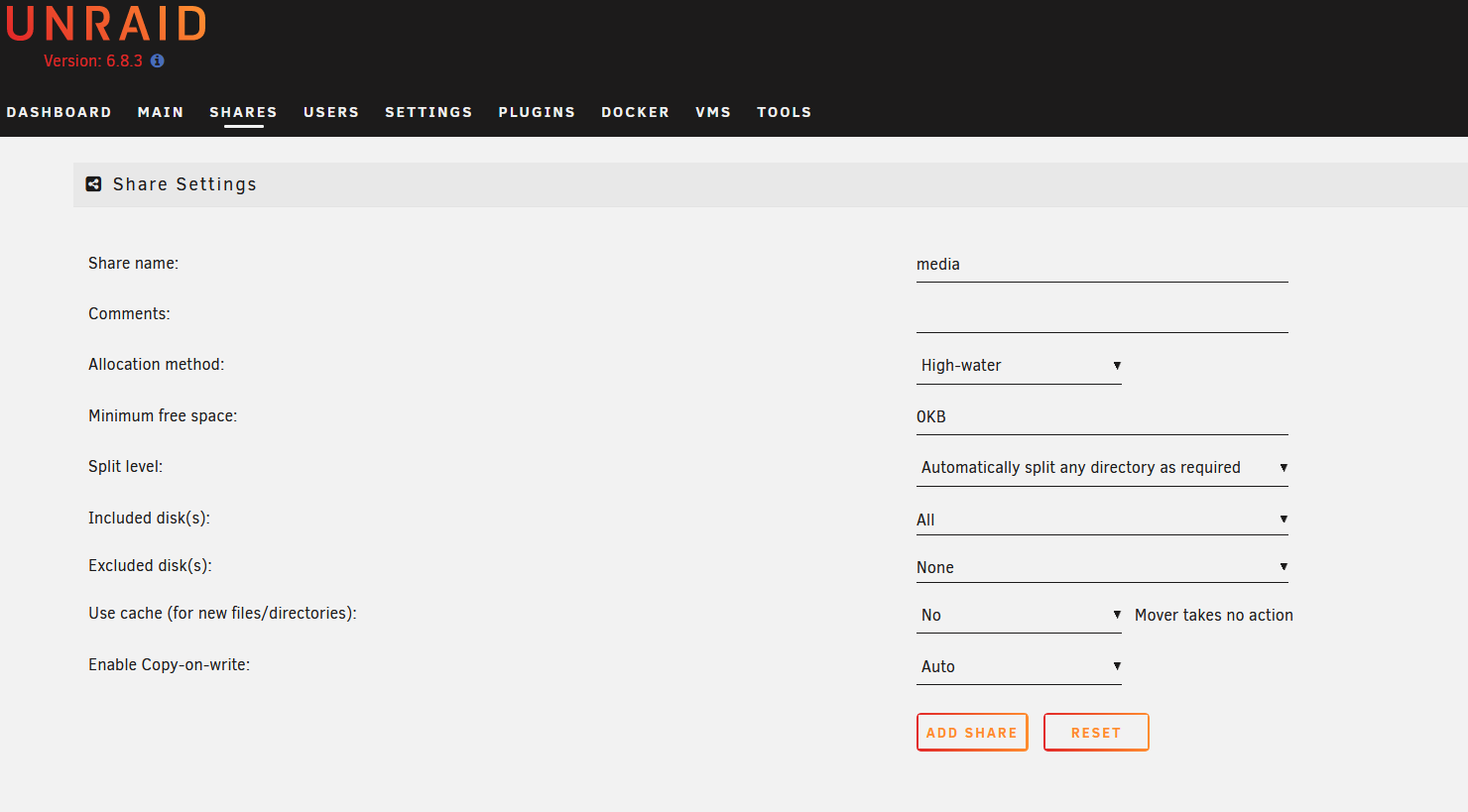

1.) Setup share, in this case i'm naming mine media, everything will be based out of this directory/share

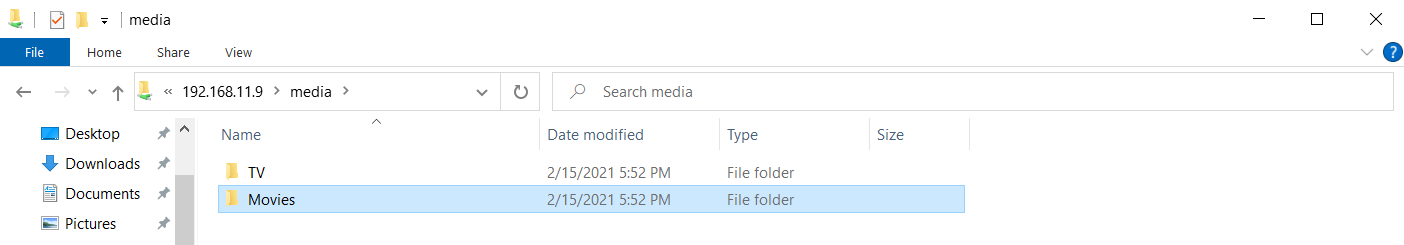

2.) Navigate to the share (Start -> Run -> \\tower\media) and make your TV and Movie directories



3.) Install the Community Applications Plugin by navigating to Plugins -> Install Plugin and adding the following URL:

Quote

https://raw.githubusercontent.com/Squidly271/community.applications/master/plugins/community.applications.plg

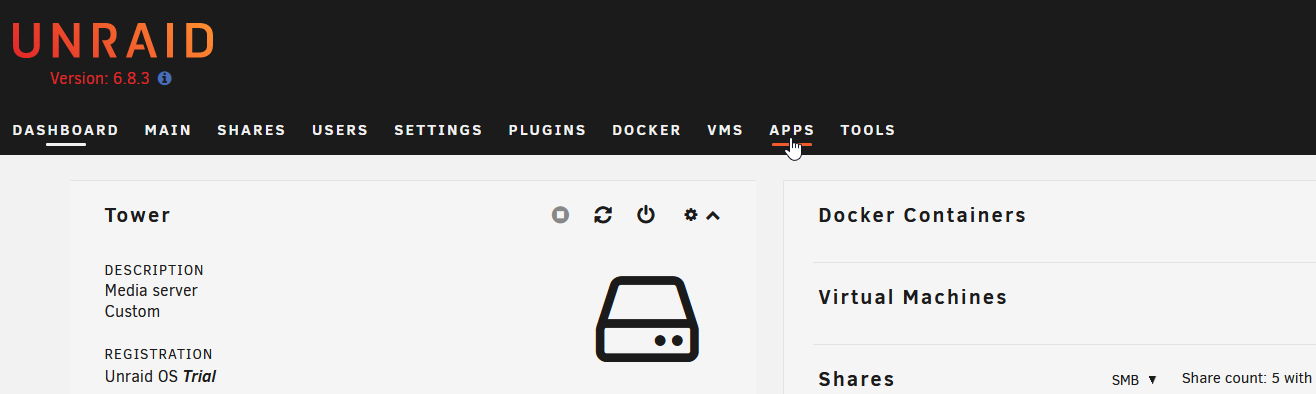

4.) You will now have a new APPS Tab

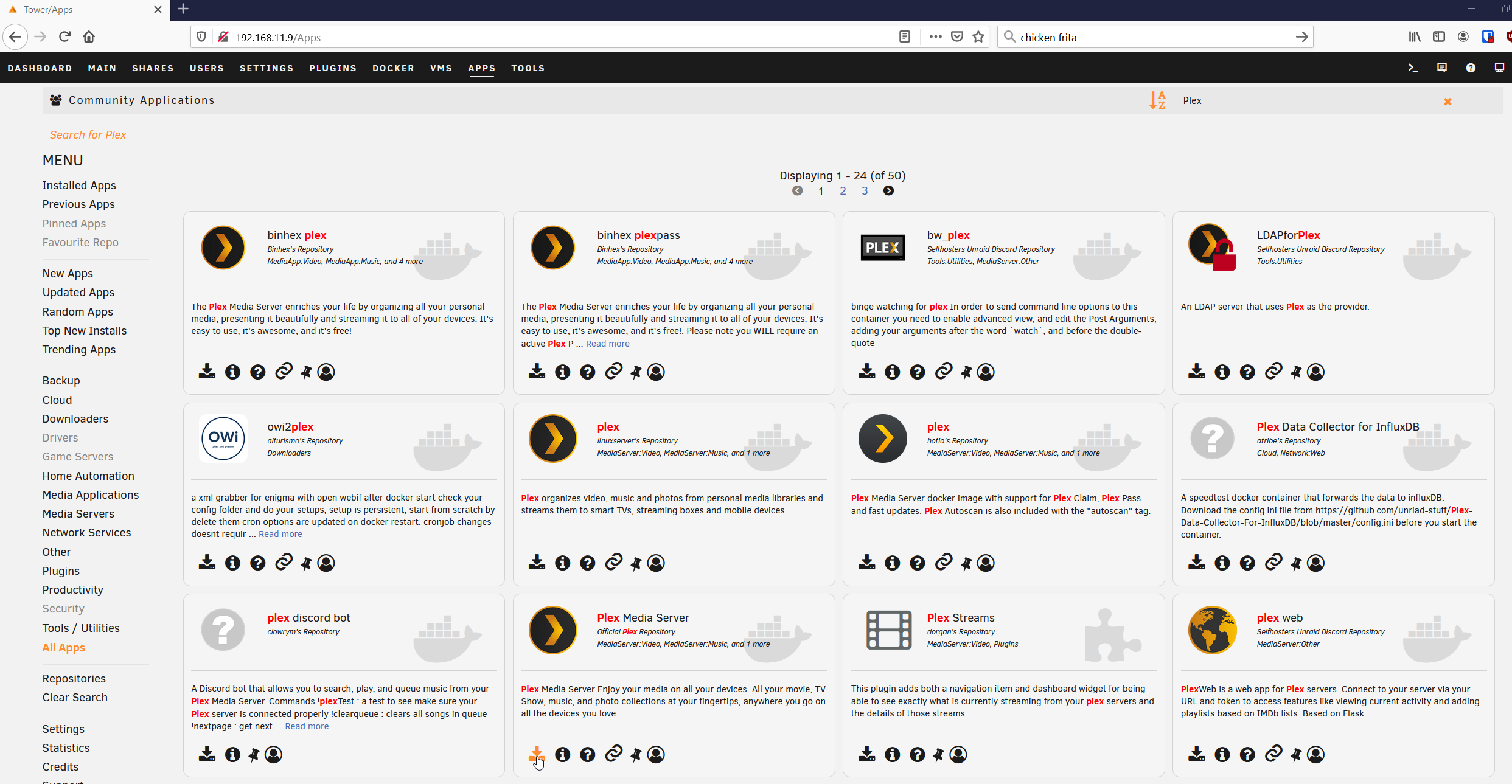

5.) Search for the Official Plex Repository and select the Click to Install button

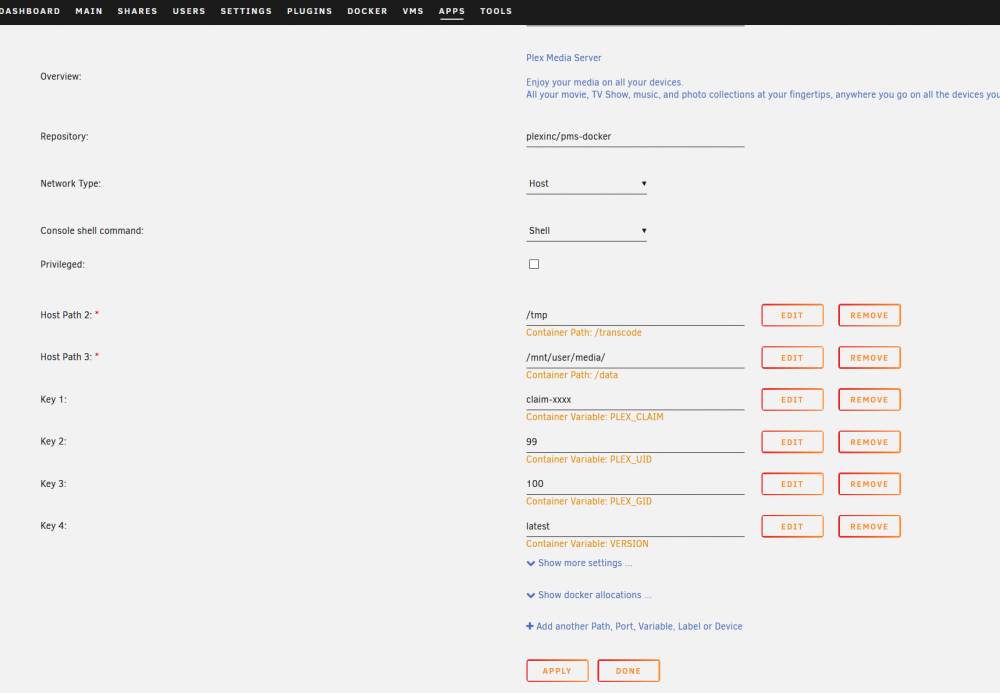

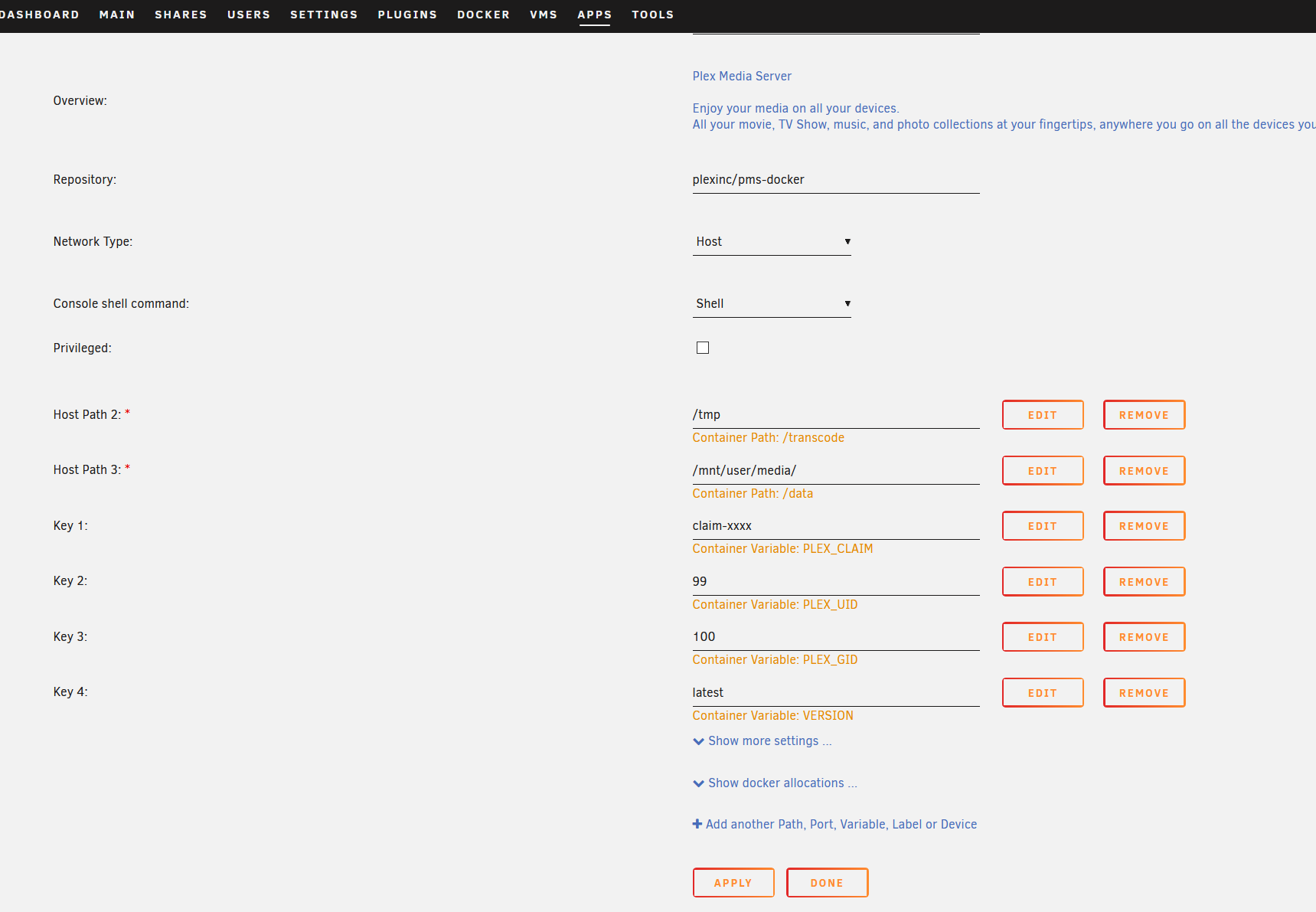

6.) Fill out Host Path 2, Host Path 3, and Key 1

Host Path 2: /tmp

Host Path 3: /mnt/user/media

Key 1: Navigate to https://www.plex.tv/claim/. Log in, then copy paste the Plex Claim code

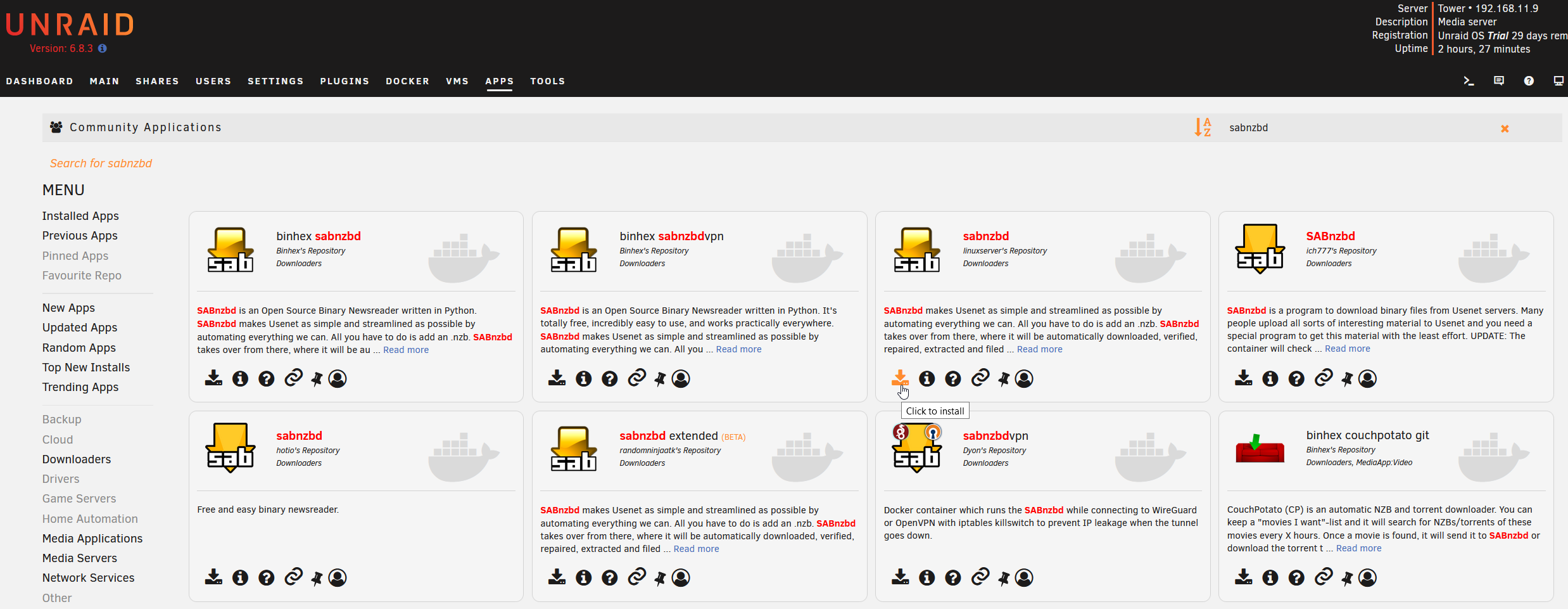

7.) Install Sabnzbd from Linuxserver's repository

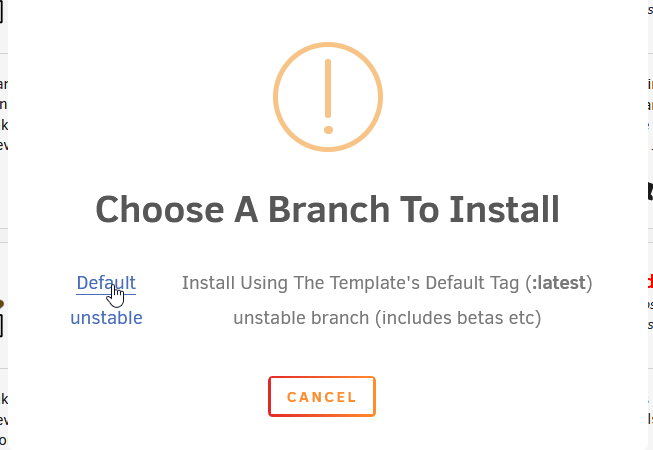

8.) For the Branch, select Default

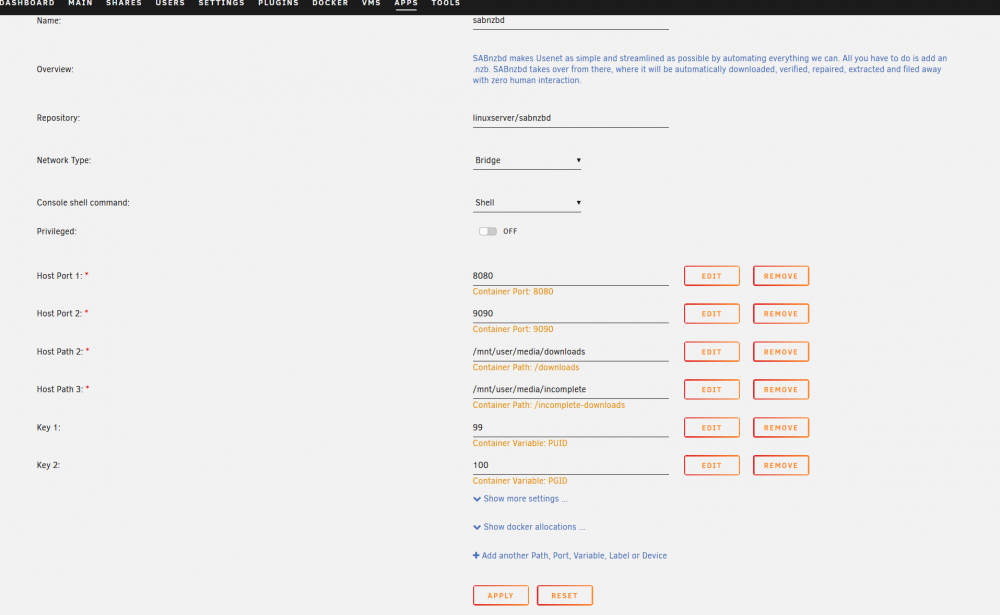

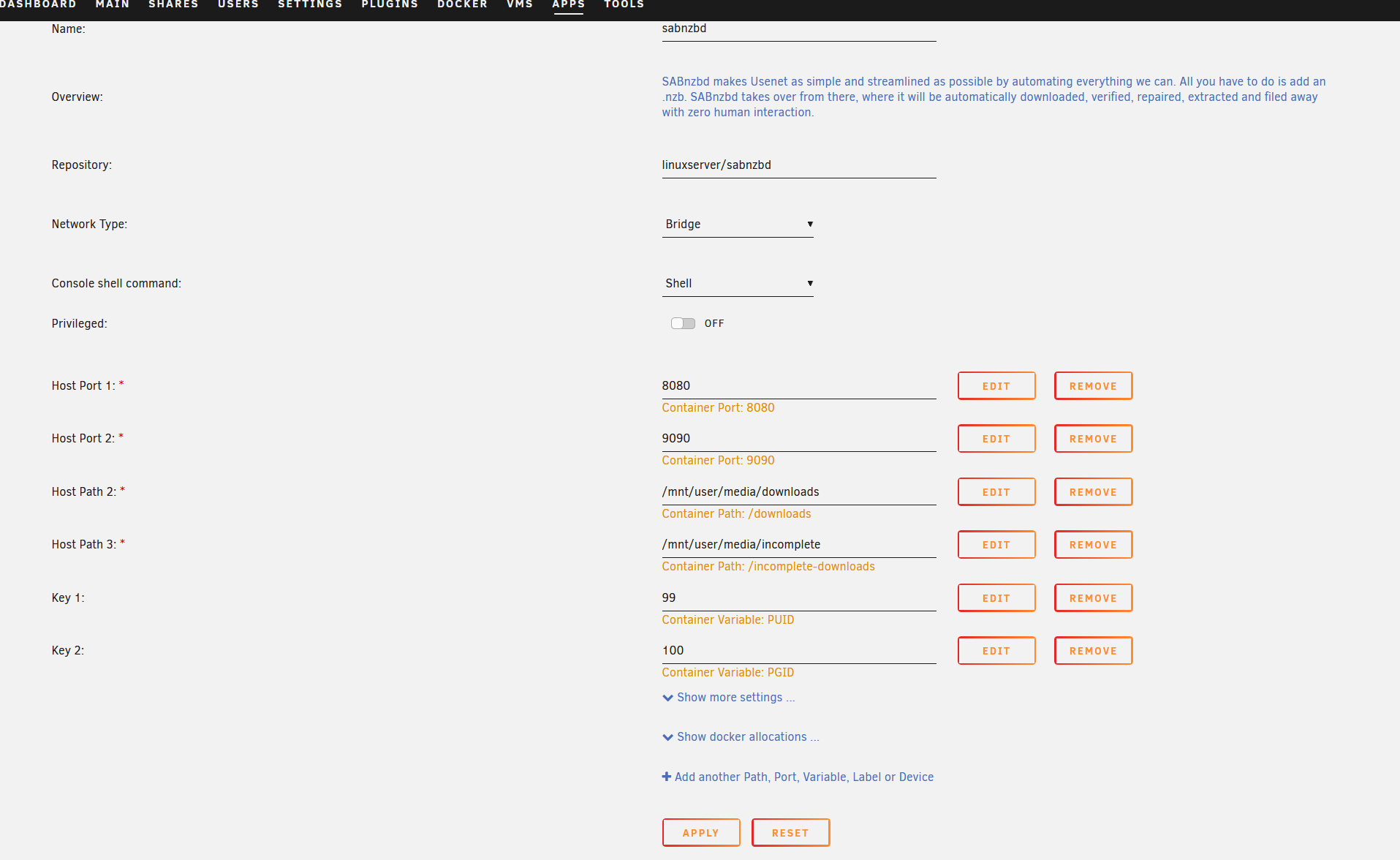

9.) Set the following:

Host Path 2: /mnt/user/media/downloads

Host Path 3: /mnt/user/media/incomplete

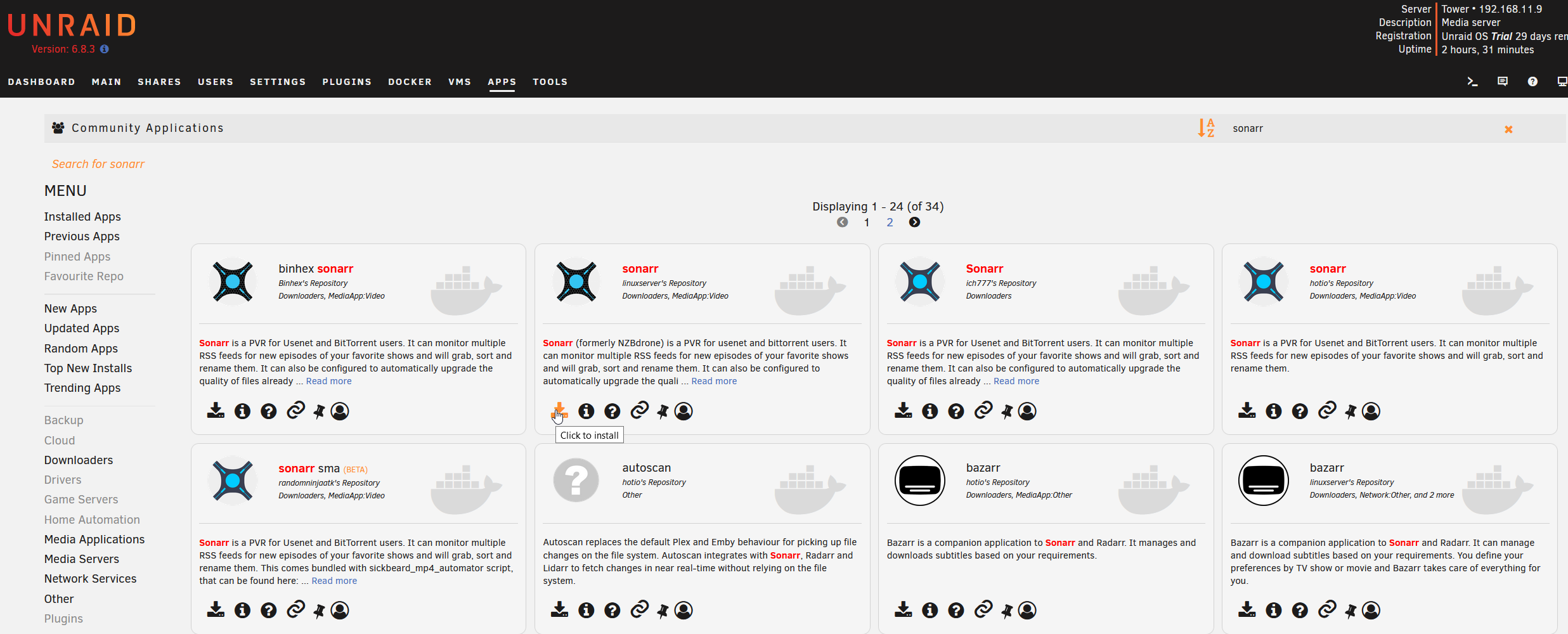

10.) Install Sonarr from linuxserver's repository

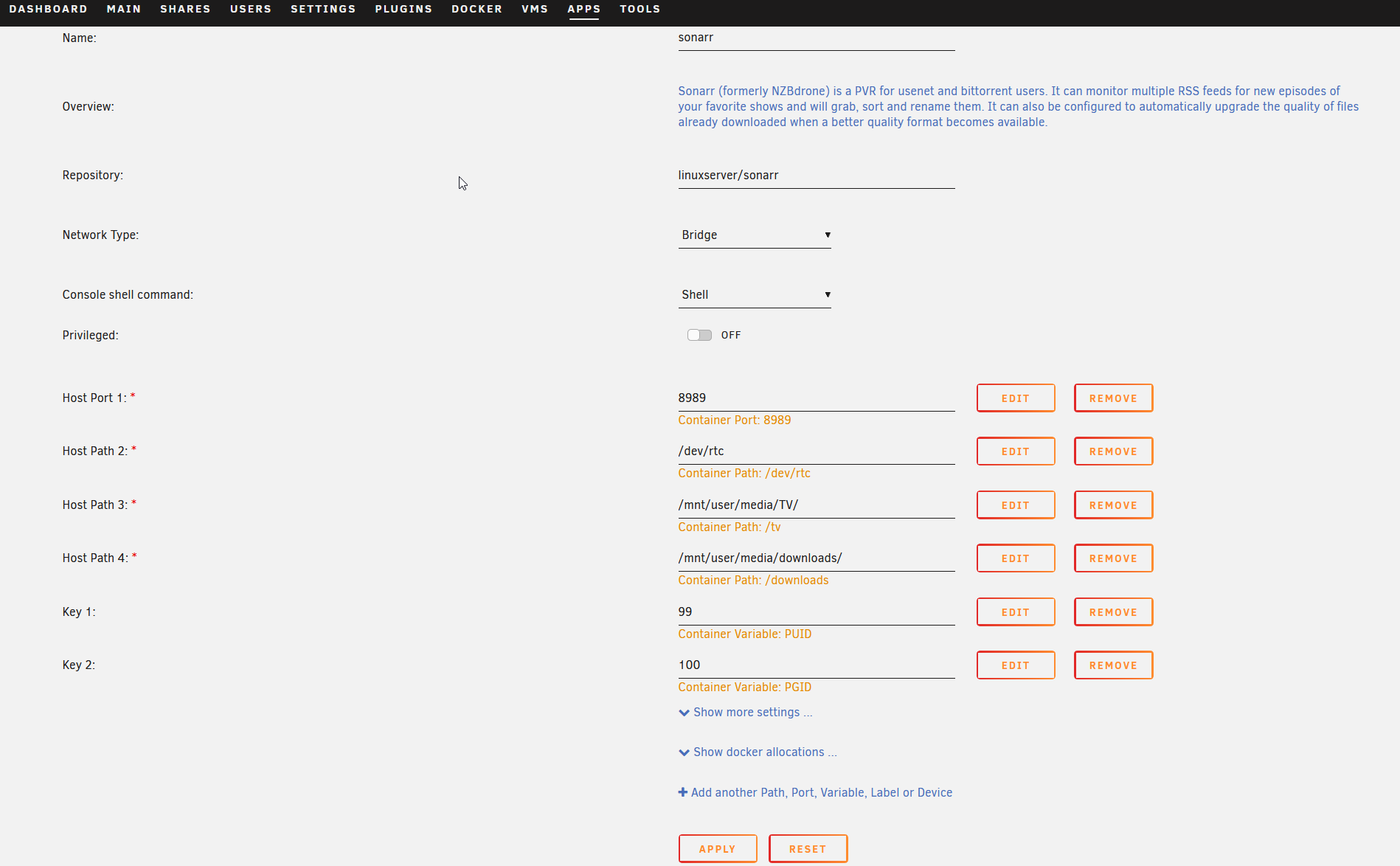

11.) Set the following:

Host Path 3: /mnt/user/media/TV/

Host Path 4: /mnt/user/media/downloads

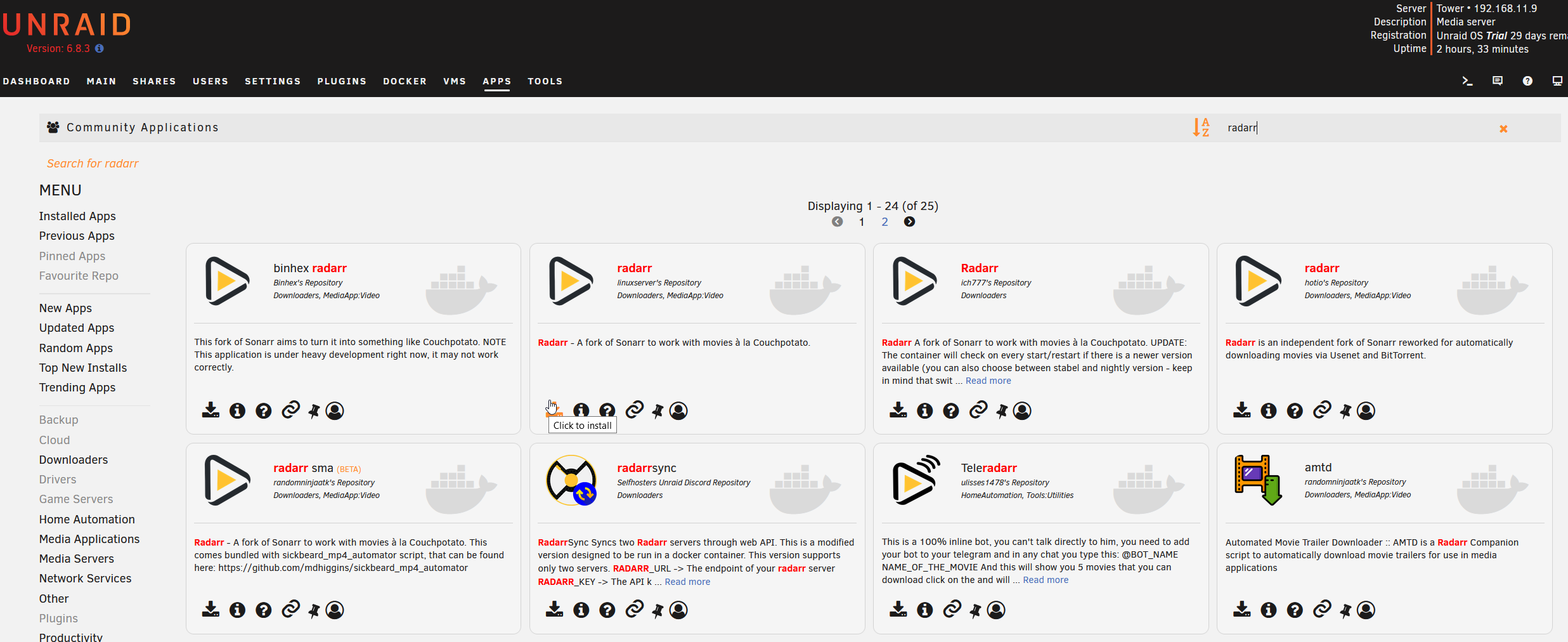

12.) Install Radarr from linuxserver's repository

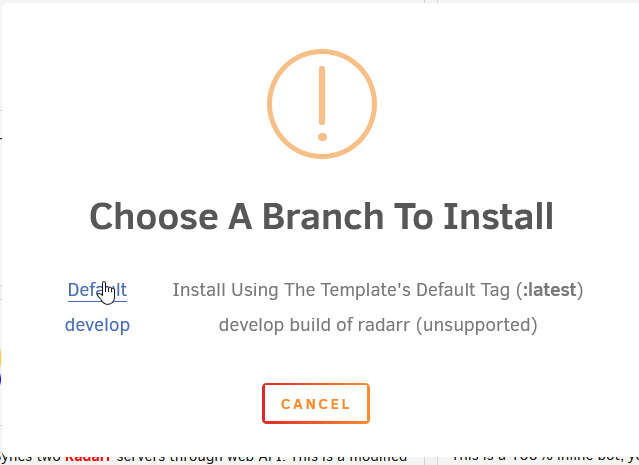

13.) Select Default for Branch to Install:

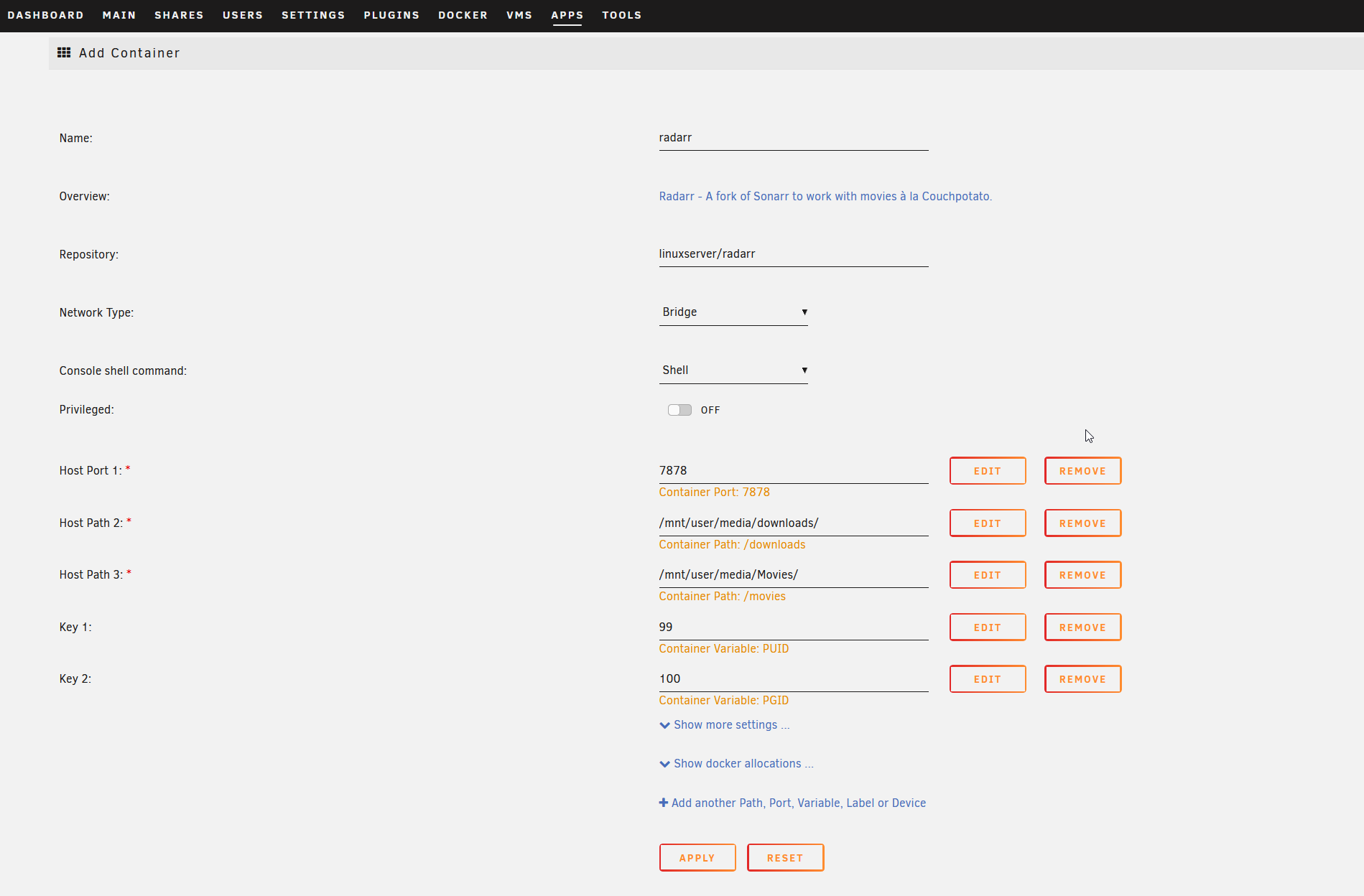

14.) Set the following:

Host Path 2: /mnt/user/media/downloads/

Host Path 3: /mnt/user/media/Movies/



This will get you started so the initial configurations are all pointing to the same locations.  I will create a guild to step through configuring SabNzbd, Sonarr, Radarr, and Plex



Special thanks to this blog for getting me started:

https://blog.harveydelaney.com/setting-up-plex-media-server-on-your-unraid-server/





[tardezyx]

I'd recommend using different shares and paths like this because Radarr (etc.) is then able to use atomic move ("hardlink") instead of copy+delete:

https://trash-guides.info/Hardlinks/How-to-setup-for/Unraid/
