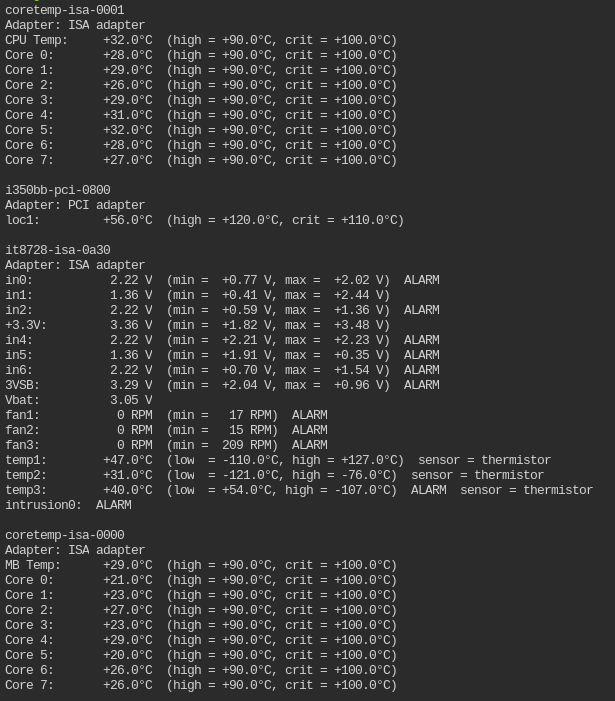

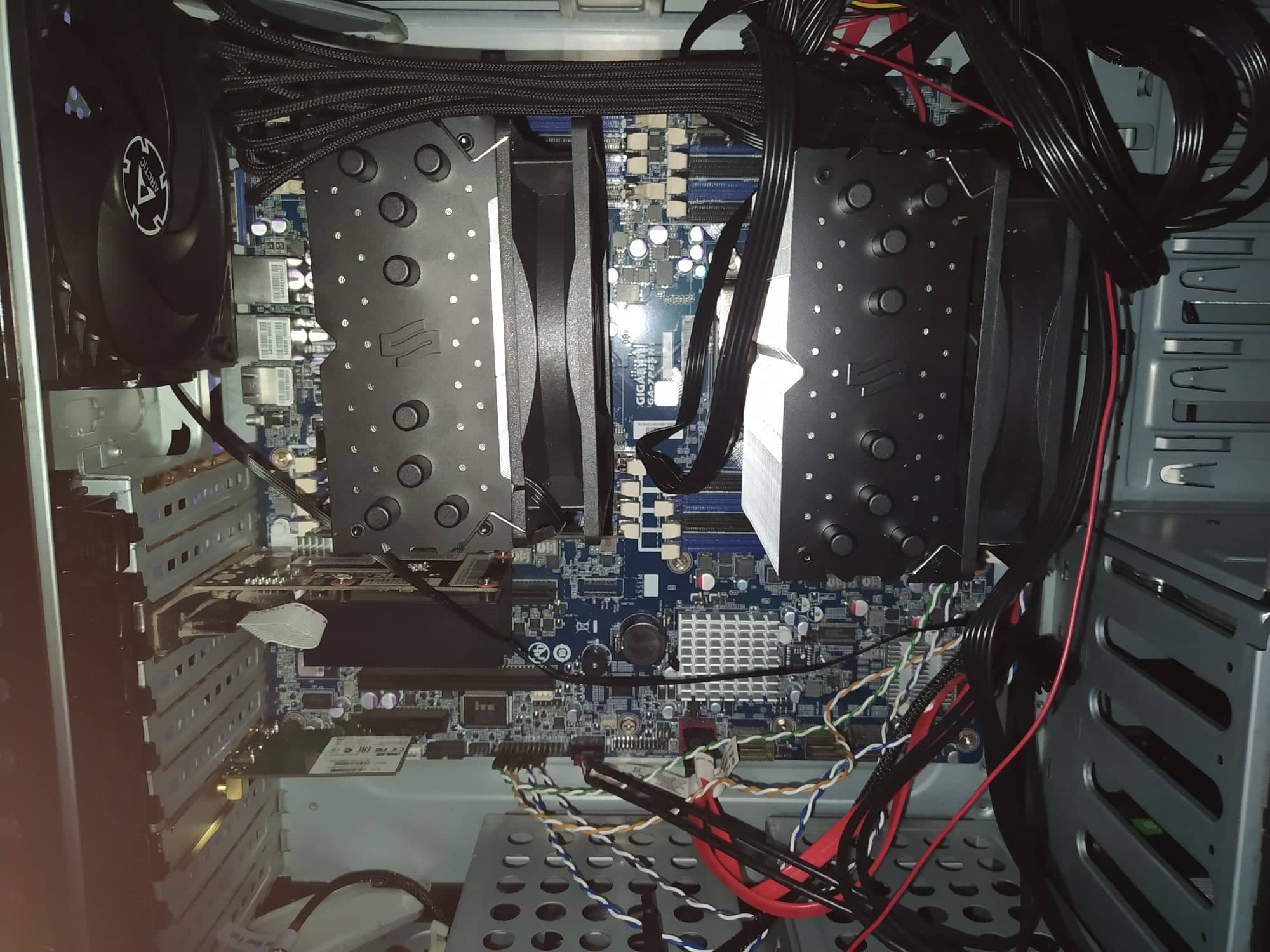

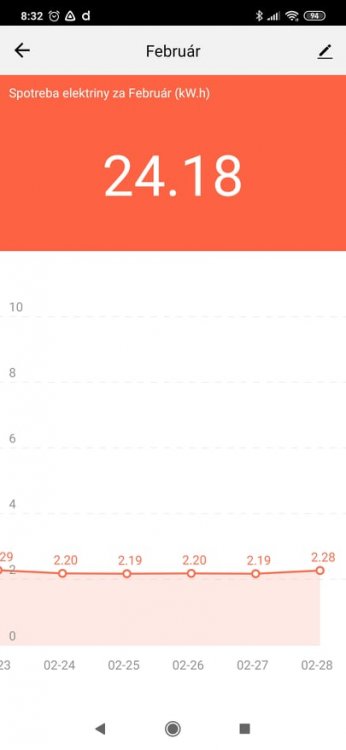

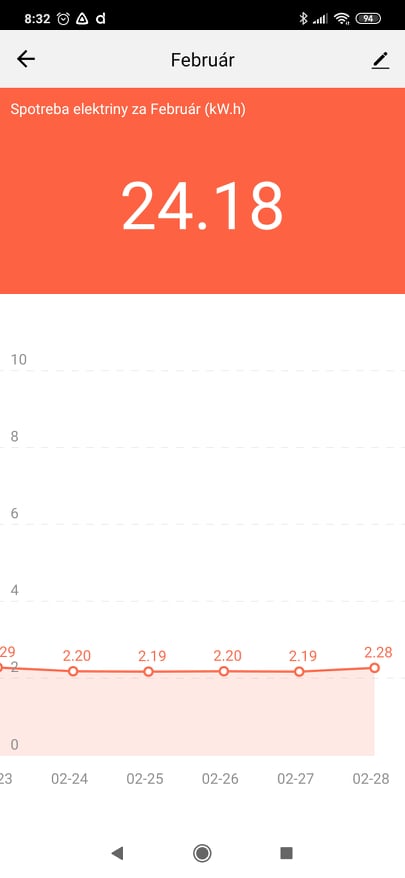

markosko Posted February 27, 2021 Share Posted February 27, 2021 (edited) Hello, made server mostly cause of Jellyfin, Gitlab and unraid network shares availability Self hosting dockers: Gitlab Jellyfin Cloudflare DNS Nginx Proxy Manager Recipes (for mother to save recipes) Nextcloud WireGuard VPN Bitwarden Pihole wanted to add pfsense but have problem having vdsl router and forced to use that router because of IPTV boxes in house VM: Fedora with LDAP/FreeIPA (for now only this one) Configuration of server: Case: Thermaltake VH6001 Motherboard: Gigabyte GA-7PESH1 2x CPU: Xeon E5-2670 Ram: 2x 16GB DDR3 ECC (probably Hynix, not sure currently, got it as bundle used from ebay with motherboard and cpus) Disks: Seagates 4TB parity drive and 1TB data drive, waiting for cables SAS -> SATA to add more disks 2x CPU coolers: SilentiumPC Fera 3 HE1224 (air coolers) PSU: SilentiumPC Vero M3 Bronze 600W EDIT: Image of not best cable management for PC Power usage is from 17th but that time i only started it for few hours for parity check, but after next days mostly running fulltime, max i seen was 2.28kWh per day Edited March 1, 2021 by markosko Added photos of inside, power usage and temps Quote Link to comment
