March 2, 20215 yr Was running 6.8.3 with functional iGPU/QS transcoding w/ Plex. Upgraded to 6.9 this morning and now the /dev/dri directory is missing. Found the section in the Wiki that explains the drivers being blacklisted, created the necessary file to whitelist it ( /boot/config/modprobe.d/i915.conf ), rebooted the server, but /dev/dri is still missing. Removed the original lines I had previously added to the go file in 6.8.3 and rebooted, but still no dice. The Server had been rebooted several times before with no issues and nothing has changed within the BIOS settings. My Server is essentially useless at the moment, so any help would be greatly appreciated. Mobo: Supermicro X11SCH-F CPU: Intel Xeon E-2246G Everything points to the fact that it SHOULD be working: root@Morgoth:~# lsmod | grep -i 'i915' i915 1712128 0 iosf_mbi 16384 1 i915 drm_kms_helper 163840 1 i915 drm 356352 2 drm_kms_helper,i915 intel_gtt 20480 1 i915 video 45056 1 i915 i2c_algo_bit 16384 2 igb,i915 backlight 16384 3 video,i915,drm i2c_core 45056 8 drm_kms_helper,i2c_algo_bit,igb,i2c_smbus,i2c_i801,i915,ipmi_ssif,drm root@Morgoth:~# modinfo i915 filename: /lib/modules/5.10.19-Unraid/kernel/drivers/gpu/drm/i915/i915.ko.xz license: GPL and additional rights description: Intel Graphics author: Intel Corporation Output of the above is the same on both 6.8.3 and 6.9. Although lspci -k doesn't show it is in use, like it used to on 6.8.3: 00:02.0 Display controller: Intel Corporation HD Graphics P630 Subsystem: Super Micro Computer Inc Device 1b11 Kernel driver in use: i915 Kernel modules: i915 Compared to 6.9: 00:02.0 Display controller: Intel Corporation CoffeeLake-S GT2 [UHD Graphics P630] Subsystem: Super Micro Computer Inc Device 1b11 Kernel modules: i915 Running modprobe i915, which should no longer be necessary anyway, doesn't make /dev/dri show up either. Doesn't seem to matter whether or not the array is started either. Diagnostics are attached in case they might be of any help. morgoth-diagnostics-20210302-1228.zip Edited March 2, 20215 yr by tronyx Typo
March 2, 20215 yr Author For anyone else that may encounter the same issue, I was able to resolve my issue on 6.9 by removing the nomodeset commands in my /boot/syslinux/syslinux.cfg file, like so: root@Morgoth:~# cat /boot/syslinux/syslinux.cfg default menu.c32 menu title Lime Technology, Inc. prompt 0 timeout 50 label unRAID OS menu default kernel /bzimage append initrd=/bzroot label unRAID OS GUI Mode kernel /bzimage append initrd=/bzroot,/bzroot-gui label unRAID OS Safe Mode (no plugins, no GUI) kernel /bzimage append initrd=/bzroot unraidsafemode label unRAID OS GUI Safe Mode (no plugins) kernel /bzimage append initrd=/bzroot,/bzroot-gui unraidsafemode label Memtest86+ kernel /memtest I do not remember explicitly adding them myself previously, but it is very possible that I did to get things working on 6.8.3. Edited March 2, 20215 yr by tronyx Edit the fix
March 2, 20215 yr Author 6 minutes ago, coblck said: Did you remove the extra lines in the go file or leave them I removed them as they are no longer needed, per the 6.9 docs. Also, please see my edited reply above as I found the real issue and resolved it.
March 2, 20215 yr I see you use the igpu for plex transcoding, i have i7400 with igpu and use mine mainly for plex, updating tomorrow and just wondering if i have to change anything within the plex docker parameters like i originally did top get it use use igpu for hardware transcoding. What exactly did you add or remove form the /boot/syslinux/syslinux.cfg file. Thanks Edited March 2, 20215 yr by coblck
March 2, 20215 yr Author 47 minutes ago, coblck said: I see you use the igpu for plex transcoding, i have i7400 with igpu and use mine mainly for plex, updating tomorrow and just wondering if i have to change anything within the plex docker parameters like i originally did top get it use use igpu for hardware transcoding. What exactly did you add or remove form the /boot/syslinux/syslinux.cfg file. Thanks After upgrading to 6.9, I followed the docs to whitelist the i915 driver, as they're now blacklisted by default, as outlined HERE. Then I removed the original entry I had made to the /boot/config/go file to get things working with 6.8.3, and rebooted.
March 2, 20215 yr Ok thanks will have a look, would this command need to be entered in the terminal window after every reboot Edited March 2, 20215 yr by coblck
March 2, 20215 yr Author 5 minutes ago, coblck said: Ok thanks will have a look, would this command need to be entered in the terminal window after every reboot What command? The doc outlines creating a file on the flash drive which is persistent between reboots.
March 2, 20215 yr This command "touch /boot/config/modprobe.d/amdgpu.conf # create an empty file" Im sorry for the hassle just not very clear to me. So within config/modprobe.d folder create a file with "touch /boot/config/modprobe.d/amdgpu.conf # create an empty file" using notepad ??
March 2, 20215 yr Author 8 minutes ago, coblck said: This command "touch /boot/config/modprobe.d/amdgpu.conf # create an empty file" Im sorry for the hassle just not very clear to me. So within config/modprobe.d folder create a file with "touch /boot/config/modprobe.d/amdgpu.conf # create an empty file" using notepad ?? No, the command is this: touch /boot/config/modprobe.d/amdgpu.conf That will create an empty file called amdgpu.conf in the /boot/config/modprobe.d/ directory. You will need to create the correct file that corresponds to your GPU type. If it is an Intel integrated GPU, like with my issue, you will need to create the i915.conf file instead of the amdgpu.conf file. This will cause it to overwrite the file that exists to blacklist the driver.
March 2, 20215 yr Yeah i understood the intel part 😄 , so if i login into unraid from my w10 pc and open a console window and type touch /boot/config/modprobe.d/i915.conf that's it ?
March 2, 20215 yr Author 2 minutes ago, coblck said: Yeah i understood the intel part 😄 , so if i login into unraid from my w10 pc and open a console window and type touch /boot/config/modprobe.d/i915.conf that's it ? That should be it, per the docs.
March 2, 20215 yr I take it the boot/config/modprobe file is already present on the flash drive. Thanks very much only use my server for plex so like you useless to me if cant transcode. Thanks again and sorry for the hassle
March 2, 20215 yr Author 14 minutes ago, coblck said: I take it the boot/config/modprobe file is already present on the flash drive. That is a directory, not a file, but yes, it exists already, or at least it should. If not, create the directory.
March 25, 20215 yr So i have run the touch ************** command and i have the i915.conf file in my modprobe.d folder. How do i get a /dev/dri folder ???? my syslinix.cfg file looked correct i think
March 25, 20215 yr 22 minutes ago, mdrodge said: So i have run the touch ************** command and i have the i915.conf file in my modprobe.d folder. How do i get a /dev/dri folder ???? my syslinix.cfg file looked correct i think Have you ever had the iGPU loaded and working with the i915 drivers or is this your first go at it? Usually, /dev/dri does not get created by loading the drivers unless you have the iGPU properly configured in your BIOS. Diagnostics would be helpful to see your system configuration.
March 25, 20215 yr I'm an i915 virgin Just setting up a low power j5040 the bios is configured exactly the same as my other j5040 i use in windows and that fine Edited March 25, 20215 yr by mdrodge
March 25, 20215 yr Im the same if i try cd /dev/dri then ls nothing comes up. before in 6.8.3 with the modprobe in go file the igpu would be listed if i typed this. But since Ive installed intel top plugin when upgraded to 6.9.1 its not listed when i type cd dev/dri . While transcoding in plex it definitely using the igpu as can be seen in the gpu statistics and (hw) is listed on the plex dashboard. Edited March 25, 20215 yr by coblck

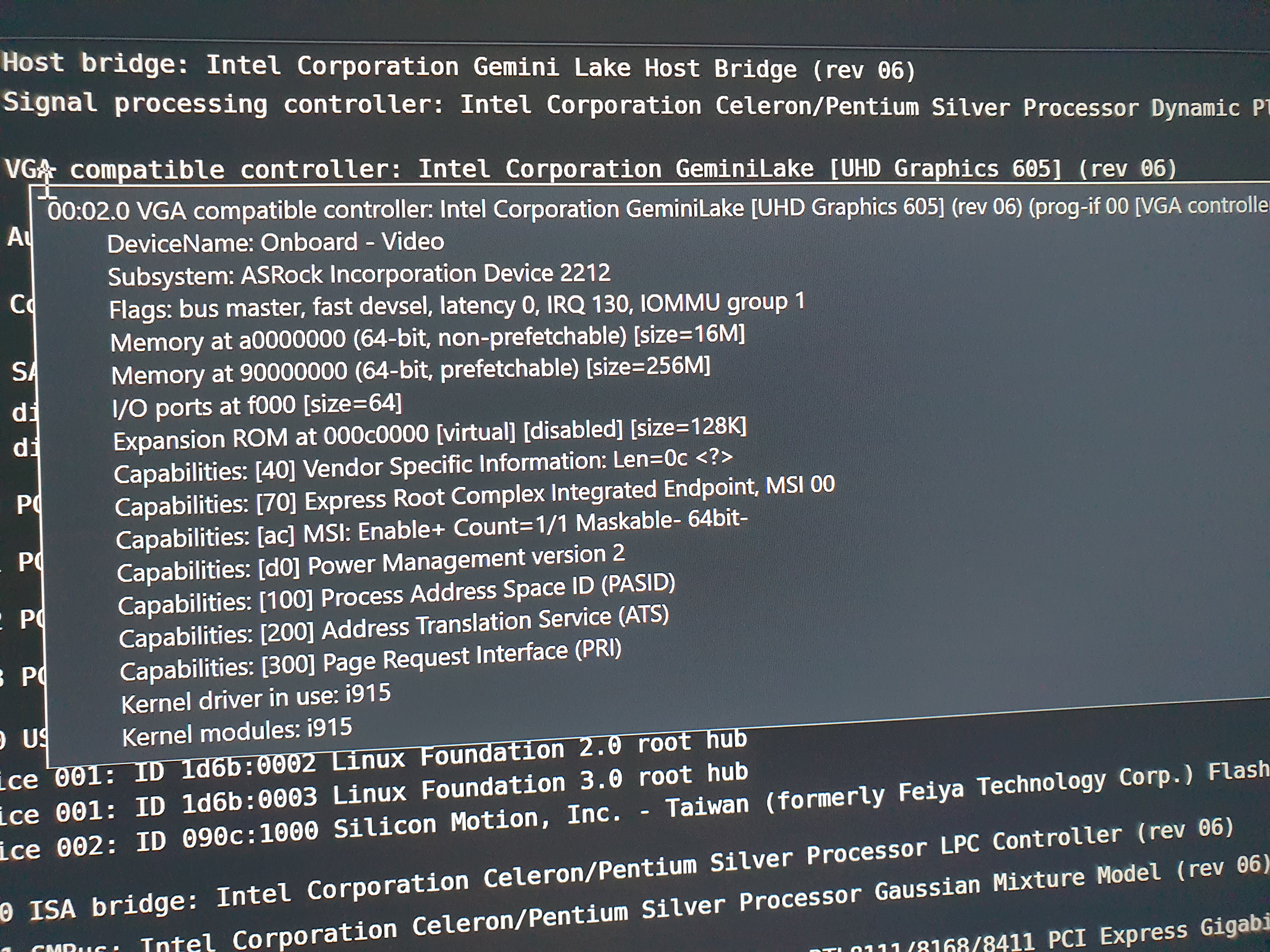

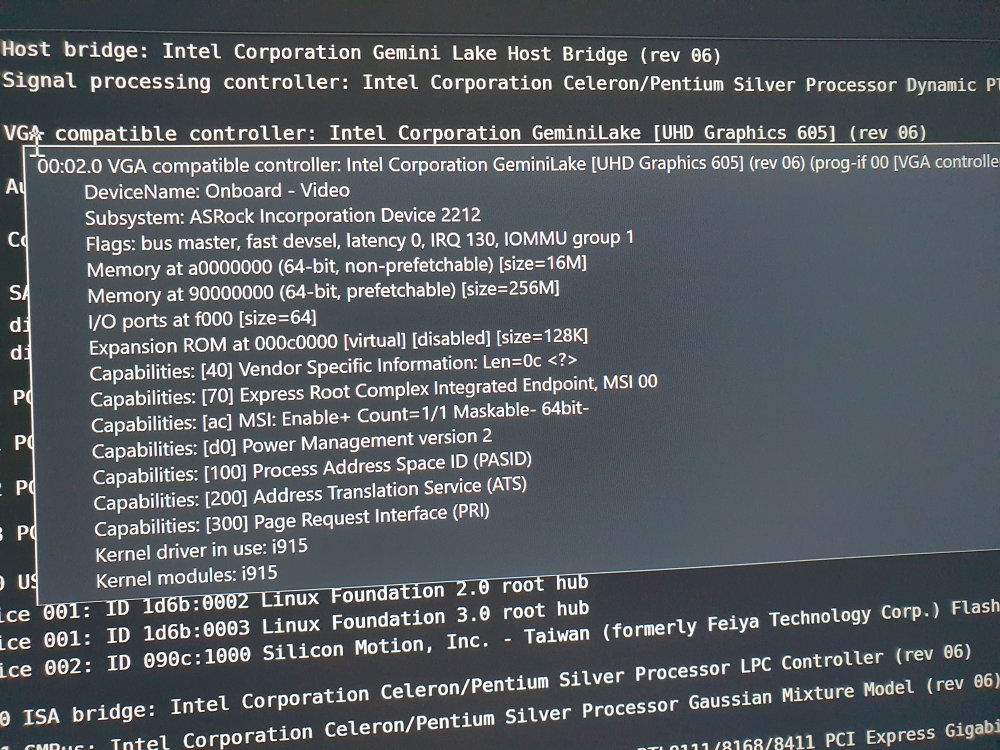

March 25, 20215 yr in the SysDevs tab my igpu is available and has it's own iommu group and in the description it lists i915 as the driver.
March 25, 20215 yr 21 minutes ago, coblck said: upgraded to 6.9.1 its not listed when i type cd dev/dri . While transcoding in plex it definitely using the igpu as can be seen in the gpu statistics and (hw) is listed on the plex dashboard. Well, that is interesting. You see no /dev/dri with these contents? and even though you have no /dev/dri, it is referenced in the Plex container in either Extra Parameters or as a configured Device (either will work)? If you are seeing (hw) in the Plex dashboard/Tautulli then it is obviously using the iGPU for hardware transcoding. Personally, I have never seen Plex or HandBrake use the iGPU without the presence of /dev/dri as seen above. but who knows, maybe something has changed with the way it is being called in 6.9.1 with the way drivers are being loaded? I still see the /dev/dri folder and am curious how it could work without it. For the record, I now use the touch /boot/config/modprobe.d/i915.conf method, but it was also working fine under the old 'go' file method.
March 25, 20215 yr 28 minutes ago, coblck said: Im the same if i try cd /dev/dri then ls nothing comes up. before in 6.8.3 with the modprobe in go file the igpu would be listed if i typed this. But since Ive installed intel top plugin when upgraded to 6.9.1 Intel Top??????????? do i need that???????????????????????????????
March 25, 20215 yr 2 minutes ago, Hoopster said: Well, that is interesting. You see no /dev/dri with these contents? and even though you have no /dev/dri, it is referenced in the Plex container in either Extra Parameters or as a configured Device (either will work)? If you are seeing (hw) in the Plex dashboard/Tautulli then it is obviously using the iGPU for hardware transcoding. Personally, I have never seen Plex or HandBrake use the iGPU without the presence of /dev/dri as seen above. but who knows, maybe something has changed with the way it is being called in 6.9.1 with the way drivers are being loaded? I still see the /dev/dri folder and am curious how it could work without it. For the record, I now use the touch /boot/config/modprobe.d/i915.conf method, but it was also working fine under the old 'go' file method. was tempted to try that but thought i'd explore getting a /dev/dri folder first

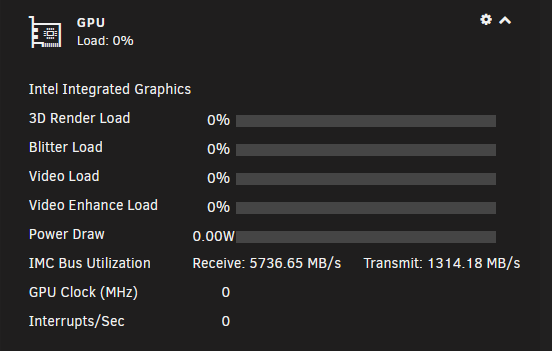

March 25, 20215 yr 2 minutes ago, mdrodge said: Intel Top??????????? do i need that??????????????????????????????? No. not necessary to get things running. It is just for seeing iGPU stats when in use. I installed the GPU Statistics plugin (which uses Intel Top), but it is just window dressing. Nothing going on with iGPU at the moment.
March 25, 20215 yr 1 minute ago, mdrodge said: was tempted to try that but thought i'd explore getting a /dev/dri folder first Yeah, I was quoting @coblck who said he had hardware transcoding going without seeing /dev/dri
