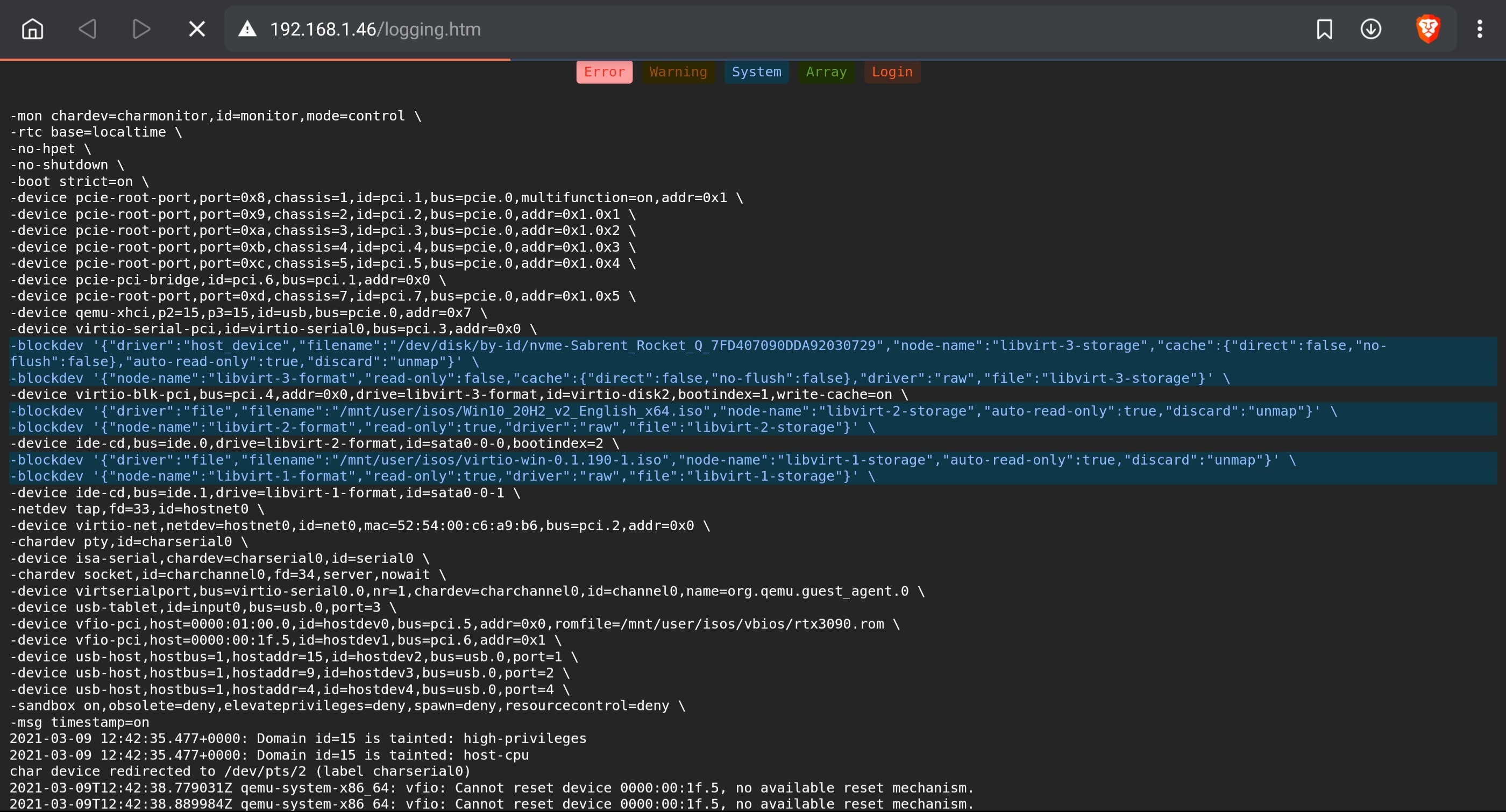

March 9, 20215 yr Hello all, I have exhausted all my efforts in creating a Windows VM and kindly ask if anyone could stear me in the right direction. The VM was working on my previous motherboard (MSI Godlike) however due to separate issues, I replaced it with a Gigabyte Motherboard which has worked right out of the box. My issue however is that when I tried to launch my VM, it threw up a "USB error". After several attempts to get it working, I gave up, deleted the VM and started again. The VM now appears to start (as it says "running"), however I get a blank screen and the following in the log; My VM XML is as follows; <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm'> <name>Windows 10</name> <uuid>REDACTED</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>33554432</memory> <currentMemory unit='KiB'>33554432</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>10</vcpu> <cputune> <vcpupin vcpu='0' cpuset='5'/> <vcpupin vcpu='1' cpuset='15'/> <vcpupin vcpu='2' cpuset='6'/> <vcpupin vcpu='3' cpuset='16'/> <vcpupin vcpu='4' cpuset='7'/> <vcpupin vcpu='5' cpuset='17'/> <vcpupin vcpu='6' cpuset='8'/> <vcpupin vcpu='7' cpuset='18'/> <vcpupin vcpu='8' cpuset='9'/> <vcpupin vcpu='9' cpuset='19'/> </cputune> <os> <type arch='x86_64' machine='pc-q35-5.0'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/9e5a1c81-571d-c306-6b2f-eceb5c62e8aa_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> <hyperv> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vendor_id state='on' value='none'/> </hyperv> </features> <cpu mode='host-passthrough' check='none' migratable='on'> <topology sockets='1' dies='1' cores='5' threads='2'/> <cache mode='passthrough'/> </cpu> <clock offset='localtime'> <timer name='hypervclock' present='yes'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='block' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source dev='/dev/disk/by-id/nvme-Sabrent_Rocket_Q_7FD407090DDA92030729'/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/Win10_20H2_v2_English_x64.iso'/> <target dev='hda' bus='sata'/> <readonly/> <boot order='2'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/virtio-win-0.1.190-1.iso'/> <target dev='hdb' bus='sata'/> <readonly/> <address type='drive' controller='0' bus='0' target='0' unit='1'/> </disk> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='1' port='0x8'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/> </controller> <controller type='pci' index='2' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='2' port='0x9'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='pci' index='3' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='3' port='0xa'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/> </controller> <controller type='pci' index='4' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='4' port='0xb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x3'/> </controller> <controller type='pci' index='5' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='5' port='0xc'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x4'/> </controller> <controller type='pci' index='6' model='pcie-to-pci-bridge'> <model name='pcie-pci-bridge'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </controller> <controller type='pci' index='7' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='7' port='0xd'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x5'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='usb' index='0' model='qemu-xhci' ports='15'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:c6:a9:b6'/> <source bridge='br0'/> <model type='virtio-net'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </interface> <serial type='pty'> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'> <address type='usb' bus='0' port='3'/> </input> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </source> <rom file='/mnt/user/isos/vbios/rtx3090.rom'/> <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x00' slot='0x1f' function='0x5'/> </source> <address type='pci' domain='0x0000' bus='0x06' slot='0x01' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x045e'/> <product id='0x00cb'/> </source> <address type='usb' bus='0' port='1'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x045e'/> <product id='0x0750'/> </source> <address type='usb' bus='0' port='2'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x048d'/> <product id='0x5702'/> </source> <address type='usb' bus='0' port='4'/> </hostdev> <memballoon model='none'/> </devices> </domain> Lastly, this is my device page;

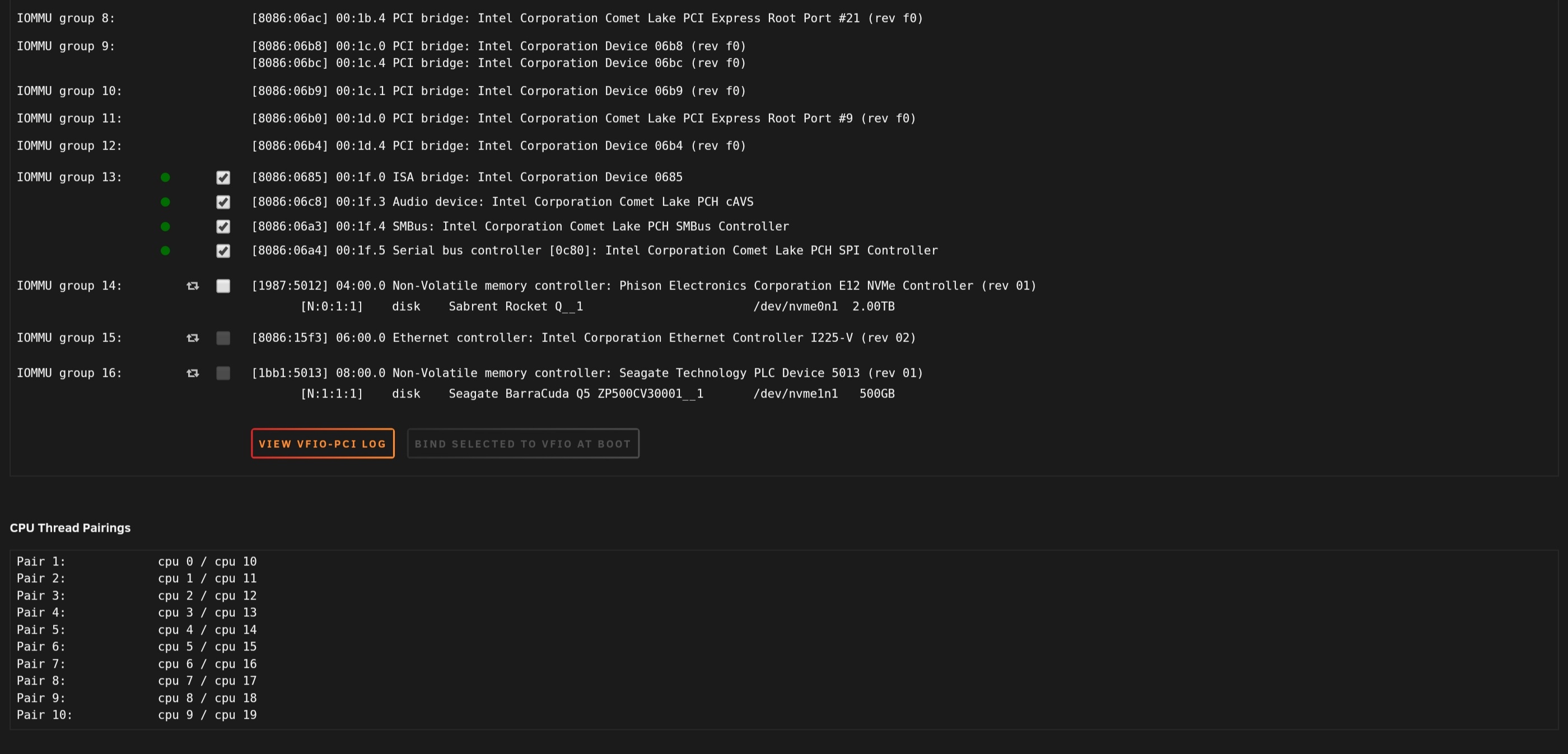

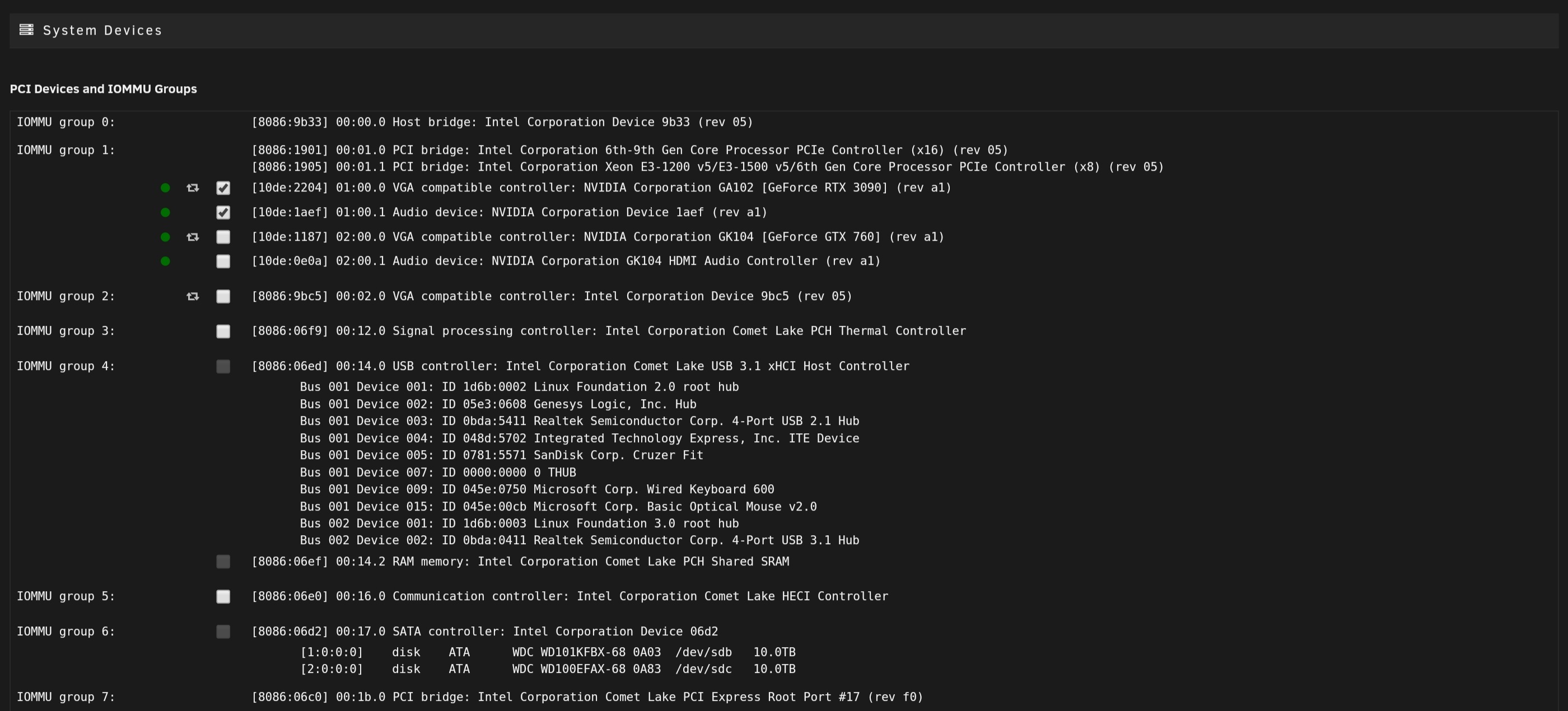

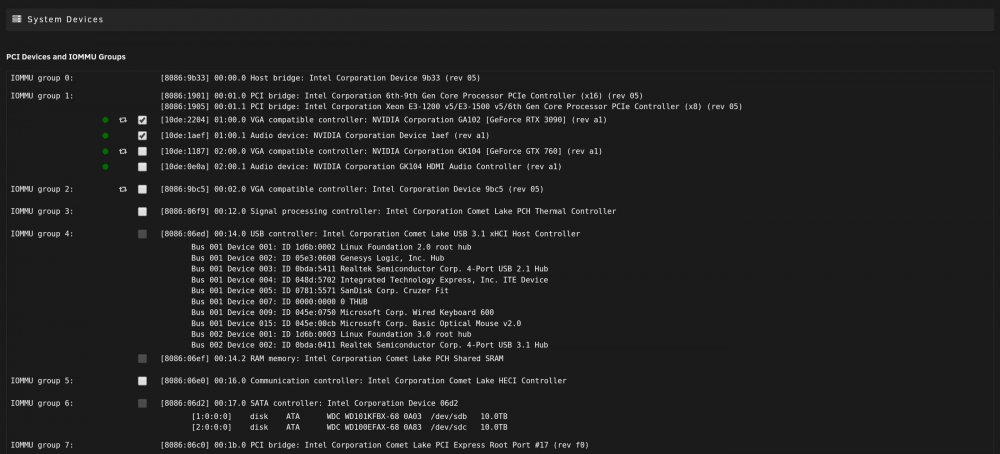

March 12, 20215 yr On 3/9/2021 at 6:54 AM, LoneTraveler said: <type arch='x86_64' machine='pc-q35-5.0'>hvm</type> Full disclaimer, I'm not an expert, however I did notice you're using q35-5.0 machine type in your VM's-XML; my w10-vm uses pc-i440fx and it was just last week I upgraded from 6.8.3 to 6.9.1 without issue. Perhaps this is part of your boot issue? Why it would have been working while Unraid was 6.8.3 versus 6.9.x I do not know, but (on my system) starting a new "Windows 10" template the machine type defaults to the i440fx type. Are there specifics why you're using q35 machine type (I'm just curious)? ... Never mind, I just made a VM with q35 machine type and it booted up no issue, so ignore my ignorance about machine types - but perhaps that's playing into things? (again IDK just grasping at "plausables" ideas to test and troubleshoot) Last line of your log screen shot showed it couldn't reset 0000:lf.5 which I think is the controller you stubbed out? (last screen shot, still learning new 6.9.x features - haven't played enough) Perhaps trying to uncheck that controller, reboot and give the VM another try? Probably not that useful info, but if it was me I would investigate/troubleshoot that device next. GL Edited March 12, 20215 yr by Jcloud
March 13, 20215 yr Author 16 hours ago, Jcloud said: Full disclaimer, I'm not an expert, however I did notice you're using q35-5.0 machine type in your VM's-XML; my w10-vm uses pc-i440fx and it was just last week I upgraded from 6.8.3 to 6.9.1 without issue. Perhaps this is part of your boot issue? Why it would have been working while Unraid was 6.8.3 versus 6.9.x I do not know, but (on my system) starting a new "Windows 10" template the machine type defaults to the i440fx type. Are there specifics why you're using q35 machine type (I'm just curious)? ... Never mind, I just made a VM with q35 machine type and it booted up no issue, so ignore my ignorance about machine types - but perhaps that's playing into things? (again IDK just grasping at "plausables" ideas to test and troubleshoot) Last line of your log screen shot showed it couldn't reset 0000:lf.5 which I think is the controller you stubbed out? (last screen shot, still learning new 6.9.x features - haven't played enough) Perhaps trying to uncheck that controller, reboot and give the VM another try? Probably not that useful info, but if it was me I would investigate/troubleshoot that device next. GL Hi, Many thanks for taking the time to reply. To be honest, the only reason I used the q35-5.0 was because of the online guide I used recommended it, I'll have to dig it out. I really don't know the difference between them. I've deleted and recreated the VM several times and all of a sudden its started up with no errors displayed. I can only assume that the motherboard replacement left some gremlins in the system that needed to be flushed out. Its unfortunate that I haven't been able to learn from incident, however I'm just happy that it's all working now. Thanks again for your assistance.
