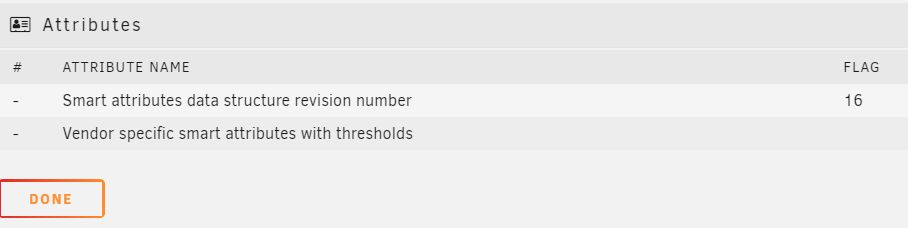

hawihoney Posted March 10, 2021 Share Posted March 10, 2021 (edited) HBA Controller: LSI 9300-8e Backplane: Supermicro BPN-SAS2-EL1 Drives changing behaviour of Unraid and HBA: 5x HGST HUS726020ALA610 (total 24 drives at backplane) These 5x SATA devices behave like a SAS device. After install of 6.9.0/6.9.1 the Unraid server hosting five of these HUS726020ALA610 drives behaves completely different. 1.) For the first time in many years, the Activity LED on the Drive Carrier is "solid on" (blue). The description for this is called "SAS/NVMe drive installed". No other SATA drive models showed or show "solid on". They report "I/O activity (blinking blue)" but no "solid blue". 2.) If these drives are connected to a HBA, the HBA behaves different too. Unraid fails to spindown drives. In fact all 24 drives are affected and don't spin down any longer. Standard spindown is broken at this point. "SAS spindown" app needs to be installed to overcome that problem. 3.) Unraid GUI fails to show SMART values. Again all 24 drives are affected. The "Attributes" section on the SMART page is empty. "smartctl -a" still works. Before somebody asks: The drives were spun up while trying to show SMART values in Unraud GUI. 4.) In two identical VMs the disk-by-id prefix for all drives changes from "ata*" to "scsi*". When removing the HGST SATA drives it changes back to "ata*". Weird is, while /dev/disk/by-id shows "scsi*" prefix, Unraid/Tools/System Devices still shows "ATA" instead: ata-TOSHIBA_HDWE140_Y75DK1KLF58D --> scsi-3500003990b8815e3 Is it possible that various drives are SATA drives but report a SAS drive to the controller? Is it possible that the MegaRAID driver has a bug? Perhaps this is the reason for other peoples spindown problems. Edited March 22, 2021 by hawihoney Quote Link to comment
Vr2Io Posted March 10, 2021 Share Posted March 10, 2021 (edited) 4 hours ago, hawihoney said: After install of 6.9.0/6.9.1 the Unraid server hosting five of these HUS726020ALA610 drives behaves completely different. 4 hours ago, hawihoney said: The "Attributes" section on the SMART page is empty. "smartctl -a" still works. I got same issue that attribute show similar result ( mine revision 4 and you were 16 ) on a disk with USB bridge (SAT mode access), but it will show all attribute if click download "report" Your case haven't bridge but those disk have Instant Secure Erase (ISE) feature, But I haven't further troubleshoot or report here, it likely a bug. 4 hours ago, hawihoney said: 3.) Unraid GUI fails to show SMART values (all 24 drives are affected I haven't notice that because I have one disk only. I have other 7K6 disks ( no ISE ), confirm no problem on 6.9.0 / 6.9.1 Edited March 10, 2021 by Vr2Io Quote Link to comment
BRiT Posted March 10, 2021 Share Posted March 10, 2021 Do you have the additional plugin to spindown SAS drives? Quote Link to comment
hawihoney Posted March 10, 2021 Author Share Posted March 10, 2021 5 hours ago, BRiT said: Do you have the additional plugin to spindown SAS drives? Yes, now, after my finding. Quote Link to comment
hawihoney Posted March 22, 2021 Author Share Posted March 22, 2021 After the installation of a most recent firmware on this LSI 9300-8e Adapter the behaviour changed back to normal. The scsi* Prefixes in /dev/disk/by-id are gone now and have been replaced by the usual ata-* prefixes. Quote Link to comment
