March 25, 20215 yr Hi! my APC UPS is giving up the ghost (internal fault) and just did a quick browse and spotted this. Powercool would it be compatible with NUT?

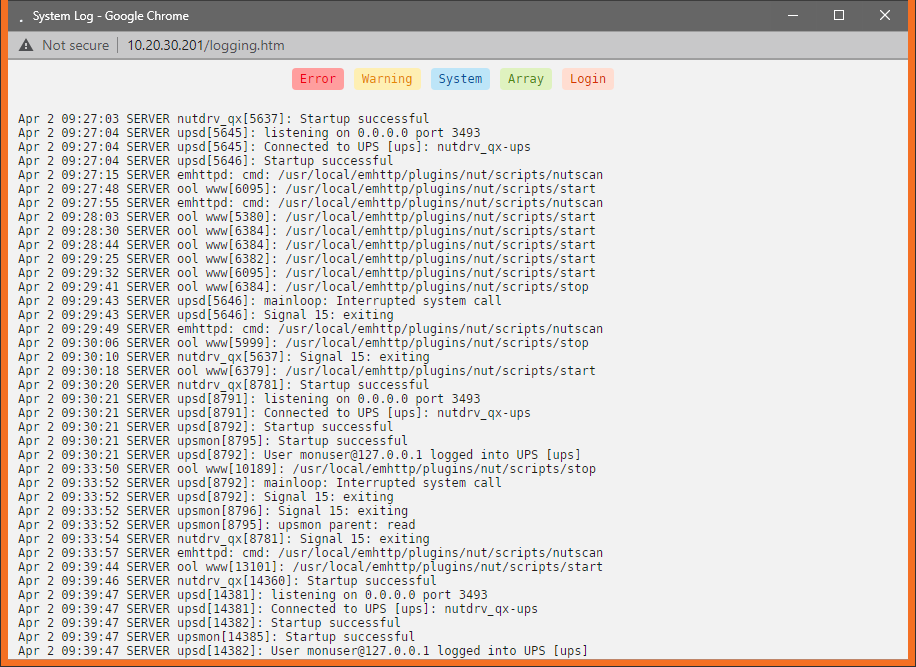

April 2, 20215 yr Author ok, so against my better judgement [i just wanted UPS protection that i currently lost from the broken down one] i ordered the PowerCool 1000VA plugged it in and used AutoDetect in NUT and it detected: but it kept setting the driver to blazer [which reading in the NUT manual - LINK is what is it], but then further reading and googling found this: Discussion on the Powercool and the nutdrv-qx driver GitHub so put this [without quotes] into the ups.conf in the editor at the bottom of NUT settings and set USB driver to custom nutdrv_qx and that is the limit of capabilities. has anyone managed to get Powercool UPS to work with NUT? a little surprised as its such a budget/cheap UPS in the UK that if it were to work easily, it'd be a no-brainer for UK users to get one! any advice anyone can offer, i'd appreciate it! Edited April 2, 20215 yr by Jammy B
April 2, 20215 yr Not sure what it is you are wanting, but as long as the UPS properly signals immediately when power is lost, that's all that's needed. Set unraid to shut down after 2 or 3 minutes of outage and you will be fine. A UPS like that isn't meant to keep services running through an outage, it's to allow a safe and proper shutdown.
April 3, 20215 yr Author 20 hours ago, jonathanm said: Not sure what it is you are wanting, but as long as the UPS properly signals immediately when power is lost, that's all that's needed. Set unraid to shut down after 2 or 3 minutes of outage and you will be fine. A UPS like that isn't meant to keep services running through an outage, it's to allow a safe and proper shutdown. That’s exactly what I’m wanting, but at the moment the two aren’t talking to each other, if it were as simple as the APC was. It’d be great. im after advice on how to get the two to communicate so that it can safely shut down Unraid in the event of a power cut. Edited April 3, 20215 yr by Jammy B

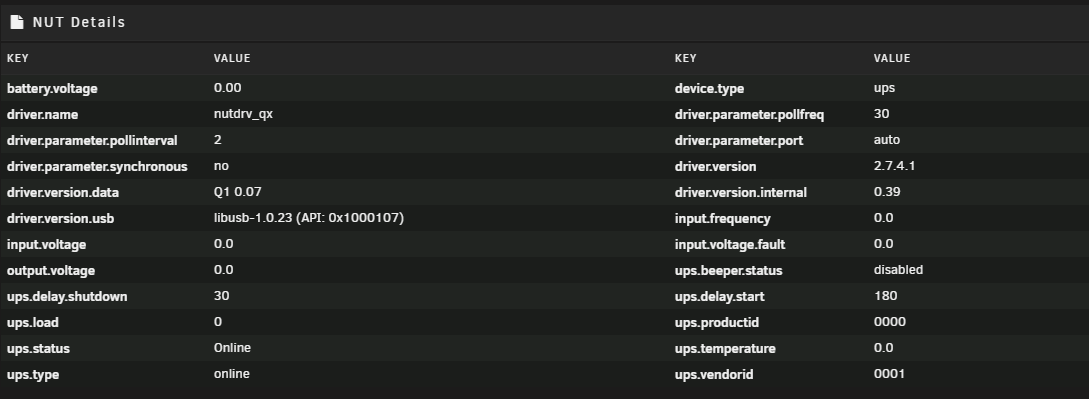

April 3, 20215 yr The screenshot shows status online. Does it change when you turn off the outlet that supplies power to the UPS? Obviously all such testing needs to be done with the server powered on a separate circuit.
April 3, 20215 yr Author 4 hours ago, jonathanm said: The screenshot shows status online. Does it change when you turn off the outlet that supplies power to the UPS? Obviously all such testing needs to be done with the server powered on a separate circuit. no, it stays ONLINE the whole time.

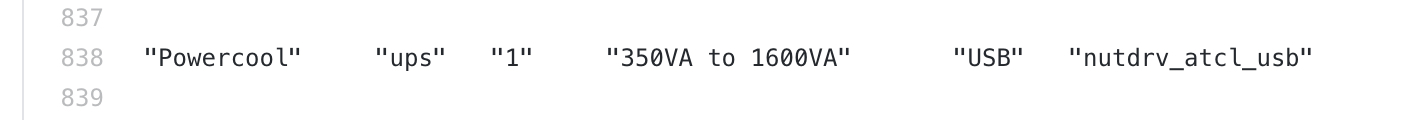

April 3, 20215 yr Author Found this https://github.com/cbedgar/nut/blob/1e9216399b890b0770a0e8b158109eaa5e61d332/data/driver.list.in how do I add this to NUT? https://networkupstools.org/docs/man/nutdrv_atcl_usb.html sounds promising? I edited the driver to custom “nutdrv_actl_usb” and NUT would not start. Edited April 4, 20215 yr by Jammy B
April 5, 20215 yr Hi Newbie here. Have you had any further luck getting this working? Looking to purchase a UPS for my first ever Unraid build and would prefer not to shell out too much for it. This seems like a good value unit.
April 5, 20215 yr Same position as Travis, I've also be very interested if you had any luck with this?
April 10, 20215 yr I suppose it's not worth taking the risk. Any other relatively low-cost options out there?
April 18, 20215 yr Author Update. installed the powercool software on my VM within unraid. got the UPS to appear and when I killed the power, it recognised it. And then! UnRAID recognised it too!! but just as quickly as it saw it was off, it then went back online (and at the same time, I could not connect to the powercool on my VM any longer) so, I’m definitely getting warmer! bonus was seeing I’m only using 20% capacity, so it’ll last a few minutes on battery mode.

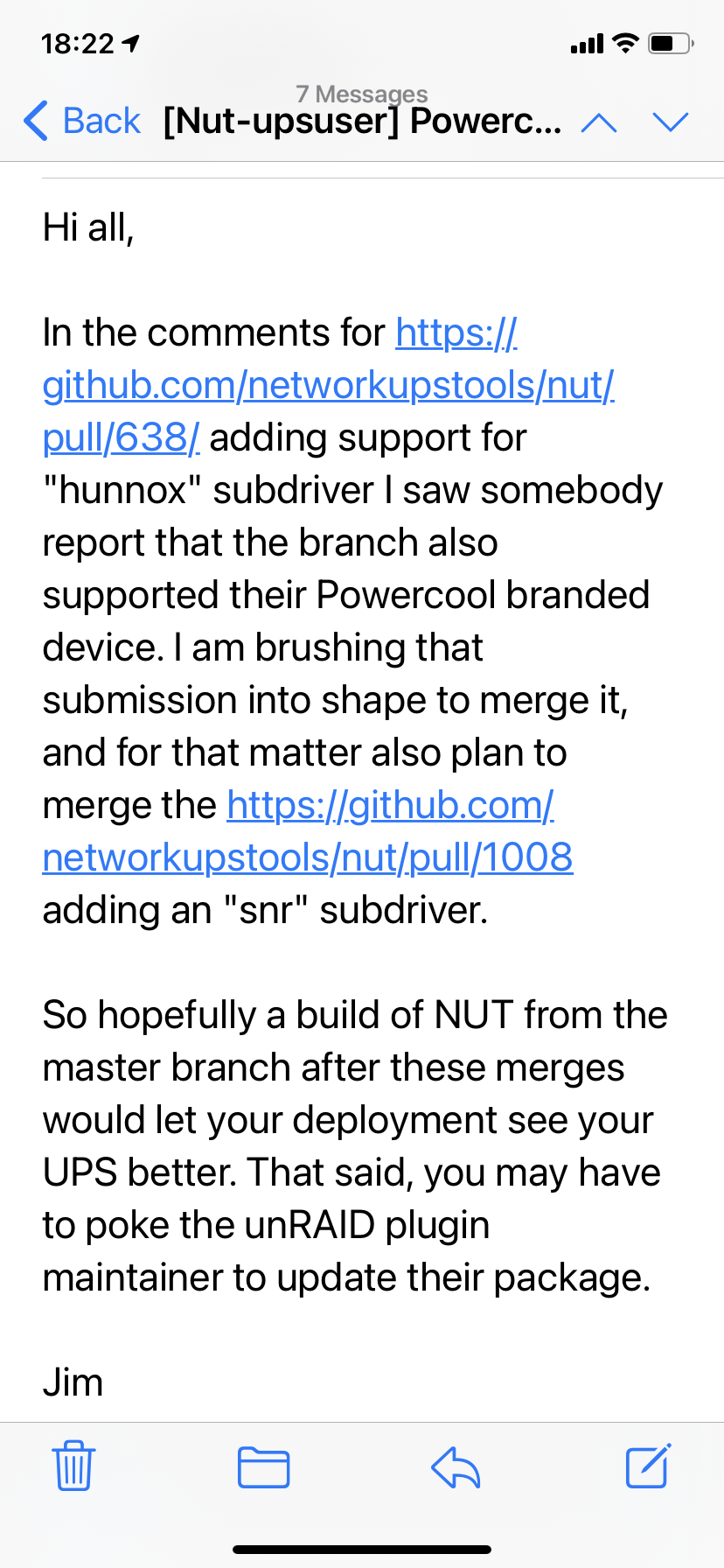

June 24, 20215 yr Author @IGHOR @travisbickle @jellytotz you'll want to see page 16 of the NUT thread. Powercool now works with unRAID!
June 26, 20215 yr Author ups.conf Powercool 1000va [ups] driver = nutdrv_qx port = auto vendorid = 0001 productid = 0000 protocol = hunnox langid_fix = 0x0409 novendor noscanlangid default.battery.voltage.high = 27.50 default.battery.voltage.low = 21.40 default.battery.voltage.nominal = 24.00 Edited June 26, 20215 yr by Jammy B
June 26, 20215 yr 3 hours ago, Jammy B said: default.battery.voltage.low = 24.00 default.battery.voltage.nominal = 21.40 Are you sure? Nominal is named voltage, which for 2 12V in series would be 24, and the voltage low needs to be the tested value just before the UPS powers down with a low battery condition. You can't just put a value in and assume it's correct. Either get the official value from the manufacturer, or test it.
June 26, 20215 yr Author 15 minutes ago, jonathanm said: Are you sure? Nominal is named voltage, which for 2 12V in series would be 24, and the voltage low needs to be the tested value just before the UPS powers down with a low battery condition. You can't just put a value in and assume it's correct. Either get the official value from the manufacturer, or test it. I had low and nominal swapped by mistake. I corrected it after I pasted it in to my config but I forgot to correct it when I copied it over to the post above. It’ll do fine for now. The low figure is set from the solar battery link you posted in the other thread. Edited June 26, 20215 yr by Jammy B
June 27, 20215 yr 7 hours ago, Jammy B said: The low figure is set from the solar battery link you posted in the other thread. Which has little if any correlation to the low voltage threshold set in the UPS. If the actual setpoint in the UPS is higher, then the UPS will shut off while the NUT software thinks there should still be plenty of battery left. You must find the correct value for your specific UPS model, either experimentally or from the manufacturer.
