Resizable BAR RTX 3000


Recommended Posts

SO Hello there,



i am trying to activate the Resizable BAR option in my Windows 10 VM,

 i have an Asus Sage c621e and an Beta BIOS with enabled Resizable BAR and on my bare Metal Win10 i can enable and use it.



But not so with Unraid. What did i try?!

I pulled the new Bios from my bare metal Win10 and copied it to my ISOs folder and can use it.

My VM boots with CSM enabled with the new VBIOS.

My VM can boot without CSM with the old VBIOS but not with the Resizable BAR VBIOS.



So far since the new Nvidia Drivers are out i dont need to add "multifunction='on' and dont need to correct the Bus lane and device 1 on 1" for the GPU



is anyone else on this ?!



regards Dom



it seems that ResizeBar is hidden from the Guest, so maybe this will be added later.



with CSM disabled i get this error



2021-03-31T09:30:39.219757Z qemu-system-x86_64: -device vfio-pci,host=0000:5e:00.0,id=hostdev0,bus=pci.4,multifunction=on,addr=0x0: Failed to mmap 0000:5e:00.0 BAR 1. Performance may be slow



my newest VM XML



<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm' id='2'>
  <name>Windows 10</name>
  <uuid>289985a2-2b40-e21d-ea93-3fb675330dc9</uuid>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>
  </metadata>
  <memory unit='KiB'>33554432</memory>
  <currentMemory unit='KiB'>33554432</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>20</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='42'/>
    <vcpupin vcpu='1' cpuset='94'/>
    <vcpupin vcpu='2' cpuset='43'/>
    <vcpupin vcpu='3' cpuset='95'/>
    <vcpupin vcpu='4' cpuset='44'/>
    <vcpupin vcpu='5' cpuset='96'/>
    <vcpupin vcpu='6' cpuset='45'/>
    <vcpupin vcpu='7' cpuset='97'/>
    <vcpupin vcpu='8' cpuset='46'/>
    <vcpupin vcpu='9' cpuset='98'/>
    <vcpupin vcpu='10' cpuset='47'/>
    <vcpupin vcpu='11' cpuset='99'/>
    <vcpupin vcpu='12' cpuset='48'/>
    <vcpupin vcpu='13' cpuset='100'/>
    <vcpupin vcpu='14' cpuset='49'/>
    <vcpupin vcpu='15' cpuset='101'/>
    <vcpupin vcpu='16' cpuset='50'/>
    <vcpupin vcpu='17' cpuset='102'/>
    <vcpupin vcpu='18' cpuset='51'/>
    <vcpupin vcpu='19' cpuset='103'/>
  </cputune>
  <resource>
    <partition>/machine</partition>
  </resource>
  <os>
    <type arch='x86_64' machine='pc-q35-5.1'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/289985a2-2b40-e21d-ea93-3fb675330dc9_VARS-pure-efi.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
    <hyperv>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
      <vendor_id state='on' value='none'/>
    </hyperv>
  </features>
  <cpu mode='host-passthrough' check='none' migratable='on'>
    <topology sockets='1' dies='1' cores='10' threads='2'/>
    <cache mode='passthrough'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hypervclock' present='yes'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='block' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source dev='/dev/nvme1n1' index='3'/>
      <backingStore/>
      <target dev='hdc' bus='virtio'/>
      <boot order='1'/>
      <alias name='virtio-disk2'/>
      <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
    </disk>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/RAID/Windows 10/vdisk2.img' index='2'/>
      <backingStore/>
      <target dev='hdd' bus='virtio'/>
      <alias name='virtio-disk3'/>
      <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/virtio-win-0.1.190-1.iso' index='1'/>
      <backingStore/>
      <target dev='hdb' bus='sata'/>
      <readonly/>
      <alias name='sata0-0-1'/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <alias name='usb'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <alias name='usb'/>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <alias name='usb'/>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <alias name='usb'/>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <controller type='pci' index='4' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='4' port='0xb'/>
      <alias name='pci.4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x3'/>
    </controller>
    <controller type='pci' index='5' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='5' port='0xc'/>
      <alias name='pci.5'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x4'/>
    </controller>
    <controller type='pci' index='6' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='6' port='0xd'/>
      <alias name='pci.6'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x5'/>
    </controller>
    <controller type='pci' index='7' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='7' port='0xe'/>
      <alias name='pci.7'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x6'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <alias name='virtio-serial0'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/>
    </controller>
    <controller type='sata' index='0'>
      <alias name='ide'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pcie-root'>
      <alias name='pcie.0'/>
    </controller>
    <controller type='pci' index='1' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='1' port='0x8'/>
      <alias name='pci.1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='2' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='2' port='0x9'/>
      <alias name='pci.2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
    </controller>
    <controller type='pci' index='3' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='3' port='0xa'/>
      <alias name='pci.3'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:36:cc:9b'/>
      <source bridge='br0'/>
      <target dev='vnet0'/>
      <model type='virtio-net'/>
      <alias name='net0'/>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
    </interface>
    <serial type='pty'>
      <source path='/dev/pts/0'/>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
      <alias name='serial0'/>
    </serial>
    <console type='pty' tty='/dev/pts/0'>
      <source path='/dev/pts/0'/>
      <target type='serial' port='0'/>
      <alias name='serial0'/>
    </console>
    <channel type='unix'>
      <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-2-Windows 10/org.qemu.guest_agent.0'/>
      <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/>
      <alias name='channel0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='mouse' bus='ps2'>
      <alias name='input0'/>
    </input>
    <input type='keyboard' bus='ps2'>
      <alias name='input1'/>
    </input>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x5e' slot='0x00' function='0x0'/>
      </source>
      <alias name='hostdev0'/>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x5e' slot='0x00' function='0x1'/>
      </source>
      <alias name='hostdev1'/>
      <address type='pci' domain='0x0000' bus='0x06' slot='0x00' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x04' slot='0x00' function='0x0'/>
      </source>
      <alias name='hostdev2'/>
      <address type='pci' domain='0x0000' bus='0x07' slot='0x00' function='0x0'/>
    </hostdev>
    <memballoon model='none'/>
  </devices>
  <seclabel type='dynamic' model='dac' relabel='yes'>
    <label>+0:+100</label>
    <imagelabel>+0:+100</imagelabel>
  </seclabel>
</domain>









Log Files from win 10 VM

nodefaults \
-chardev socket,id=charmonitor,fd=31,server,nowait \
-mon chardev=charmonitor,id=monitor,mode=control \
-rtc base=localtime \
-no-hpet \
-no-shutdown \
-boot strict=on \
-device pcie-root-port,port=0x8,chassis=1,id=pci.1,bus=pcie.0,multifunction=on,addr=0x1 \
-device pcie-root-port,port=0x9,chassis=2,id=pci.2,bus=pcie.0,addr=0x1.0x1 \
-device pcie-root-port,port=0xa,chassis=3,id=pci.3,bus=pcie.0,addr=0x1.0x2 \
-device pcie-root-port,port=0xb,chassis=4,id=pci.4,bus=pcie.0,addr=0x1.0x3 \
-device pcie-root-port,port=0xc,chassis=5,id=pci.5,bus=pcie.0,addr=0x1.0x4 \
-device pcie-root-port,port=0xd,chassis=6,id=pci.6,bus=pcie.0,addr=0x1.0x5 \
-device pcie-root-port,port=0xe,chassis=7,id=pci.7,bus=pcie.0,addr=0x1.0x6 \
-device ich9-usb-ehci1,id=usb,bus=pcie.0,addr=0x7.0x7 \
-device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pcie.0,multifunction=on,addr=0x7 \
-device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pcie.0,addr=0x7.0x1 \
-device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pcie.0,addr=0x7.0x2 \
-device virtio-serial-pci,id=virtio-serial0,bus=pci.2,addr=0x0 \
-blockdev '{"driver":"host_device","filename":"/dev/nvme1n1","node-name":"libvirt-2-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-2-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-2-storage"}' \
-device virtio-blk-pci,bus=pci.3,addr=0x0,drive=libvirt-2-format,id=virtio-disk2,bootindex=1,write-cache=on \
-blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.190-1.iso","node-name":"libvirt-1-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-1-format","read-only":true,"driver":"raw","file":"libvirt-1-storage"}' \
-device ide-cd,bus=ide.1,drive=libvirt-1-format,id=sata0-0-1 \
-netdev tap,fd=33,id=hostnet0 \
-device virtio-net,netdev=hostnet0,id=net0,mac=52:54:00:36:cc:9b,bus=pci.1,addr=0x0 \
-chardev pty,id=charserial0 \
-device isa-serial,chardev=charserial0,id=serial0 \
-chardev socket,id=charchannel0,fd=34,server,nowait \
-device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \
-device vfio-pci,host=0000:5e:00.0,id=hostdev0,bus=pci.4,multifunction=on,addr=0x0 \
-device vfio-pci,host=0000:5e:00.1,id=hostdev1,bus=pci.4,addr=0x0.0x1 \
-device vfio-pci,host=0000:04:00.0,id=hostdev2,bus=pci.6,addr=0x0 \
-sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
-msg timestamp=on
2021-03-31 09:30:37.042+0000: Domain id=1 is tainted: high-privileges
2021-03-31 09:30:37.042+0000: Domain id=1 is tainted: host-cpu
char device redirected to /dev/pts/0 (label charserial0)
2021-03-31T09:30:39.219757Z qemu-system-x86_64: -device vfio-pci,host=0000:5e:00.0,id=hostdev0,bus=pci.4,multifunction=on,addr=0x0: Failed to mmap 0000:5e:00.0 BAR 1. Performance may be slow

Edited by domrockt
Link to comment
  • 4 months later...
  • 2 months later...
On 3/31/2021 at 11:02 AM, domrockt said:

My VM can boot without CSM with the old VBIOS but not with the Resizable BAR VBIOS.



may try without the vbios, i hope you flashed the bios also directly into the card ...

the whole chain needs to be uefi, csm/legacy is not supported, also above4g decoding should be enabled in the bios.



1 hour ago, zeus83 said:

Resizable bar is not virtualized so far. It's disabled in QEMU:

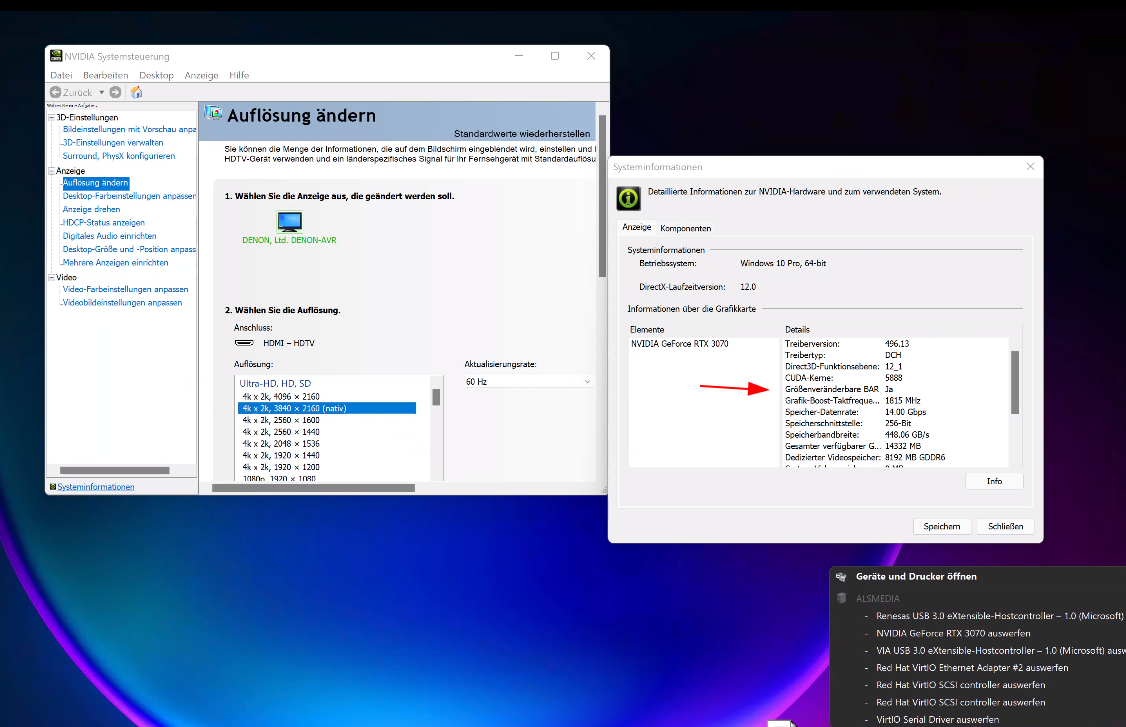

i cant confirm this here ... my Gaming VM with RTX3070 with enabled rBar


  • Like 1
Link to comment
On 10/25/2021 at 11:25 AM, alturismo said:

may try without the vbios, i hope you flashed the bios also directly into the card ...

the whole chain needs to be uefi, csm/legacy is not supported, also above4g decoding should be enabled in the bios.





i cant confirm this here ... my Gaming VM with RTX3070 with enabled rBar




How did you manage to do this ? Whenever I enable resizable bar support in bios my VM starts with black screen, no video output at all on my 6600 XT.

Link to comment
4 hours ago, zeus83 said:

How did you manage to do this ? Whenever I enable resizable bar support in bios my VM starts with black screen, no video output at all on my 6600 XT.



well, i had todo the following cause my hardware was not rBar ready ...



- flash the GPU with the rBar BIOS (came later for my 3070)

- flash the Mainboard with a rBar supported BIOS

- set in BIOS rBar enabled (also 4g decoding enabled, comes ONLY together)

- switch BIOS to boot unraid in uefi mode (before, set unraid to boot in uefi mode)



that was it ... nothing special todo in the VM then ...



but i wonder now, you compare this now with an AMD Device ? ... i mean its known that AMD and VM's are not always the best combo (sadly)

Link to comment

Yes, I only have 6600 xt in my disposal right now. Works pretty well in VM.



However I set up everything you did, but once rbar enabled in bios it's black screen when I start my VM.

No any errors in the logs. But I've noticed also that VM manager stops after I shutdown the VM. May be there is some critical issue with that.

Link to comment
  • 4 months later...
On 10/30/2021 at 6:50 PM, alturismo said:

well, i had todo the following cause my hardware was not rBar ready ...



- flash the GPU with the rBar BIOS (came later for my 3070)

- flash the Mainboard with a rBar supported BIOS

- set in BIOS rBar enabled (also 4g decoding enabled, comes ONLY together)

- switch BIOS to boot unraid in uefi mode (before, set unraid to boot in uefi mode)



I've been on a mission to get UEFI and rBar working this last few weeks.

I did everything above before reading all of this, and confirmed everything in a bare-metal install (Also so I could use NVFlash to backup the old and new BIOS).



After all of this, I still get a black screen when booting the VM that works perfectly fine with CSM enabled.



Interestingly, I also find that I am unable to boot into "Unraid GUI mode" when booting Unraid UEFI enabled.

When I boot the "Unraid GUI mode", everthing appears to boot correctly, and at the last moment when the screen goes black to show the GUI all I see is a flashing terminal cursor in the top left corner of the screen. Normally the GUI would boot and display the graphical login prompt.



Has anyone else experienced this or understand why this is?

This happens before booting any VM, and VMs boot to a black screen also, when they would normally boot ok.



On 3/31/2021 at 11:02 AM, domrockt said:

with CSM disabled i get this error



2021-03-31T09:30:39.219757Z qemu-system-x86_64: -device vfio-pci,host=0000:5e:00.0,id=hostdev0,bus=pci.4,multifunction=on,addr=0x0: Failed to mmap 0000:5e:00.0 BAR 1. Performance may be slow

I'm also seeing this in my logs with CSM disabled.



I was going to start a new thread about this summarising my experience, but I don't know if maybe I/we should try to work together about it here?

Link to comment

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Restore formatting

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
