Hi,



i try to add the bandwidth limit in the vm like that :



<interface type='bridge'>
      <mac address='52:54:00:24:d9:97'/>
      <source bridge='br0'/>
      <bandwidth>
        <inbound average='625' peak='625' burst='625'/>
        <outbound average='625' peak='625' burst='625'/>
      </bandwidth>
      <model type='virtio'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </interface>

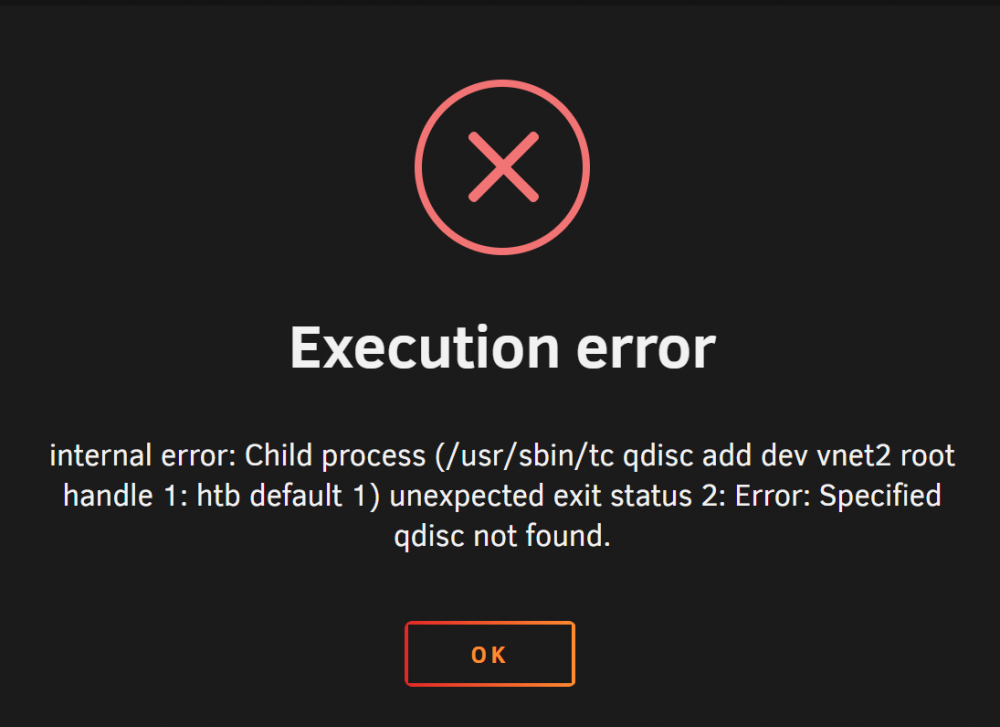

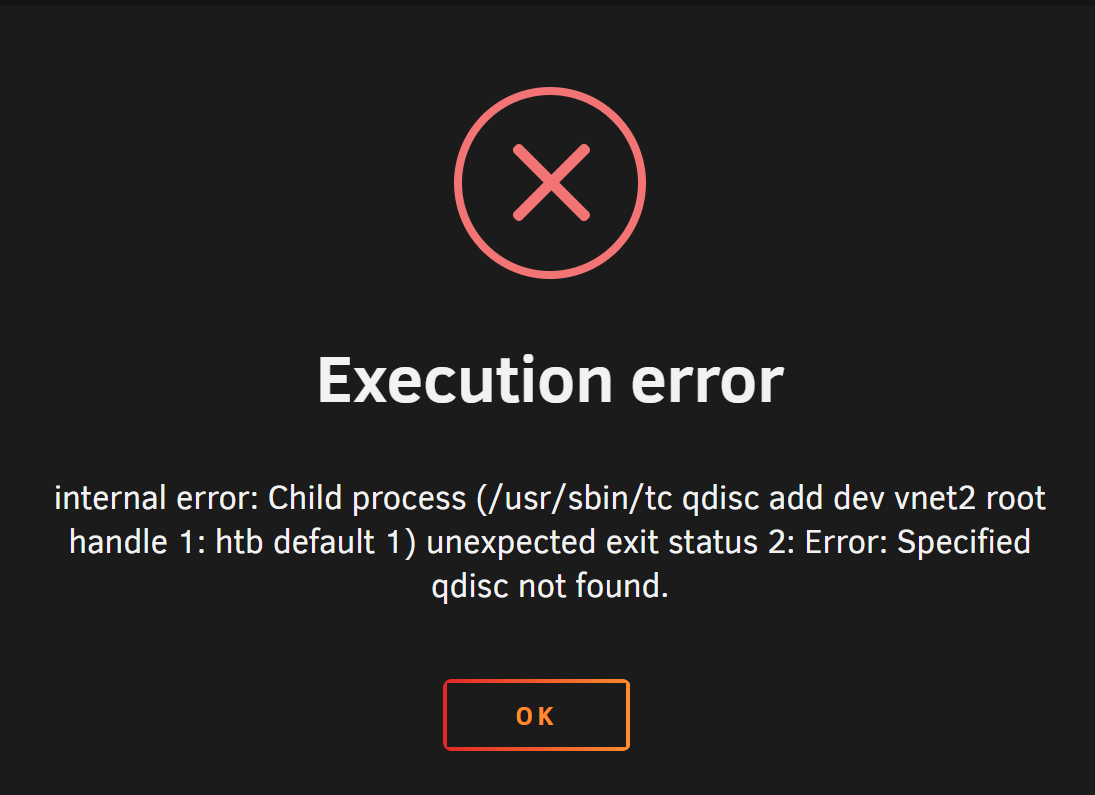

But if i try to start the vm i have this error :





Thanks for your help



Same error with a custom network :



<network>
  <name>virbr1-lab</name>
  <uuid>03ca9ae6-8dbc-43b7-8e63-366b46926b20</uuid>
  <forward mode='nat'/>
  <bandwidth>
    <inbound average='625' peak='625' burst='625'/>
    <outbound average='625' peak='625' burst='625'/>
  </bandwidth>
  <bridge name='virbr1-lab' stp='on' delay='0'/>
  <mac address='52:54:00:c5:18:43'/>
  <ip address='192.168.50.1' netmask='255.255.255.248'>
    <dhcp>
      <range start='192.168.50.2' end='192.168.50.6'/>
    </dhcp>
  </ip>
</network>



root@JamesServer:/tmp# virsh net-start virbr1-lab
error: Failed to start network virbr1-lab
error: internal error: Child process (/usr/sbin/tc qdisc add dev virbr1-lab root handle 1: htb default 2) unexpected exit status 2: Error: Specified qdisc not found.



Tried the same and found the answer in your other thread:

https://forums.unraid.net/topic/78993-solved-how-to-create-a-virtual-nic-for-internalisolated-use-only/?tab=comments#comment-974268
