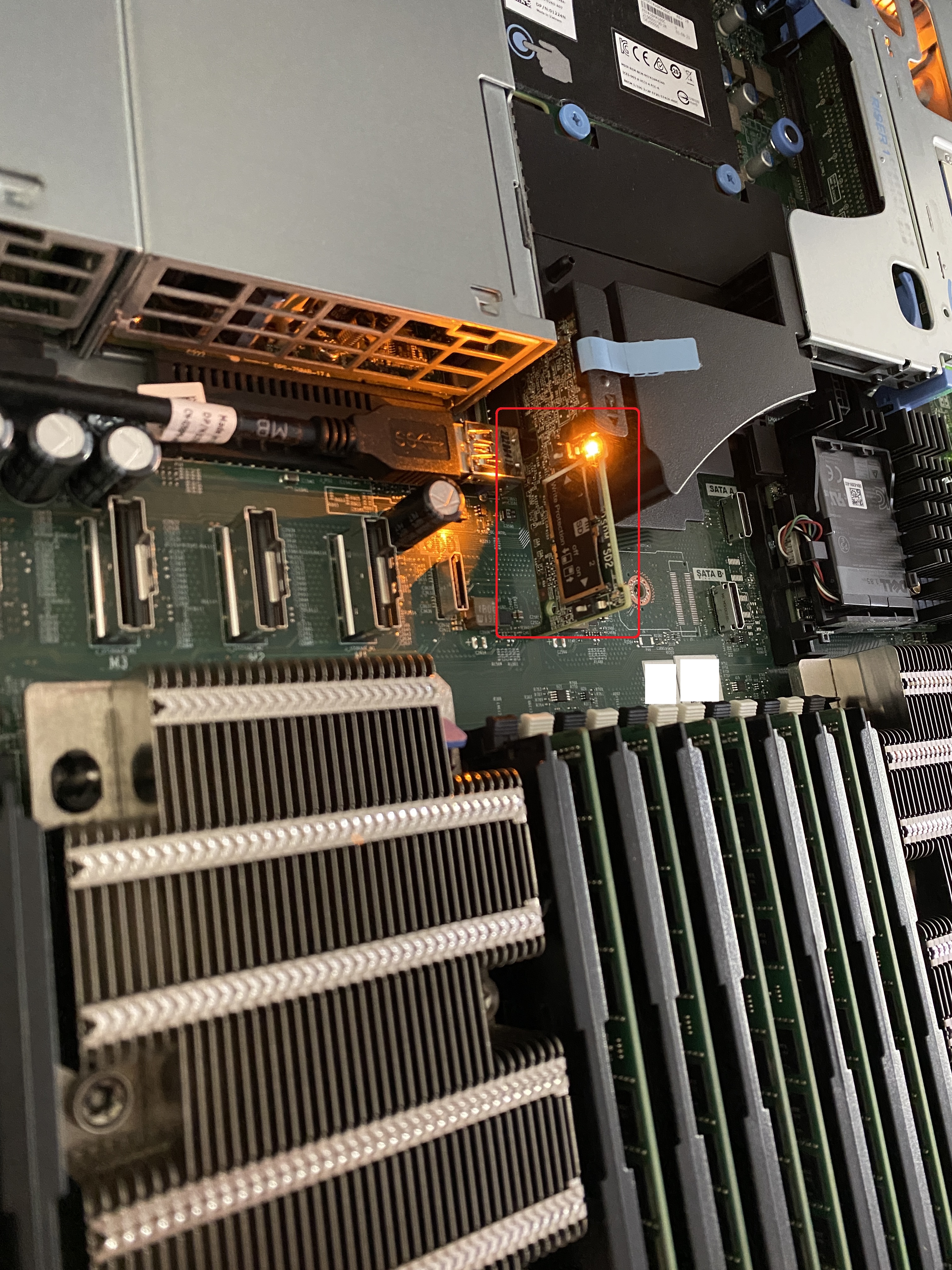

April 21, 20215 yr Hello Community, is it possible to use unraid 6 with Pro license in a Dell PowerEdge R640 with internal dual RAID1 SSD-Modul? (see screenshot) We have no place for USB on the back (USV-Management over USB) The front USB is not usable becase of the front cover with key? Hope you have a solution for us. Best regards Chris
April 21, 20215 yr Unplug the cable feeding the unusable front panel USB and plug the key in to that socket.
April 21, 20215 yr Author @jonathanm awesome idea, why didn't I think of it? Yes, it is a solution an i will do it, but is there no way to use the dual SD module with raid 1 setting? A single USB-Stick as showstopper sounds possible and the solution with dual SD RAID1 is very nice. Edited April 21, 20215 yr by aboutchris
April 21, 20215 yr Unraid doesn't run from the USB, it's only used at boot time to unpack the OS into RAM and read the saved settings. If properly managed, the USB stick is very reliable, there are many examples of 10+ years of service, moved from system to system as needed for motherboard upgrades. A full sized USB 2.0 stick of 32GB capacity is ideal. In the rare event of failure, it's simple to take the latest backup and create a new stick, as soon as Unraid gets online it will prompt you through the license replacement process.
April 21, 20215 yr Author @jonathanm Okay thanks for this information. I unplugged the front USB slot and used the internal, works as designed. Thx Wish y a nice day. Best regards Chris
April 21, 20215 yr In any case, the Unraid licence is attached to the USB drive GUID. I don't think it can load from a SD card.
April 21, 20215 yr Author Hey @ChatNoir, i know, but an SD-Card-Slot is nothing different like a USB for the system. I tried to install an UNRAID on a USB-Stick with SD-Card slot, this works. Im not finish with this part here i think i have a solution to use the SD-Card modul in the server. But RAID1 will still be a dream. I will give feedback if my idea will work, so other users with the same usecase can solve it. Thx.
April 22, 20215 yr Community Expert 13 hours ago, aboutchris said: Hey @ChatNoir, i know, but an SD-Card-Slot is nothing different like a USB for the system. I tried to install an UNRAID on a USB-Stick with SD-Card slot, this works. Im not finish with this part here i think i have a solution to use the SD-Card modul in the server. But RAID1 will still be a dream. I will give feedback if my idea will work, so other users with the same usecase can solve it. Thx. The question of being able to use the SD-Card slot is likely to depend on whether each such module has a unique GUID or whether Dell re-uses the same GUID on each such module. Unraid would require each one to be unique.
