Backplane: Dual SAS2 Supermicro backplanes (support 2TB+ drives)

CPU: Dual 6-core Xeon X5675 @ 3.07Ghz

RAM: 4x 16GB Kingston ECC (64GB total)

Motherboard: Supermicro X8DTL-3F-TM010

HSA Card: LSI 9201-16i 6G 16P SAS HBA P19 IT Mode

19x 8TB EXOS + 4x 4TB + 2x 512 GB M.2

SuperMicro SC847

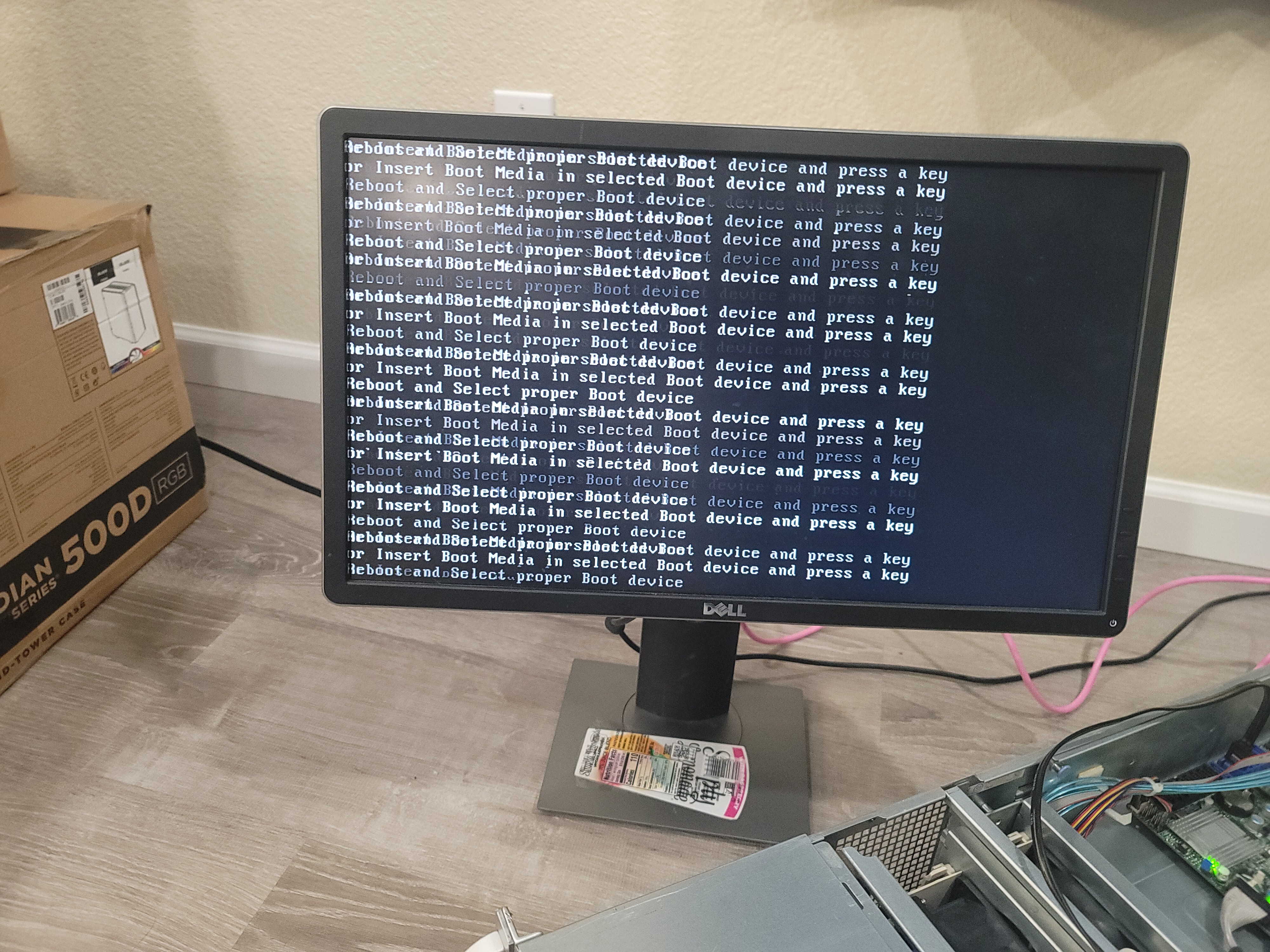

I am only using using the fron 24 bays, Unraid boots just fine with any 11 HDD's but any 12th causes it to go to the error pictured below.

When all are plugged in, it sees them but still fails, if any of them 11 or fewer are used, it boots just fine.  Any help would be greatly appreciated.

I have discord if that makes it easier to communicate.  Psyco Panduh#0869  -- Hope everyone is having a great day and thank you for your help in advance!



Edited April 22, 20215 yr by Psyco
Bad picture

Pls try step by step, once boot success, you can ignore other step



1. Set HBA bootable to disable.

2. At motherboard BIOS, identify HBA's PCIe slot, then disable that slot Optrom loading.

3. Update HBA BIOS and Firmware.

4. Update mobo BIOS.

5. Erase HBA's BIOS and Firmware.

I disabled the PCI slot and everything just works!!! Thank you, if its not to much trouble, could I have your thoughts on why that fixed it, I just want to learn from my mistakes/lack of knowledge.  THANK YOU AGAIN!!!



6 minutes ago, Psyco said:

I just want to learn from my mistakes/lack of knowledge.

Not your fault, this is compatibility problem, we just found a way to overcome it.

The last step ( update Mobo, HBA, BIOS/Firmware ) usually recommend, but those could make things worse, so I will put it in last.

Well thank you again! I'm still really new to this, now that I have the storage I can start using this "beast" to work some Machine Learning systems I've been itching to test out since Nov.

Thank you again!
