May 19, 20215 yr I'm trying to connect ZTE MF180 USB modem to my Unraid server. I need it for sending SMS messages using AT commands. Modem is visible in lsusb but it seems that Unraid kernel lacks "option" module and I can't connect to the modem via COM port - it simply do not exist. Can I add this module somehow or may be Unraid team will add it next release, please?

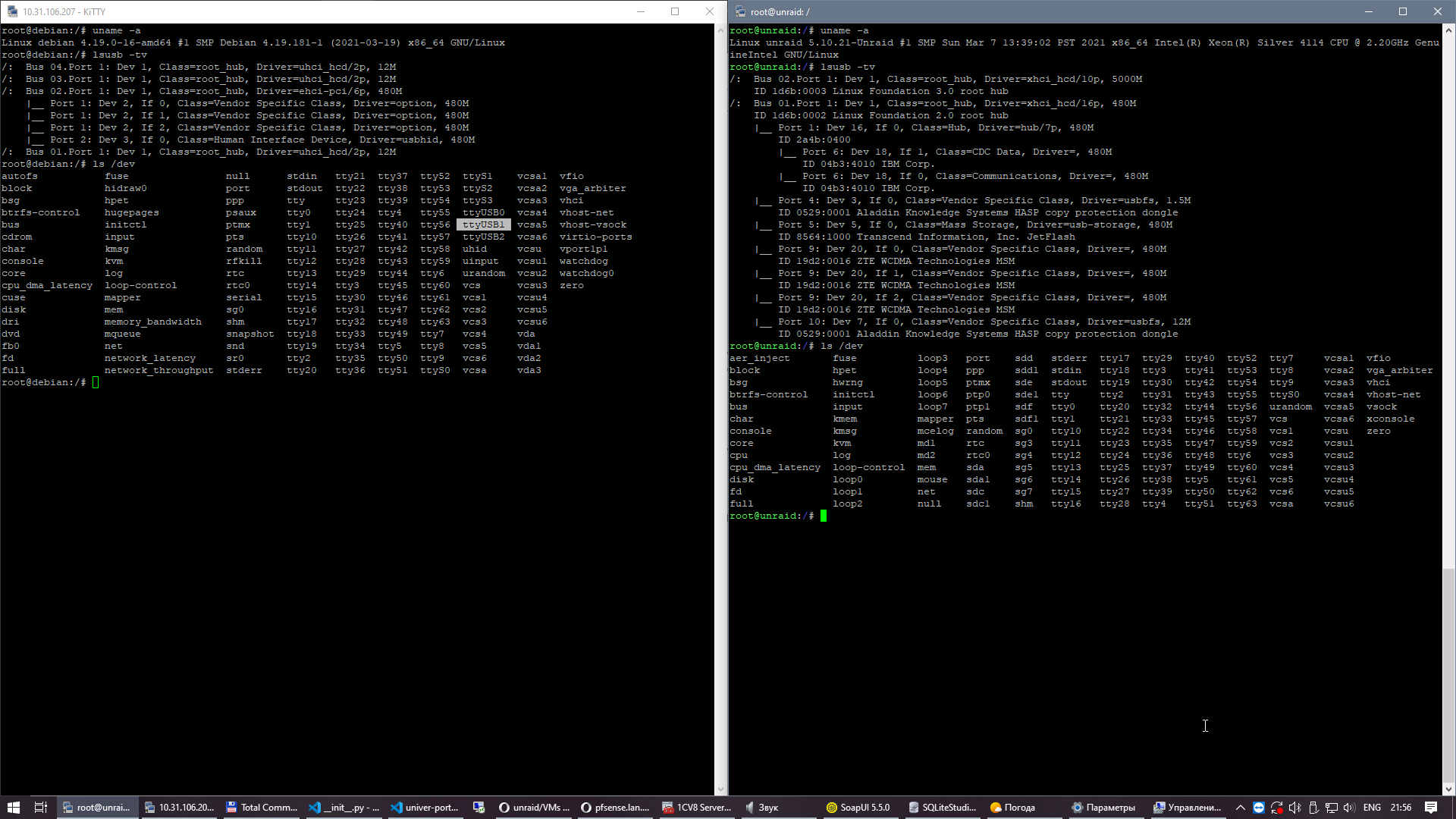

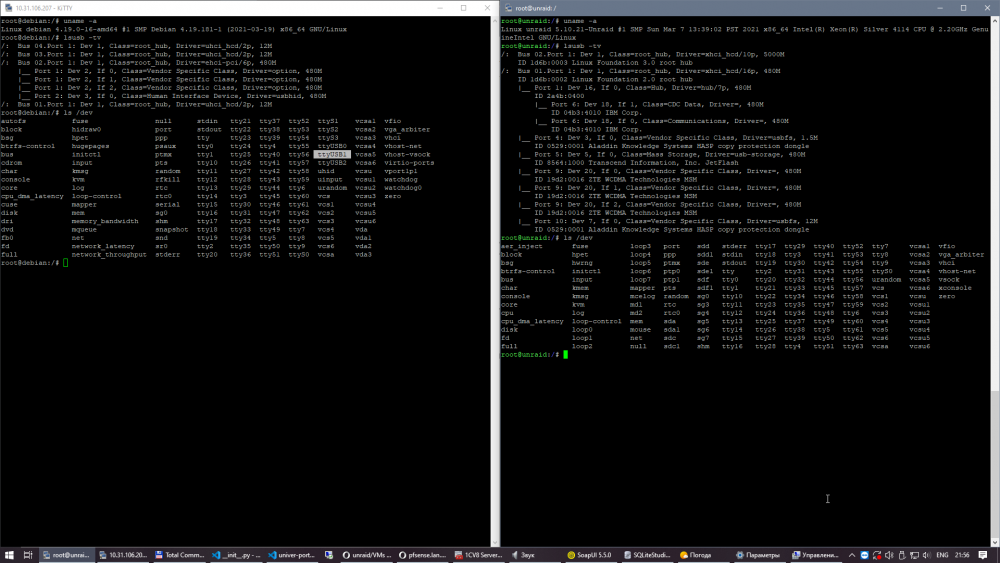

May 19, 20215 yr Author 2 hours ago, SimonF said: Do you not get a ttyacm0 or similar in /dev/ Exactly. Look at the attached screenshot. Left side - fresh install of Debian VM running inside Unraid with forwarded USB modem. Right side - bare Unraid (Debian VM is shutdown). On the left side modem is detected and I can use it with "screen /dev/usbTTY1" ATI Manufacturer: ZTE CORPORATION Model: MF180 Revision: BD_P671A1V1.0.3B12 IMEI: *************** +GCAP: +CGSM,+FCLASS,+DS OK On the right side I do not have any usbTTY, ttyacm0 or anything similar. As you can see it have "Driver=option" on the left and "Driver=" on the right Edited May 19, 20215 yr by WhiteAls
May 19, 20215 yr Looks like the kernel needs the following for that device. CONFIG_PCI CONFIG_USB CONFIG_USB_SERIAL CONFIG_USB_SERIAL_OPTION Current Unraid Compile option is root@Tower:/usr/src/linux-5.10.21-Unraid# cat .config | grep USB_SERIAL_OPTION # CONFIG_USB_SERIAL_OPTION is not set It may be that creates a module that could be created as a plugin.
May 23, 20215 yr Author On 5/19/2021 at 10:34 PM, SimonF said: It may be that creates a module that could be created as a plugin. As I understand it, the only way for me now is to compile the required module myself? And will I need to do this every time I update the system?
May 23, 20215 yr 29 minutes ago, WhiteAls said: compile the required module I will check to see if this can be added to a repo.
May 24, 20215 yr 16 hours ago, WhiteAls said: As I understand it, the only way for me now is to compile the required module myself? And will I need to do this every time I update the system? Are you running 6.9.2? if yes I can pm you the modules and instructions on how to install if you want to test them?
May 24, 20215 yr Author On 5/24/2021 at 12:48 PM, SimonF said: Are you running 6.9.2? No, I'm running 6.9.1, but I can update it. I will do it a little later at night, I'm in RTZ 2 (UTC+3). You can PM me, i'll try your module after upgrade, thank you! Edited June 25, 20215 yr by WhiteAls
December 18, 20232 yr I'm having the same issue. How did this end? Can I find the needed modules somewhere?
August 7, 20241 yr Author On 12/18/2023 at 5:11 PM, JonGH said: I'm having the same issue. How did this end? Can I find the needed modules somewhere? SimonF has developed a specialized plugin called USB Manager Serial Options. You can install it via the "Community Applications" plugin by searching for it there. Alternatively, you can manually install it using the following link: https://raw.githubusercontent.com/SimonFair/USB_Manager_Serial_Options_addon/main/usb_manager_serial_options_addon.plg.
