Hi there,



I'm new to UNRAID, and I am trying to get my eGPU running in a VM. When I create a VM, it was not showing any PCI devices. So I did a lspci and got this:



00:00.0 Host bridge: Intel Corporation Xeon E3-1200 v6/7th Gen Core Processor Host Bridge/DRAM Registers (rev 05)
00:01.0 PCI bridge: Intel Corporation 6th-10th Gen Core Processor PCIe Controller (x16) (rev 05)
00:02.0 VGA compatible controller: Intel Corporation HD Graphics 630 (rev 04)
00:04.0 Signal processing controller: Intel Corporation Xeon E3-1200 v5/E3-1500 v5/6th Gen Core Processor Thermal Subsystem (rev 05)
00:14.0 USB controller: Intel Corporation 100 Series/C230 Series Chipset Family USB 3.0 xHCI Controller (rev 31)
00:14.2 Signal processing controller: Intel Corporation 100 Series/C230 Series Chipset Family Thermal Subsystem (rev 31)
00:15.0 Signal processing controller: Intel Corporation 100 Series/C230 Series Chipset Family Serial IO I2C Controller #0 (rev 31)
00:15.1 Signal processing controller: Intel Corporation 100 Series/C230 Series Chipset Family Serial IO I2C Controller #1 (rev 31)
00:16.0 Communication controller: Intel Corporation 100 Series/C230 Series Chipset Family MEI Controller #1 (rev 31)
00:17.0 RAID bus controller: Intel Corporation 82801 Mobile SATA Controller [RAID mode] (rev 31)
00:1c.0 PCI bridge: Intel Corporation 100 Series/C230 Series Chipset Family PCI Express Root Port #1 (rev f1)
00:1c.1 PCI bridge: Intel Corporation 100 Series/C230 Series Chipset Family PCI Express Root Port #2 (rev f1)
00:1d.0 PCI bridge: Intel Corporation 100 Series/C230 Series Chipset Family PCI Express Root Port #9 (rev f1)
00:1d.4 PCI bridge: Intel Corporation 100 Series/C230 Series Chipset Family PCI Express Root Port #13 (rev f1)
00:1d.6 PCI bridge: Intel Corporation 100 Series/C230 Series Chipset Family PCI Express Root Port #15 (rev f1)
00:1f.0 ISA bridge: Intel Corporation HM175 Chipset LPC/eSPI Controller (rev 31)
00:1f.2 Memory controller: Intel Corporation 100 Series/C230 Series Chipset Family Power Management Controller (rev 31)
00:1f.3 Audio device: Intel Corporation CM238 HD Audio Controller (rev 31)
00:1f.4 SMBus: Intel Corporation 100 Series/C230 Series Chipset Family SMBus (rev 31)
01:00.0 3D controller: NVIDIA Corporation GP107M [GeForce GTX 1050 Mobile] (rev a1)
02:00.0 Network controller: Qualcomm Atheros QCA6174 802.11ac Wireless Network Adapter (rev 32)
03:00.0 Unassigned class [ff00]: Realtek Semiconductor Co., Ltd. RTS525A PCI Express Card Reader (rev 01)
04:00.0 Non-Volatile memory controller: Silicon Motion, Inc. SM2262/SM2262EN SSD Controller (rev 03)
06:00.0 PCI bridge: Intel Corporation DSL6340 Thunderbolt 3 Bridge [Alpine Ridge 2C 2015]
07:00.0 PCI bridge: Intel Corporation DSL6340 Thunderbolt 3 Bridge [Alpine Ridge 2C 2015]
07:01.0 PCI bridge: Intel Corporation DSL6340 Thunderbolt 3 Bridge [Alpine Ridge 2C 2015]
07:02.0 PCI bridge: Intel Corporation DSL6340 Thunderbolt 3 Bridge [Alpine Ridge 2C 2015]
08:00.0 System peripheral: Intel Corporation DSL6340 Thunderbolt 3 NHI [Alpine Ridge 2C 2015]

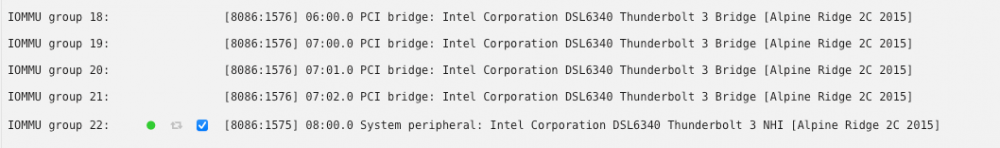

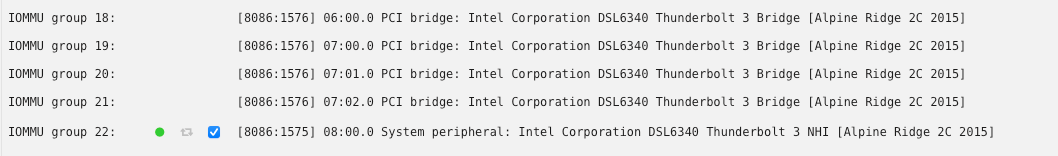

As you can see, the final 5 items are TB3 related, and we can see a nice green button here:

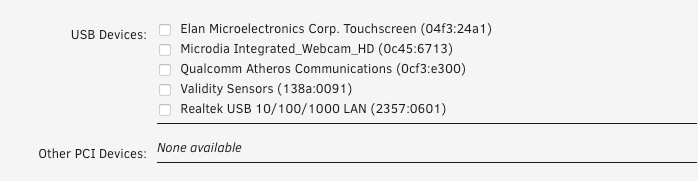

Now, what I don't understand is why I cannot add it to a VM:



I mean, it doesn't even show up.



Thanks in advance!

Have you had a look at this thread.





Had a look, got the GPU into the VM. But now I cannot assign it as the only primary GPU because it doesn't boot the machine, and I cannot see error messages because it won't show. I installed splash top but it won't boot, so I suppose it's tripping when it's the primary GPU.



I took the VBIOS from TechPowerUp and hex-edited it to stick in, but didn't work either. I get a black screen ...

Edited May 22, 20215 yr by vysecurity

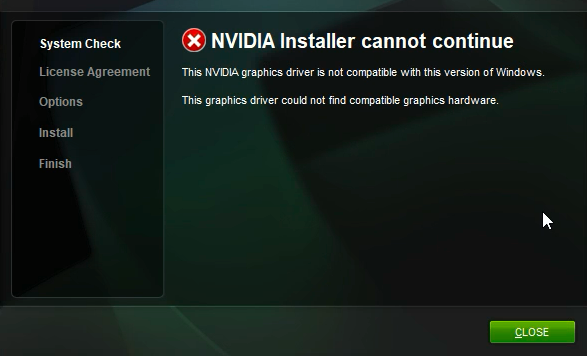

Now getting this error when trying to install Nvidia drivers.



In the Devmgmt.msc it shows up as this:





How am I supposed to install any drivers...

Now I got the GPU exporting and showing video out.

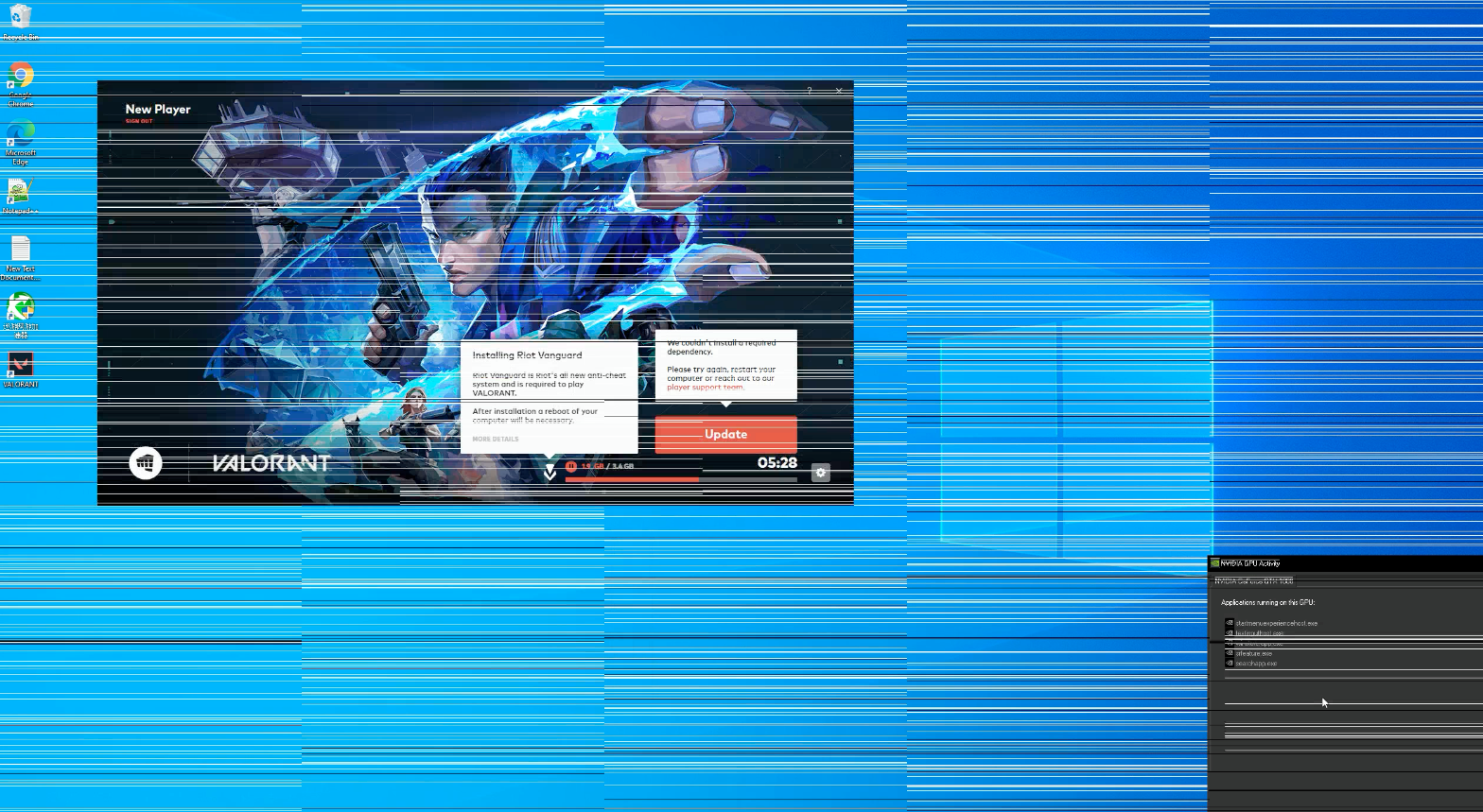

But I got these crazy white scanlines all over my screen. How can I fix it LOL.
