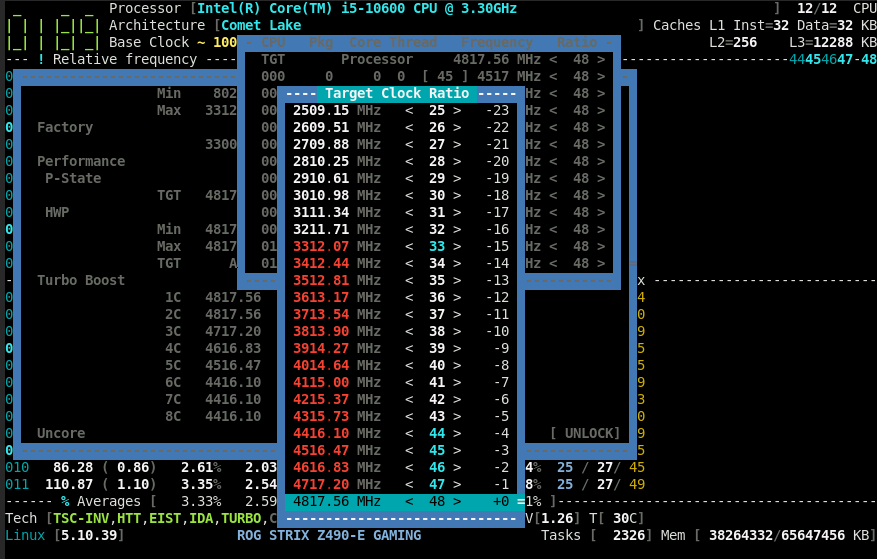

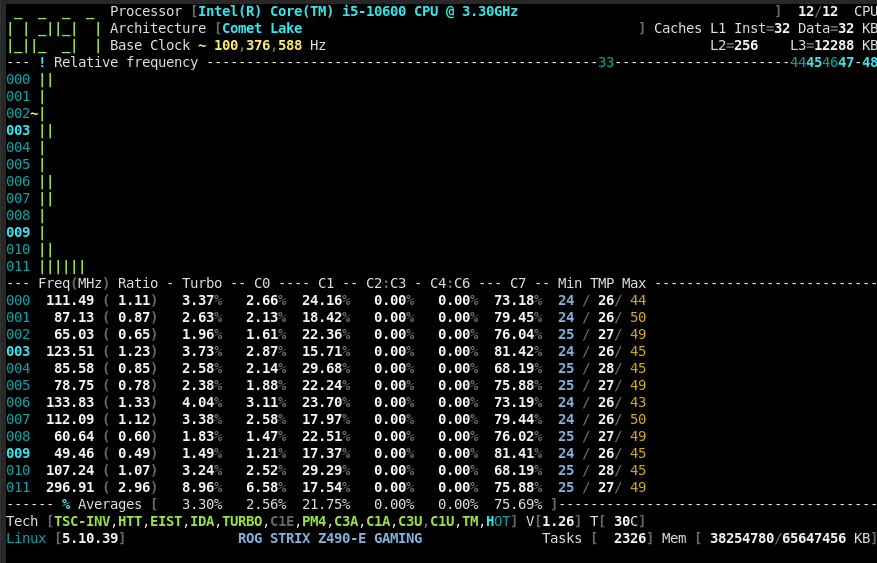

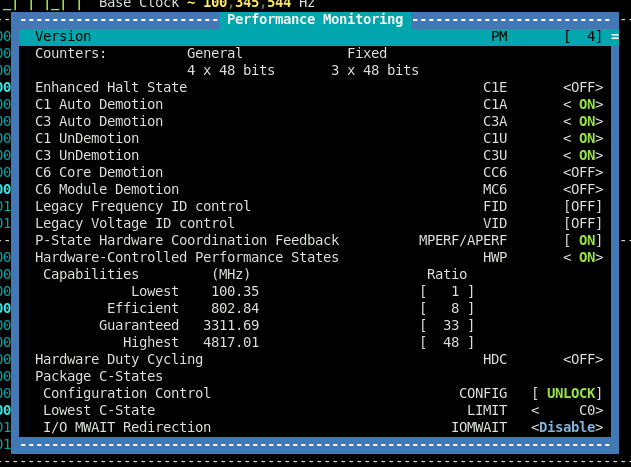

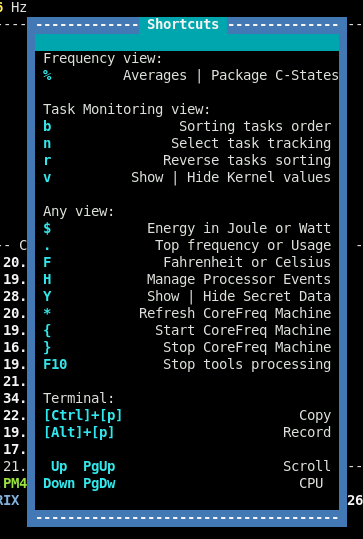

ich777 Posted May 26, 2021 Share Posted May 26, 2021 (only Unraid 6.9.2+) CoreFreq is a CPU low level monitoring software designed for x86_64-Processors. You can show Package and Core temps, Hot sensor, Vcore, RAM,... You can also toggle SpeedStep, Clock modulation, Turbo boost, C-States demotion, C1E,... It has also a built in stress test and much, much more. To use it: Open up a unRAID Terminal and type in 'corefreq-cli' (without quotes), hit "F2" or "SPACE" to open up the menu inside CoreFreq. Please note that not every combination of CPU and motherboard is supported! Intel Systems: It is recommended that you append 'nmi_watchdog=0' (without qutoes) for better accuracy to your syslinux configuration (this is only recommended if you are using it directly on Unraid with a physical monitor and keyboard attached, if are using it over SSH it's not necessary because of the added network delay). The Plugin is based on CoreFreq from the excellent work of @CyrIng. You can get more information here: https://github.com/cyring/CoreFreq https://raw.githubusercontent.com/ich777/unraid-corefreq/master/corefreq.plg WARNING: KEEP IN MIND, FREQUENCIES/CORE RATIOS ARE APPLIED IN REAL TIME, PLEASE ONLY CHANGE THE VALUES IF YOU KNOW WHAT YOU ARE DOING!!! Please note that any changes persists between reboots, to remove the already made changes simply delete the plugin and reboot or remove the file '/config/plugins/corefreq/corefreq.cfg' on your USB Boot device and reboot. Troubleshooting If you got any problems, crashes when installing, random crashes of Unraid please be sure to always include the Diagnostics (Tools -> Diagnostics -> Download -> drop the downloaded zip file here in the text box) in your post. If you want to get in touch with @CyrIng or got any problems head over to his Github: Click 5 4 Quote Link to comment
