Apil Posted May 28, 2021 Share Posted May 28, 2021 (edited) HI! First of all thanks for reading my post! I am a new user to unraid, and bought a HP ProLiant DL380p Gen8 with 12 x 3.5 bays. Currently with 8 x WDC_WD30EFRX-68E Disks. This comes with a HP Smart Array P420i raid card that i changed to HBA Mode. All drives are detected but the problem is that i am not getting any data about temp and smart. I tried changing the Default SMART controller type to HP cciss and have rebooted the server, but does not seem to make any difference. Anyone know how i can fix this ? Hope you have a great day! Best regards Apil Update: I made some progress, and can now see Smart Data under each disk. I did this by intalling the plugin "hpsahba" from the CA apps, and then setting Default SMART controller type to SAT. Though i do not get Tempeture readings still Update again! So i see that the Attribute of 194, Temperature celsius is there, but for some reason it still does not show on the Dashboard/Main page. Wierd. Edited May 29, 2021 by Apil 1 Quote Link to comment

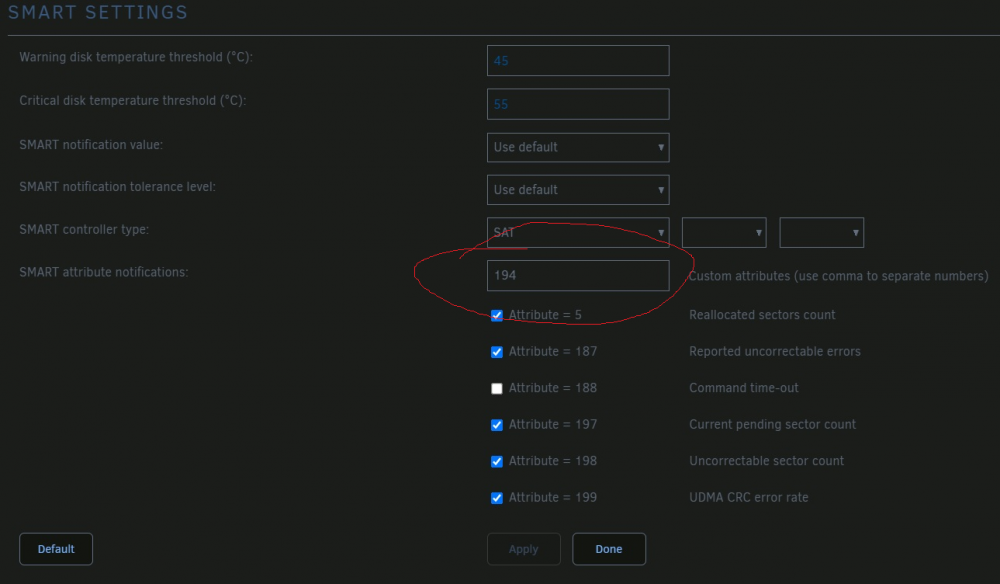

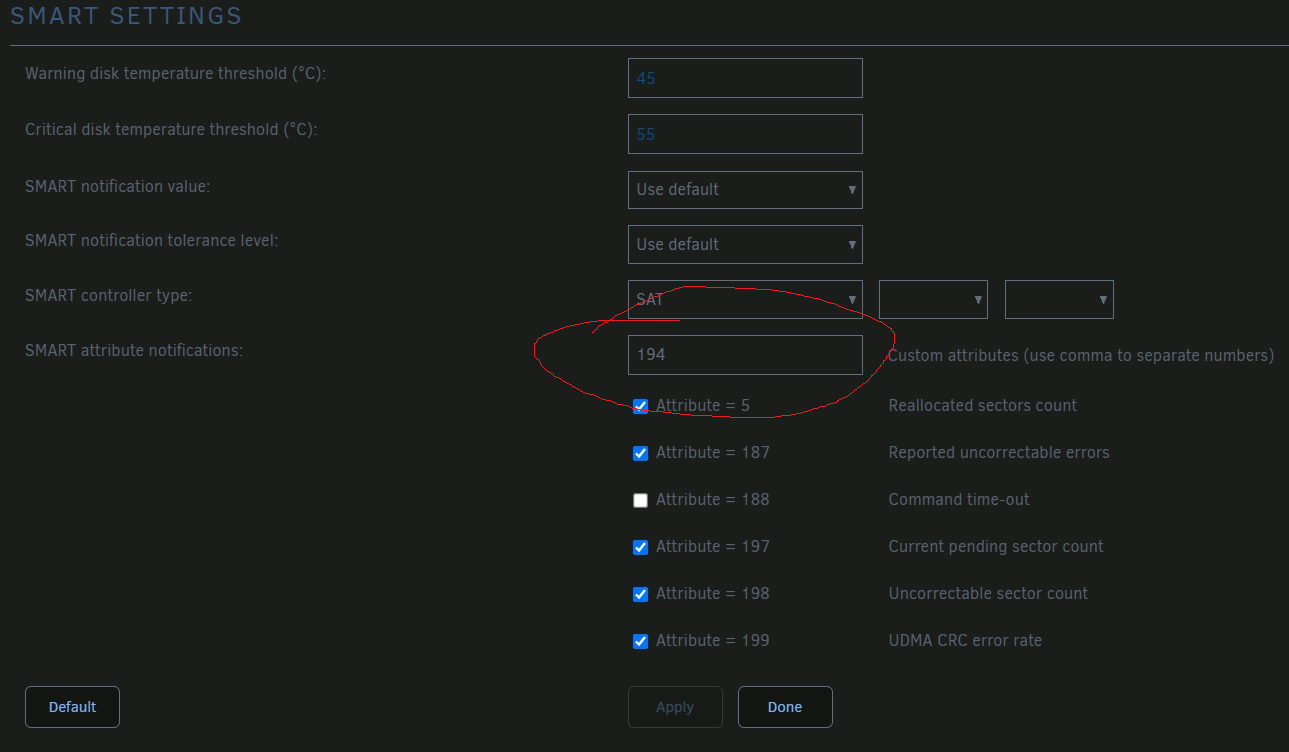

Patrizzle Posted June 27, 2021 Share Posted June 27, 2021 (edited) Hi! Thank you for this! I didn't know about the hpsahba plugin. I now have SMART data. I got temperature data to display on the main screen by adding attribute 194 to SMART attribute notifications in each disk's smart settings (wait up to one poling intervall for the temps to show up -> default is 1800 seconds). Edited June 27, 2021 by Patrizzle formatting Quote Link to comment
Apil Posted June 29, 2021 Author Share Posted June 29, 2021 Hi @Patrizzle Thanks for your reply, happy i could help you. Though getting temps by filling in 194 does not seem to fix it for me Even though i see the Attribute of Temperture celsius comes up as 194 in the list. BR Apil Quote Link to comment
Patrizzle Posted June 30, 2021 Share Posted June 30, 2021 Even if you set "SMART controller type" to SAT? Quote Link to comment
glassbase Posted May 27, 2022 Share Posted May 27, 2022 (edited) I am also not getting temp displays in GUI. Shows up under stats under attr 194, but never displays in Main tab temp column. I have hpsahba installed, added 194 to notifications, set my controller type to SAT. I know they used to show (maybe back in 6.8.x) without requiring hpsahba to be installed. HP DL380p G8 12xLFF with P420i Raid (in HBA mode) Edited May 27, 2022 by glassbase Quote Link to comment
