Parity Disk 2 Missing

Herbiewalker
in General Support

Featured Replies

So I did a reboot of my Unraid server today in prep for the upgrade to 6.9.X

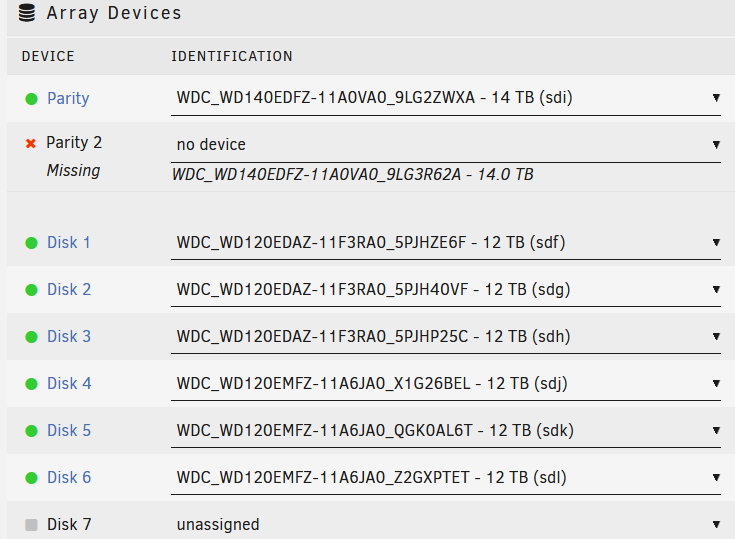

When my server booted back up my second parity disk was missing from the array (See Picture). I checked the cables and swapped the other parity disk into that slot to make sure it would still work and that one had no problems when I moved it. So the cables and LSI controller are good.

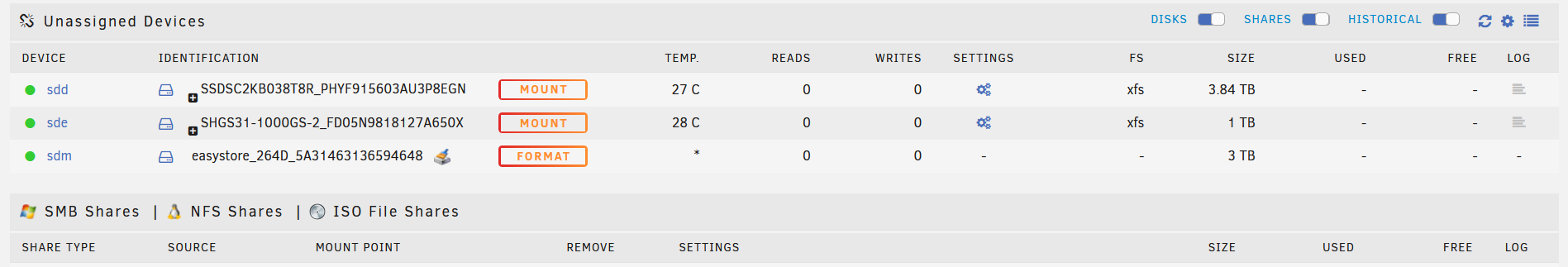

I pulled the HHD out of my server and connected it to a easystore USB board and the drive is now seen in unraid but as a 3 TB drive (See Picture.



I dont know what happened and could use some help. I thought the drive was just bad (its only 6 months old so I can RMA) but since it was readable via USB I am unsure again.



My Attached diagnostics are while the HHD is in the server and while attached as a USB. Im not sure if that makes a difference......



Is there any other info that might be needed?



Parity Disk2.PNG

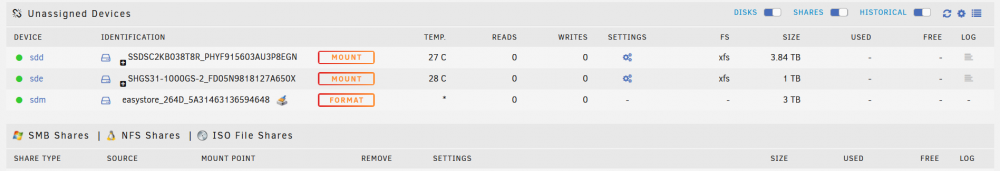

Parity disk2 unassigned as USB.PNG

tworivers-diagnostics-20210528-While HHD is plugged in as USB.zip tworivers-diagnostics-20210528-While HHD is in the server.zip

  • Quote

    No clue why it would appear as 3TB.



    Since the drive is shucked, was it powered by Molex to SATA or direct SATA and tape on 3.3V pins ?

    In the second situation, did you check it was still ON ?

  • Quote
    • Author

    It is using SATA and Tape. It appears to be on, it ran in that configuration and worked fine for 6 months. Just a normal server reboot is when this became noticeable.

    Edited by Herbiewalker

  • Quote
