Unraid und Home Assistant und ConBee II frage


Recommended Posts

ich komm nicht auf die WebUI seite nicht gefunden.



Im Protokoll sind auch fehler:





FehlerWarnungSystemArrayAnmelden


[marthoc/deconz] Starting deCONZ...
[marthoc/deconz] Current deCONZ version: 2.12.00
[marthoc/deconz] Web UI port: 80
[marthoc/deconz] Websockets port: 443
[marthoc/deconz] VNC Disabled
QStandardPaths: XDG_RUNTIME_DIR not set, defaulting to '/tmp/runtime-root'
libpng warning: iCCP: known incorrect sRGB profile
This plugin does not support propagateSizeHints()
This plugin does not support propagateSizeHints()
20:28:20:432 HTTP Server listen on address 0.0.0.0, port: 8080, root: /usr/share/deCONZ/webapp/
20:28:20:504 ZCLDB init file /root/.local/share/dresden-elektronik/deCONZ/zcldb.txt
20:28:20:658 parent process /bin/sh
20:28:20:658 gw run mode: docker
20:28:20:658 GW sd-card image version file does not exist: /root/.local/share/dresden-elektronik/deCONZ/gw-version
20:28:20:659 DB sqlite version 3.27.2
20:28:20:659 DB PRAGMA page_count: 0
20:28:20:659 DB PRAGMA page_size: 4096
20:28:20:659 DB PRAGMA freelist_count: 0
20:28:20:659 DB file size 0 bytes, free pages 0
20:28:20:659 DB PRAGMA user_version: 0
20:28:20:659 DB upgrade to user_version 1
20:28:20:925 DB write sqlite user_version 1
20:28:20:937 DB PRAGMA user_version: 1
20:28:20:937 DB upgrade to user_version 2
20:28:20:961 DB write sqlite user_version 2
20:28:20:973 DB PRAGMA user_version: 2
20:28:20:973 DB upgrade to user_version 6
20:28:21:011 DB write sqlite user_version 6
20:28:21:022 DB PRAGMA user_version: 6
20:28:21:023 DB upgrade to user_version 7
20:28:21:045 DB write sqlite user_version 7
20:28:21:057 DB PRAGMA user_version: 7
20:28:21:057 DB cleanup
20:28:21:057 DB create temporary views
20:28:21:059 started websocket server at port 443
20:28:21:060 create default username and password
20:28:21:061 [INFO] - Found file containing button maps. Parsing data...
20:28:21:067 [INFO] - Button maps loaded.
20:28:21:068 dlg action: Read binding table
20:28:21:068 found node plugin: libde_rest_plugin.so - REST API Plugin
20:28:21:070 found node plugin: libde_signal_plugin.so - Signal Monitor Plugin
20:28:21:087 found node plugin: libstd_otau_plugin.so - STD OTAU Plugin
This plugin does not support propagateSizeHints()
20:28:24:163 Device firmware version 0x26660700 ConBee II
20:28:24:176 unlocked max nodes: 200
20:28:24:289 Device protocol version: 0x010C
20:28:24:431 Device protocol version: 0x010C
20:28:25:838 GW update firmware found: /usr/share/deCONZ/firmware/deCONZ_ConBeeII_0x26660700.bin.GCF
20:28:25:838 GW firmware version: 0x26660700
20:28:25:838 GW firmware version is up to date: 0x26660700
20:28:26:283 Announced to internet https://phoscon.de/discover
20:28:30:583 invalid current channel 0 (TODO)
20:28:40:583 invalid current channel 0 (TODO)
20:28:41:084 Set bridgeid to 00212EFFFF07216A
20:28:50:583 invalid current channel 0 (TODO)
20:29:00:583 invalid current channel 0 (TODO)
20:29:10:583 invalid current channel 0 (TODO)
20:29:20:609 invalid current channel 0 (TODO)
20:29:30:583 invalid current channel 0 (TODO)
20:29:40:583 invalid current channel 0 (TODO)
20:29:50:583 invalid current channel 0 (TODO)
20:30:00:583 invalid current channel 0 (TODO)
20:30:10:583 invalid current channel 0 (TODO)
20:30:20:583 invalid current channel 0 (TODO)
20:30:30:583 invalid current channel 0 (TODO)
20:30:40:583 invalid current channel 0 (TODO)
20:30:50:583 invalid current channel 0 (TODO)
20:31:00:583 invalid current channel 0 (TODO)
20:31:10:583 invalid current channel 0 (TODO)
20:31:20:583 invalid current channel 0 (TODO)
20:31:30:583 invalid current channel 0 (TODO)
20:31:40:583 invalid current channel 0 (TODO)
20:31:50:583 invalid current channel 0 (TODO)
20:32:00:583 invalid current channel 0 (TODO)
20:32:10:583 invalid current channel 0 (TODO)
20:32:20:583 invalid current channel 0 (TODO)
20:32:25:583 GW firmware version: 0x26660700
20:32:25:583 GW firmware version is up to date: 0x26660700
20:32:30:583 invalid current channel 0 (TODO)
20:32:40:583 invalid current channel 0 (TODO)
20:32:50:583 invalid current channel 0 (TODO)
20:33:00:583 invalid current channel 0 (TODO)
20:33:10:583 invalid current channel 0 (TODO)
20:33:20:584 invalid current channel 0 (TODO)
20:33:30:583 invalid current channel 0 (TODO)
20:33:40:583 invalid current channel 0 (TODO)
20:33:50:583 invalid current channel 0 (TODO)
20:34:00:583 invalid current channel 0 (TODO)
20:34:10:584 invalid current channel 0 (TODO)
20:34:20:583 invalid current channel 0 (TODO)
20:34:30:583 invalid current channel 0 (TODO)
20:34:40:583 invalid current channel 0 (TODO)
20:34:50:583 invalid current channel 0 (TODO)
20:35:00:583 invalid current channel 0 (TODO)
20:35:10:583 invalid current channel 0 (TODO)
20:35:20:583 invalid current channel 0 (TODO)
20:35:29:411 device state timeout ignored in state 3
20:35:29:571 device state timeout ignored in state 3
20:35:29:731 device state timeout ignored in state 3
20:35:29:891 device state timeout ignored in state 3
20:35:30:052 device state timeout ignored in state 3
20:35:30:211 device state timeout ignored in state 3
20:35:30:371 device state timeout ignored in state 3
20:35:30:532 device state timeout ignored in state 3
20:35:30:583 invalid current channel 0 (TODO)
20:35:30:691 device state timeout ignored in state 3
20:35:30:852 device state timeout ignored in state 3
20:35:31:011 device state timeout ignored in state 3
This plugin does not support propagateSizeHints()
20:35:31:171 device state timeout (handled)
20:35:31:177 device disconnected reason: 1, index: 0
20:35:31:251 void zmMaster::handleStateIdle(zmMaster::MasterEvent) not connected goto OFF state
20:35:31:251 device state timeout ignored in state 1
20:35:32:083 start reconnect to network
20:35:32:083 wait reconnect 15 seconds
20:35:33:083 wait reconnect 14 seconds
20:35:34:084 wait reconnect 13 seconds
20:35:35:083 wait reconnect 12 seconds
20:35:36:083 wait reconnect 11 seconds
20:35:37:083 wait reconnect 10 seconds
20:35:37:333 failed to reconnect to network try=1
20:35:38:083 wait reconnect 9 seconds
20:35:39:084 wait reconnect 8 seconds
20:35:40:083 wait reconnect 7 seconds
20:35:41:084 wait reconnect 6 seconds
20:35:42:084 wait reconnect 5 seconds
20:35:42:583 failed to reconnect to network try=2
20:35:43:084 wait reconnect 4 seconds
20:35:44:083 wait reconnect 3 seconds
20:35:45:083 wait reconnect 2 seconds
This plugin does not support propagateSizeHints()
20:35:46:084 wait reconnect 1 seconds
20:35:46:165 Device firmware version 0x26660700 ConBee II
20:35:46:171 unlocked max nodes: 200
20:35:46:284 Device protocol version: 0x010C
20:35:46:294 new node - ext: 0x00212effff07216a, nwk: 0x0000
20:35:46:363 Current channel 15
20:35:46:381 CTRL got nwk update id 2
20:35:46:388 CTRL ANT_CTRL 0x03
20:35:46:432 Device protocol version: 0x010C
20:35:46:533 CTRL ANT_CTRL 0x03
20:35:46:577 Device protocol version: 0x010C
20:35:46:680 CTRL ANT_CTRL 0x03
20:35:47:583 reconnect network done
20:35:56:585 saved node state in 0 ms
20:35:56:585 sync() in 0 ms
20:36:20:619 Device TTL 3553 s flags: 0x7
20:36:25:584 GW firmware version: 0x26660700
20:36:25:584 GW firmware version is up to date: 0x26660700
20:37:20:631 Device TTL 3493 s flags: 0x7
20:38:20:620 Device TTL 3433 s flags: 0x7
20:39:20:621 Device TTL 3373 s flags: 0x7
20:40:20:621 Device TTL 3313 s flags: 0x7
20:40:25:583 GW firmware version: 0x26660700
20:40:25:583 GW firmware version is up to date: 0x26660700
20:40:25:583 GW firmware version: 0x26660700
20:40:25:583 GW firmware version is up to date: 0x26660700

Link to comment
2 hours ago, Hoddl said:

[marthoc/deconz] Starting deCONZ...
[marthoc/deconz] Current deCONZ version: 2.12.00
[marthoc/deconz] Web UI port: 80
[marthoc/deconz] Websockets port: 443
[marthoc/deconz] VNC Disabled

irgendwas ist da faul....

Laut Log hast du Port 80 / 443....
(und VNC disabled)

ABER

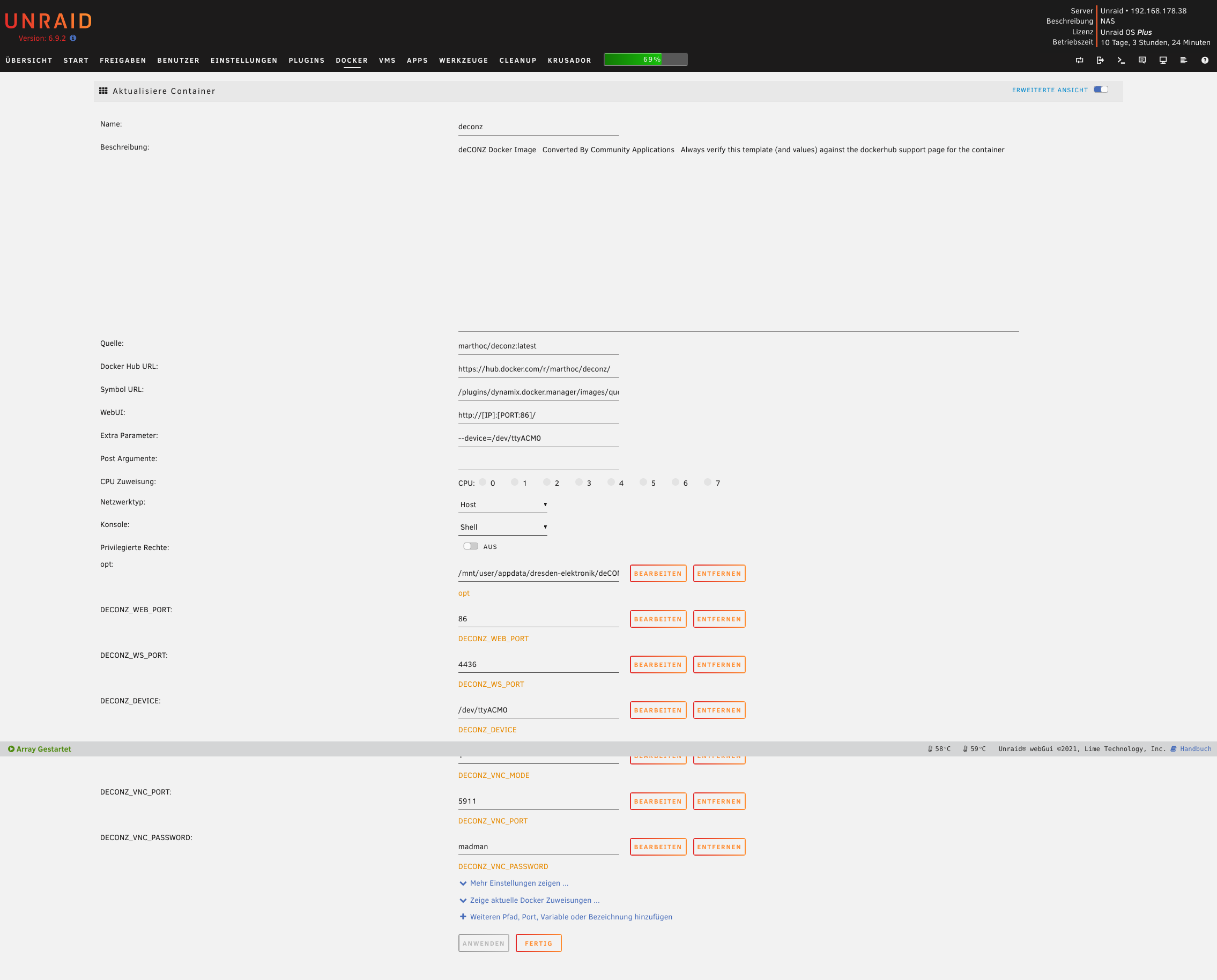

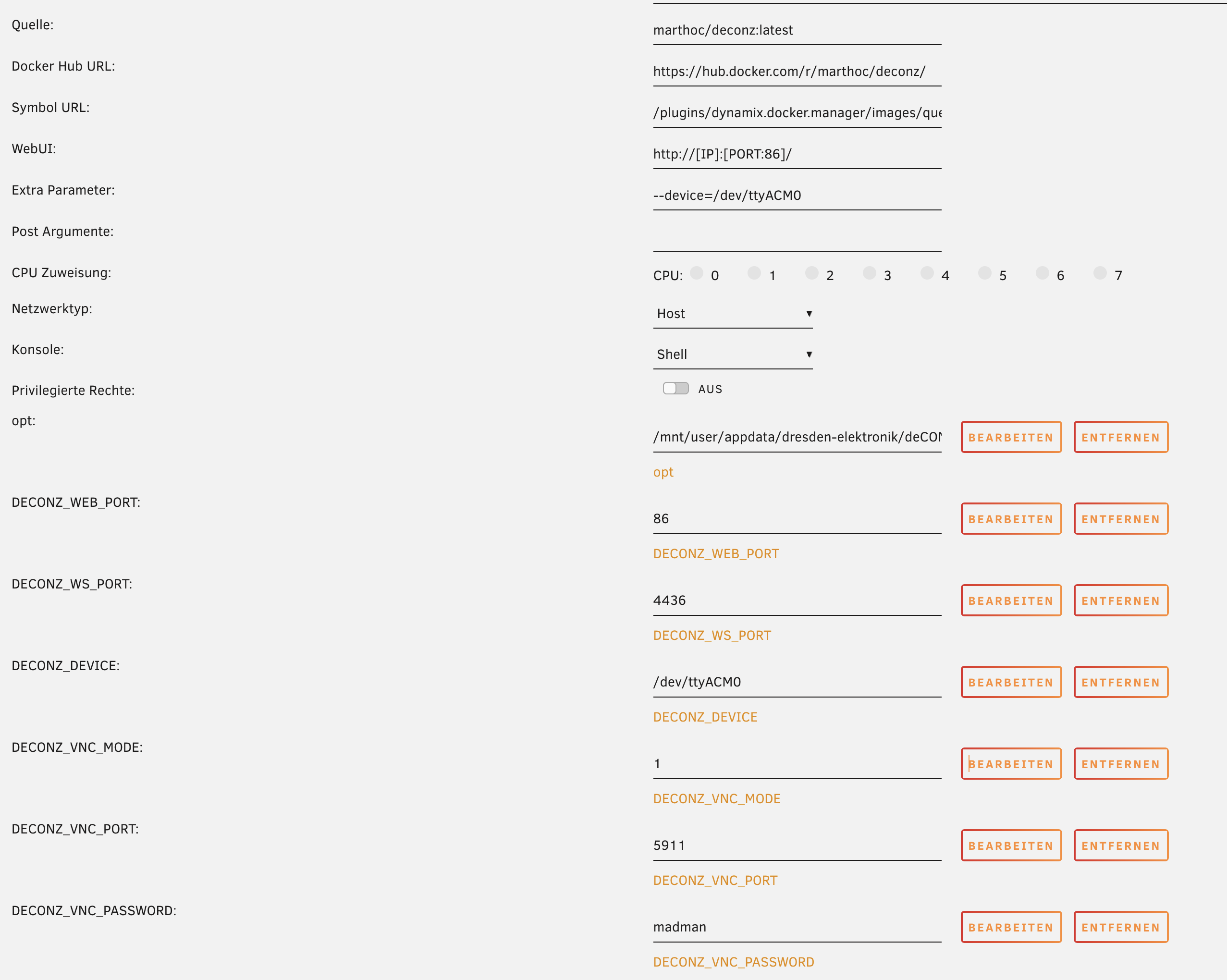

laut Screenshot hast du Port 86...
(VNC Port ist gesetzt, aber DECONZ_VNC_MODE = 1 sehe ich nicht)



Port 80 ist schlecht, wenn Unraid auch auf Port 80 hört.

Da der Docker im HOST mode läuft hat er die selbe IP wie Unraid.

Link to comment
19 minutes ago, Hoddl said:

kann man den stick iregndwie reseten bez. auf werkseinstellung bringen?

hmm, weiß ich nicht... rtfm...

Du kannst den Stick in einem Windows Rechner mit der Phoscon App mal testen oder ein Firmware Update machen.

Firmware Update geht mit dem mathoc docker auch aber nur so wie hier beschrieben: marthoc Firmware Update

Hab ich schon 2 mal gemacht. Geht. Aber dafür muss dein Docker laufen...

Hier sind weitere Installationsmethoden beschrieben: Update-deCONZ-manually



Was für ein Port steht denn bei dir in der config.ini unter /mnt/appdata/dresden-elektronik/deCONZ?

Ist dort Port 86 (wie im teplate) vermerkt oder auch 80 (wie im Log)?

Meine:

[http]
appcache=true
port=86



Edited by vakilando
Infos hinzugefügt
Link to comment

ich bekomme beim installieren folgende fehler meldung:

root@localhost:# /usr/local/emhttp/plugins/dynamix.docker.manager/scripts/docker run -d --name='deconz' --net='host' -e TZ="Europe/Berlin" -e HOST_OS="Unraid" --device=/dev/ttyACMO 'marthoc/deconz'

af8998861ab0e70326dcc53e8c17c569141f87a7d63a9d4ecdb769128bca0c4a
docker: Error response from daemon: error gathering device information while adding custom device "/dev/ttyACMO": no such file or directory.

Der Befehl ist fehlgeschlagen.





ist das ACMO(O als buchstabe) oder ACM0 (null)

Link to comment
