Boot problem Gigabyte W480M with Intel I5-11600

D.Romeleitis
in General Support

Featured Replies

Hi,



finally I got my whole setup :

Gigabyte W480M

Intel Core I5-11600

1x16 GB DDR4

WD Black SN 750 1TB

Boot Stick : SanDisk Cruzer Force USB-Flash-Laufwerk 16GB USB 2.0

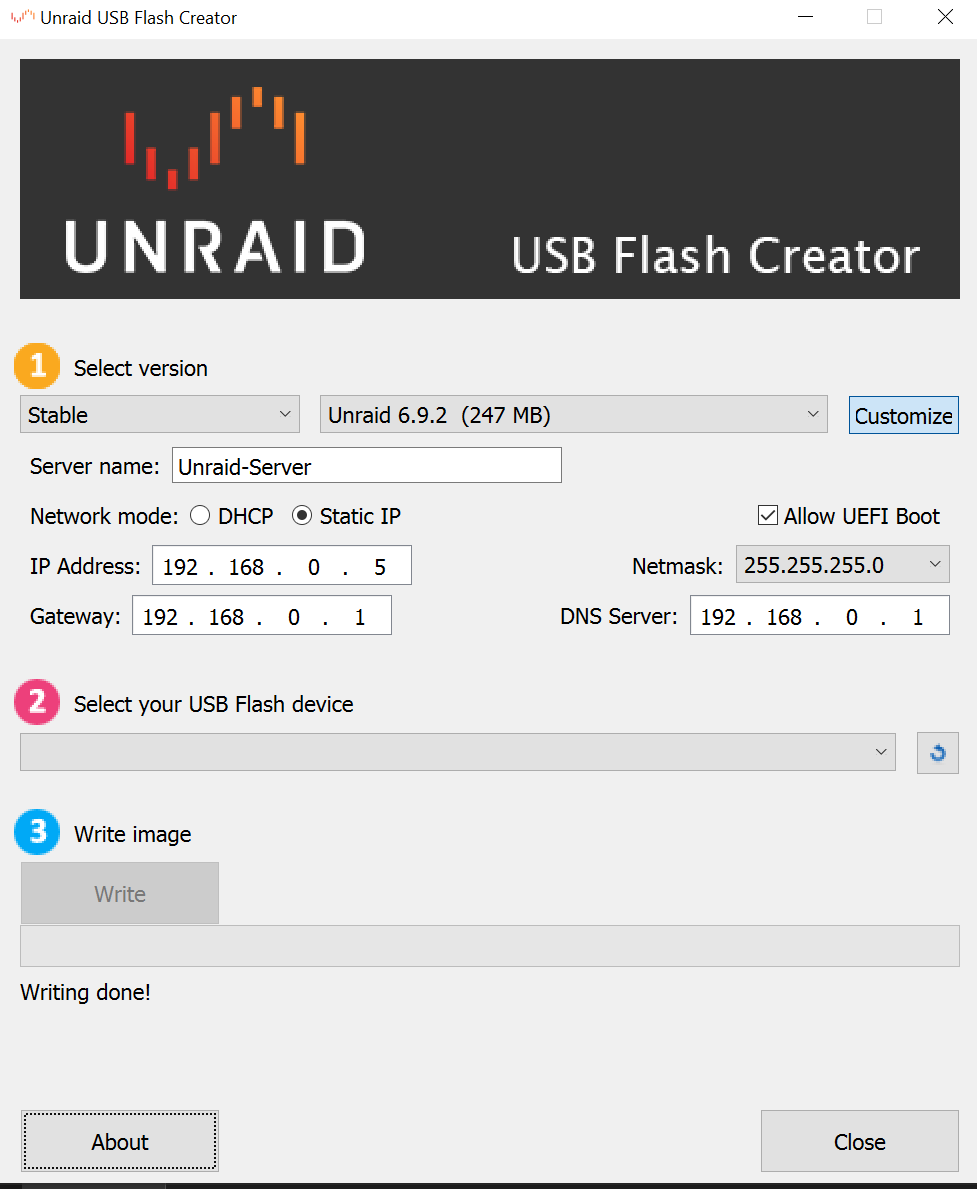

I created the stick with USB Flash Creator. (see picture)



In the BIOS I selected :

Peripherals -> Legacy USB Support : Enabled

Mass Storage Device : Sandisk -> Auto

BIOS -> Boot Option#1 : UEFI: Sandisk, PArtition 1

BIOS -> CSM Support : Disabled (Intel 11xxx generation seems to have no CSM Suppport)

BIOS -> Windows 10 Features : Other OS

Secure Boot is disabled.



I tried with several combinations of the parameters but the system isn't booting from the stick.

There appears the Gigabyte Boot screen -> getting black -> Boot Screen again



Does anybody have an idea which parameters have to be changed to get it working?



Kind regards,



Daniel

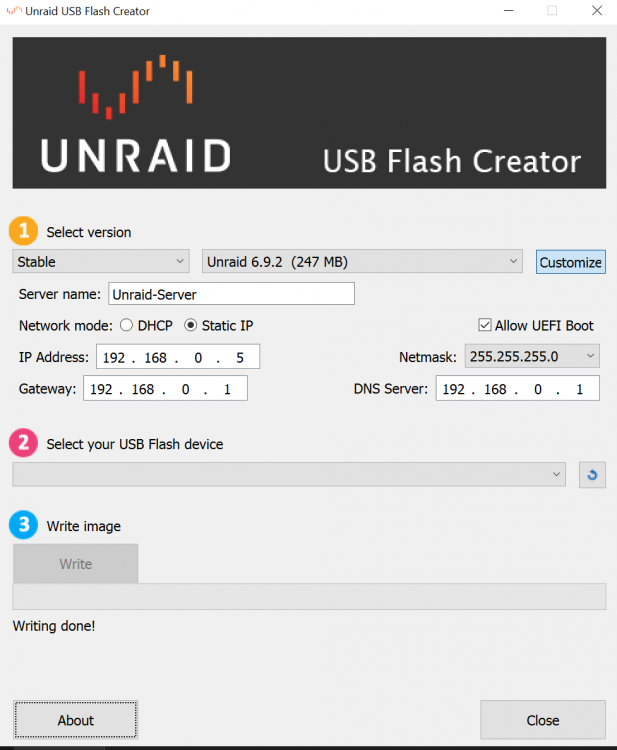

USB Creator.PNG

  • Quote

    Please test Ubuntu to exclude general hardware problems.

  • Quote
    • Author

    Good news, seems to be working now.

    I reset the BIOS to default with clear CMOS jumper.

    After saving the BIOS settings without changes it starts the USB stick now 🙂



    Thank you

  • Quote

    • Archived

    This topic is now archived and is closed to further replies.
