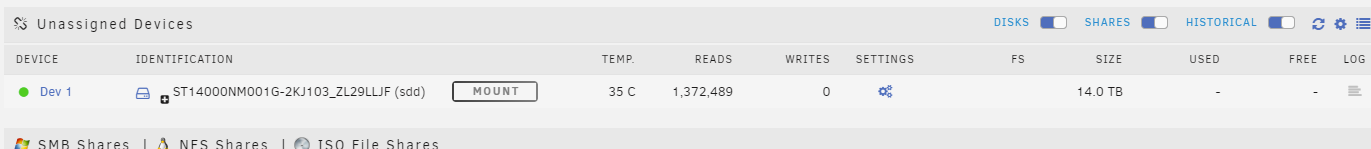

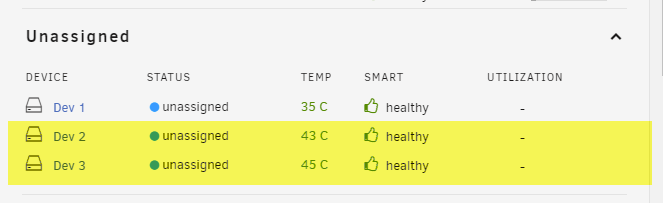

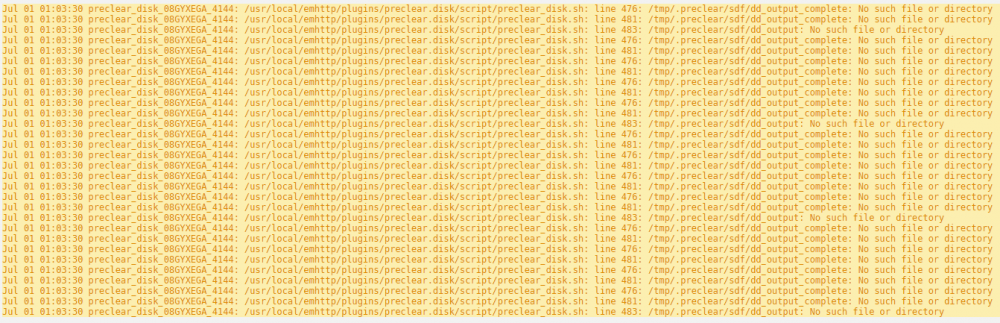

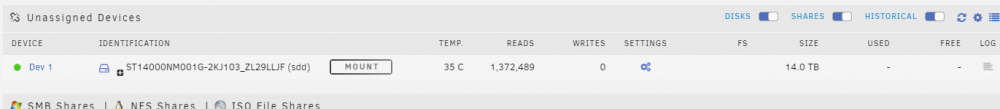

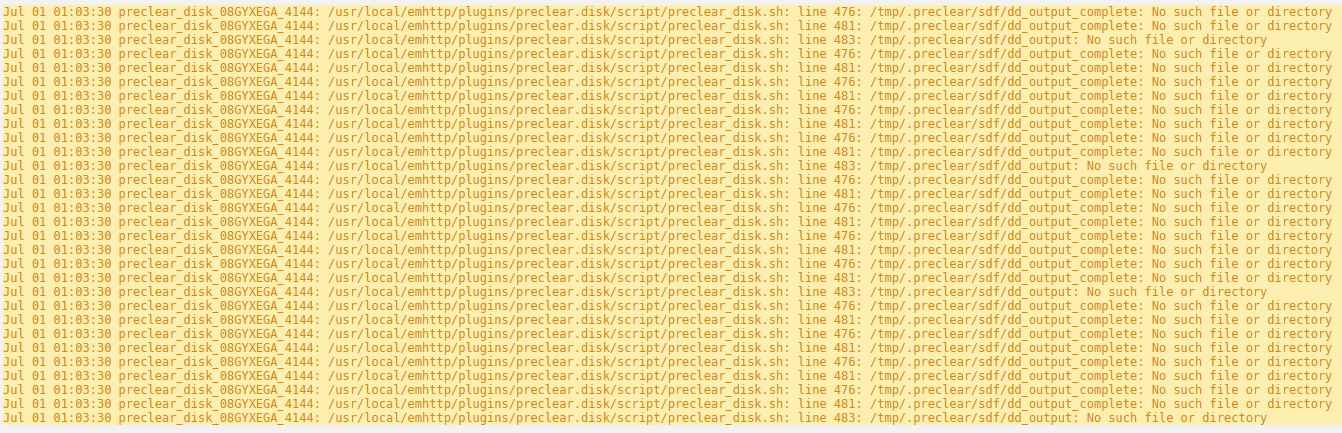

July 1, 20215 yr I am hoping i can get some help. i have purchased 2 SAS drives to put into my unraid server. they are : HGST 1.8TB 2.5" SAS drive, 10K RPM 12Gb/s HDD , HUC101818CS420 in order to get them to connect i used some adapters: SAS 22 Pin to SATA 22Pin 7+15 Hard Disk Drive Raid Adapter with 15Pin Power Port the SAS Card i am using is as below and flashed to IT mode : LSI SAS2308-8i(9217-8i) 6Gbps 8Ports HBA I think i have a compatibility issue somewhere maybe?? but that's where i need help. my symptoms are. The drives are seen by the HBA Card. and on the main page in the Unraid dashboard the preclear plugin even sees them : here was my first issue, preclear cant read them. if i go to the main screen on the unraid dashboard they are not visible : however when i go to tools and system devices i can see them where am i going wrong i think maybe im using the wrong adapter? some guidance would be great jarvis-diagnostics-20210701-1020.zip Edited July 1, 20215 yr by SohailS
July 1, 20215 yr Author 10 minutes ago, JorgeB said: Please post the diagnostics: Tools -> Diagnostics File attached now. thanks Edited July 1, 20215 yr by SohailS
July 1, 20215 yr Community Expert Formatted with type 2 protection Disks are formatted with type2 protection, if you Google that you'll find how to remove it.
July 1, 20215 yr Community Expert Forgot I saved this link https://forums.unraid.net/topic/93432-parity-disk-read-errors/?do=findComment&comment=864067 sg3_utils can be installed with the nerd pack plugin.
July 1, 20215 yr Author 2 hours ago, JorgeB said: Forgot I saved this link https://forums.unraid.net/topic/93432-parity-disk-read-errors/?do=findComment&comment=864067 sg3_utils can be installed with the nerd pack plugin. Thanks I have been searching for this but it doesn't work Format unit command: Data protect FORMAT UNIT failed this is the information from the disk smartctl -i /dev/sde smartctl 7.1 2019-12-30 r5022 [x86_64-linux-5.10.28-Unraid] (local build) Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Vendor: HGST Product: HUC101818CS4205 Revision: NE02 Compliance: SPC-4 User Capacity: 1,800,360,124,416 bytes [1.80 TB] Logical block size: 512 bytes Physical block size: 4096 bytes Formatted with type 2 protection 8 bytes of protection information per logical block LU is fully provisioned Rotation Rate: 10520 rpm Form Factor: 2.5 inches Logical Unit id: 0x5000cca02c3798f0 Serial number: 08GZKW4A Device type: disk Transport protocol: SAS (SPL-3) Local Time is: Thu Jul 1 13:31:40 2021 BST SMART support is: Available - device has SMART capability. SMART support is: Enabled Temperature Warning: Enabled
July 1, 20215 yr Community Expert 4 minutes ago, SohailS said: FORMAT UNIT failed Sorry, can't really help with that, try Google, but until protection is removed devices won't work.
July 2, 20215 yr Author 17 hours ago, SimonF said: Have a look here. Thanks for this but again it doesn't work. the issue is that i have a SED drive. its a pain and im looking for a way to turn the encryption off as nothing lets me format it
July 2, 20215 yr Community Expert 19 minutes ago, SohailS said: Thanks for this but again it doesn't work. the issue is that i have a SED drive. its a pain and im looking for a way to turn the encryption off as nothing lets me format it Ok I thought that was the thread where we had the solution, but its this one I think. You need to use seatools
July 3, 20215 yr Author Solution finally figured this one out in case it helps anyone. the issue I was have was that the disk would not format due to the protection so I needed to disable it. there is a PSID printed on the disk. i used this to reset the disk, by usng the below command where <PSIDNODASHS> is the PSID on the disk and device> is the device sedutil-cli --PSIDrevertAdminSP <PSIDNODASHS> /dev/<device> I was then able to run the format command and Type 2 Protection was now removed. Hopefully this will help someone Thanks everyone for helping Edited July 3, 20215 yr by SohailS
June 12, 20224 yr How did you get sedutil-cli to run on Unraid? Figured it out. Waiting for successful sg_formats before I share just in case I'm incorrect. Edited June 13, 20224 yr by Ozbarge
September 19, 20232 yr On 7/3/2021 at 7:15 PM, SohailS said: finally figured this one out in case it helps anyone. the issue I was have was that the disk would not format due to the protection so I needed to disable it. there is a PSID printed on the disk. i used this to reset the disk, by usng the below command where <PSIDNODASHS> is the PSID on the disk and device> is the device sedutil-cli --PSIDrevertAdminSP <PSIDNODASHS> /dev/<device> I was then able to run the format command and Type 2 Protection was now removed. Hopefully this will help someone Thanks everyone for helping Hi, I'm in a similar boat where I need to unlock Type 2 protected disk. Could you please let me know how to install the sedutil-cli in Unraid? Thanks
September 19, 20232 yr 6 hours ago, sfaruque said: Hi, I'm in a similar boat where I need to unlock Type 2 protected disk. Could you please let me know how to install the sedutil-cli in Unraid? Thanks Login to unraid cli wget https://github.com/ChubbyAnt/sedutil/releases/download/1.15-5ad84d8/sedutil-cli-1.15-5ad84d8.zip unzip sedutil-cli-1.15-5ad84d8.zip chmod +x sedutil-cli Then use whatever parameters you need to run ./sedutil-cli XXXXXXXXXX
September 20, 20232 yr 9 hours ago, jmztaylor said: Login to unraid cli wget https://github.com/ChubbyAnt/sedutil/releases/download/1.15-5ad84d8/sedutil-cli-1.15-5ad84d8.zip unzip sedutil-cli-1.15-5ad84d8.zip chmod +x sedutil-cli Then use whatever parameters you need to run ./sedutil-cli XXXXXXXXXX Thank you @jmztaylor. I've install it and run the command --scan. It says 'The Kernel flag libata.allow_tpm is not set correctly'. Any idea how this is done? I'm looking for the readme but nothing like that downloaded with the sedutil-cli wget.
September 20, 20232 yr 14 hours ago, sfaruque said: Thank you @jmztaylor. I've install it and run the command --scan. It says 'The Kernel flag libata.allow_tpm is not set correctly'. Any idea how this is done? I'm looking for the readme but nothing like that downloaded with the sedutil-cli wget. I have never used the utility before so I can't help with that. But the repo should have plenty of details https://github.com/ChubbyAnt/sedutil/
May 24, 20242 yr Community Expert I'm dealing with a very similar situation. sedutil reports the same kernel flag error. @jmztaylor, how did you manage to complete that? Thanks for your time.
January 30, 20251 yr On 9/19/2023 at 5:10 PM, jmztaylor said: Login to unraid cli wget https://github.com/ChubbyAnt/sedutil/releases/download/1.15-5ad84d8/sedutil-cli-1.15-5ad84d8.zip unzip sedutil-cli-1.15-5ad84d8.zip chmod +x sedutil-cli Then use whatever parameters you need to run ./sedutil-cli XXXXXXXXXX I've followed this method to install sedutil but when i got to use it i get a command not found. Not massively familair with linux and not sure whats wrong. Edited January 30, 20251 yr by Joeh

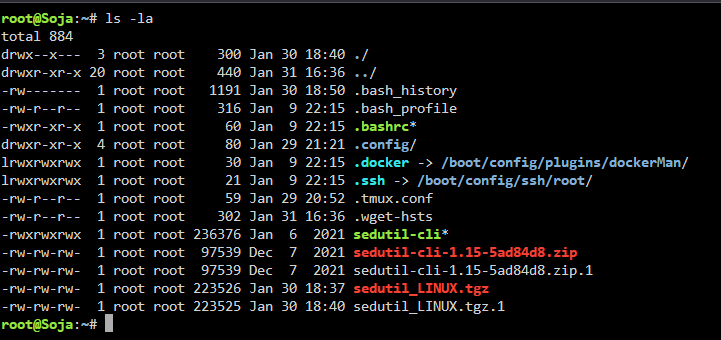

February 1, 20251 yr On 1/30/2025 at 12:48 PM, Joeh said: I've followed this method to install sedutil but when i got to use it i get a command not found. Not massively familair with linux and not sure whats wrong. After doing those steps, run the following command and attach a screenshot. ls -la
February 4, 20251 yr On 2/1/2025 at 2:49 AM, jmztaylor said: After doing those steps, run the following command and attach a screenshot. ls -la Done
