Wireguard Unraid Routing

[bjun626]

I've been trying to setup a tunnel to my other house's network. I've successfully setup to tunnel and I'm able to access my remote SMB on unraid. Right now I'm still unable to connect to the remote IP(192.168.0.0/24) from my own PC and docker containers in br0.



What works:
1. Unraid -> Mount Remote SMB Share via Unassigned Device

traceroute to 192.168.0.1 (192.168.0.1), 30 hops max, 60 byte packets
 1  172.27.66.1 (172.27.66.1)  2.749 ms  2.742 ms  2.854 ms
 2  * * *
 3  192.168.0.1 (192.168.0.1)  3.642 ms  3.596 ms  3.595 ms



2. Docker not on br0 -> Able to ping 192.168.0.1



What doesn't work:

1. My PC 192.168.1.34 -> Unable to Ping 192.168.0.1

Tracing route to 192.168.0.1 over a maximum of 30 hops

  1     1 ms     1 ms     2 ms  [192.168.1.1]
  2     2 ms     1 ms     1 ms  [192.168.1.3]
  3     *        *        *     Request timed out.



2. Docker code-server 192.168.1.7 (br0) -> Unable to Ping 192.168.0.1

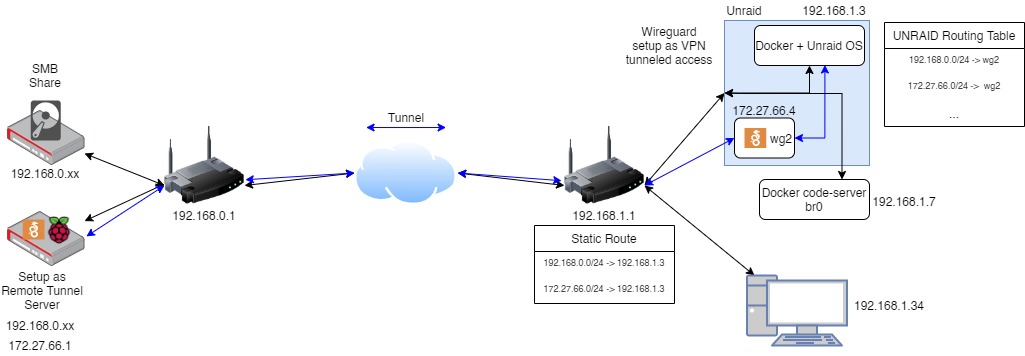

Below is my configuration
Local:

Router 192.168.1.1

Unraid 192.168.1.3 (Using one one ethernet eth0 to router)

Local Wireguard IP 172.27.66.4



Wireguard Subnet 172.27.66.0/24

Remote:

Router 192.168.0.1

Remote Wireguard IP 172.27.66.1







What I observed is that unraid routing table is not routing my traffic to wg2 interface.

Would like to know what changes should be done for the routing to be success



Thanks



[JorgeB]

Best bet is to post in one of the existing Wireguard support threads.

[bjun626]

18 hours ago, JorgeB said:

Best bet is to post in one of the existing Wireguard support threads.



I reposted it on

Cheers
