My nr1 partity disk stopped working, rebuilding not working

[Joentje]

Hi everyone,



I have 2 partity drives and 3 'normal' drives. All Seagate 2.5inch 5tb drives. My nr1 drives stopped working. Indicated with a red cross. I replaced the drive with a new one, and started the rebuild. But after couple minutes/hours it stops rebuilding without a message. All containers/vms stops.



After some time a get the message: Parity sync / Data rebuild finished (0 errors)
Duration: 4 hours, 19 minutes, 36 seconds. Average speed: nan B/s



This can not be true.



Hopefully you can help

diagnostics-20210723-1918.zip

Edited July 23, 2021 by Joentje

[JorgeB]

Diags are after rebooting so we can't see the problem, try again and post new diags before rebooting if the same thing happens.

[Joentje]

The wierd thing is, I didn't reboot. It's seems, when it fails (somehow). I need to login again in the Unraid UI.



New diagnostics attached.

diagnostics-20210723-2014.zip

[itimpi]

3 minutes ago, Joentje said:

The wierd thing is, I didn't reboot. It's seems, when it fails (somehow). I need to login again in the Unraid UI.



New diagnostics attached.

diagnostics-20210723-2014.zip 77.89 kB · 0 downloads

Those diagnostics just show the system starting up and then waiting for the user to do something.    The array has not even been started as auto-start is disabled.

[Joentje]

I have indeed disabled auto-start of the array.



But after like 10 min or so, when the rebuild is running, the Unraid server will reboot. Are there other logs that I can use for diagnostics?

[itimpi]

If the server reboots itself then that nearly always indicates a hardware issue of some sort.


I would think commonest is bad RAM, although in the current weather thermal shutdowns due to inadequate cooling may also be a culprit.



[Joentje]

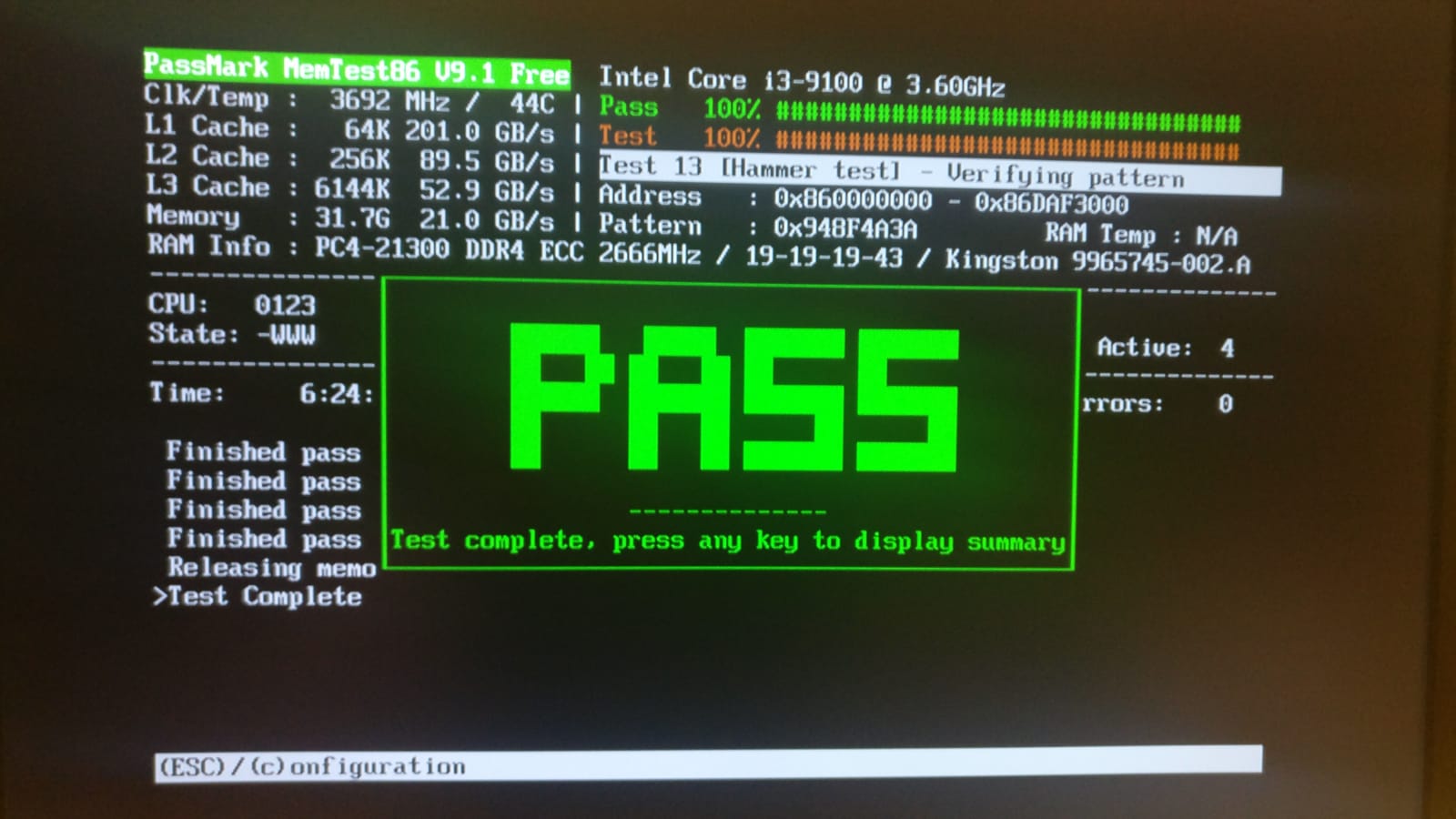

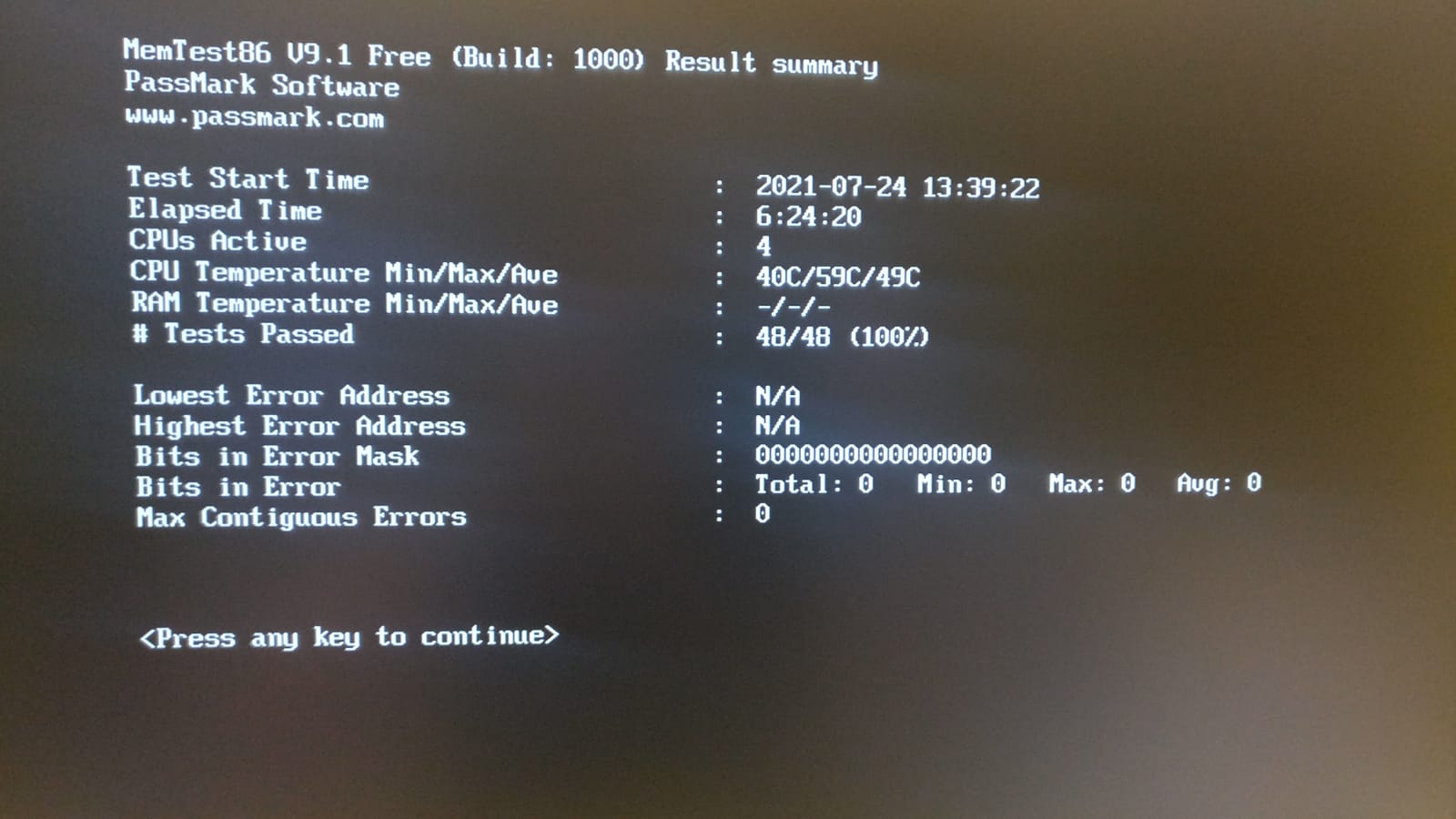

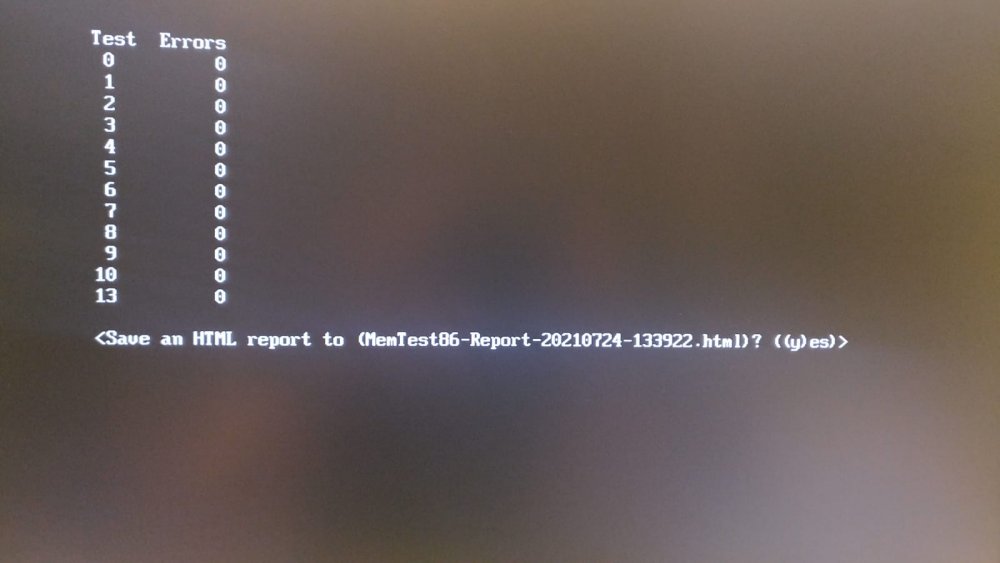

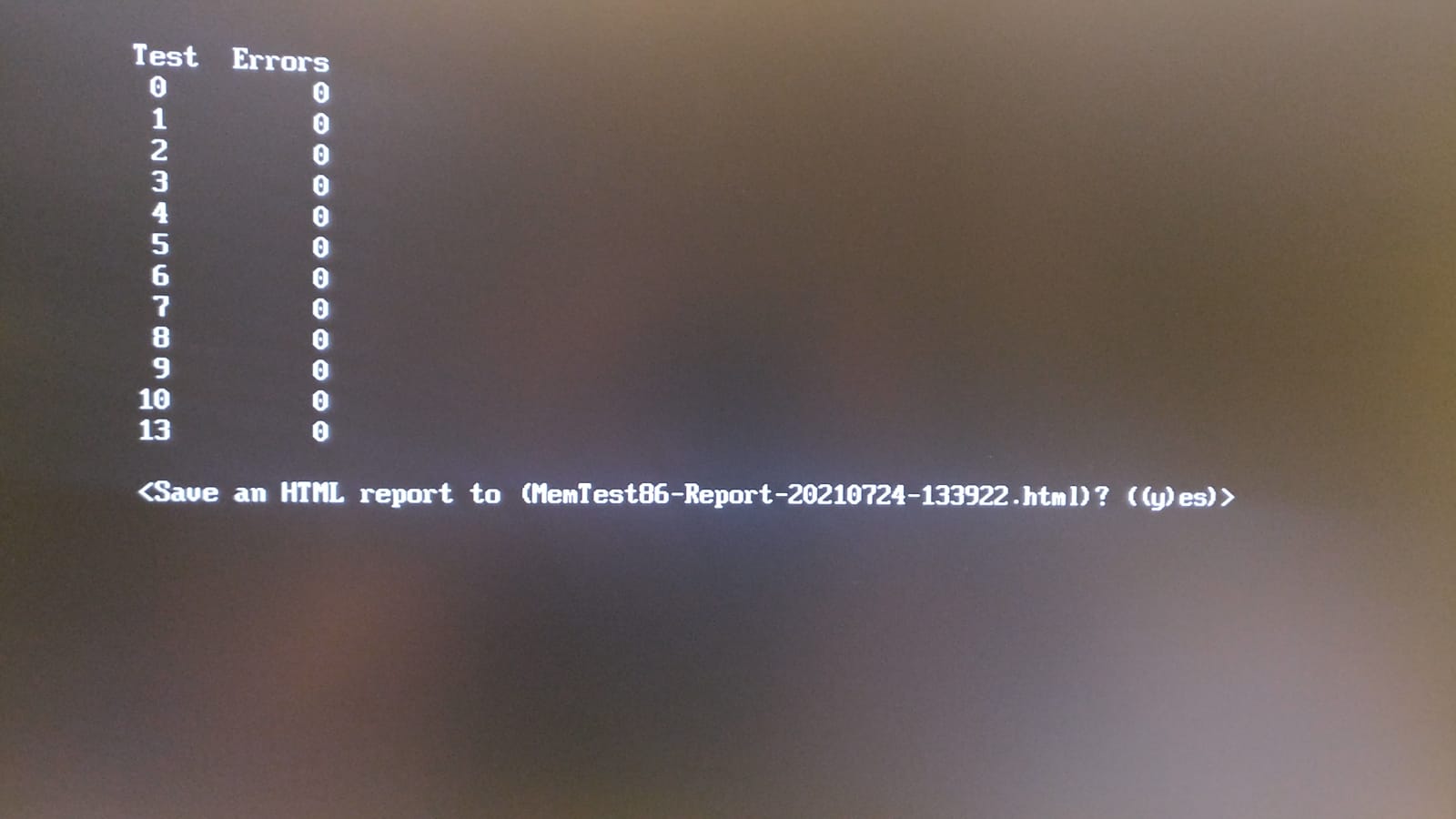

Finished a memtest, it passed. Seems to be no issue with the memory. I tried to run the memtest86 from Unraid, but seems to be freezed. So I created a usb with memtest86, that runs fine.
