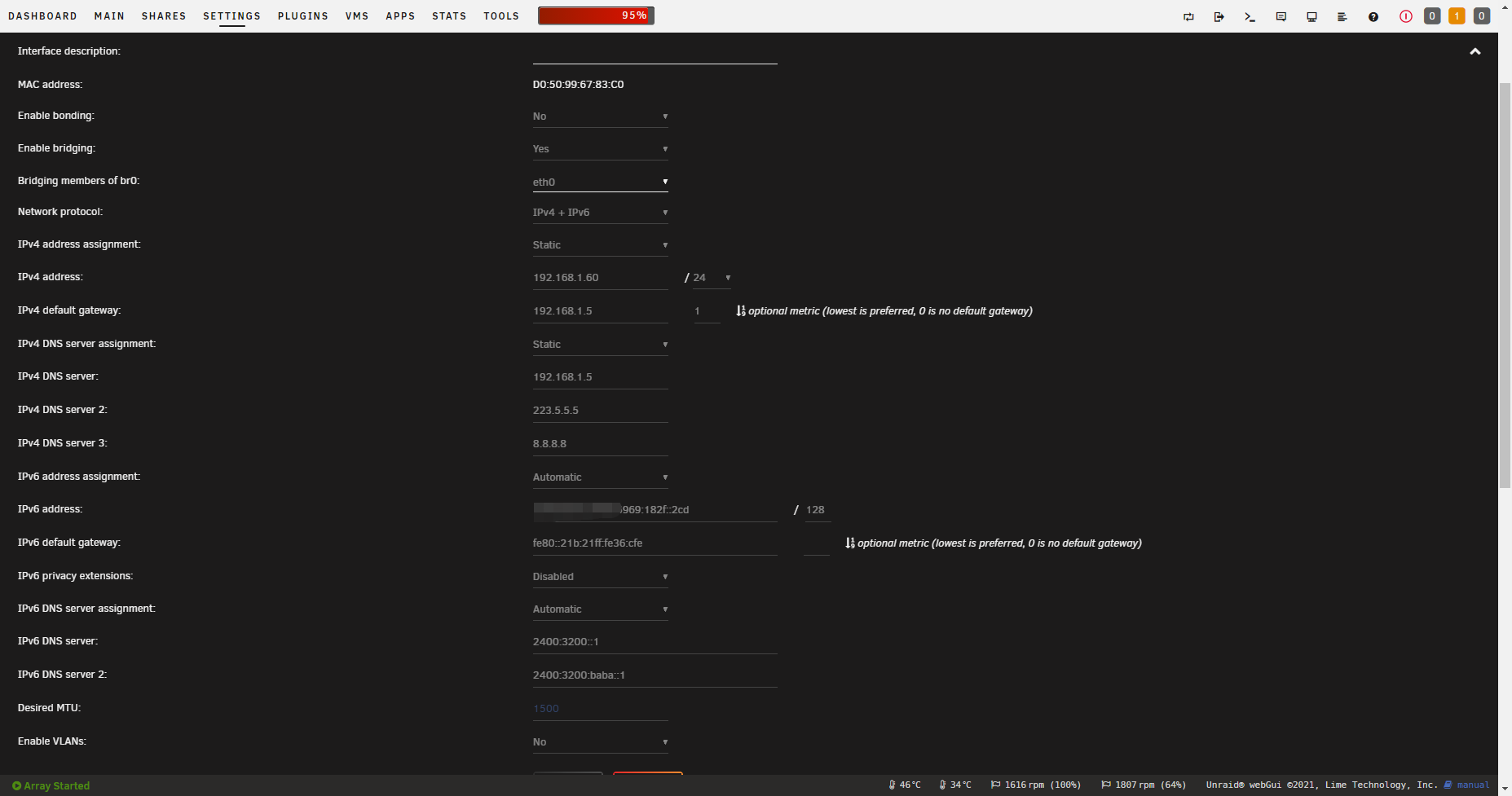

I have enable IPV6 for unraid, and the network setting can get the IPV6 address.

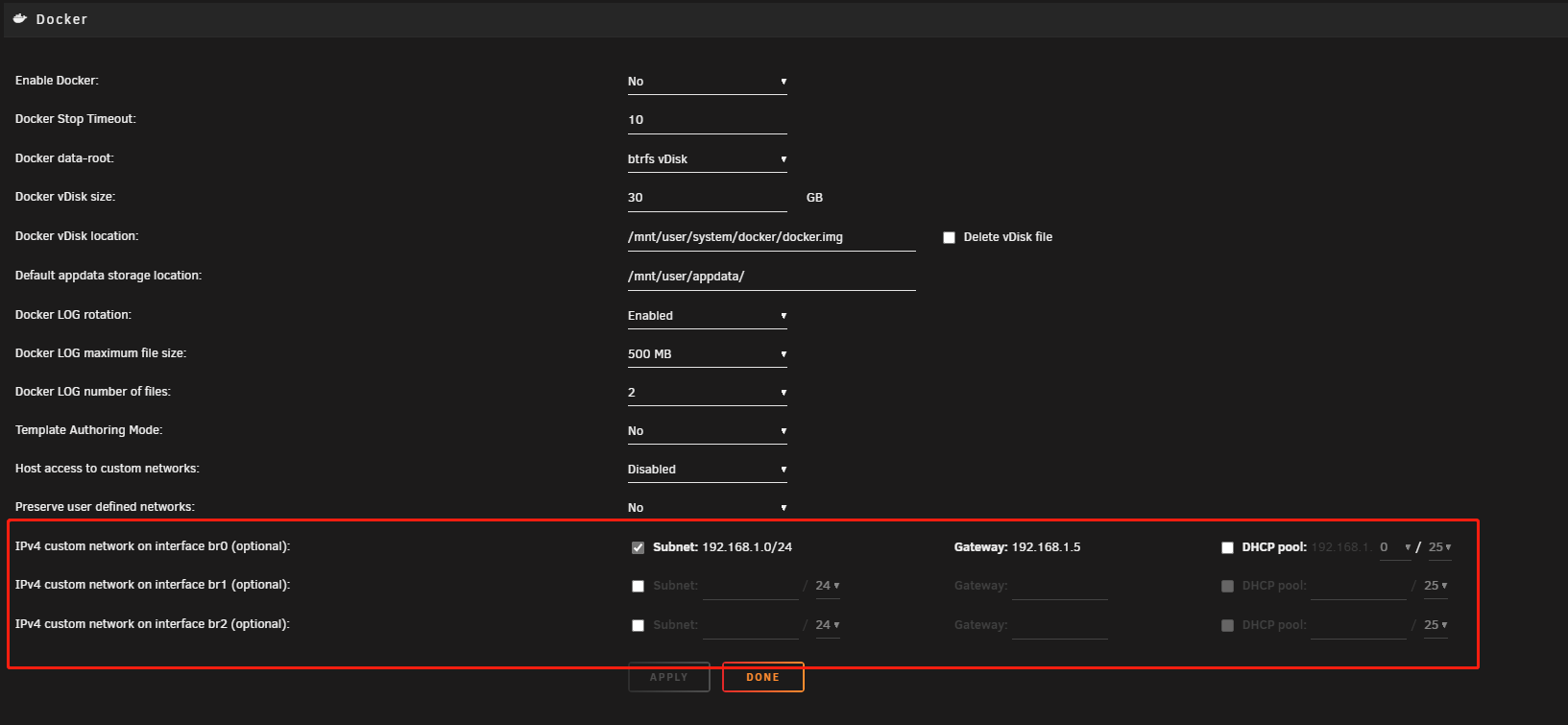

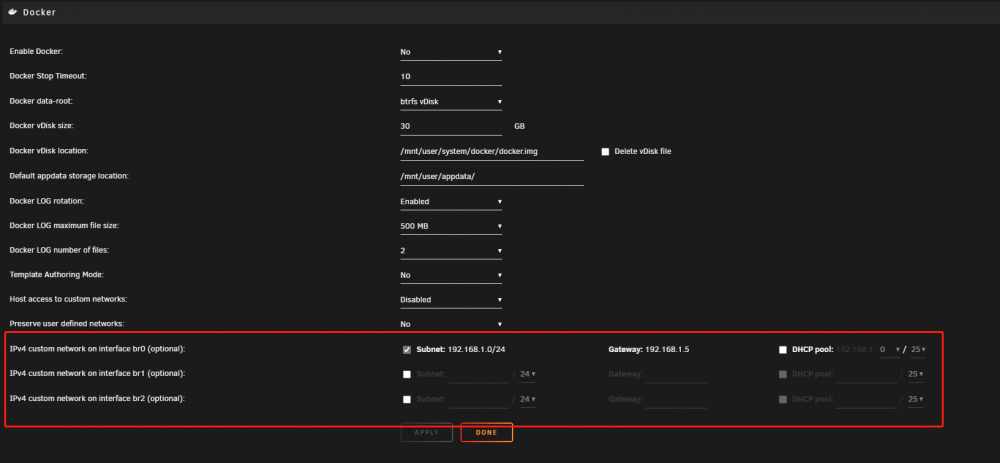

But in docker setting I can't found "IPv6 custom network on interface br0 (optional)", only IPv4.



Please HELP!





@bonienl

Can you show the output of

ip -6 addr



Hi Bonienl



Below is the output.



root@Tower:~# ip -6 addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 state UNKNOWN qlen 1000
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
9: eth0: <BROADCAST,MULTICAST,PROMISC,UP,LOWER_UP> mtu 1500 state UP qlen 1000
    inet6 fe80::d250:99ff:fe67:83c0/64 scope link
       valid_lft forever preferred_lft forever
10: br0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 state UP qlen 1000
    inet6 2408:8256:5682:7a50:182f::2cd/128 scope global dynamic noprefixroute
       valid_lft 6794sec preferred_lft 6794sec
    inet6 fe80::d250:99ff:fe67:83c0/64 scope link
       valid_lft forever preferred_lft forever
15: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 state UP
    inet6 fe80::42:63ff:fe15:ec76/64 scope link
       valid_lft forever preferred_lft forever
17: veth470a5d9@if16: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 state UP
    inet6 fe80::dc65:4cff:fe8c:656c/64 scope link
       valid_lft forever preferred_lft forever
20: vnet0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 state UNKNOWN qlen 1000
    inet6 fe80::fc54:ff:fe93:4aa9/64 scope link
       valid_lft forever preferred_lft forever
22: vethd66e27e@if21: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 state UP
    inet6 fe80::688a:ceff:feea:5a1a/64 scope link
       valid_lft forever preferred_lft forever
24: vethefd6d3f@if23: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 state UP
    inet6 fe80::2072:84ff:fe5e:7266/64 scope link
       valid_lft forever preferred_lft forever
25: vnet1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 state UNKNOWN qlen 1000
    inet6 fe80::fc54:ff:fe0a:678e/64 scope link
       valid_lft forever preferred_lft forever
27: vetha296016@if26: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 state UP
    inet6 fe80::3452:7bff:fead:180c/64 scope link
       valid_lft forever preferred_lft forever
28: vnet2: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 state UNKNOWN qlen 1000
    inet6 fe80::fc54:ff:fea8:3584/64 scope link
       valid_lft forever preferred_lft forever
29: vnet3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 state UNKNOWN qlen 1000
    inet6 fe80::fc50:56ff:fe21:f209/64 scope link
       valid_lft forever preferred_lft forever
33: vethf578a38@if32: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 state UP
    inet6 fe80::f0f8:8fff:fed0:34d8/64 scope link
       valid_lft forever preferred_lft forever
35: veth7e6ff9c@if34: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 state UP
    inet6 fe80::144e:3ff:fef5:ebfc/64 scope link
       valid_lft forever preferred_lft forever
38: vethf02d455@if37: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 state UP
    inet6 fe80::5874:c1ff:fe9c:fd4b/64 scope link
       valid_lft forever preferred_lft forever
40: veth0f75ea4@if39: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 state UP
    inet6 fe80::684e:c6ff:fe67:2de5/64 scope link
       valid_lft forever preferred_lft forever


Thx. I need this one too

ip -6 route show dev br0



Edited August 5, 20214 yr by bonienl

Please check.



root@Tower:~# ip -6 route show dev br0
2408:8256:5682:7a50:1000::/68 proto ra metric 210 mtu 1480 pref medium
2408:8256:5682:830b:1000::/68 proto ra metric 210 mtu 1480 pref medium
fe80::/64 proto kernel metric 256 pref medium
multicast ff00::/8 proto kernel metric 256 pref medium
default via fe80::21b:21ff:fe36:cfe proto ra metric 210 mtu 1480 pref medium

One more command to test

ip -6 route show dev br0 2408:8256:5682:7a50:182f::2cd/128



The ip6 address changed to 2408:8256:5682:830b:182f::2cd/128 after I rebooted the router, but no any output for both of these ip6 address.



root@Tower:~# ip -6 route show dev br0 2408:8256:5682:830b:182f::2cd/128
root@Tower:~# ip -6 route show dev br0 2408:8256:5682:7a50:182f::2cd/128


Ok, this explains why you are not seeing the IPv6 option under Docker.



I need to make an adjustment in the detection logic, this will be in a future release.



I have a question why others can get the IPv6 for docker?





And will the adjustment release on 6.9.3?

Usually address mask and route mask are equal, in your case these are different. The current detection logic doesn't take that into account.



A correction will come in version 6.10



Thanks, Bonienl
