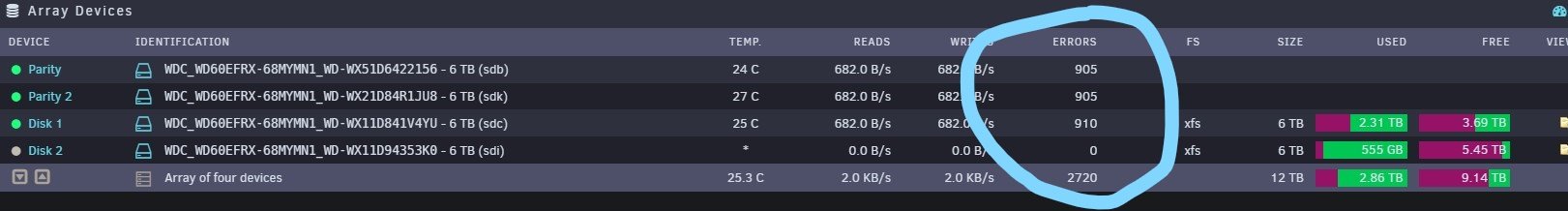

August 15, 20214 yr I'm having issues with regard too read errors, it seems as if the drives are not spinning up fast enough for unraid. Is there way to get unraid to wait on the drives being ready before trying to read from them?
August 15, 20214 yr Nothing to do with spinup times. More likely it's connection issues (sata designers should be shot, and the original version of the cable (non-locking) works better especially on WD drives) Post your diagnostics
August 15, 20214 yr Author ultron-diagnostics-20210815-2104.zip Squid. Please find attached the logs. Thanks for taking the time.
August 15, 20214 yr Author I've noticed that if I keep the parity drives spinning there's no issue so far.
August 16, 20214 yr Community Expert 4 hours ago, Mr_Jay84 said: I still have errors when the data drives are spinning up. You have a fair number of HD's attached to this system. I would be checking that +12V rail for the HD's has enough amperage to handle the spin-up current surge. Figure around 2amp for each 5400rpm drives and 2.5amp for each 7200rpm drives. On 8/15/2021 at 4:00 PM, Squid said: the original version of the cable (non-locking) works better especially on WD drives @Mr_Jay84, More info on this problem: https://support-en.wd.com/app/answers/detail/a_id/15954
August 16, 20214 yr Author It's a Corsair HX1200i PSU power shouldn't be an issue, plus the majority are powered down. Looks like I'll have to source some new SATA cables.
August 16, 20214 yr Community Expert 58 minutes ago, Mr_Jay84 said: Corsair HX1200i Do you have it configured for single rail 12V?
August 16, 20214 yr Community Expert After you replace those cables, double check that all SATA power and data cables are firmly seated together!
August 16, 20214 yr Author 7 minutes ago, trurl said: Do you have it configured for single rail 12V? Good question, I'm unsure. I'll check it tomorrow as it's up in the attic. 31 minutes ago, Frank1940 said: After you replace those cables, double check that all SATA power and data cables are firmly seated together! I shall do that. Post back again tomorrow with my findings. Thanks to all that have replied so far.
August 16, 20214 yr Community Expert 14 minutes ago, Mr_Jay84 said: I'll check it tomorrow as it's up in the attic. What! Is that attic temperature controlled? I had a quick look and at least one of those drives hit a temperature of 50C. That is a bit hotter than most of us want a drive to ever see! (<40C is where you want them.)
August 16, 20214 yr Author 10 minutes ago, Frank1940 said: What! Is that attic temperature controlled? I had a quick look and at least one of those drives hit a temperature of 50C. That is a bit hotter than most of us want a drive to ever see! (<40C is where you want them.) That was last year before I installed a plethora of fans lol. Rarely gets over 40c now on any of the drives. Most sit around 30c and below. This is Scotland so we only have a few hot months out the year. Edited August 16, 20214 yr by Mr_Jay84
August 17, 20214 yr Problem seems happen on all WD60EFRX-68M only and they connect cross two onboard SATA controller, other disks no such problem even same brand WDC. Any common point for those WD60EFRX-68M ? i.e. same power chain, SATA cable type etc .... Does this a new setup system or a used problem free system with Unraid ? Do you have 3rd add on SAS/SATA controller for verify ?
August 17, 20214 yr Author Right so I checked all the connections, everything appears to be seated properly. The PSU was set for multi-rail mode which has now been changed to Single. Lets see how this goes..... Edited August 17, 20214 yr by Mr_Jay84
August 17, 20214 yr Author 21 hours ago, Vr2Io said: Problem seems happen on all WD60EFRX-68M only and they connect cross two onboard SATA controller, other disks no such problem even same brand WDC. Any common point for those WD60EFRX-68M ? i.e. same power chain, SATA cable type etc .... Does this a new setup system or a used problem free system with Unraid ? Do you have 3rd add on SAS/SATA controller for verify ? They're on different power chains although the same SATA cable type. It's a problem free system. The drives were previously kept in full power mode because of this. I had tried to use power down a few months back. No add on card at present but I'm looking into picking one up for the DAS project. Edited August 17, 20214 yr by Mr_Jay84
August 19, 20214 yr Author No joy. I'll try changing the SATA cables. The other consideration is replacing some of the WD60EFRX-68MYMN1 drives with WD60EFRX-68L0BN1 drives. Apparently these are all the same drive model with different firmware. There's two 68L0BN1 acting as a download cache. These have no issue when spinning up when tested and error free. I'll know more when the new cables come. Edited August 20, 20214 yr by Mr_Jay84

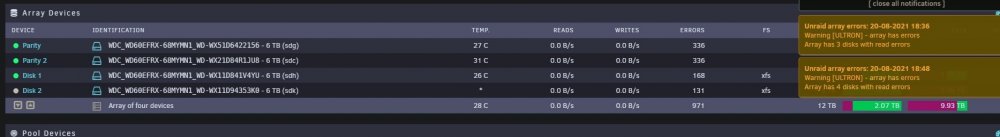

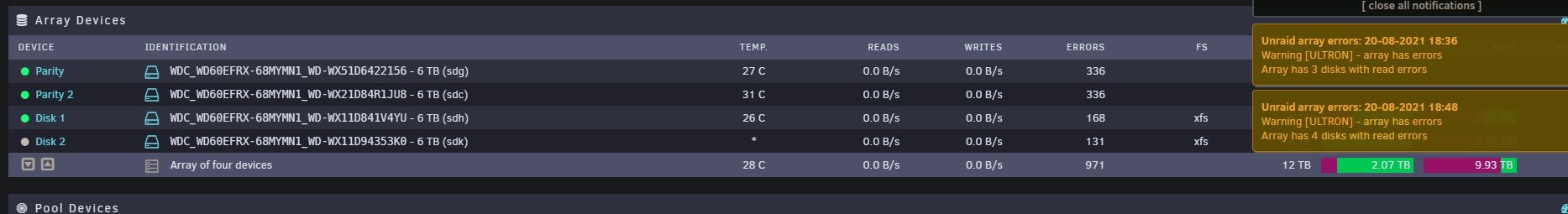

August 20, 20214 yr Author New SATA cables, different power chains still with read errors. I've also upgraded to 6.9.10 RC Next thing to try will be moving to an LSI card or swapping the drives for 68L0BN1 versions. Edited August 20, 20214 yr by Mr_Jay84
