[SOLVED] Disk Disabled / Errors - During Parity Check

[DivideBy0]

Dead Disk - In a weird and coincidental way it died right after I manually started a parity check

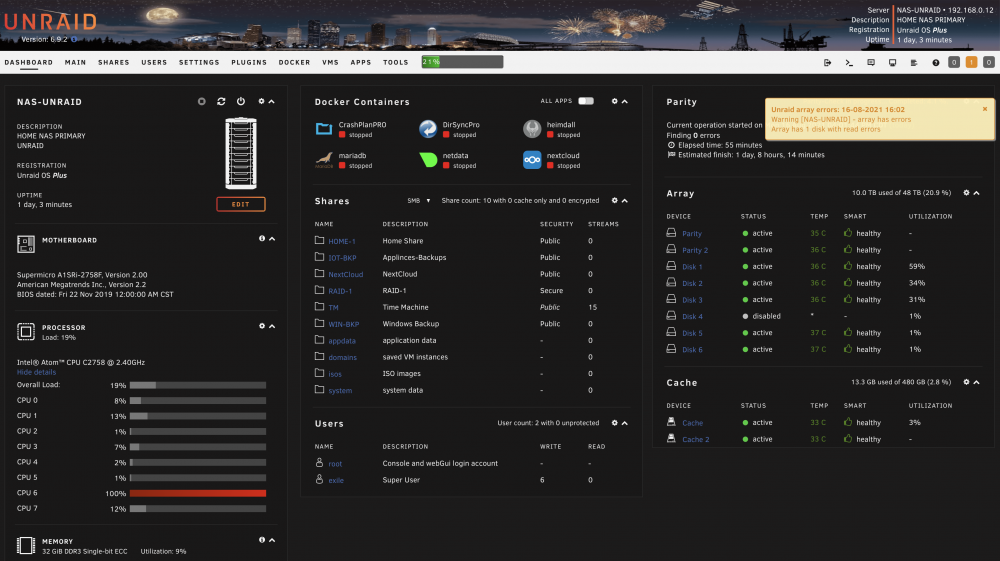

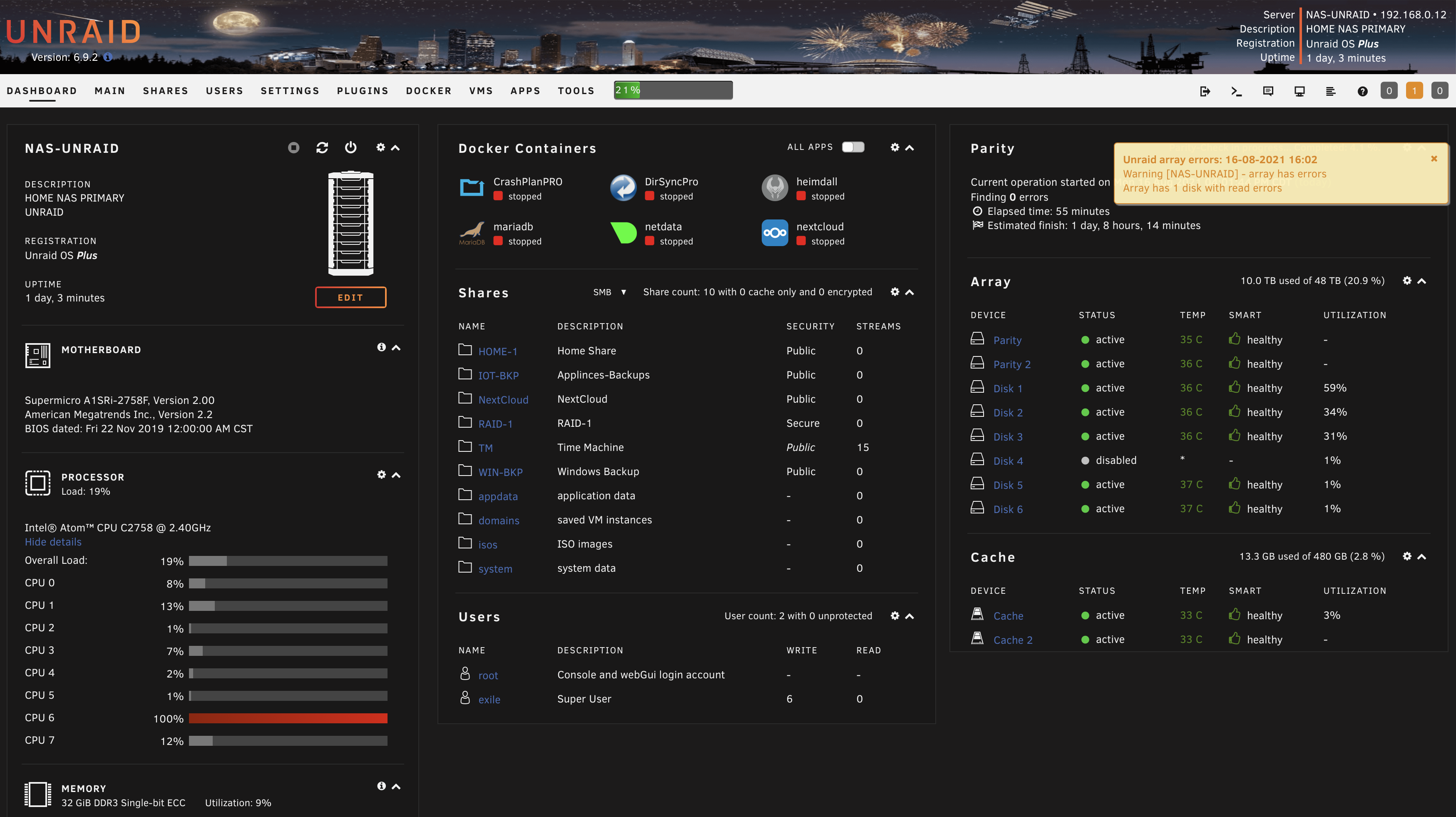

I just manually started my parity check with "Write corrections to parity"  disabled.  As it was running parity check, one of my Disk went in disabled state and I get "Array Disk Have Errors"   See attached screenshot.



In the syslog I get a lot of these:

[83311.219240] md: disk4 write error, sector=307985352

[83311.219244] md: disk4 write error, sector=307985360

[83311.219247] md: disk4 write error, sector=307985368





• Should I stop the parity check or let it continue?
• And how do I fix this the right way?  What are the next steps please?



This is my first rodeo to this. System was stable and rock solid for almost a year.



Many thanks





Edited August 17, 2021 by johnwhicker

[trurl]

Go to Tools - Diagnostics and attach the complete Diagnostics ZIP file to your NEXT post in this thread.

[DivideBy0]

34 minutes ago, trurl said:

Go to Tools - Diagnostics and attach the complete Diagnostics ZIP file to your NEXT post in this thread.



Thank you Sir.  Attached now...

nas-unraid-diagnostics-20210816-1715.zip

Edited August 16, 2021 by johnwhicker

[trurl]

32 minutes ago, johnwhicker said:



Thank you Sir.  Attached now...

SMART report for disk4 is incomplete for some reason. Emulated disk4 is mounted so that's good.



No point in continuing with parity check. Shutdown, check connections, reboot, post new diagnostics.

[DivideBy0]

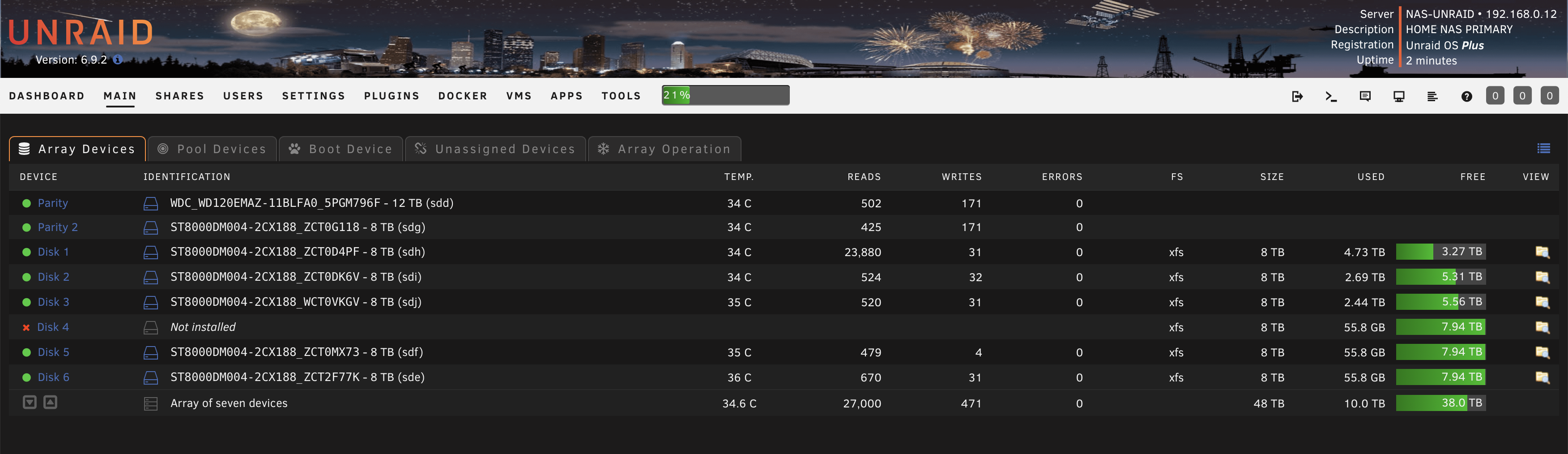

Very strange.  Rebooted and DISK4 is completely gone from the device list and from "array" menu? But I see no errors that the disk is not longer available?

I did check the connections.  Perhaps need to pull the disk out and see if is dead?  There is no light on.



See attached diagnostic...



nas-unraid-diagnostics-20210816-1800.zip

Edited August 16, 2021 by johnwhicker

[trurl]

That disk is missing in the diagnostics. Maybe try again with the connections.



Do you have a spare?

[DivideBy0]

1 hour ago, trurl said:

That disk is missing in the diagnostics. Maybe try again with the connections.



Do you have a spare?



The disk is completely DEAD.  I pulled it out and try it in a different system and it tries to starts, clanking noises and it dies. Is DEAD



So the Array didn't throw any errors?  Is that normal? I didn't have any data on that disk looks like.  This is my first disk failure so still learning

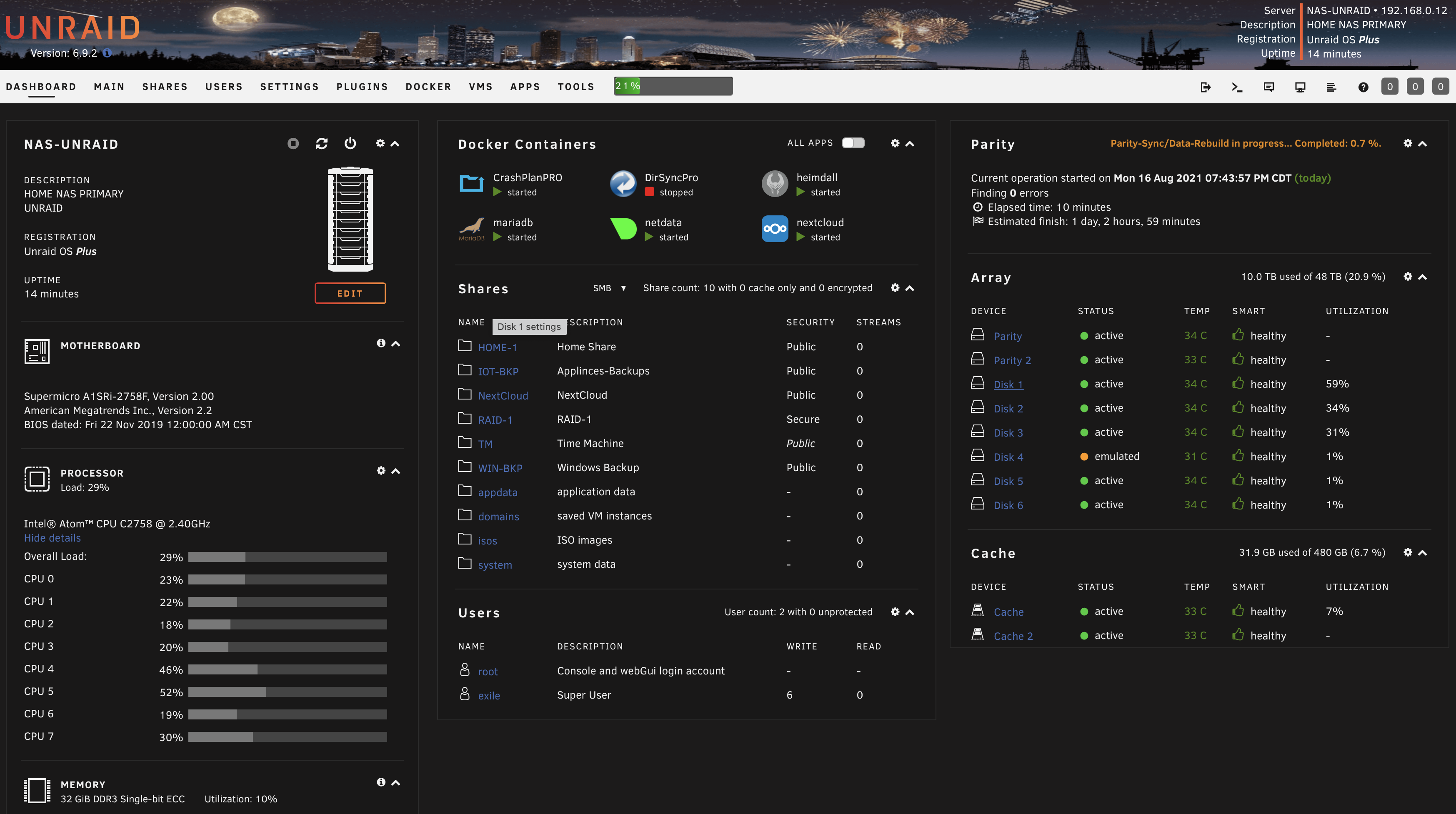

I robbed a disk from my spare / backup uNraid server and my array in this one is rebuilding as we speak.



Edited August 17, 2021 by johnwhicker

[trurl]

2 hours ago, johnwhicker said:

So the Array didn't throw any errors?  Is that normal?

Do you have Notifications setup to alert you immediately by email or other agent as soon as a problem is detected? Unraid monitors disk SMART, but I guess a sudden failure is possible.

[DivideBy0]

34 minutes ago, trurl said:

Do you have Notifications setup to alert you immediately by email or other agent as soon as a problem is detected? Unraid monitors disk SMART, but I guess a sudden failure is possible.

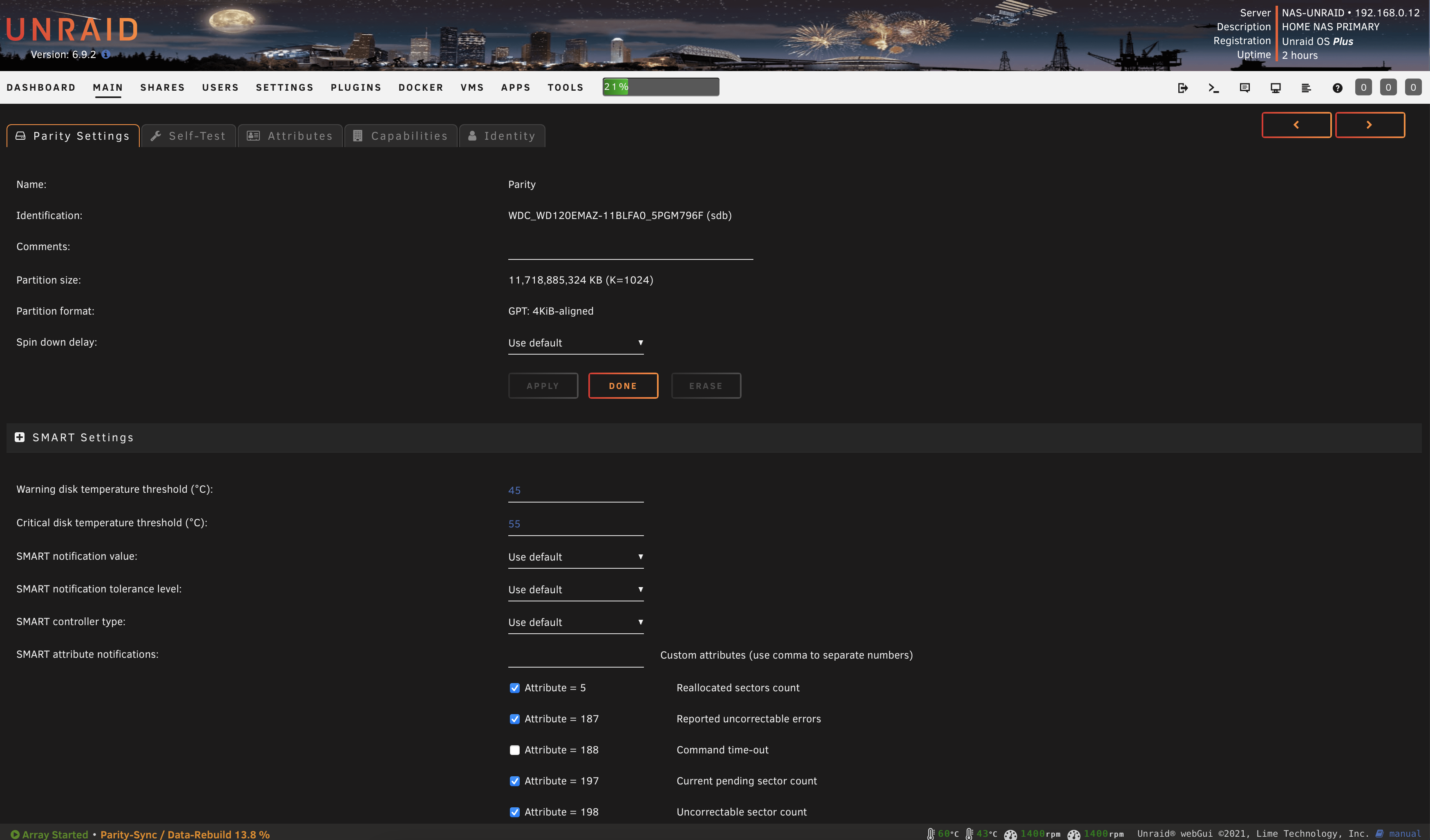

Whatever the default install gives me?  Where do I check the SMART notification settings?  I will check and report back.    Thanks Sir



I looked under Main and I have "Use Default"



Edited August 17, 2021 by johnwhicker

[trurl]

46 minutes ago, trurl said:

Notifications setup to alert you immediately by email

Settings - Notification Settings

[DivideBy0]

14 hours ago, trurl said:

Settings - Notification Settings



Copy that Sir.  Thanks
